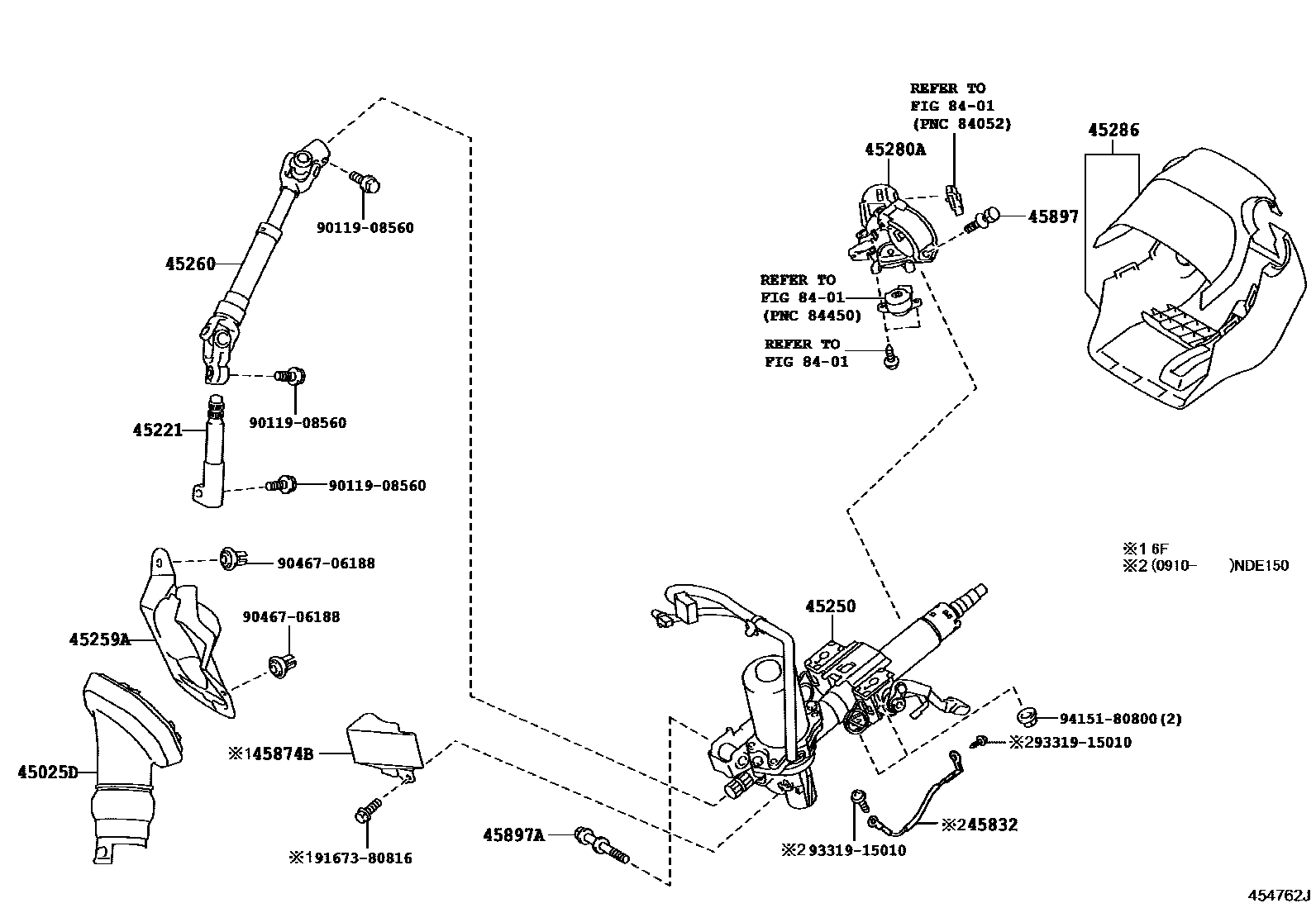

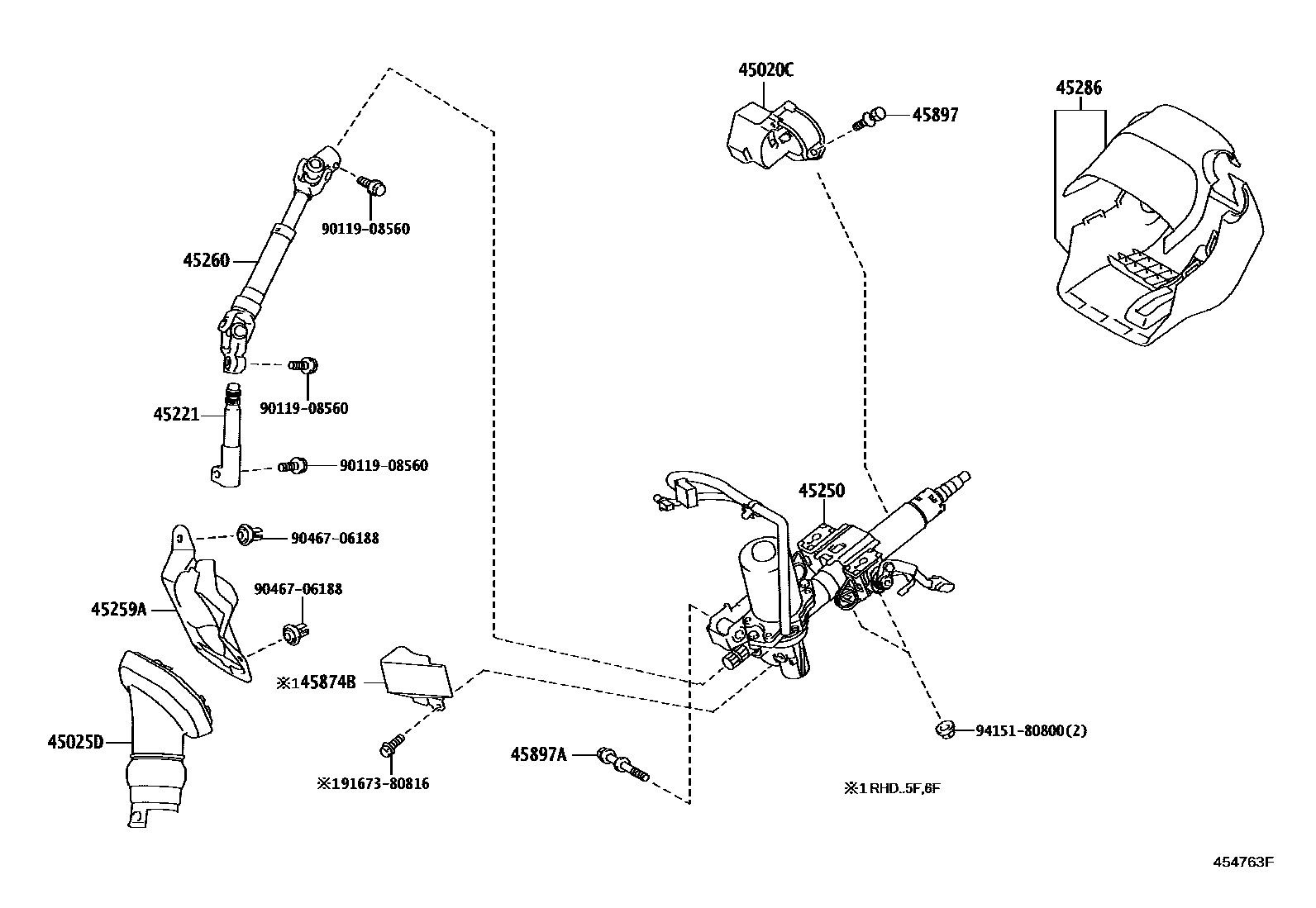

Toyota COROLLA Steering Column & Shaft — Figure 4501
Toyota COROLLA EPC diagram 4501, Steering Column & Shaft, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020C | ENS. ACTIONNEUR, ANTIVOL DIRECTION(AV/ECU) | 45020-42150 · 45020-42200 |
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-12280 · 45025-12300 |
| 45221 | steering intermediate shaft | 45221-12330 |
| 45250 | Steering column assembly | 45250-12B60 · 45250-12B61 · 45250-12B62 · 45250-12B70 · 45250-12B71 · 45250-12B72 · 45250-12B80 · 45250-12B81 · 45250-12B82 · 45250-12B90 · 45250-12B91 · 45250-12B92 |
| 45259A | Steering column hole cover silencer plate | 45259-12050 · 45259-12070 · 45259-12120 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-12520 · 45260-12550 · 45260-12730 · 45260-12740 · 45260-47070 · 45260-47080 |
| 45280A | Steering column upper bracket assembly | 45280-42140 · 45280-42160 |
| 45832 | Tilt-adjustable steering bracket connection cable | 45832-21010 |
| 45874B | No. 1 steering column guard | 45874-12090 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
| 45897A | Tilt-adjustable steering pawl retaining bolt | 45897-42010 |
