Toyota COROLLA Front Drive Shaft — Figure 4302

Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 5 images and 34 PNC and OE references.

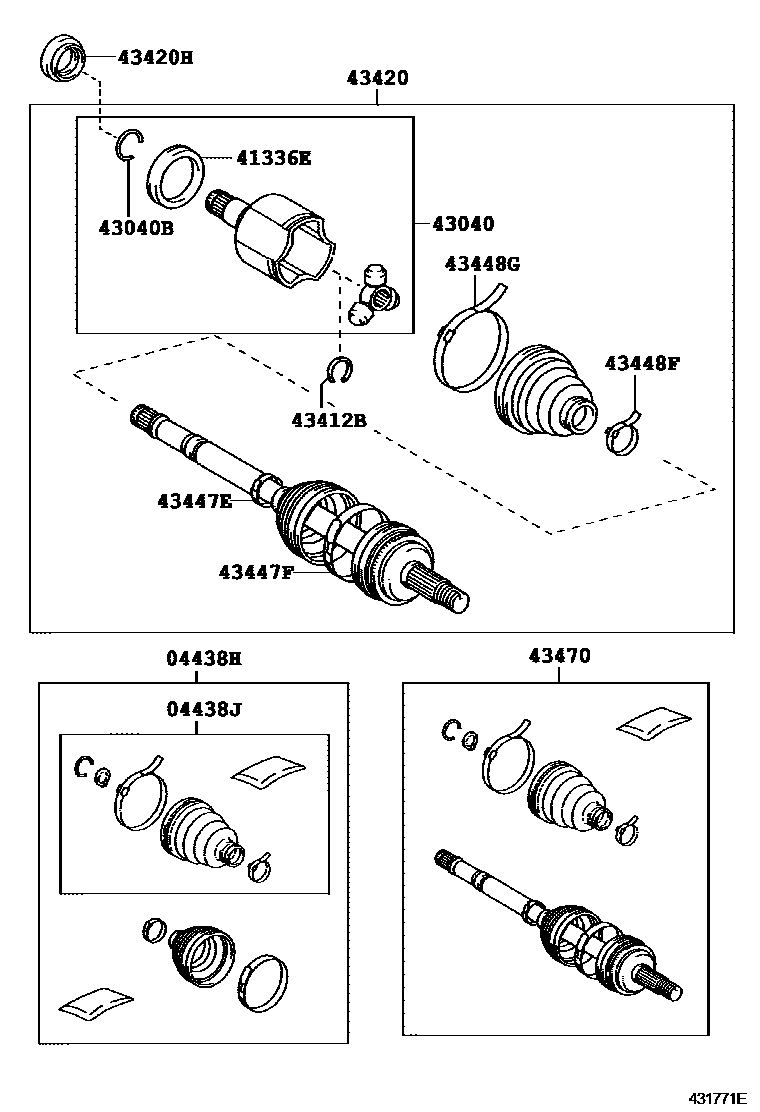

Toyota COROLLA Front Drive Shaft EPC diagram — 431771E
Front Drive Shaft — 431771E (200610 – 999999)

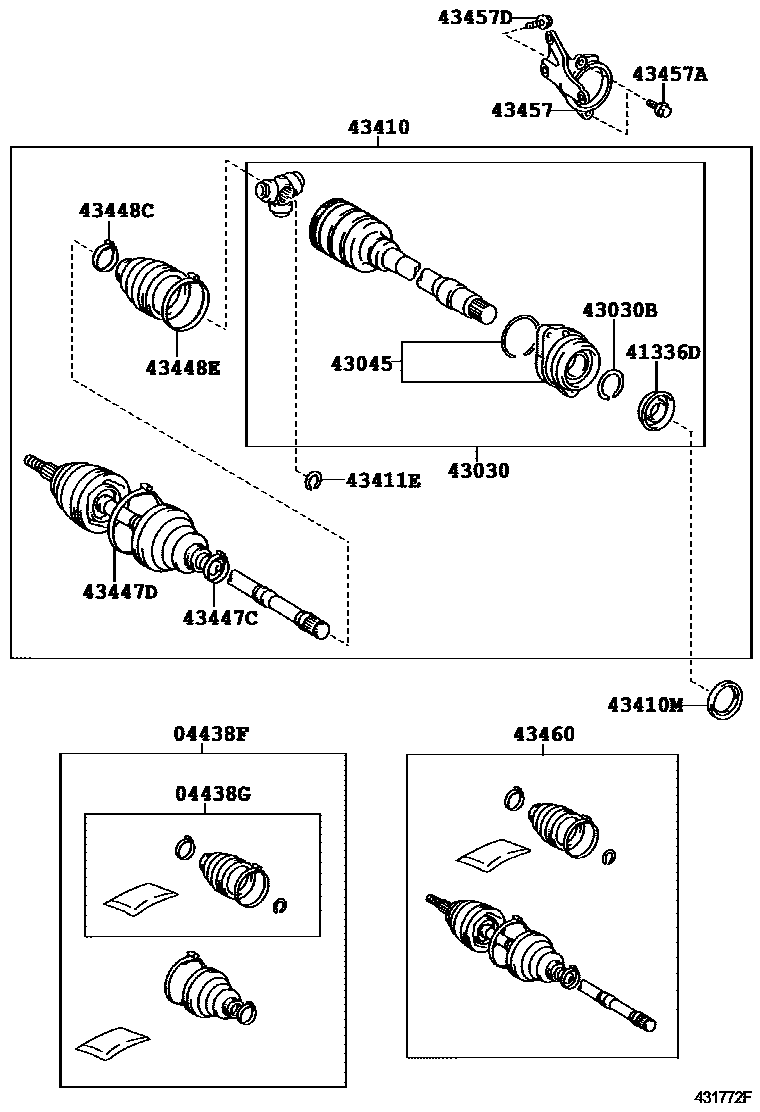

Toyota COROLLA Front Drive Shaft EPC diagram — 431772F
Front Drive Shaft — 431772F (200610 – 999999)

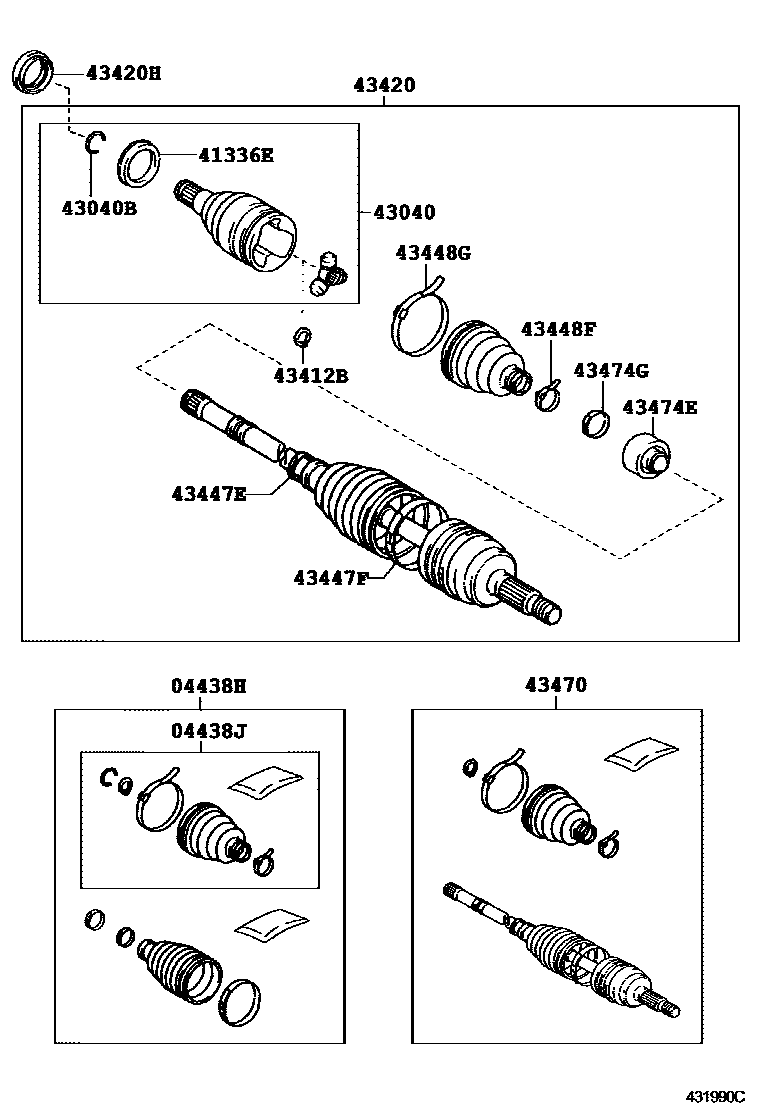

Toyota COROLLA Front Drive Shaft EPC diagram — 431990C
Front Drive Shaft — 431990C (200610 – 999999)
Toyota COROLLA Front Drive Shaft EPC diagram — 431999A
Front Drive Shaft — 431999A (200610 – 999999)

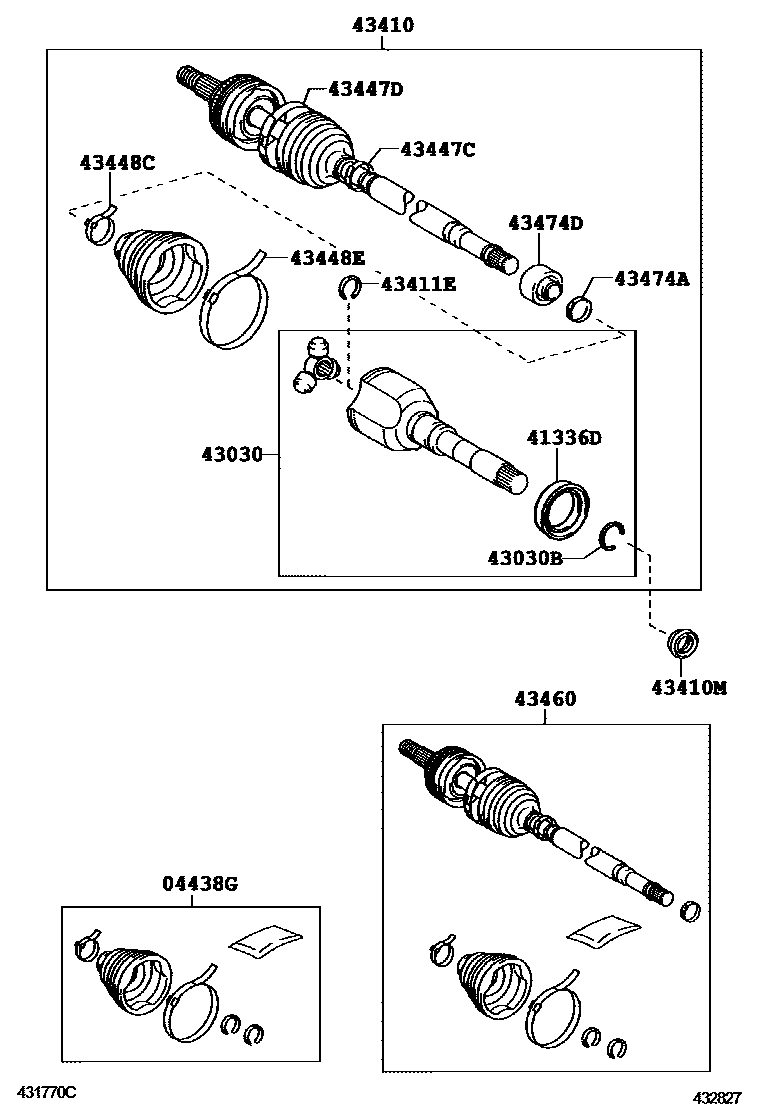

Toyota COROLLA Front Drive Shaft EPC diagram — 432827
Front Drive Shaft — 432827 (200610 – 999999)

PNC and OE references

PNCPart nameOE numbers
04438FRight front driveshaft inboard and outboard dust boot assembly04427-02410
04438GRight front drive shaft inner universal joint dust boot assembly04437-02280 · 04437-02290 · 04437-05070
04438HLeft front driveshaft inboard and outboard dust boot assembly04428-02410 · 04428-02420 · 04428-02440
04438JLeft front drive shaft inner universal joint dust boot assembly04437-02280 · 04437-02290 · 04438-05320
41336DRight front driveshaft dust cover41336-05010 · 41336-05100 · 41336-05140
41336ELeft front driveshaft dust cover41336-05010 · 41336-05130 · 41336-05140
43030Right front drive shaft inner universal joint assembly43030-05200 · 43040-02030 · 43040-05110
43030BHole snap ring (for right front drive shaft inboard universal joint)43425-05050 · 90080-52055 · 90080-52056
43040Left front drive shaft inner universal joint assembly43040-02030 · 43040-05110 · 43040-05141
43040BHole snap ring (for left front drive shaft inboard universal joint)43425-05070 · 90080-52055 · 90080-52056
43045Drive shaft bearing shell sub-assembly43045-64020
43410Right front driveshaft assembly43410-02570 · 43410-02580 · 43410-02581 · 43410-02590
43410MJOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MD90311-34033 · 90311-34037 · 90311-35057 · 90311-35062 · 90311-35065 · 90311-40030
43411EInner shaft snap ring (for right front axle inner drive shaft)43425-05040 · 90080-52093
43412BInner shaft snap ring (for left front axle inner drive shaft)43425-05040 · 90080-52093
43420Left front drive shaft assembly43420-02610 · 43420-02620 · 43420-02621 · 43420-02630
43420HJOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MG90311-34034 · 90311-35058 · 90311-35061 · 90311-35066 · 90311-50032
43447CClamp (for the outer universal joint dust cover of the right front axle)42345-05140 · 42345-05280
43447DNo. 2 clip (for the universal joint dust cover on the outside of the right front axle)42345-02220 · 42345-05270
43447EClamp (for left front axle outer universal joint dust cover)42345-05140 · 42345-05280
43447FNo. 2 clip (for left front axle outer universal joint dust cover)42345-02220 · 42345-05270
43448CClamp (for the universal joint dust cover inside the right front axle)42345-02240 · 42345-05250
43448ENo. 2 clip (for the universal joint dust cover inside the right front axle)42345-05030 · 42345-05210
43448FClamp (for left front axle inner universal joint dust cover)42345-02240 · 42345-05250
43448GClamp No. 2 (for the universal joint dust cover inside the left front axle)42345-05030 · 42345-05210
43457drive shaft bearing bracket43457-12060
43457ABolts (for securing the No. 1 drive shaft bearing bracket)90105-10361
43457DBolts (for securing the No. 2 drive shaft bearing bracket)90105-10381
43460Right front outer drive universal joint shaft assembly43460-09R20 · 43460-09R30 · 43460-09R31 · 43470-09S90
43470Left front outer drive universal joint shaft assembly43470-09S50 · 43470-09S51 · 43470-09S60 · 43470-09T00
43474AClamp (for securing driveshaft damper)42345-02230
43474DRight front driveshaft shock absorber43474-02150
43474ELeft front driveshaft shock absorber43474-02180
43474GClamp (for left front driveshaft shock absorber)42345-02320
