Toyota COROLLA 车轮和车轮盖 — Figure 4103

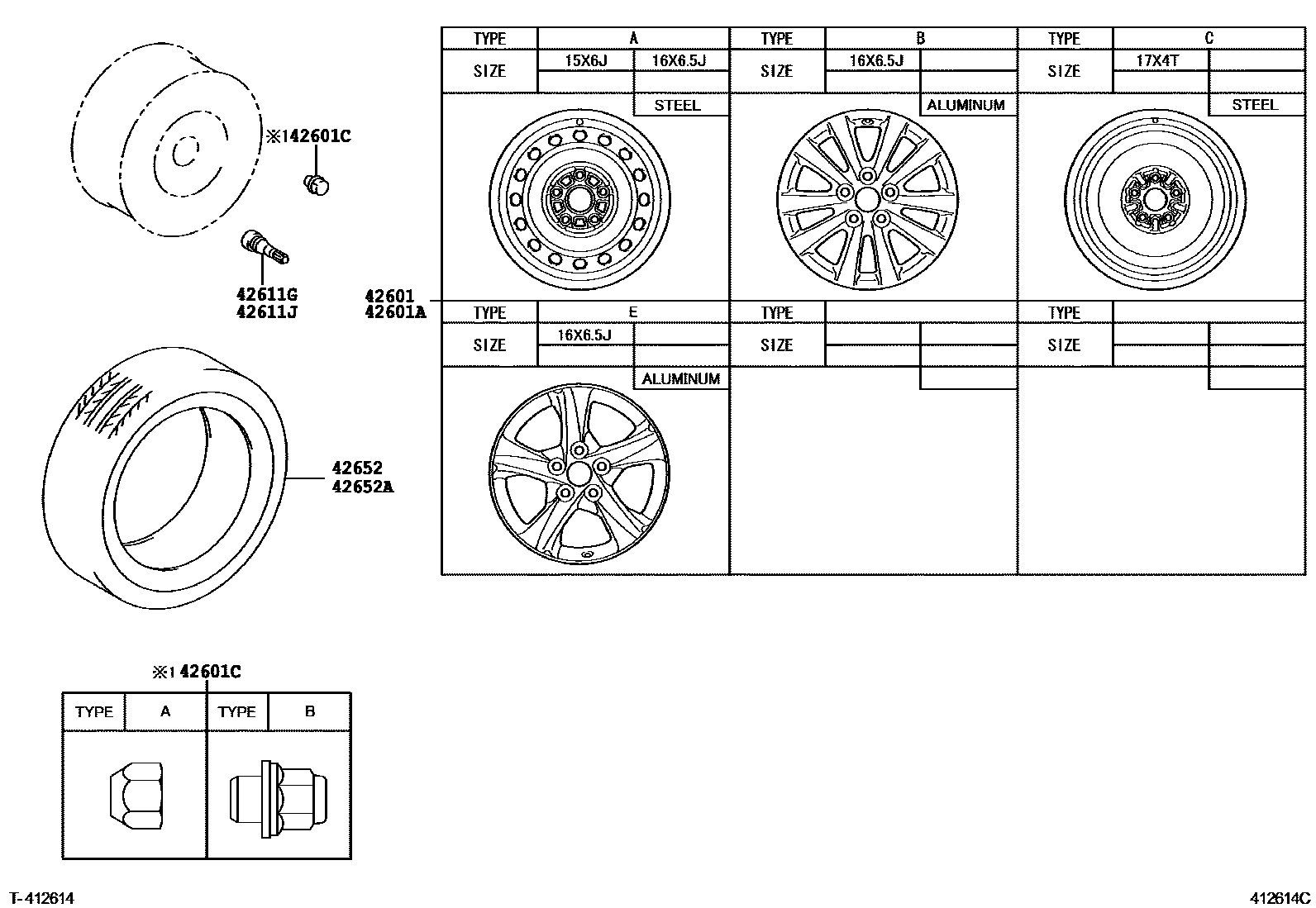

Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42601 | spoke wheel | 42611-12A00 · 42611-12A10 · 42611-12A20 · 42611-12A60 |
| 42601A | Spoke wheel (for spare tire) | 42611-12A00 · 42611-12A10 · 42611-12B30 · 42611-75100 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01033 |

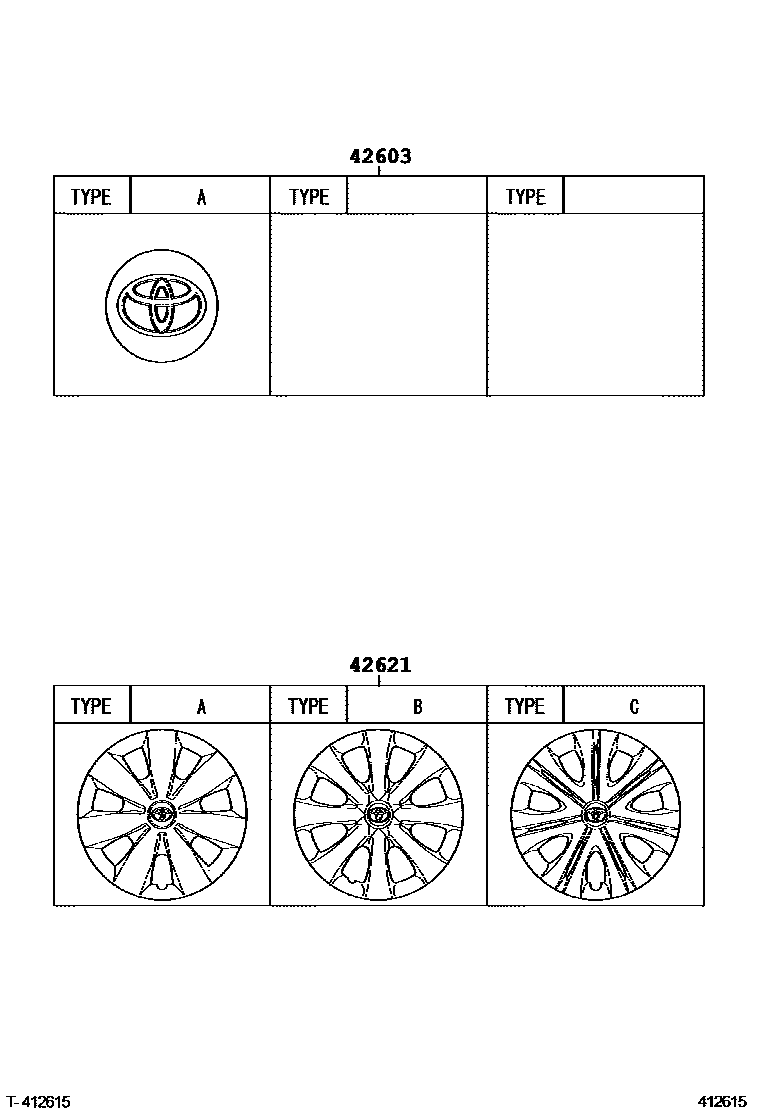

| 42603 | Wheel hub decorative parts sub-assembly | 42603-12730 · 42603-12750 · 42603-12760 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42621 | wheel cover | 42602-12720 · 42602-12730 · 42602-12740 · 42602-12800 · 42602-12810 · 42602-12820 |
| 42652 | tires | 42652-12B30 · 42652-12B50 · 42652-12B60 · 42652-12B70 · 42652-12B81 · 42652-12B91 · 42652-12C00 · 42652-12C01 · 42652-12C10 · 42652-12C11 · 42652-12C40 · 42652-12C50 · 42652-12C60 · 42652-12C70 · 42652-12D11 · 42652-12D21 · 42652-12D30 · 42652-12D31 · 42652-12D40 · 42652-12D41 · 42652-12F80 · 42652-12F90 |
| 42652A | Tire (for Spare Wheel) | 42652-05250 · 42652-12B30 · 42652-12B50 · 42652-12B60 · 42652-12B70 · 42652-12B81 · 42652-12B91 · 42652-12C00 · 42652-12C01 · 42652-12C10 · 42652-12C11 · 42652-12C40 · 42652-12C50 · 42652-12C60 · 42652-12C70 · 42652-12D11 · 42652-12D21 · 42652-12D30 · 42652-12D31 · 42652-12D40 · 42652-12D41 · 42652-12F80 · 42652-12F90 · 42652-2B460 |
