Toyota COROLLA 变速器齿轮(MTM) — Figure 3305

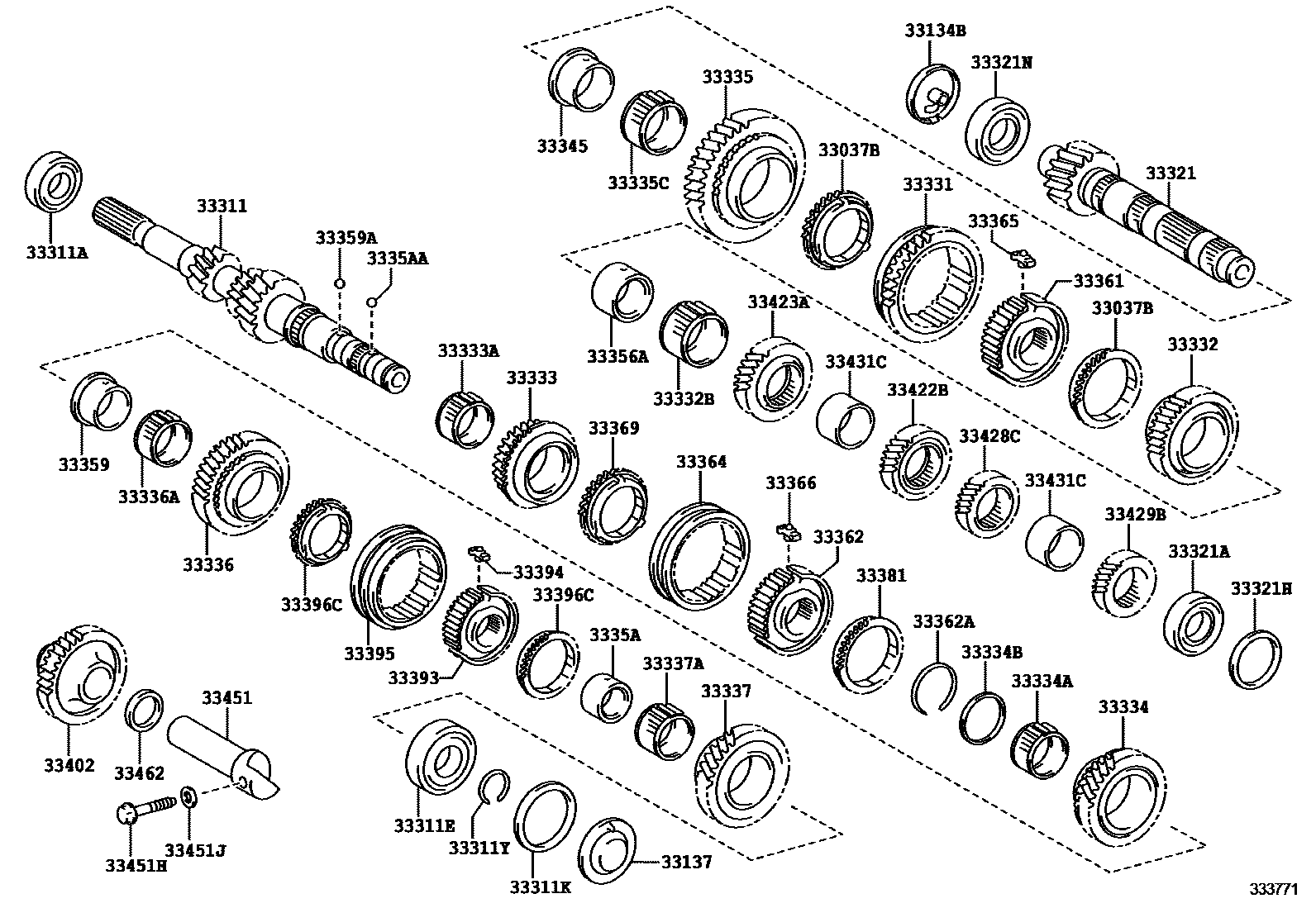

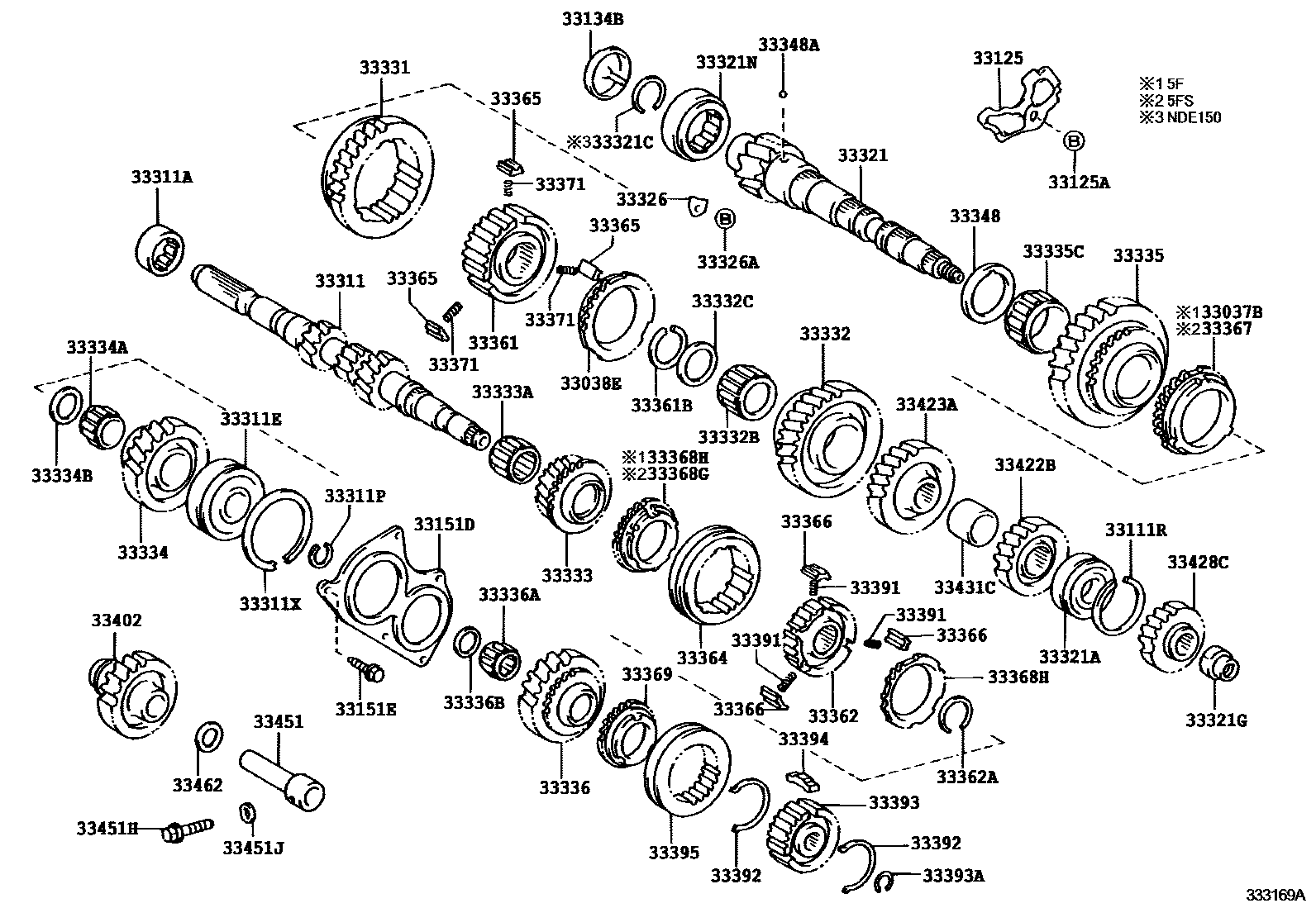

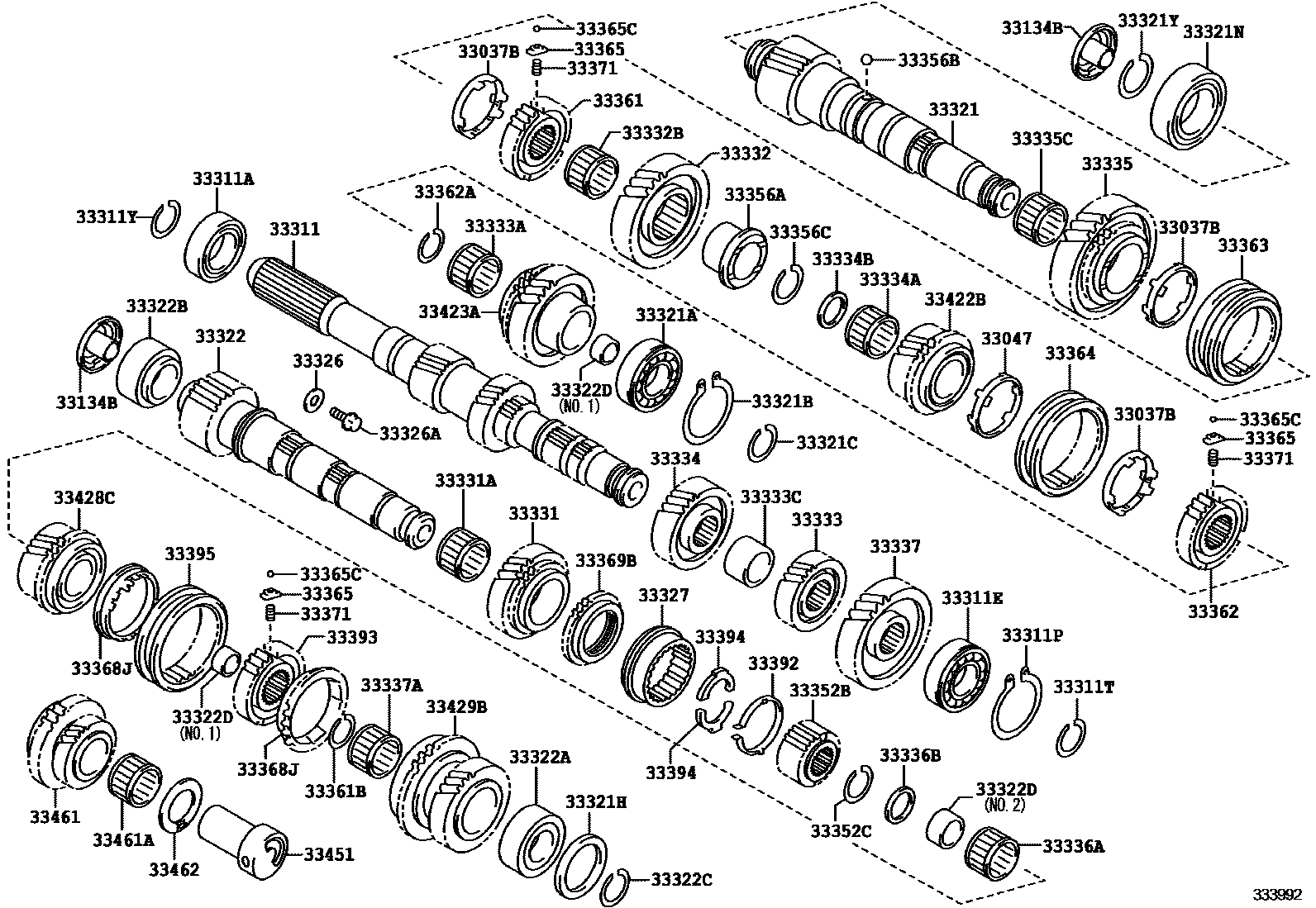

Toyota COROLLA EPC diagram 3305, 变速器齿轮(MTM), with 3 images and 100 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33037B | No. 1 synchronizer lock ring assembly | 33037-12040 · 33037-20060 · 33037-20100 |
| 33038E | No. 2 synchronizer lock ring assembly | 33038-12020 · 33038-17010 |
| 33047 | No. 4 synchronizer lock ring assembly | 33047-20010 |
| 33111R | Hole snap ring (for output shaft rear bearing) | 90520-57002 |
| 33125 | Manual transmission axle housing oil collection tank | 33125-12011 |
| 33125A | Bolt (for transaxle housing oil sump) | 91611-B0812 |
| 33134B | Output shaft cover (MTM) | 33134-12022 · 33134-20020 · 33134-20040 |
| 33137 | Input shaft cover (MTM) | 33137-20020 |
| 33151D | Rear bearing retainer (MTM) | 33151-52010 |
| 33151E | Bolt (for rear bearing retainer) | 90119-08944 |
| 33311 | input shaft | 33311-12230 · 33311-12280 · 33311-20230 · 33311-20240 |
| 33311A | Bearing (for front input shaft) | 90363-25081 · 90365-25021 · 90365-30032 |
| 33311E | Radial ball bearing (for rear input shaft) | 90363-25048 · 90363-25068 · 90363-28014 · 90363-32048 |
| 33311K | Spacer (for input shaft rear bearing) | 90564-54059 · 90564-54060 · 90564-54061 · 90564-54062 · 90564-54063 · 90564-54064 · 90564-54065 · 90564-54066 · 90564-54067 · 90564-54068 · 90564-54069 · 90564-54070 · 90564-54071 · 90564-54072 · 90564-54089 · 90564-54090 · 90564-54091 · 90564-54092 · 90564-54093 · 90564-54094 · 90564-54095 · 90564-54096 · 90564-54097 · 90564-54098 · 90564-54099 · 90564-54100 · 90564-54101 · 90564-54102 · 90564-54103 · 90564-54104 · 90564-54105 · 90564-54106 · 90564-54107 · 90564-54108 · 90564-54109 · 90564-54110 · 90564-54111 · 90564-54112 · 90564-54113 · 90564-54114 |
| 33311P | Shaft snap ring (for input shaft rear bearing) | 90520-22006 · 90520-22007 · 90520-22008 · 90520-22009 · 90520-22010 · 90520-22011 · 90520-72007 |
| 33311T | Shaft snap ring (for input shaft) | 90520-30034 · 90520-30035 · 90520-30036 · 90520-30037 · 90520-30038 · 90520-30039 · 90520-30040 · 90520-30041 · 90520-30214 · 90520-30215 · 90520-30216 · 90520-30217 · 90520-30218 · 90520-30219 · 90520-30239 |
| 33311X | Hole snap ring (for input shaft rear bearing) | 90520-64002 |
| 33311Y | Shaft snap ring (for input shaft rear bearing) | 90520-25059 · 90520-25062 · 90520-25063 · 90520-25064 · 90520-25065 · 90520-25066 · 90520-25067 · 90520-25068 · 90520-25069 · 90520-25070 · 90520-25071 · 90520-25072 · 90520-25074 · 90520-25075 · 90520-27080 |
| 33321 | output shaft | 33321-12190 · 33321-12210 · 33321-12300 · 33321-12310 · 33321-12320 · 33321-17020 · 33321-20210 · 33321-20230 · 33321-74020 |
| 33321A | Bearings (for rear output shaft) | 90363-32047 · 90366-30096 · 90903-63010 |
| 33321B | Shaft snap ring (for output shaft bearing) | 90520-77002 |
| 33321C | Shaft snap ring (for output shaft bearing) | 90520-30002 · 90520-30003 · 90520-30004 · 90520-30005 · 90520-30006 · 90520-30007 · 90520-30032 · 90520-30033 · 90520-30035 · 90520-30036 · 90520-30037 · 90520-30038 · 90520-30214 · 90520-30215 · 90520-30216 |
| 33321G | Nut (used to secure the manual transmission rear output shaft) | 90179-18005 |
| 33321H | Spacer (for output shaft rear bearing) | 90564-45092 · 90564-45093 · 90564-45094 · 90564-45095 · 90564-45096 · 90564-45097 · 90564-45098 · 90564-45099 · 90564-45100 · 90564-45101 · 90564-45102 · 90564-45103 · 90564-45104 · 90564-45105 · 90564-45106 · 90564-45107 · 90564-45108 · 90564-45109 · 90564-45110 · 90564-45111 · 90564-45112 · 90564-45113 · 90564-45114 · 90564-45115 · 90564-45116 · 90564-45117 · 90564-45118 · 90564-45119 · 90564-45120 · 90564-45121 · 90564-45122 · 90564-45123 · 90564-45124 · 90564-45125 · 90564-45126 · 90564-45127 · 90564-45128 · 90564-45129 · 90564-45130 · 90564-45131 · 90564-45132 · 90564-45133 · 90564-45134 · 90564-45135 · 90564-45136 · 90564-45137 · 90564-45138 · 90564-45139 · 90564-45140 · 90564-45141 · 90564-45142 · 90564-45143 · 90564-45144 · 90564-45145 · 90564-45146 · 90564-45147 · 90564-45148 · 90564-45149 · 90564-45150 · 90564-45151 · 90564-45152 · 90564-45153 · 90564-45154 · 90564-45155 · 90564-45156 · 90564-45157 · 90564-45158 · 90564-45159 · 90564-45160 · 90564-45161 · 90564-45162 · 90564-45163 · 90564-45164 · 90564-45165 · 90564-45166 · 90564-45167 · 90564-45168 · 90564-45169 · 90564-45170 · 90564-45171 · 90564-45172 · 90564-45173 · 90564-45174 · 90564-45175 · 90564-45176 · 90564-45177 · 90564-45178 · 90564-45179 · 90564-45180 · 90564-45181 · 90564-45182 · 90564-45183 · 90564-45184 · 90564-45185 · 90564-45186 · 90564-45187 · 90564-45188 · 90564-45189 · 90564-45190 · 90564-45191 · 90564-45192 · 90564-45193 · 90564-45194 · 90564-45195 |
| 33321N | Bearing (for front output shaft) | 90365-33005 · 90365-33006 · 90365-36005 · 90366-28016 |
| 33321Y | Shaft snap ring (for front output shaft bearing) | 90520-34030 |
| 33322 | No. 2 output shaft | 33322-20010 |
| 33322A | Bearing (for No. 2 rear output shaft) | 90366-32028 |
| 33322B | Bearing (for No. 2 front output shaft) | 90366-35139 |
| 33322C | Snap ring (for No. 2 output shaft bearing) | 90520-30035 · 90520-30036 · 90520-30037 · 90520-30038 · 90520-30214 · 90520-30215 · 90520-30216 |
| 33322D | Collar (for output shaft) | 90386-36001 · 90386-42001 |
| 33326 | Bearing locking plate | 33326-12010 · 33326-20020 |
| 33326A | Bolt (for bearing locking plate) | 91611-B0812 |
| 33327 | No. 4 transmission hub sleeve | 33327-20010 |
| 33331 | reverse gear | 33331-12060 · 33331-12070 · 33331-20080 · 33331-20090 |
| 33331A | Bearing (for reverse gear) | 90364-47009 |
| 33332 | Second gear | 33332-12100 · 33332-12140 · 33332-12170 · 33332-20120 · 33332-20150 · 33332-20160 |
| 33332B | Needle roller bearing (for second gear gear) | 90364-32014 · 90364-47011 · 90364-50004 |
| 33332C | Spacer (for second gear bearing) | 90560-32008 |
| 33333 | Third gear | 33034-12150 · 33034-12220 · 33034-20120 · 33333-20110 |
| 33333A | Needle roller bearing (for third gear) | 90364-31002 · 90364-36020 · 90364-36022 · 90364-37015 |
| 33333C | Collar (for third gear) | 90387-37002 |
| 33334 | fourth gear | 33035-12140 · 33035-12160 · 33035-20161 · 33035-20210 · 33334-20060 |
| 33334A | Needle roller bearing (for fourth gear) | 90364-29002 · 90364-37015 · 90364-42004 · 90364-42007 |
| 33334B | Spacer (for fourth gear bearing) | 90560-29001 · 90560-37004 · 90560-42002 |
| 33335 | first gear | 33032-12060 · 33032-12090 · 33335-12120 · 33335-12190 · 33335-20140 · 33335-20160 |
| 33335C | Needle roller bearing (for first gear) | 90364-38007 · 90364-47009 · 90364-47010 |
| 33336 | fifth gear | 33036-12120 · 33036-12130 · 33036-12210 · 33036-12220 · 33036-20060 · 33036-20070 · 33036-20110 · 33036-52060 |
| 33336A | Needle roller bearings (for fifth gear) | 90364-24006 · 90364-37015 · 90364-42004 · 90364-42007 |
| 33336B | Spacer (for fifth gear bearing) | 90560-25006 · 90560-42002 |
| 33337 | Sixth speed gear sub-assembly | 33037-12050 · 33037-12060 · 33037-20050 · 33037-52020 · 33337-20060 · 33337-20070 |
| 33337A | Needle roller bearing (for sixth gear) | 90364-35011 · 90364-36019 · 90364-36023 |
| 33345 | First gear bushing | 33345-20030 |
| 33348 | First gear thrust washer | 33348-12010 |
| 33348A | Pin or steel ball (for first gear thrust washer) | 90360-05012 |
| 33352B | No. 4 transmission clutch hub | 33352-20010 |
| 33352C | Shaft snap ring | 90520-39038 · 90520-39039 · 90520-39040 · 90520-39041 · 90520-39042 · 90520-39043 · 90520-39044 · 90520-39045 |
| 33356A | Second gear gear bearing inner race | 33356-20040 · 33356-20050 |
| 33356B | Second gear gear bearing inner race locking steel ball | 90360-06004 |
| 33356C | Snap ring (for second gear bearing inner race) | 90520-39046 · 90520-39047 · 90520-39048 · 90520-39049 · 90520-39050 · 90520-39051 · 90520-39052 · 90520-39053 |
| 33359 | Fifth gear gear bearing inner race | 33359-20010 |
| 33359A | Fifth gear gear bearing inner race locking steel ball | 90360-05012 |
| 3335A | Sixth gear bearing inner race (MTM) | 3335A-20010 |
| 3335AA | Six-speed gear bearing inner race locking steel ball (MTM) | 90360-05012 |
| 33361 | No. 1 transmission clutch hub | 33361-12080 · 33361-20060 · 33361-20070 · 33361-52030 |
| 33361B | Shaft snap ring (for clutch hub No. 1) | 90520-29018 · 90520-29019 · 90520-29020 · 90520-29021 · 90520-29022 · 90520-29023 · 90520-33030 · 90520-33031 · 90520-33032 · 90520-33034 · 90520-33035 · 90520-33036 |
| 33362 | No. 2 transmission clutch hub | 33362-12040 · 33362-12050 · 33362-20030 · 33362-20040 |
| 33362A | Shaft snap ring (used to secure No. 2 clutch hub) | 90520-27046 · 90520-27047 · 90520-27048 · 90520-27049 · 90520-27050 · 90520-27051 · 90520-33030 · 90520-33031 · 90520-33032 · 90520-33034 · 90520-33035 · 90520-33036 · 90520-35034 · 90520-35035 · 90520-35036 · 90520-35037 · 90520-35038 · 90520-35039 · 90520-35040 · 90520-35041 |
| 33363 | No. 1 transmission hub sleeve | 33363-20040 |
| 33364 | No. 2 transmission hub sleeve | 33364-12050 · 33364-12060 · 33364-20060 · 33364-20070 |
| 33365 | No. 1 synchromesh shift key | 33365-20080 · 33365-52030 · 33365-53010 |
| 33365C | Steel ball (for synchromesh shift key) | 90360-05010 |
| 33366 | No. 2 synchromesh shift key | 33365-20080 · 33366-52030 |
| 33367 | Synchronizer lock ring No. 1 | 33367-20070 |
| 33368G | Synchronizer locking ring (for third gear) | 33368-20080 |
| 33368H | Synchronizer ring (for fourth gear) | 33368-12210 |
| 33368J | Synchronizer ring (for fifth gear) | 33385-20020 |
| 33369 | No. 3 synchronizer lock ring | 33369-20040 · 33369-20050 |
| 33369B | No. 4 synchronizer lock ring | 33381-20010 |
| 33371 | No. 1 synchromesh shift key spring | 33371-20030 · 33371-52030 |
| 33381 | Second gear synchronizer outer locking ring | 33381-20020 |
| 33391 | No. 2 synchromesh shift key spring | 33391-52020 |
| 33392 | No. 3 synchromesh shift key spring | 33391-12030 · 33392-35010 |
| 33393 | No. 3 transmission clutch hub | 33393-12031 · 33393-12060 · 33393-20030 · 33393-20040 |
| 33393A | Shaft snap ring (for No. 3 transmission clutch hub) | 90520-18002 · 90520-18003 · 90520-18004 · 90520-18006 · 90520-18007 · 90520-18008 · 90520-18009 |
| 33394 | No. 3 synchromesh shift key | 33365-20080 · 33394-20020 · 33394-52020 |
| 33395 | No. 3 transmission hub sleeve | 33395-12040 · 33395-20041 · 33395-20050 · 33395-20060 |
| 33396C | No. 5 synchronizer locking ring (MTM) | 33396-20010 |
| 33402 | Reverse idler gear sub-assembly | 33402-12042 · 33402-20080 |
| 33422B | Fourth gear driven gear | 33035-20200 · 33422-12050 · 33422-12090 · 33422-12110 · 33422-20070 |
| 33423A | Third gear driven gear | 33034-20100 · 33423-12010 · 33423-12070 · 33423-20080 |
| 33428C | fifth speed driven gear | 33036-20100 · 33428-12050 · 33428-12060 · 33428-12100 · 33428-12110 · 33428-12150 · 33428-12160 · 33428-20110 · 33428-52030 |
| 33429B | Sixth speed driven gear | 33037-20030 · 33037-20040 · 33429-12030 · 33429-12040 · 33429-20050 · 33429-52020 |
| 33431C | Output gear spacer | 33431-12010 · 33431-20090 |
| 33451 | Reverse gear idler shaft | 33451-12021 · 33451-20050 · 33451-20060 |
| 33451H | Bolt (for reverse idler shaft) | 90105-08150 · 90109-08097 |
| 33451J | Gasket (for reverse idler shaft) | 90430-08010 |
| 33461 | reverse idler gear | 33461-20070 |
| 33461A | Reverse idler bearing | 90364-37014 |
| 33462 | Reverse idler thrust washer | 33462-12010 · 33462-20060 · 33462-20070 |
