Toyota COROLLA 离合器壳和变速器壳(MTM) — Figure 3302

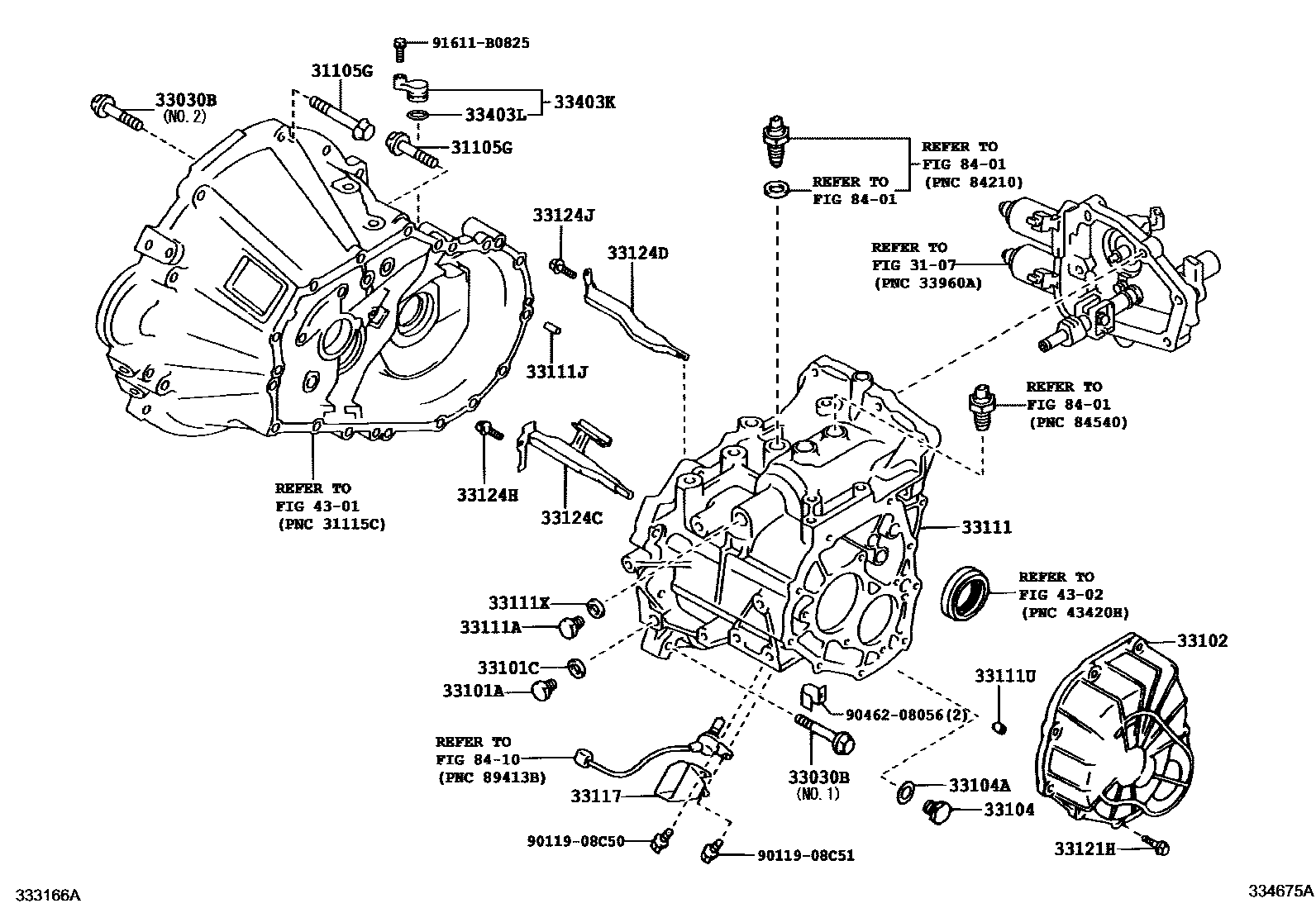

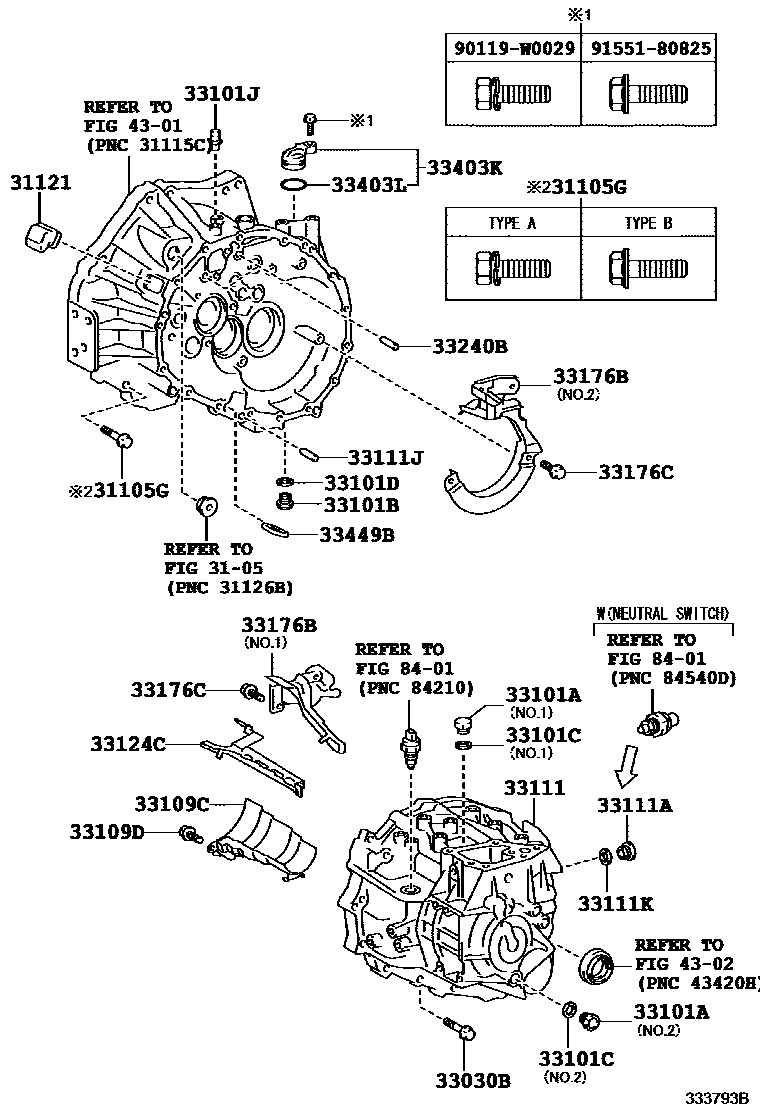

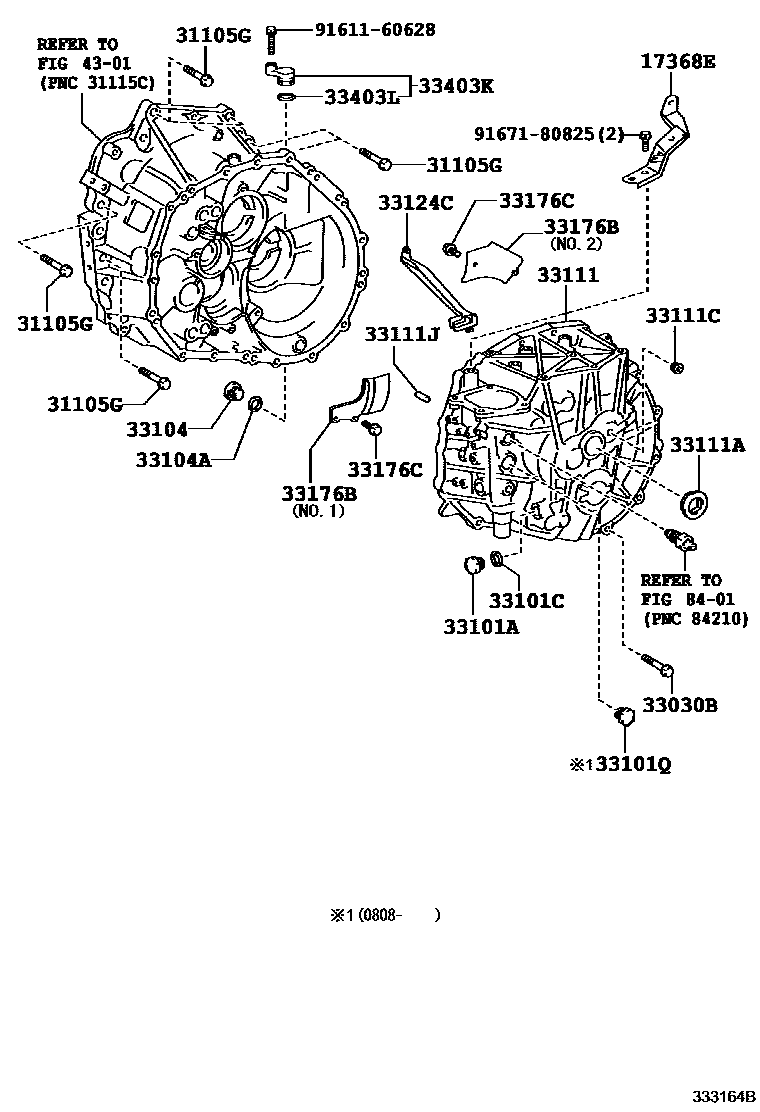

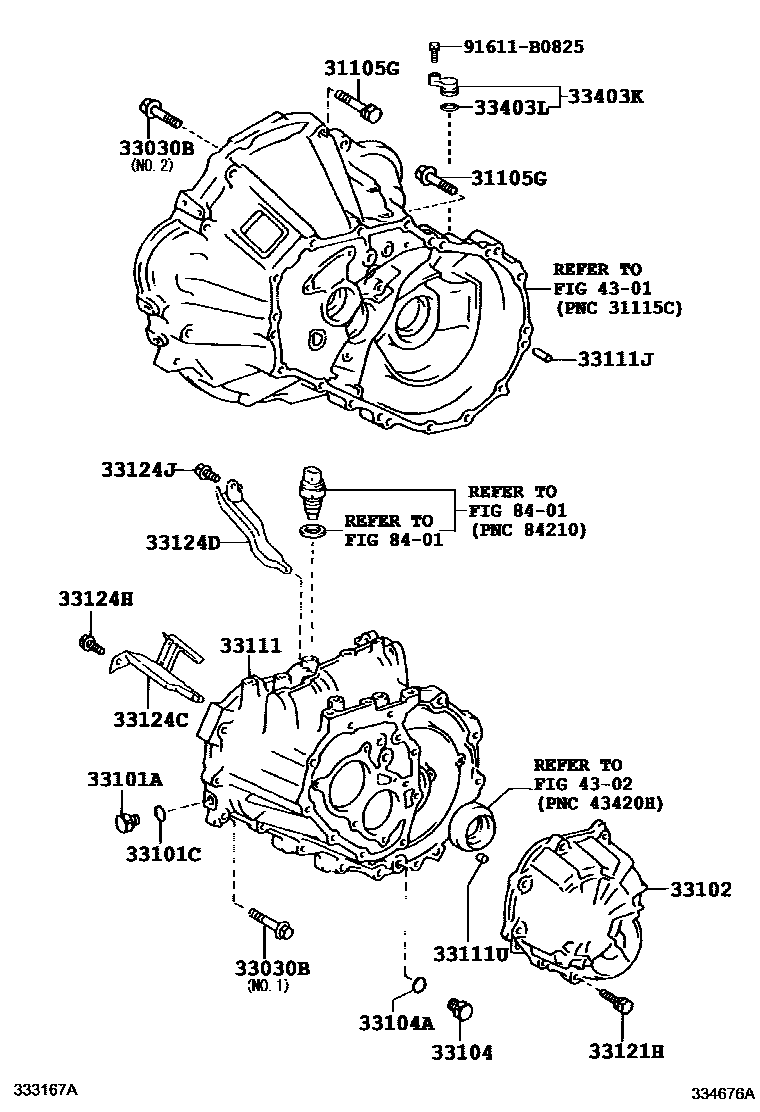

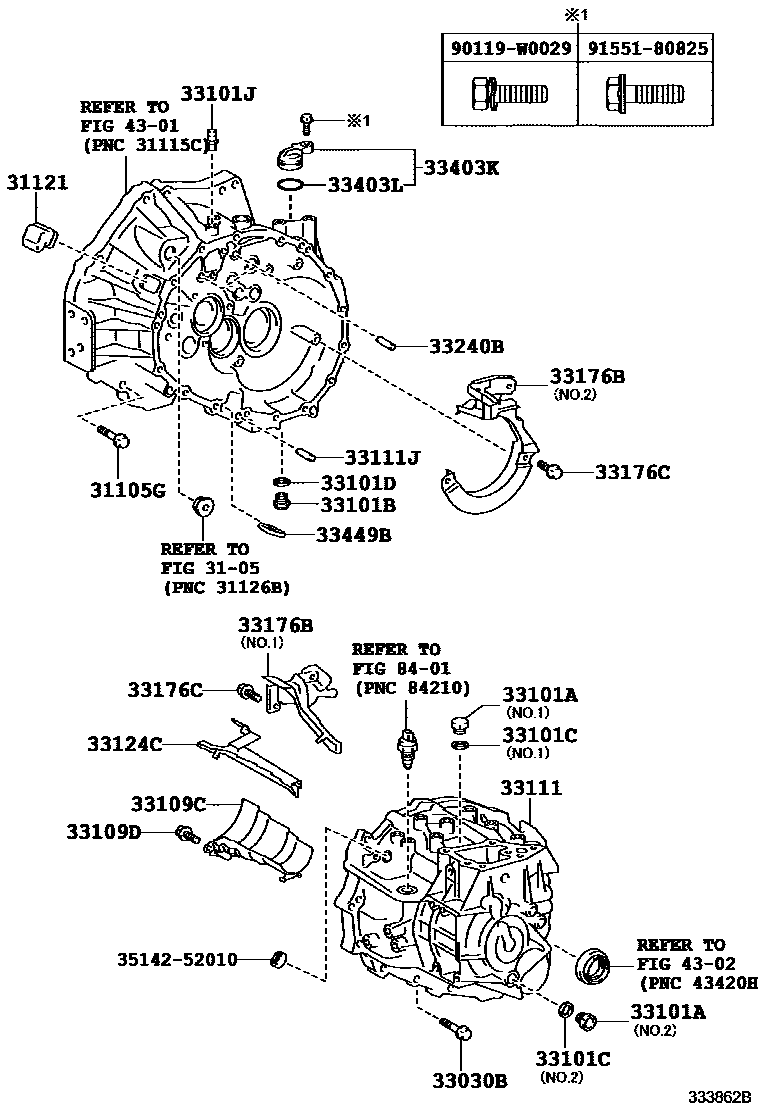

Toyota COROLLA EPC diagram 3302, 离合器壳和变速器壳(MTM), with 5 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17368E | Air tube support | 17368-26030 |
| 31105G | Bolts (for securing transaxle housing and engine) | 90119-12042 · 90119-12168 · 90119-12252 · 90119-W0097 · 91512-61060 · 91512-61065 · 91552-81045 · 91552-81080 · 91552-81245 · 91552-81280 · 91612-61045 · 91642-81055 |
| 31121 | No. 1 clutch housing cover | 31121-52020 |
| 33030B | Bolts (for securing transaxle housing and gearbox) | 90105-08086 · 90105-08353 · 90105-08430 · 91551-10840 |
| 33101A | Screw plug (for manual transmission oil filler port) | 90341-14032 · 90341-18033 |
| 33101B | Screw plug (for manual transmission drain port) | 90341-18016 |
| 33101C | Gasket (for manual transmission filler plug) | 90430-14003 · 90430-18008 |
| 33101D | Gasket (for manual transmission drain plug) | 90430-18008 |
| 33101J | vent plug | 90930-03133 |
| 33101Q | No. 1 screw plug (for gearbox) | 90341-18019 |
| 33102 | Manual transmission cover sub-assembly | 33102-12021 |
| 33104 | Drain plug sub-assembly (MTM) | 90341-18006 · 90341-18033 |
| 33104A | Drain plug gasket (MTM) | 90430-18008 |
| 33109C | Manual transmission oil separator sub-assembly | 33109-20020 |
| 33109D | Bolt (for manual transmission oil separator) | 91551-80816 |
| 33111 | Manual transmission housing | 33111-12260 · 33111-12290 · 33111-12291 · 33111-20220 · 33111-20221 · 33111-42050 · 33111-42060 · 33111-52120 · 33111-52130 · 33111-64011 |
| 33111A | Manual transmission plug | 90341-18006 · 90341-42002 |
| 33111C | Screw plug (for gearbox) | 90341-12004 |
| 33111J | Direct sales (for manual transmission) | 90250-08054 |
| 33111K | Gasket (for gearbox) | 90430-18008 |
| 33111U | Ring pin (for manual transmission) | 90253-11001 |
| 33111X | Gearbox plug gasket | 90430-18008 |
| 33117 | manual transmission protector | 33117-17020 |
| 33121H | Bolt with washer (for gearbox cover) | 90119-08429 |
| 33124C | No. 1 oil collecting pipe (MTM) | 33124-20040 · 33124-20050 · 33124-20080 · 33124-52030 |
| 33124D | No. 2 oil collecting pipe (MTM) | 33124-12021 |
| 33124H | Bolt (for oil collection pipe) | 91611-G0820 |
| 33124J | Bolts with washers | 91611-G0820 |
| 33176B | Transmission oil separator (MTM) | 33176-20010 · 33176-20020 · 33176-20080 · 33176-20090 |
| 33176C | Bolt (for transmission oil separator) | 91551-80816 · 91611-B0616 |
| 33240B | Direct sale (for reverse shift arm bracket) | 90250-08054 |
| 33403K | Speedometer driven gear hole cover sub-assembly | 33403-20230 · 33403-35230 |
| 33403L | O-ring | 96711-24018 · 96711-24030 |
| 33449B | derailleur magnet | 33449-20010 |
