Toyota COROLLA 离合器分离缸 — Figure 3105

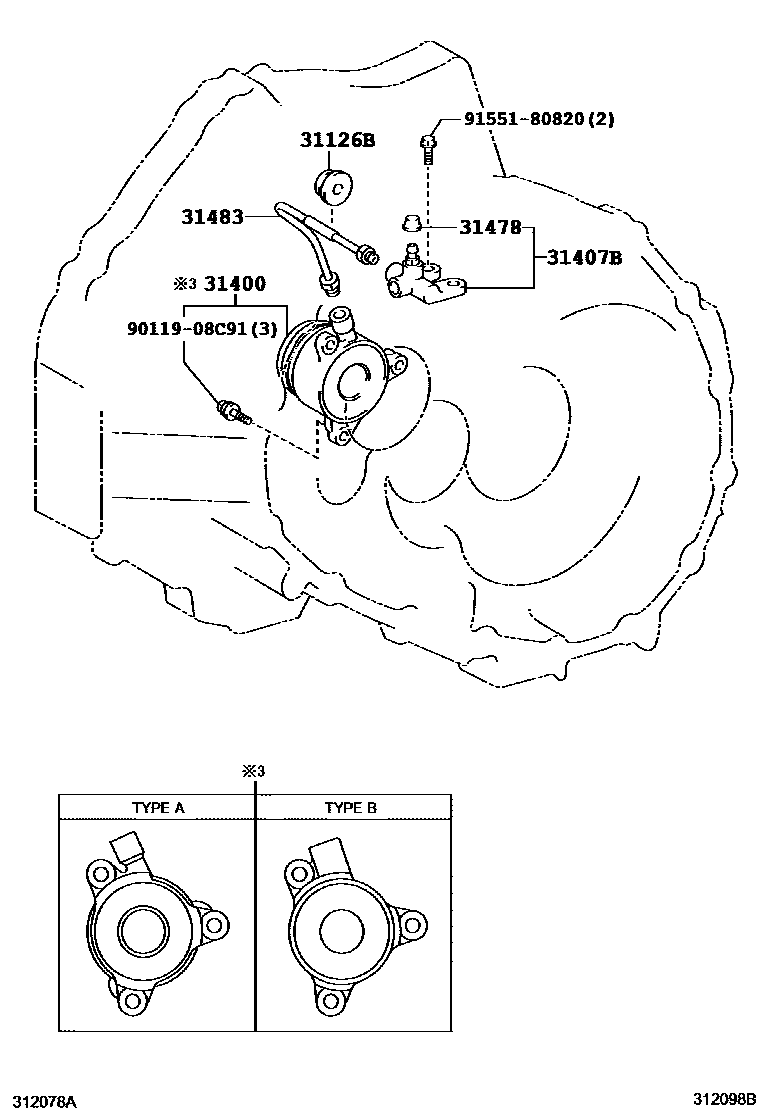

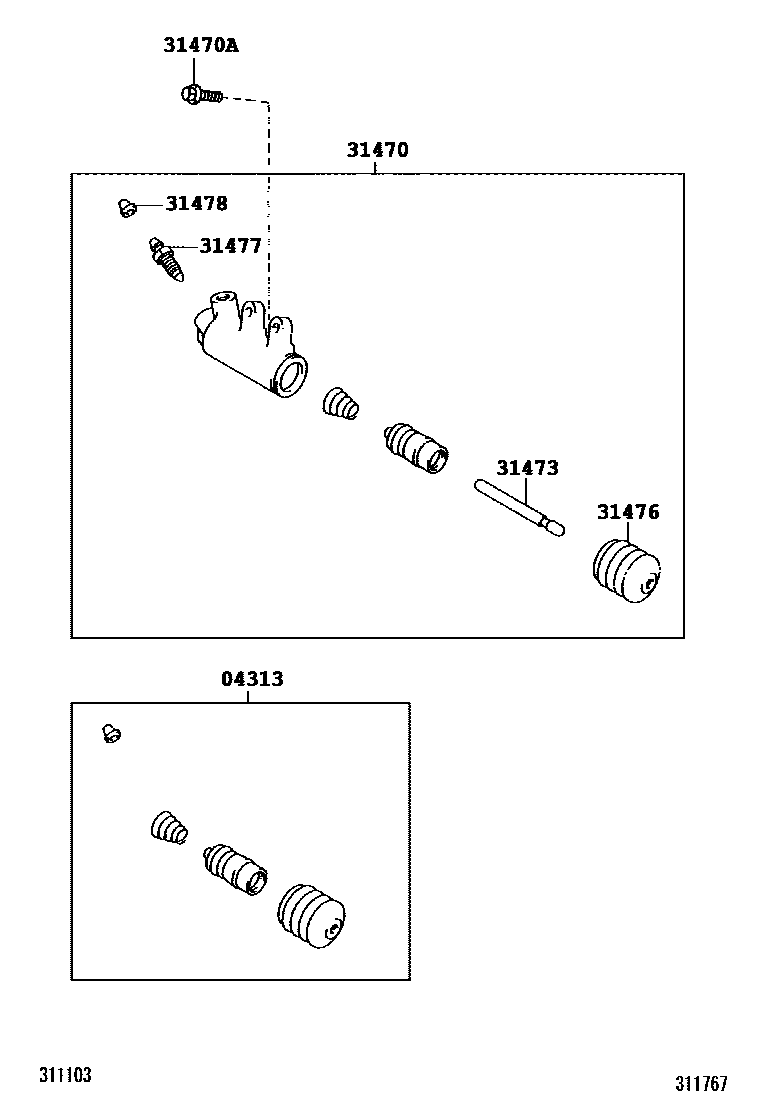

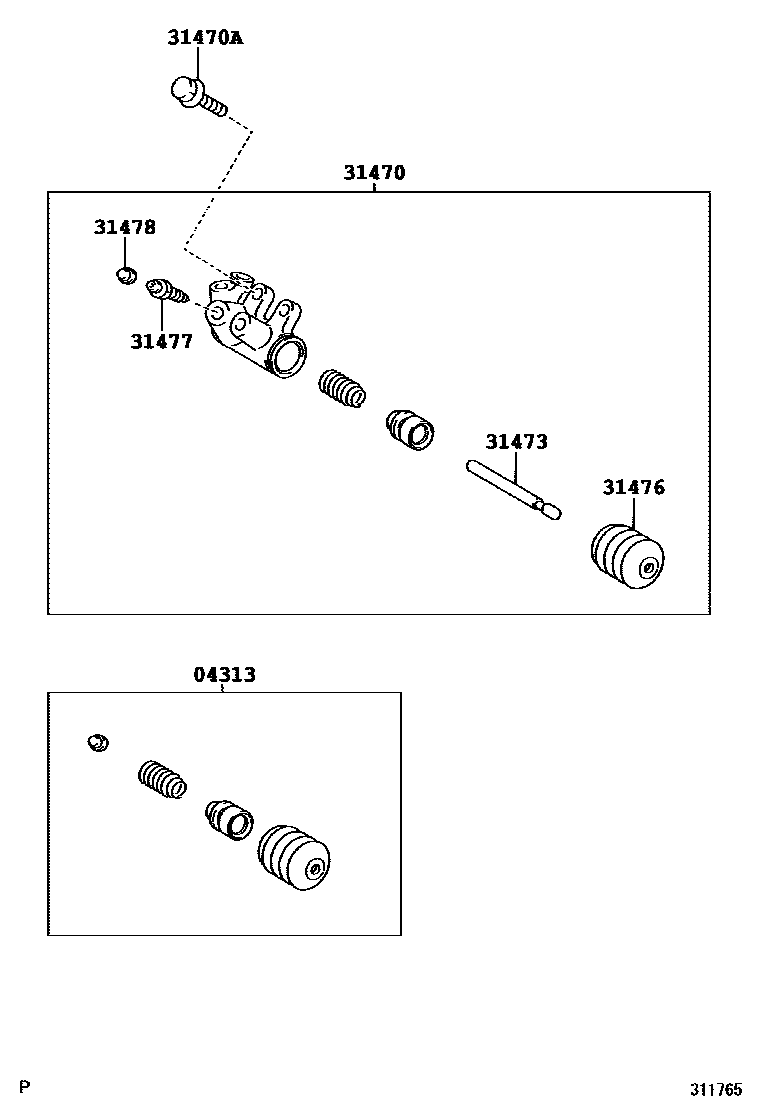

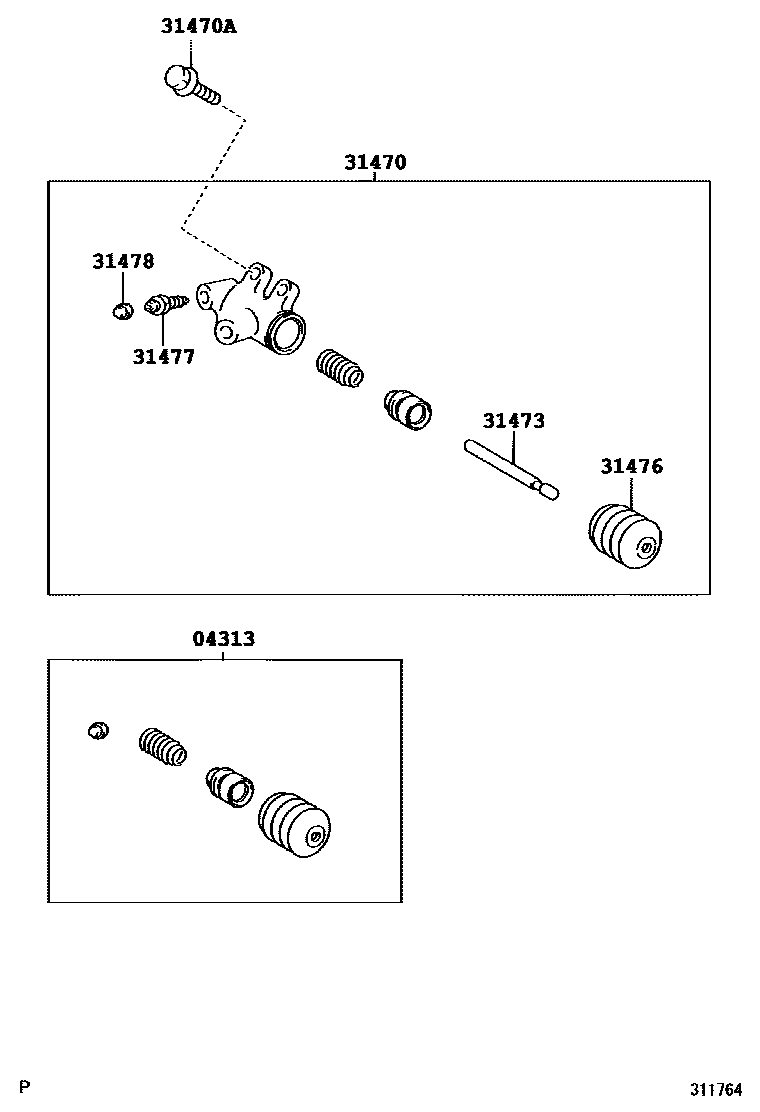

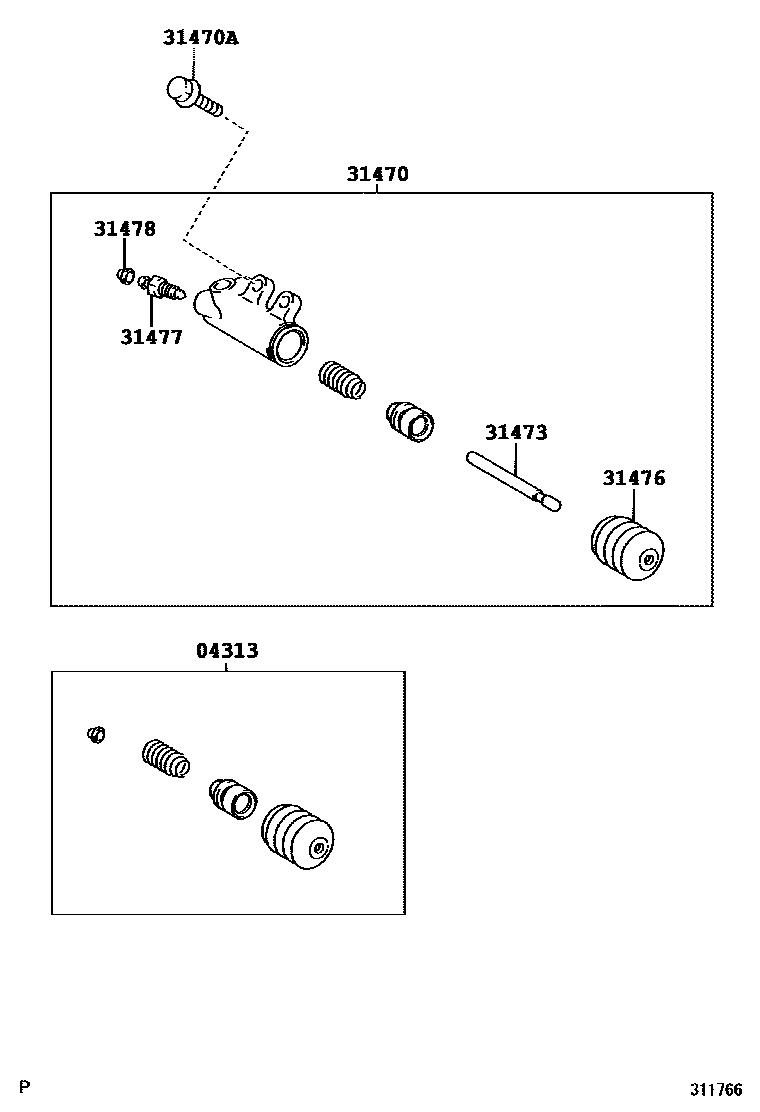

Toyota COROLLA EPC diagram 3105, 离合器分离缸, with 5 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04313 | Clutch release cylinder assembly | 04313-17040 · 04313-35060 · 04313-37030 · 04313-53010 |
| 31126B | Clutch tube dust boot | 31126-20090 |
| 31400 | Clutch release cylinder assembly with bearing | 31400-19005 · 31400-59005 · 31400-59015 |
| 31407B | Clutch separation and bleeder device sub-assembly | 31407-52010 |
| 31470 | Clutch release cylinder assembly | 31470-12140 · 31470-12160 · 31470-12180 · 31470-12190 |
| 31470A | Bolt (for securing clutch release cylinder) | 91611-60822 |
| 31473 | No. 1 clutch release cylinder push rod | 31473-20031 · 31473-22030 |
| 31476 | Clutch release cylinder dust boot | 31476-22010 |
| 31477 | Bleed plug (for separation cylinder) | 47547-20010 |
| 31478 | Bleed plug cap (for separator cylinder) | 31478-30010 |
| 31483 | Clutch release bleeder pipe | 31482-52090 · 31482-52110 |
