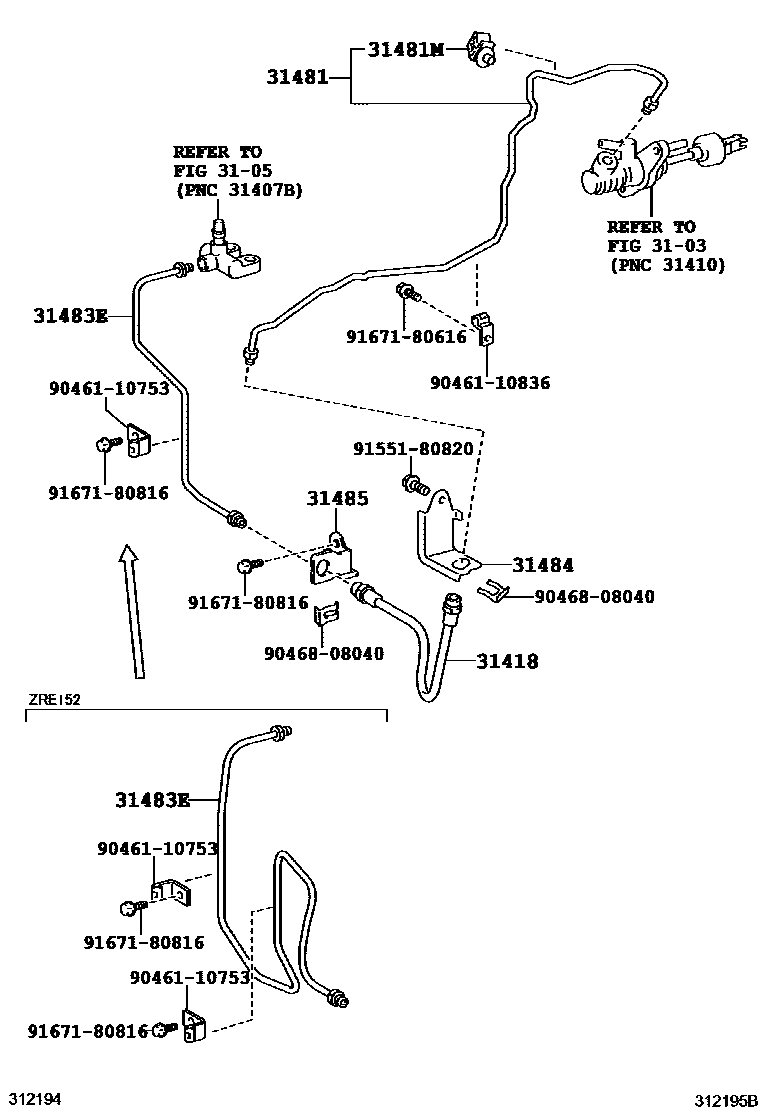

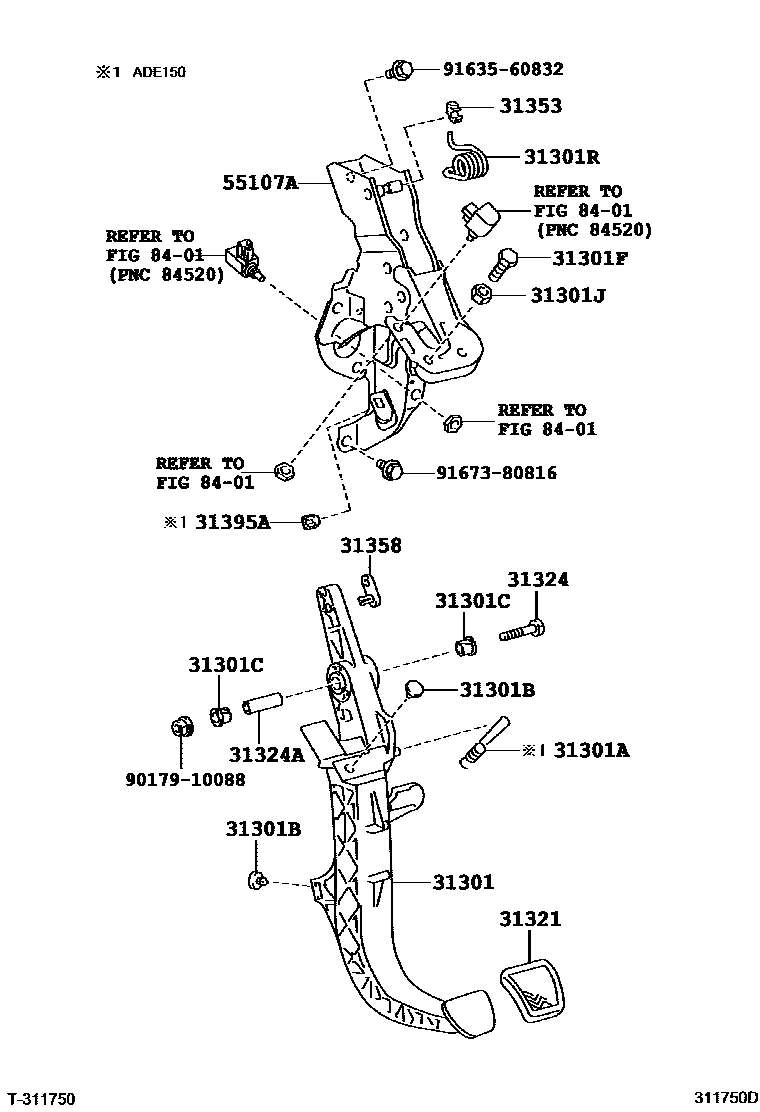

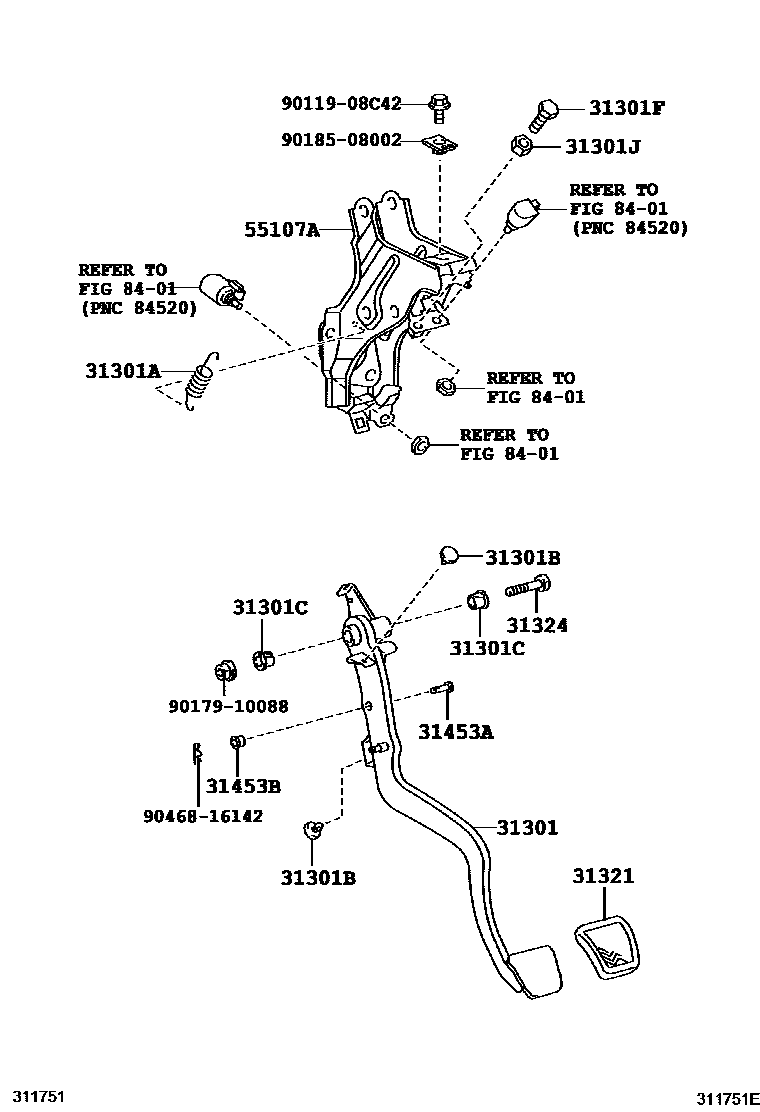

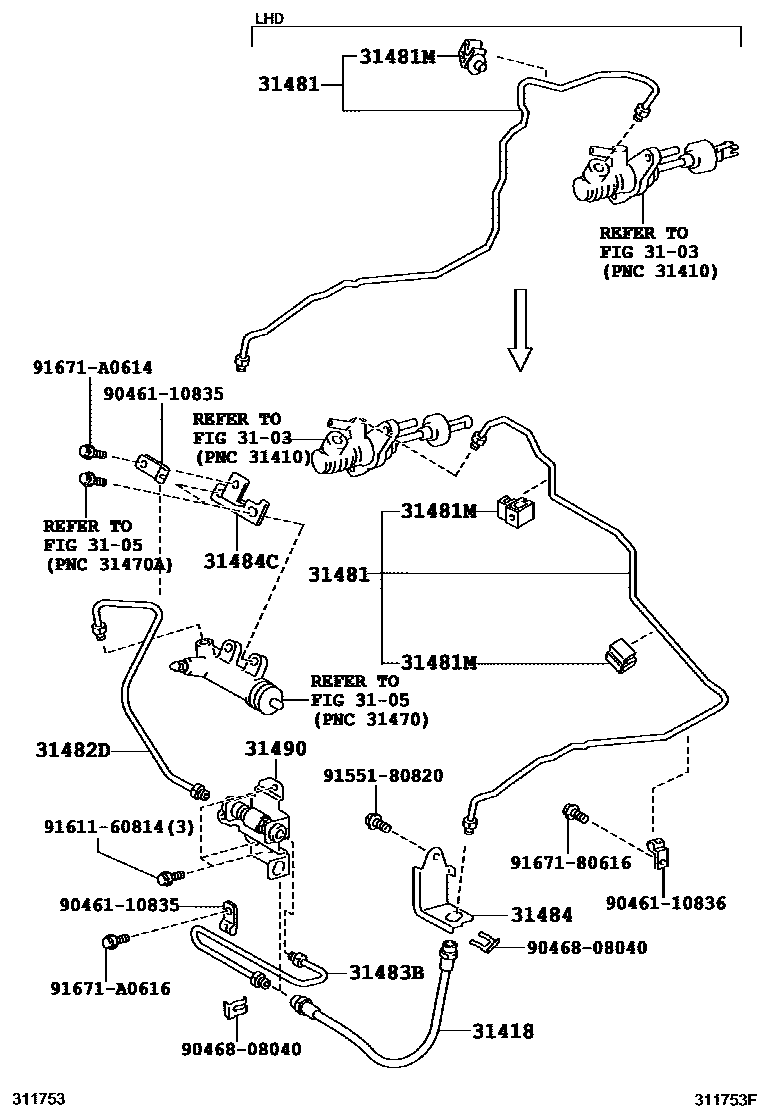

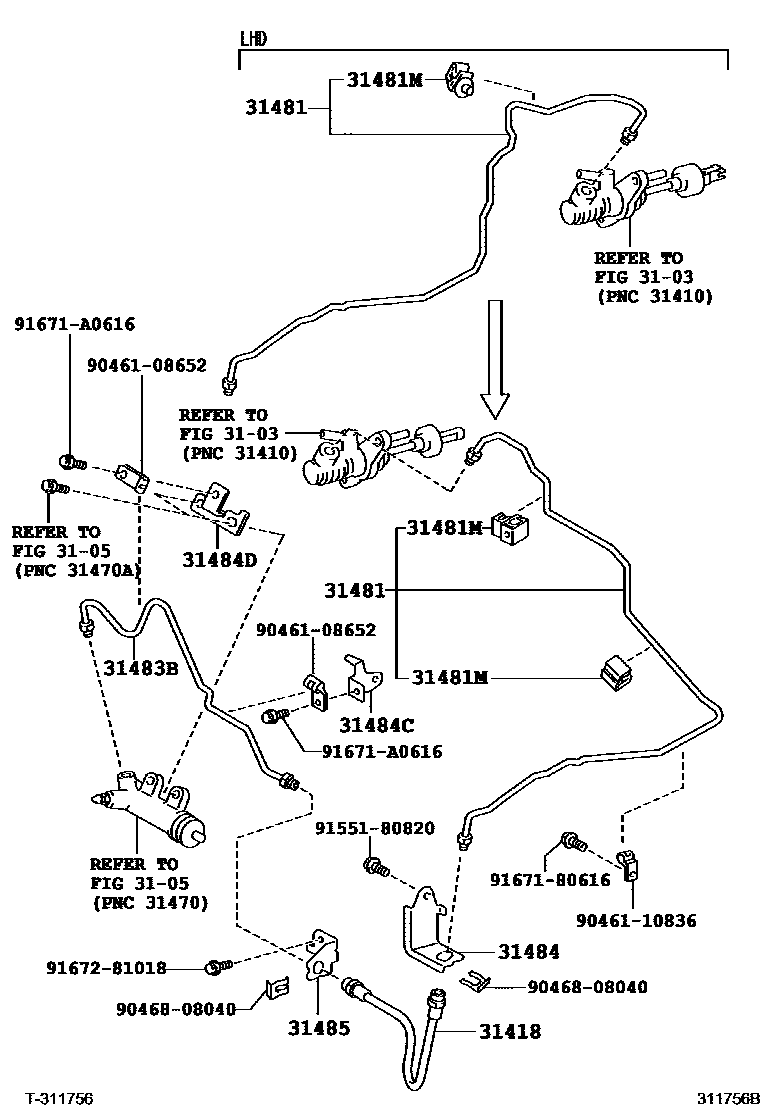

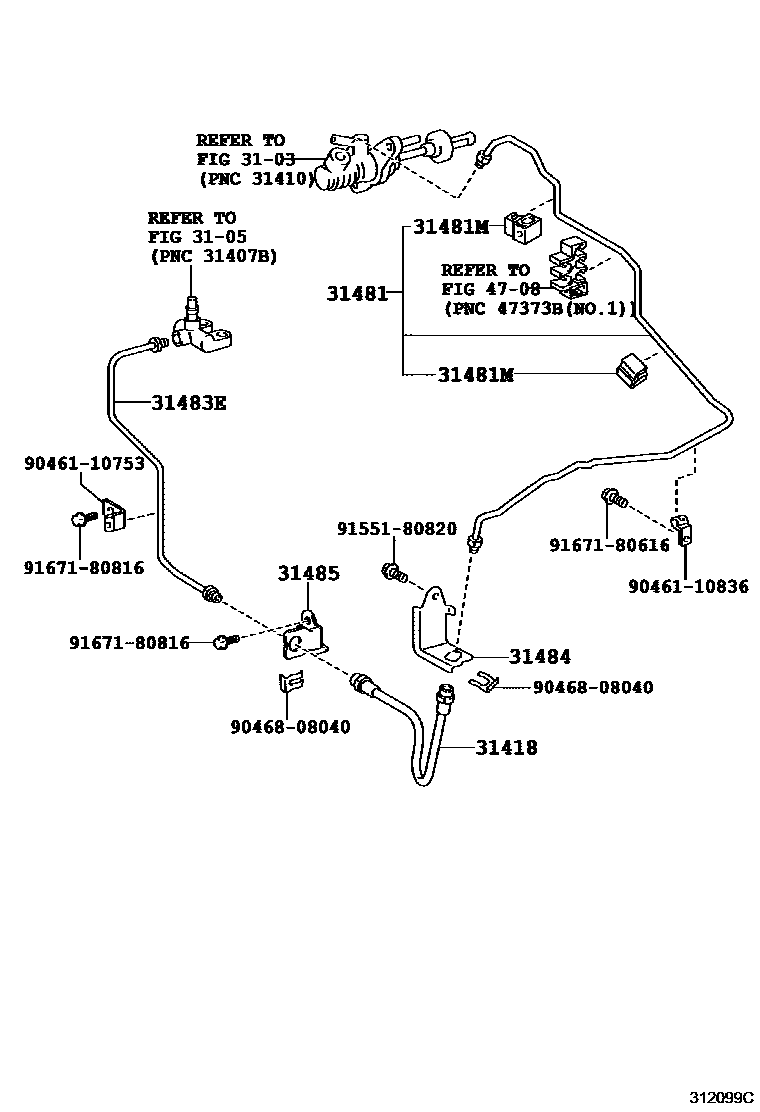

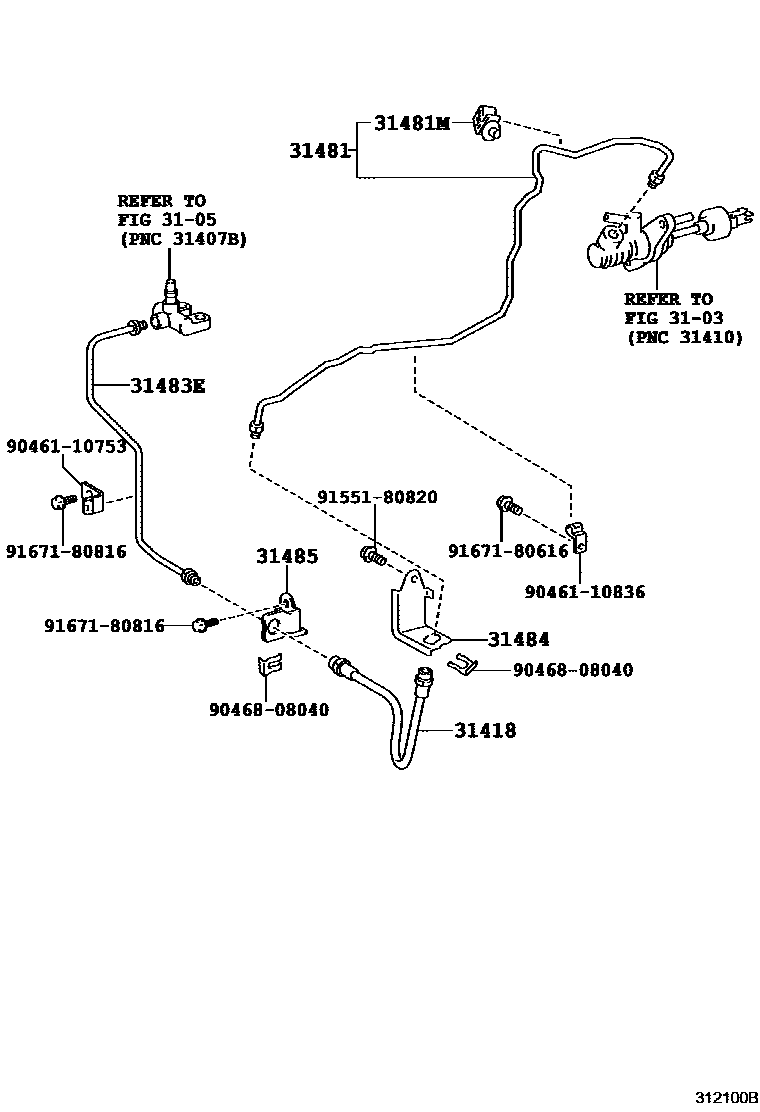

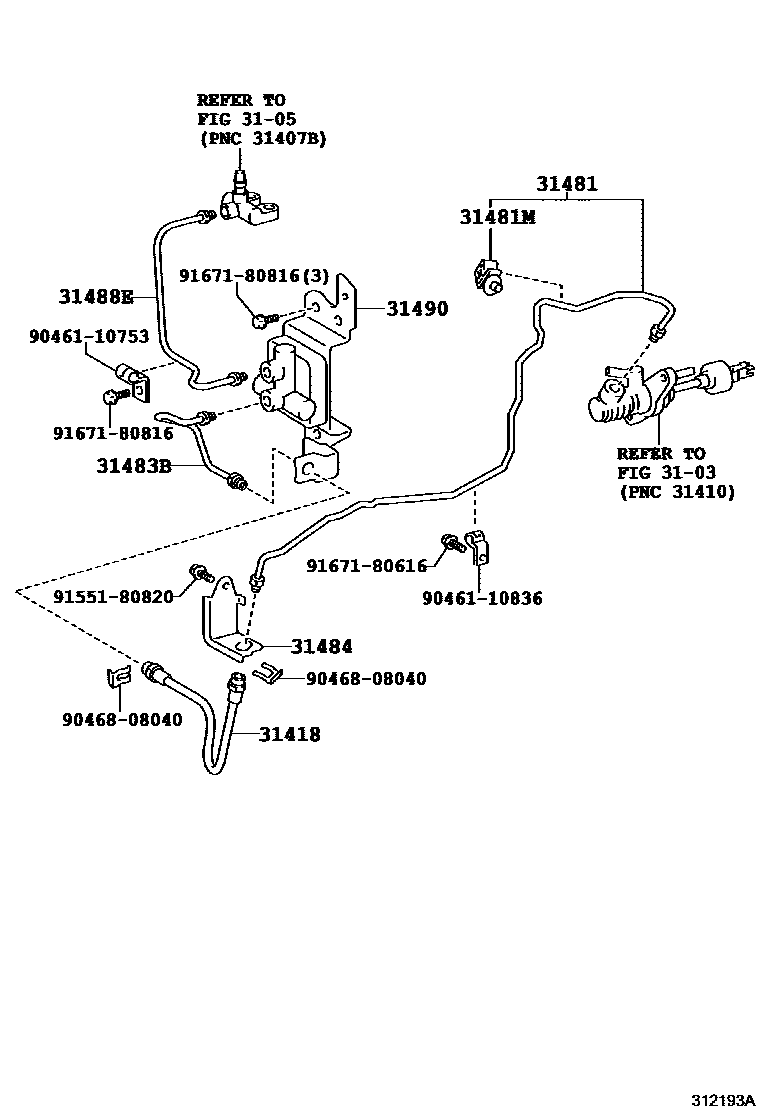

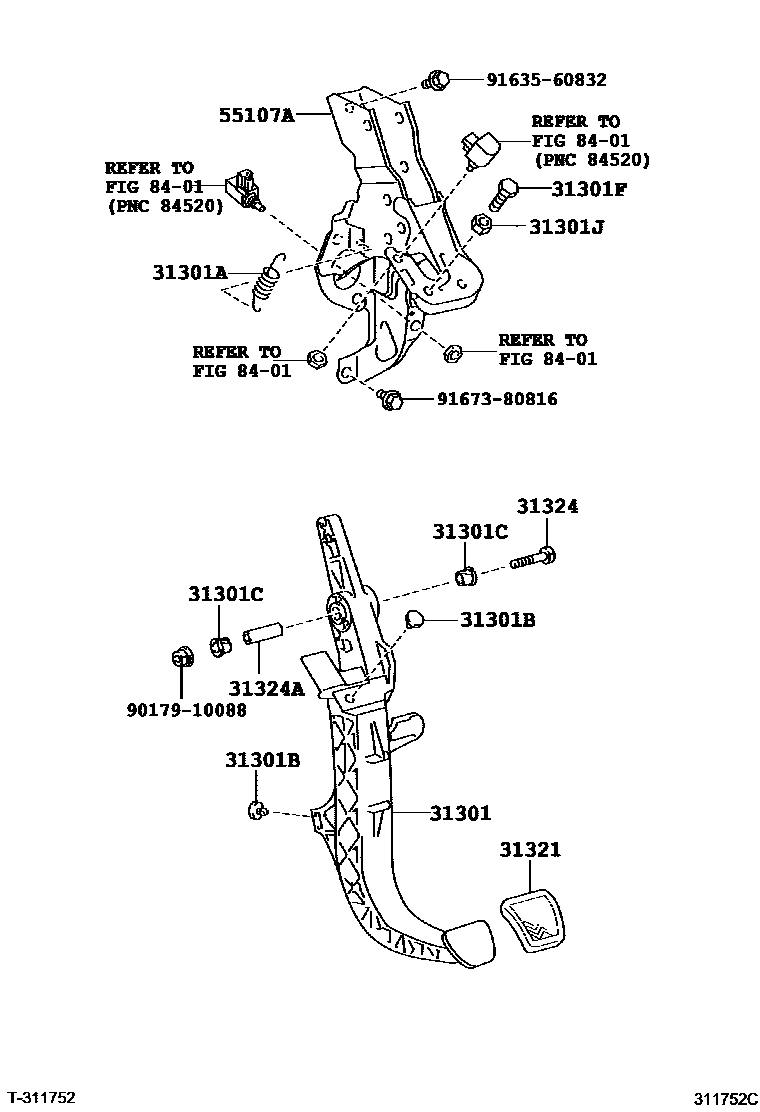

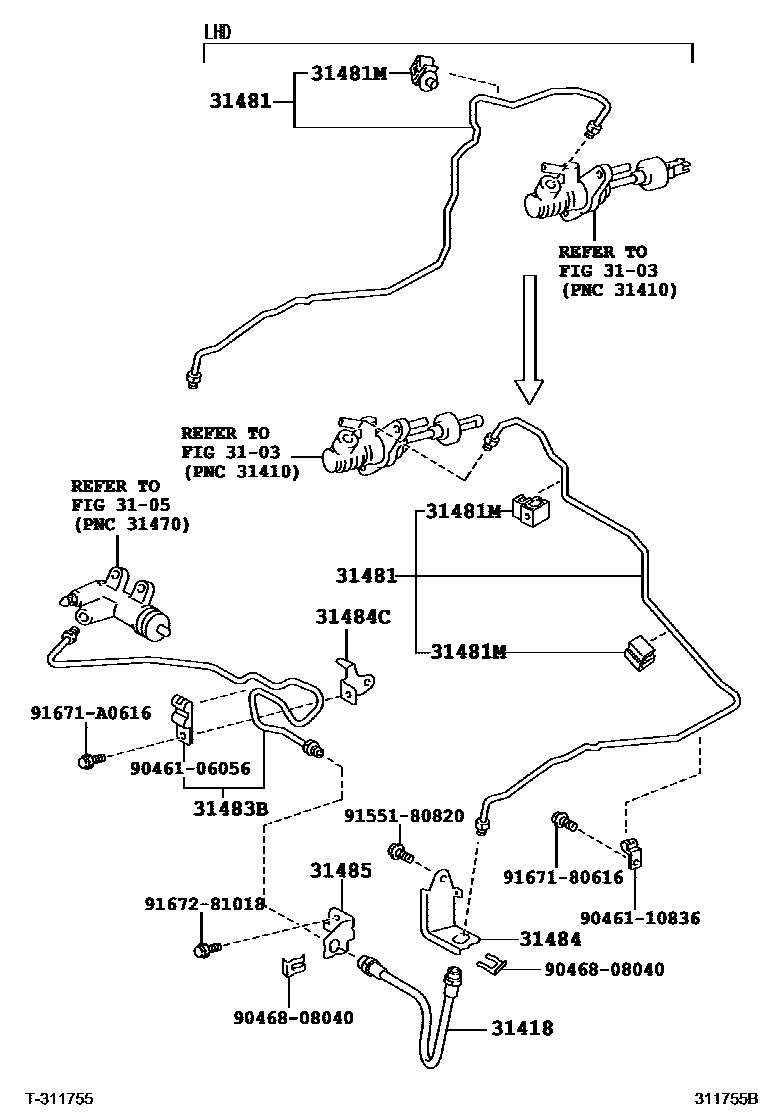

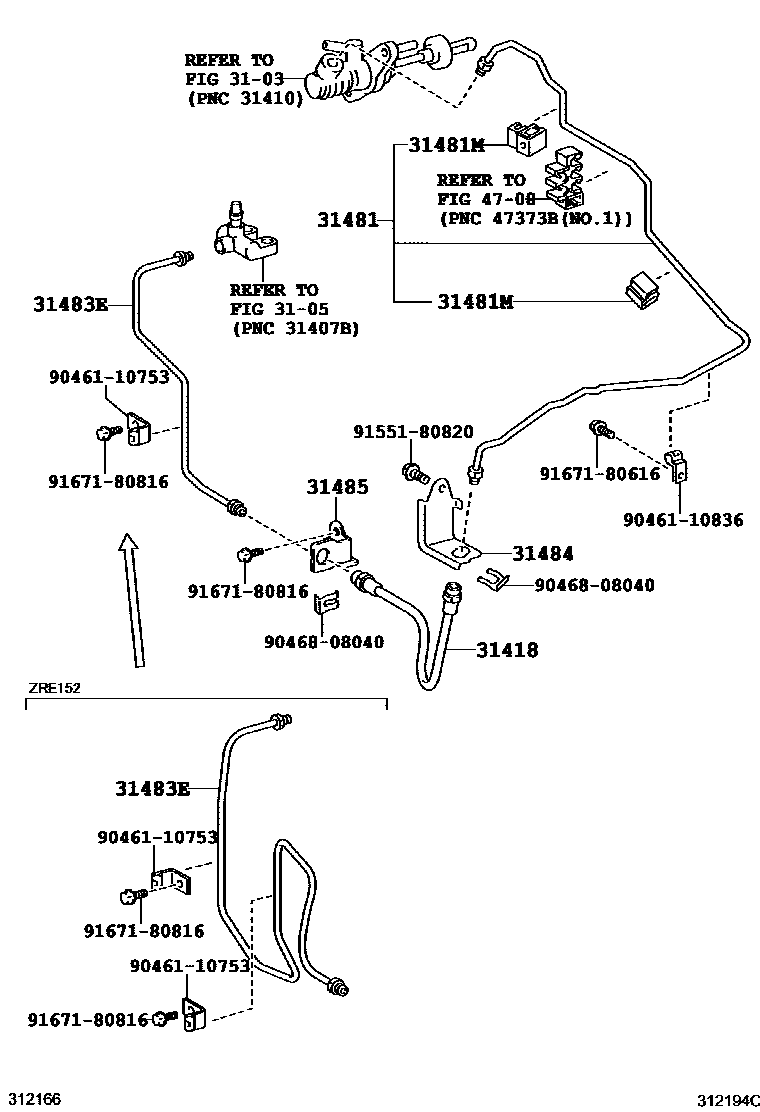

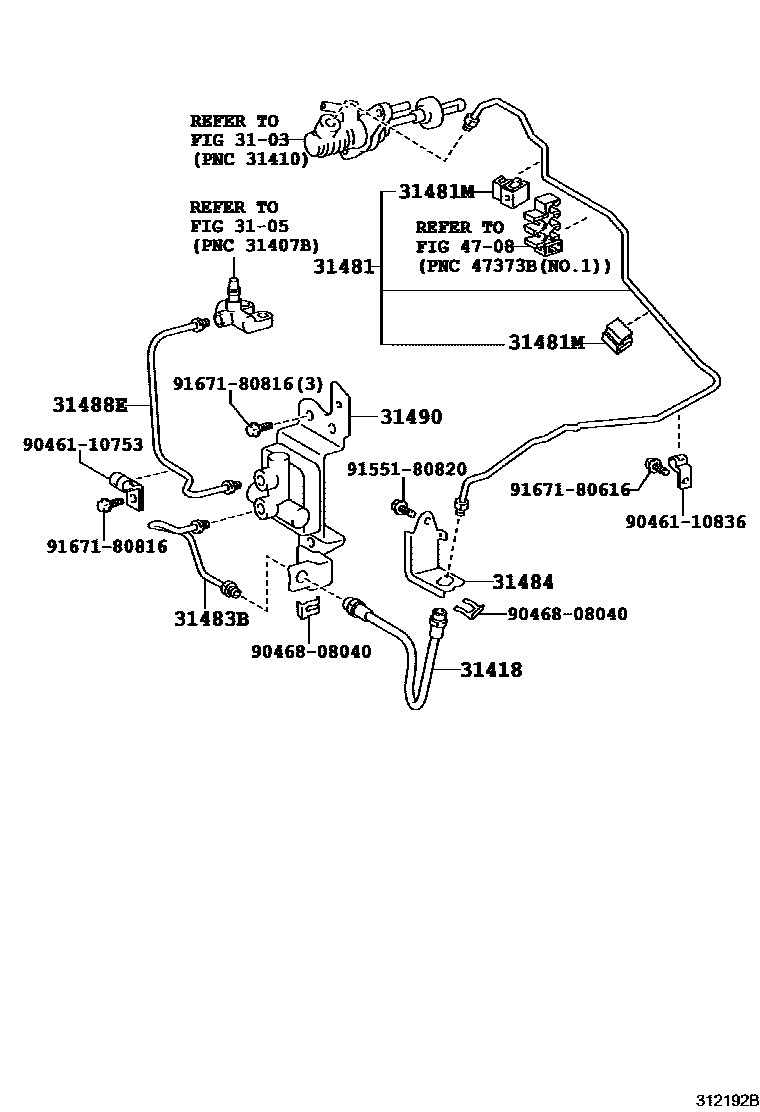

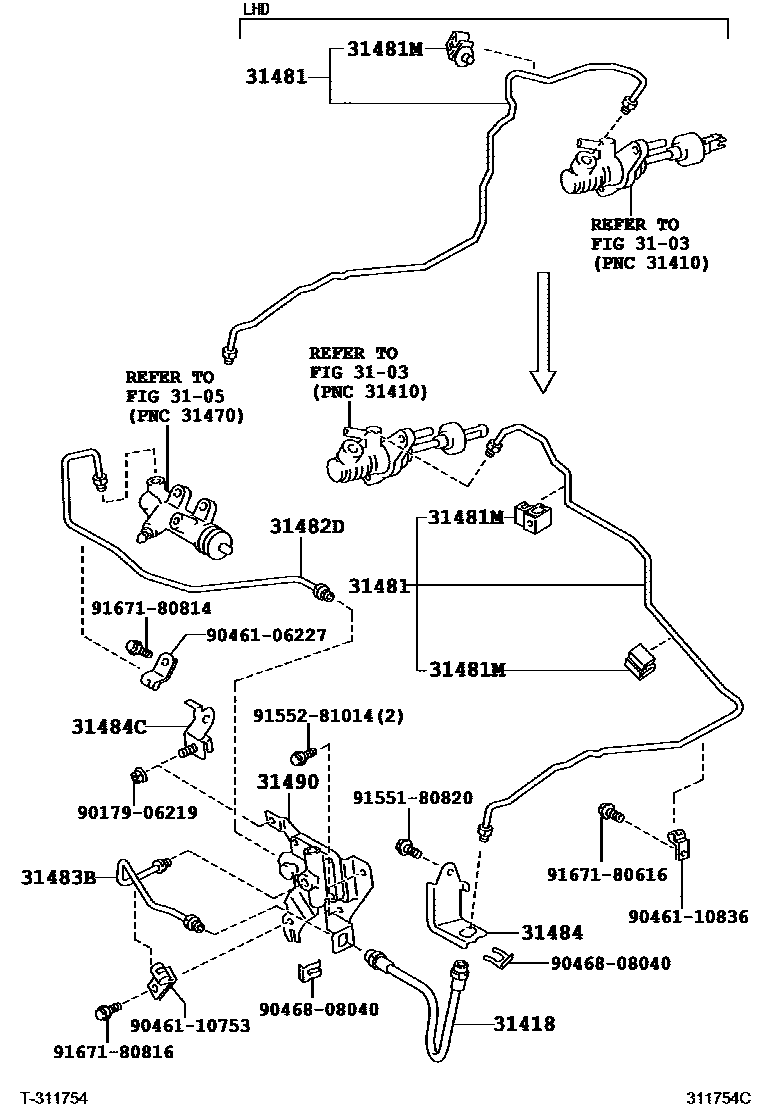

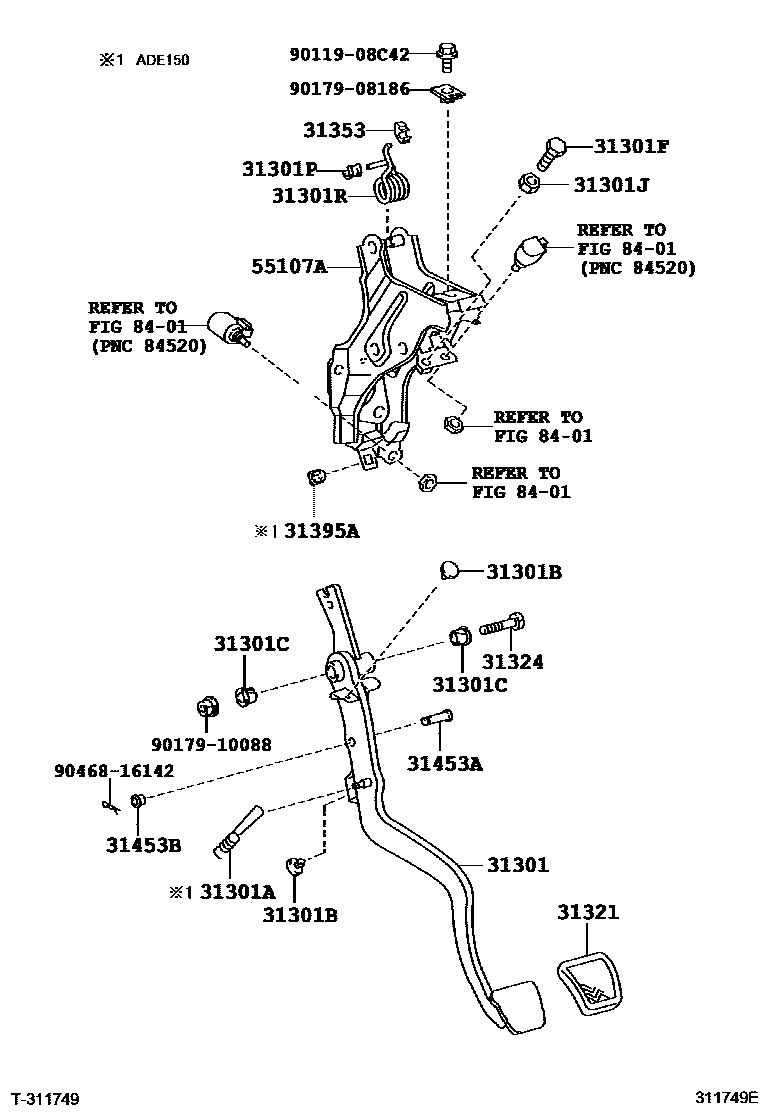

Toyota COROLLA 离合器踏板和挠性软管 — Figure 3102
Toyota COROLLA EPC diagram 3102, 离合器踏板和挠性软管, with 14 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31301 | Clutch pedal sub-assembly | 31301-12510 · 31301-12511 · 31301-12520 · 31301-12521 · 31311-12370 · 31311-12371 |
| 31301A | Spring (for clutch pedal) | 31394-25010 · 90507-14047 · 90905-06079 |
| 31301B | Cushion pad No. 1 (for clutch pedal) | 90541-06036 |
| 31301C | Bushing (for clutch pedal) | 90386-13015 |
| 31301F | Bolt (for clutch pedal stop) | 90101-10055 · 90101-10369 |
| 31301J | Nut (for clutch pedal stop) | 46441-12020 · 94130-61000 |
| 31301P | Bushing (for clutch pedal flip-up device) | 90389-06055 |
| 31301R | Compression spring (for flip spring seat) | 31394-12050 · 31394-12060 · 31394-12070 · 31394-12080 |
| 31321 | clutch pedal pad | 31321-42010 |
| 31324 | clutch pedal shaft | 90101-10039 · 90109-10167 |
| 31324A | clutch pedal collar | 90387-10003 |
| 31353 | Clutch pedal spring retainer | 31353-26010 |
| 31358 | center spring cover | 31358-42010 |
| 31395A | Pedal spring hook No. 1 | 31395-33020 |
| 31418 | clutch hose | 90947-02E28 · 90947-02E29 |
| 31453A | Pin with hole (for clutch master cylinder push rod U-shaped clamp) | 90249-08256 |
| 31453B | Bushing (for clutch master cylinder push rod U-shaped clamp) | 90386-08033 |
| 31481 | Clutch master cylinder to flexible hose pipe | 31481-12360 · 31481-12370 · 31481-12430 |
| 31481M | Clamp (for clutch master cylinder tube) | 90949-01C82 · 90949-01D46 |
| 31482D | Pipe from clutch release cylinder to pressure accumulator | 31482-12311 · 31482-12320 |
| 31483B | Accumulator to flexible hose pipe | 31483-12070 · 31483-12080 · 31483-12090 · 31483-12120 · 31483-12130 |
| 31483E | Clutch release bleeder pipe | 31483-12140 · 31483-12150 |
| 31484 | Flexible hose bracket (for clutch) | 31484-12500 |
| 31484C | No. 1 clutch tube bracket | 31484-12531 · 31484-20460 · 31484-52150 |
| 31484D | No. 2 clutch tube bracket | 31484-20460 |
| 31485 | No. 2 flexible hose bracket (for clutch) | 31484-12440 · 31484-12510 |
| 31488E | Pipe from bleeder to accumulator | 31488-12020 |
| 31490 | Clutch pressure accumulator assembly | 31490-05010 · 31490-12100 · 31490-12110 |
| 55107A | Clutch pedal bracket sub-assembly | 55107-12270 · 55107-12280 · 55107-12281 · 55107-12290 · 55107-12291 · 55107-12300 · 55107-12301 |
