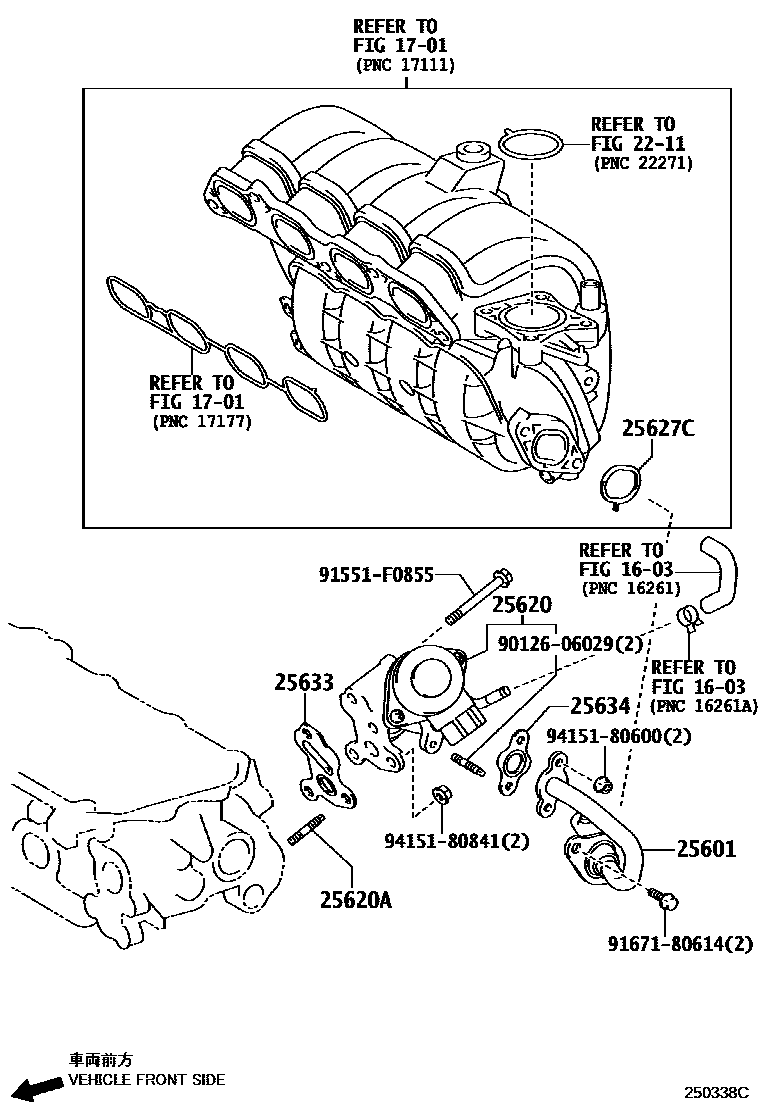

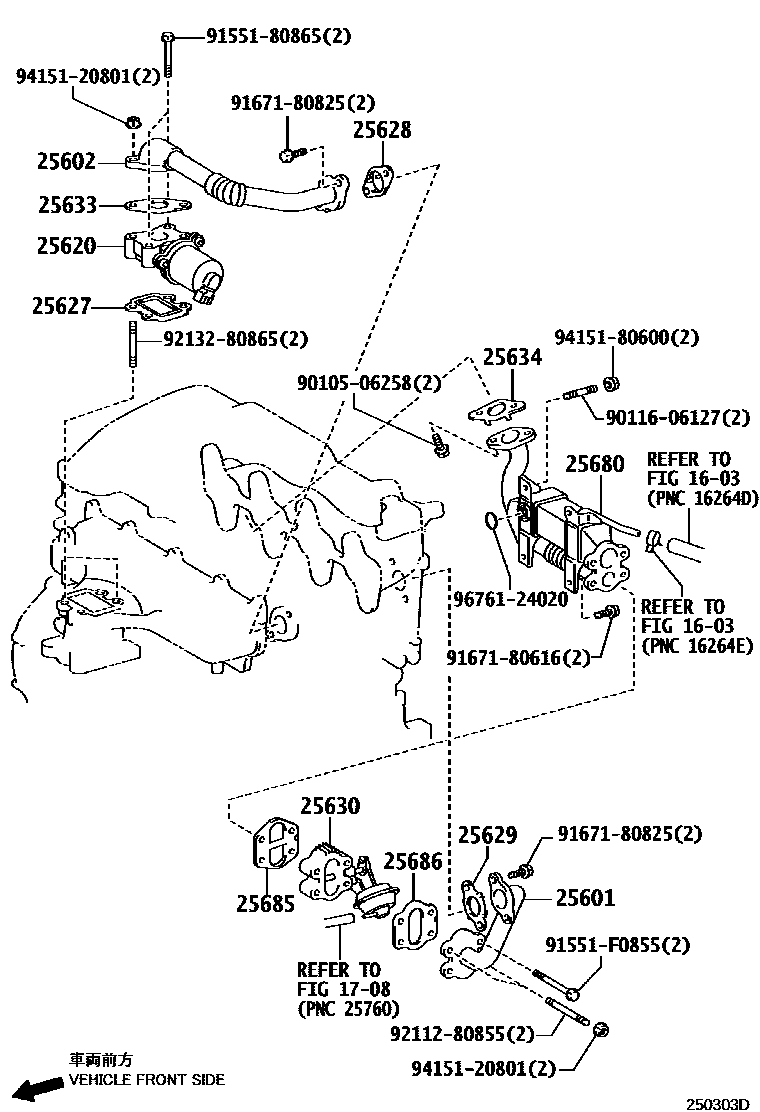

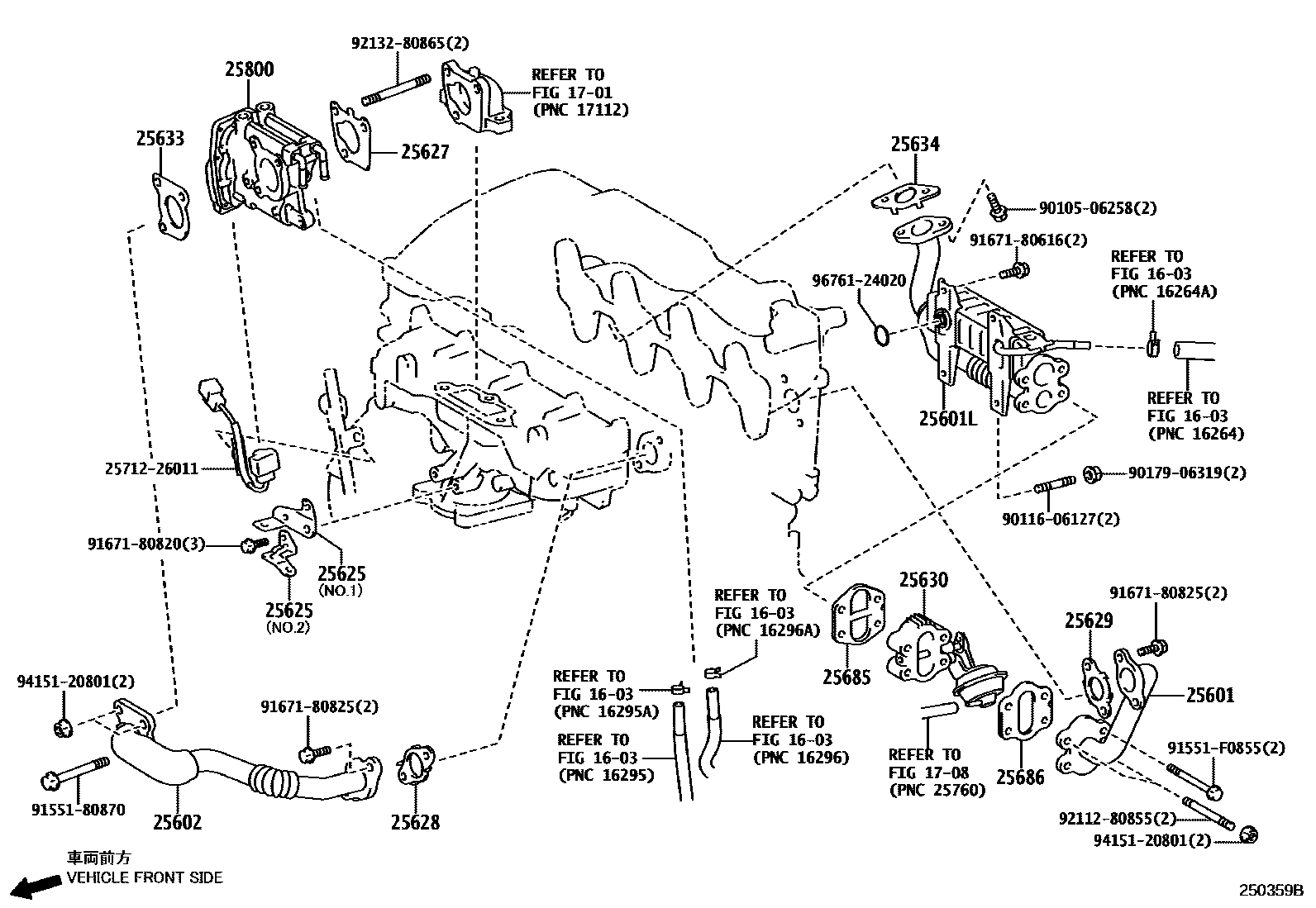

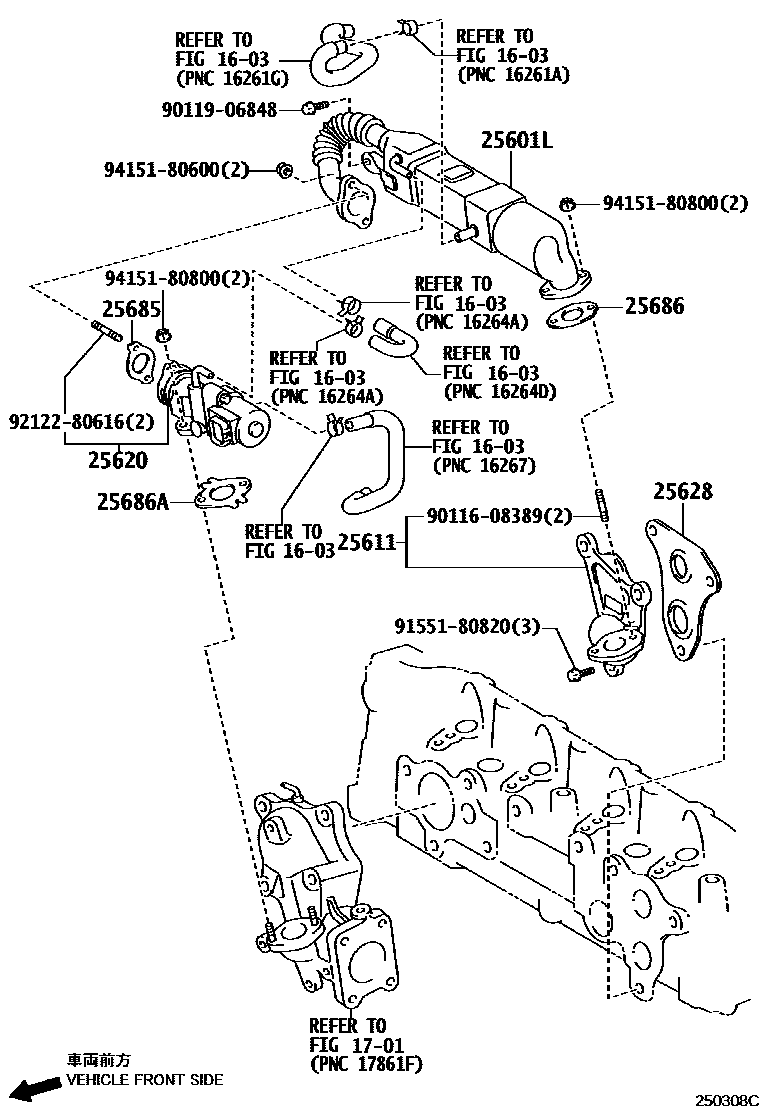

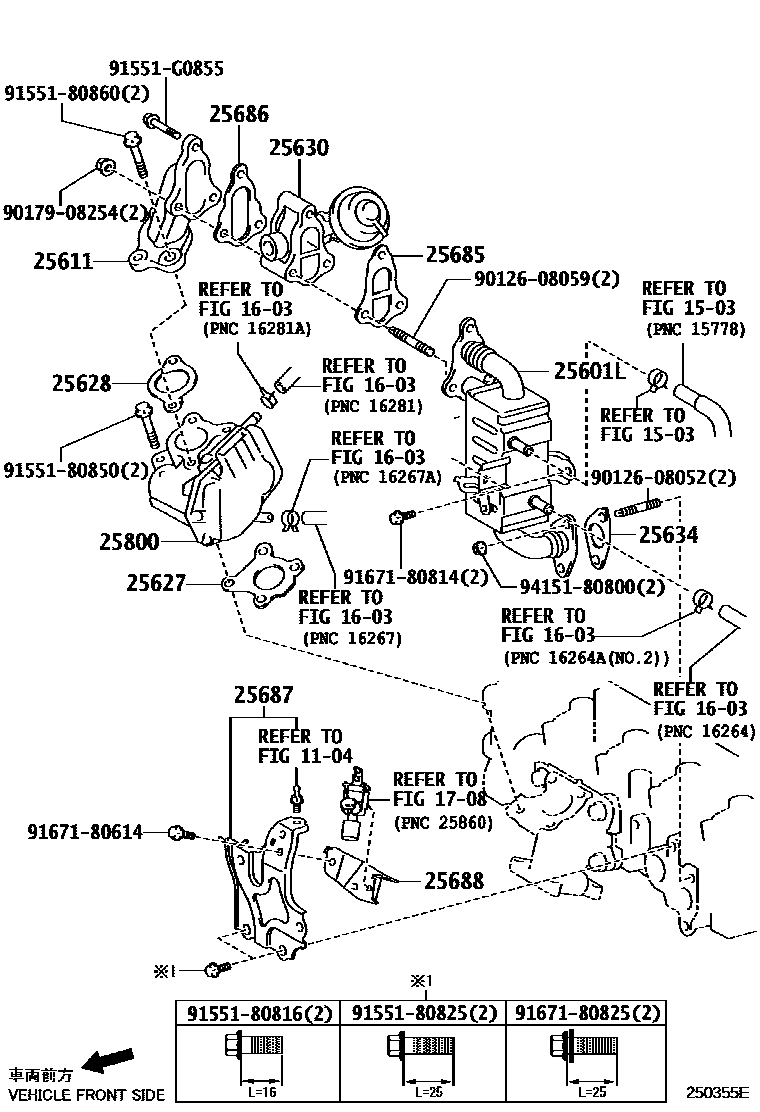

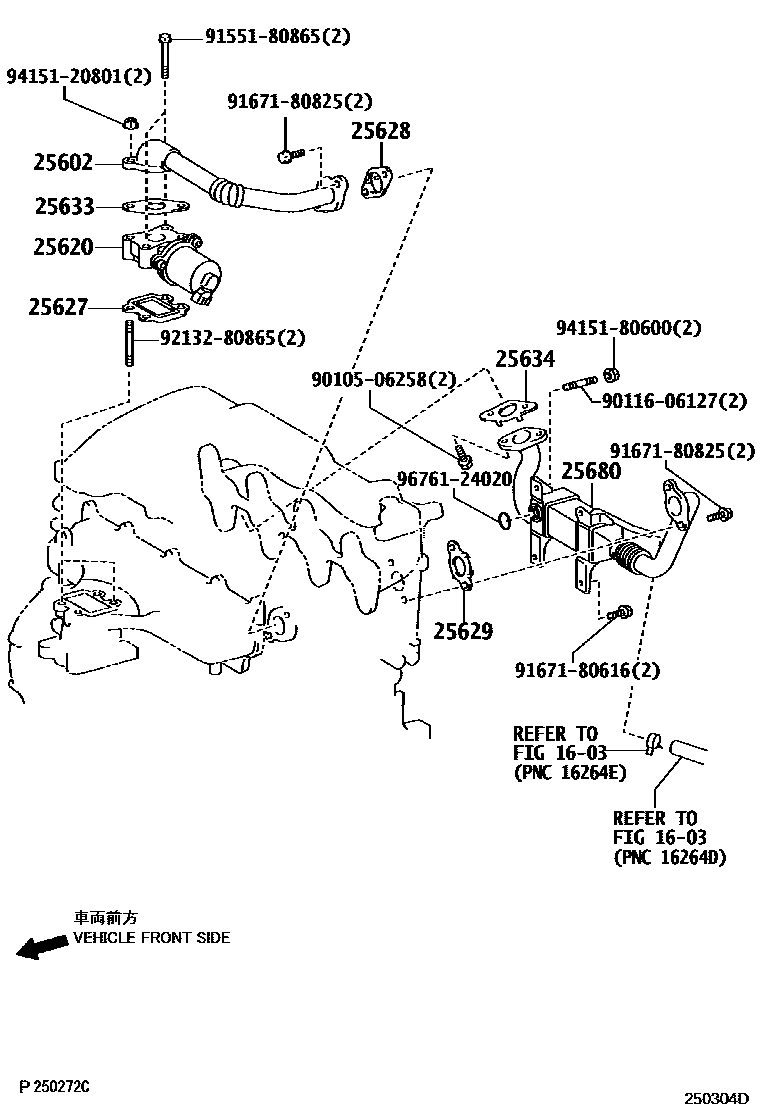

Toyota COROLLA 废气再循环系统 — Figure 2501
Toyota COROLLA EPC diagram 2501, 废气再循环系统, with 6 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25601 | No. 1 EGR pipe assembly | 25611-26020 · 25611-26030 · 25611-47010 |
| 25601L | EGR pipe assembly with cooler | 25601-0R020 · 25601-33020 · 25601-33060 |
| 25602 | No. 2 EGR pipe assembly | 25612-0R031 · 25612-26030 · 25612-26040 |
| 25611 | EGR tube connector | 25611-33010 · 25611-33020 |
| 25620 | EGR valve assembly | 25620-0R020 · 25620-0R021 · 25620-26110 · 25620-26111 · 25620-33030 · 25620-47020 |
| 25620A | Stud bolts (for EGR valve) | 90126-08052 |
| 25625 | EGR valve bracket | 25625-26010 · 25625-26020 |
| 25627 | EGR valve gasket | 25627-0R020 · 25627-26020 · 25627-26030 · 25627-33010 |
| 25627C | Gasket (for No. 2 EGR tube) | 25629-47010 |
| 25628 | EGR air intake gasket | 25628-26010 · 25628-26020 · 25628-33020 · 25628-33040 |
| 25629 | EGR valve adapter gasket | 25629-0R010 · 25629-26010 |
| 25630 | No. 2 EGR valve assembly | 25630-26010 · 25630-26020 · 25630-33010 |
| 25633 | EGR valve gasket | 25633-0R020 · 25633-26010 · 25633-26020 · 25633-47010 |
| 25634 | EGR tube gasket | 25634-0R010 · 25634-33010 · 25634-47010 |
| 25680 | EGR cooler assembly | 25680-0R010 · 25680-0R020 · 25680-26020 · 25680-26021 · 25680-26040 · 25680-26041 |
| 25685 | No. 1 EGR Cooler Gasket | 25628-30010 · 25685-0R010 · 25685-33010 |
| 25686 | No. 2 EGR Cooler Gasket | 25686-0R010 · 25686-27010 · 25686-33010 |
| 25686A | No. 3 EGR Cooler Gasket | 25686-27020 |
| 25687 | No. 1 EGR cooler bracket | 25687-33010 |
| 25688 | No. 2 EGR cooler bracket | 25688-33010 |
| 25800 | Electronic EGR control valve assembly | 25800-0R010 · 25800-26010 · 25800-33010 · 25800-33011 |
