Toyota COROLLA fuel filter — Figure 2302

Toyota COROLLA EPC diagram 2302, fuel filter, with 4 images and 13 PNC and OE references.

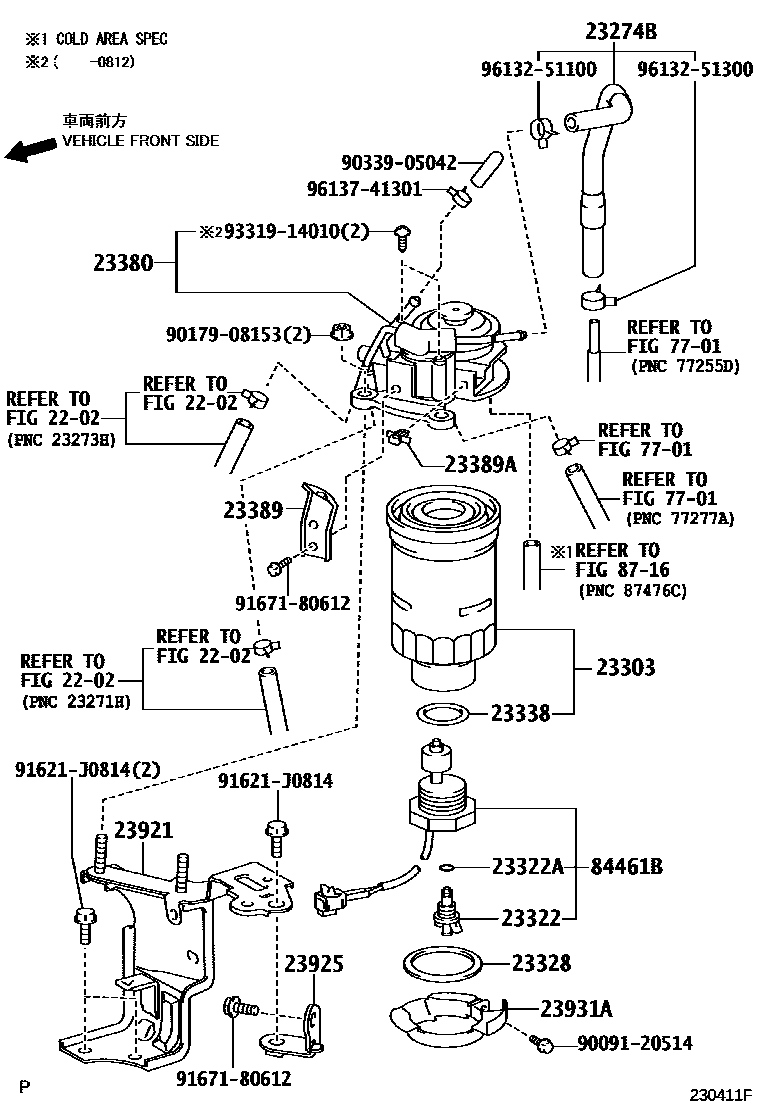

Toyota COROLLA fuel filter EPC diagram — 230411F
fuel filter — 230411F (200610 – 200901)

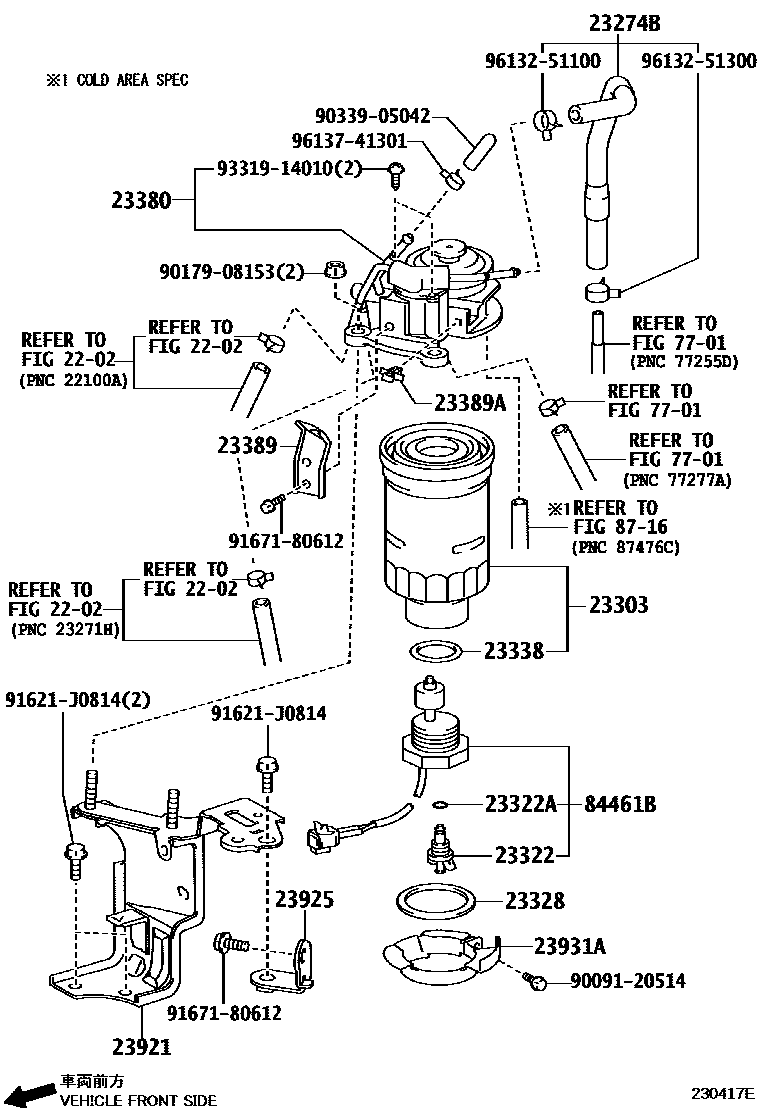

Toyota COROLLA fuel filter EPC diagram — 230417E
fuel filter — 230417E (200610 – 200812)

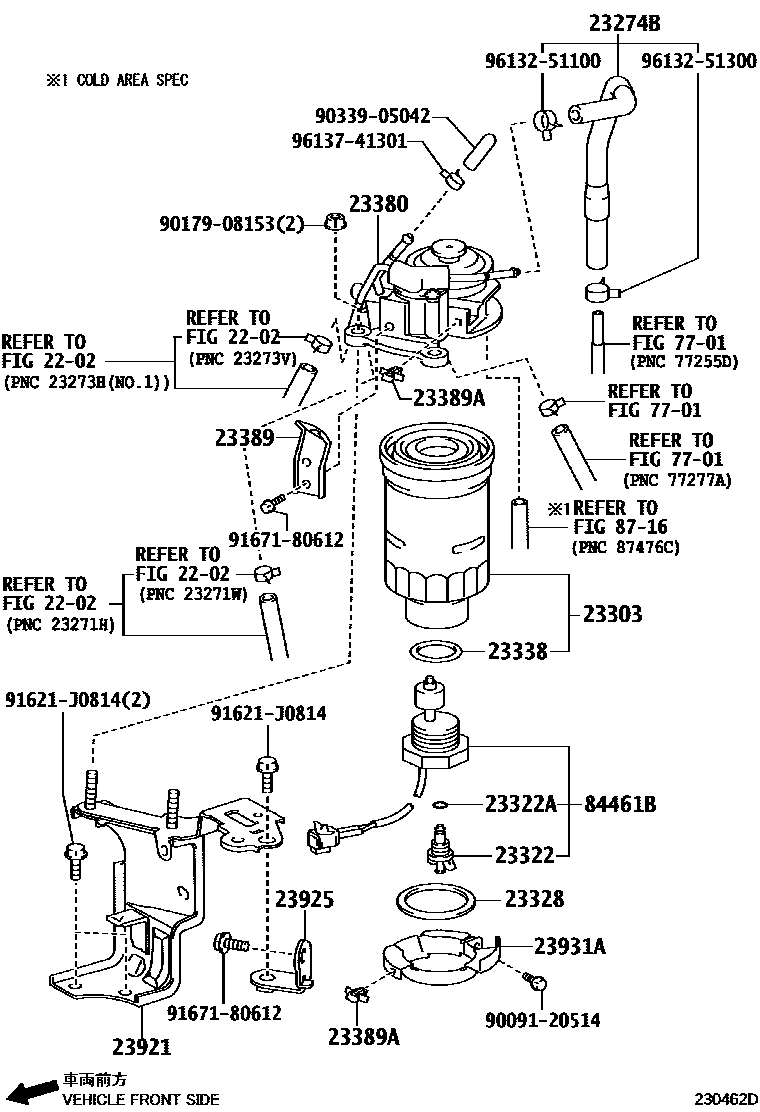

Toyota COROLLA fuel filter EPC diagram — 230462D
fuel filter — 230462D (200812 – 999999)

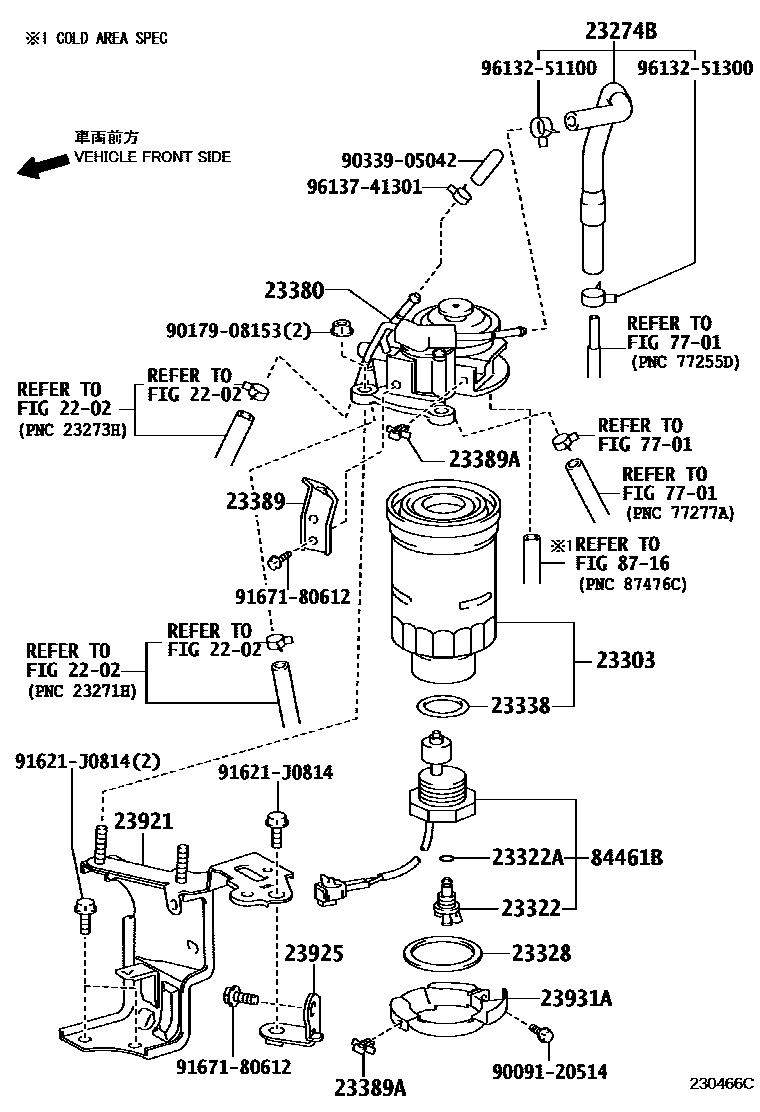

Toyota COROLLA fuel filter EPC diagram — 230466C
fuel filter — 230466C (200901 – 999999)

PNC and OE references

PNCPart nameOE numbers
23274BNo. 3 fuel hose23274-26060
23303Fuel filter element sub-assembly23390-26140 · 23390-26160
23322Drain plug (for fuel filter)23388-64470
23322AO-ring (for drain plug)23344-54010
23328Gasket (for fuel filter)23385-30160
23338Gasket (for warning switch)23344-64010
23380Fuel filter cover assembly23380-0R051 · 23380-0R061 · 23380-26130 · 23380-26131 · 23380-26140 · 23380-26141
23389fuel filter clip23389-26130
23389Afuel filter clip23389-27130
23921Fuel filter support23921-26040 · 23921-26041
23925fuel filter support stay23925-26010 · 23925-26011
23931Afuel filter cover23931-26010 · 23931-26030
84461BLiquid level warning switch84461-60080 · 84461-60081
