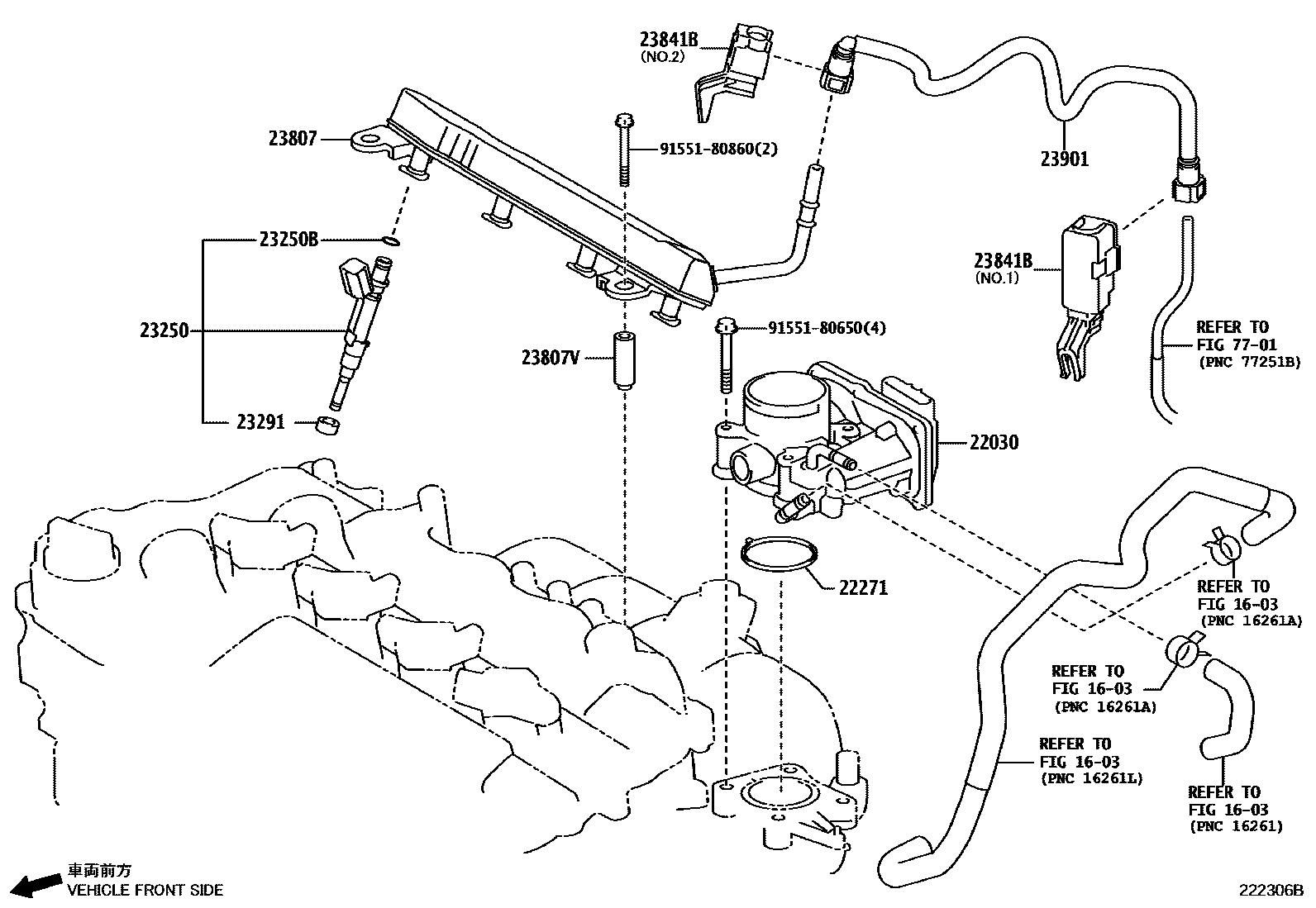

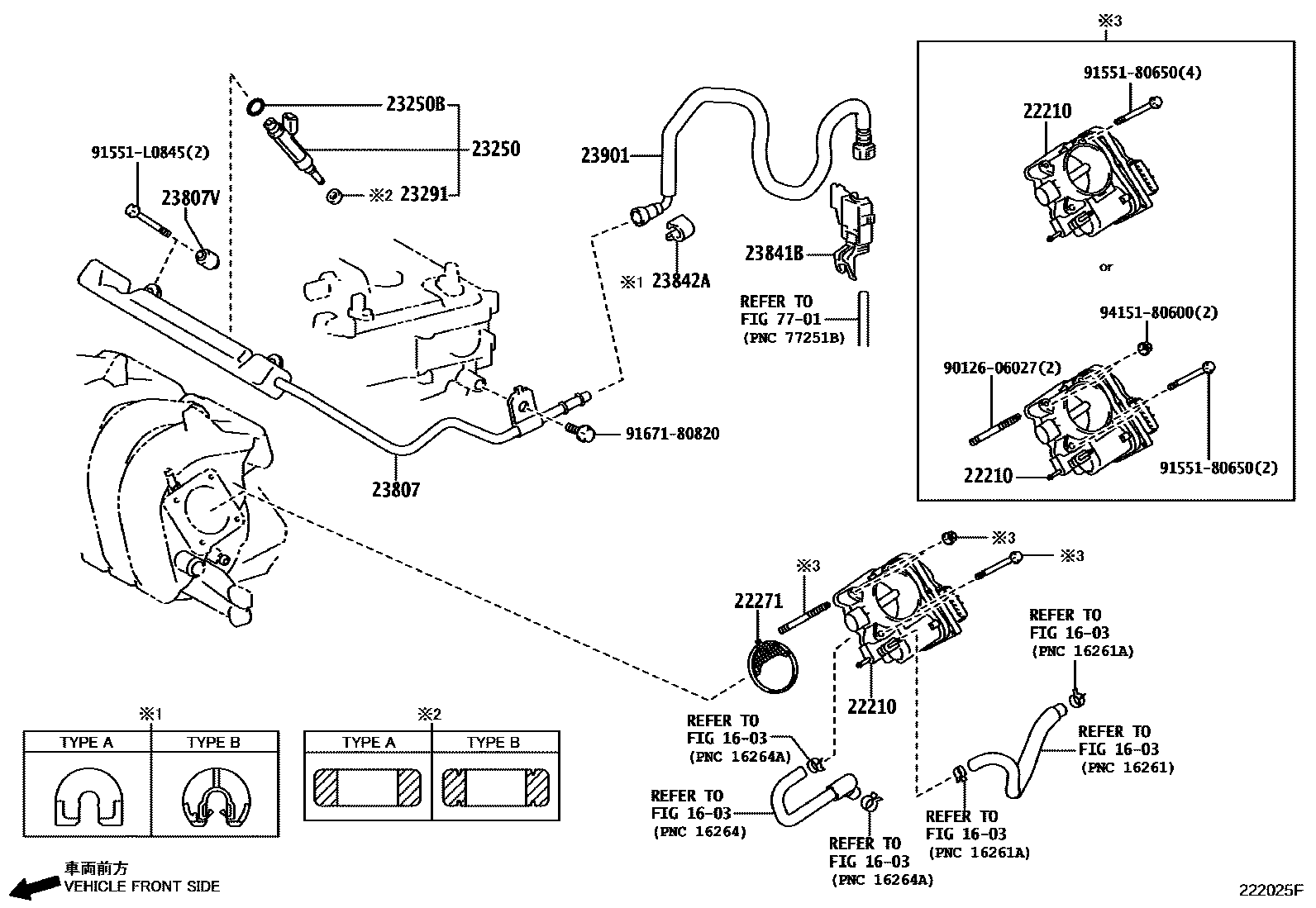

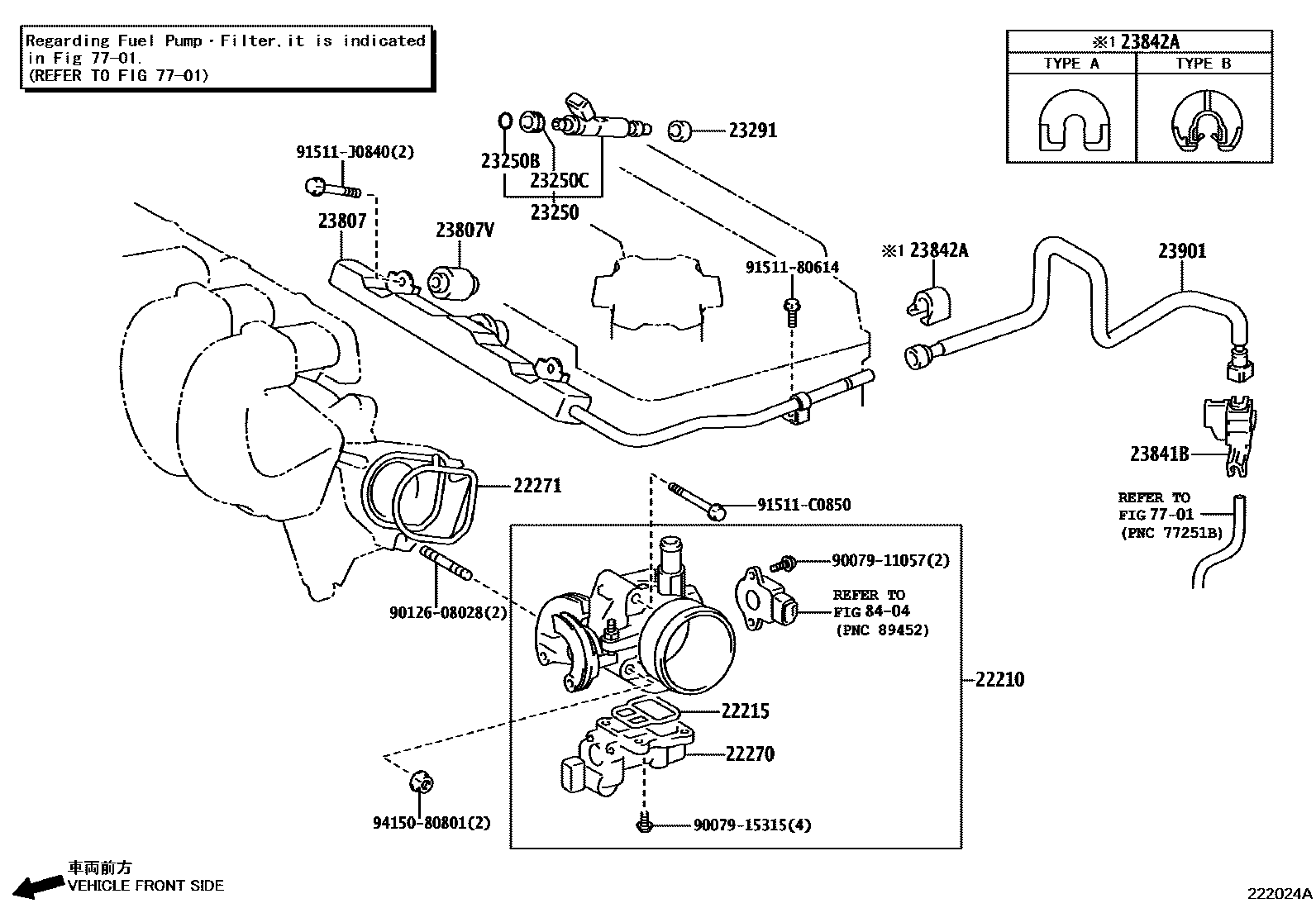

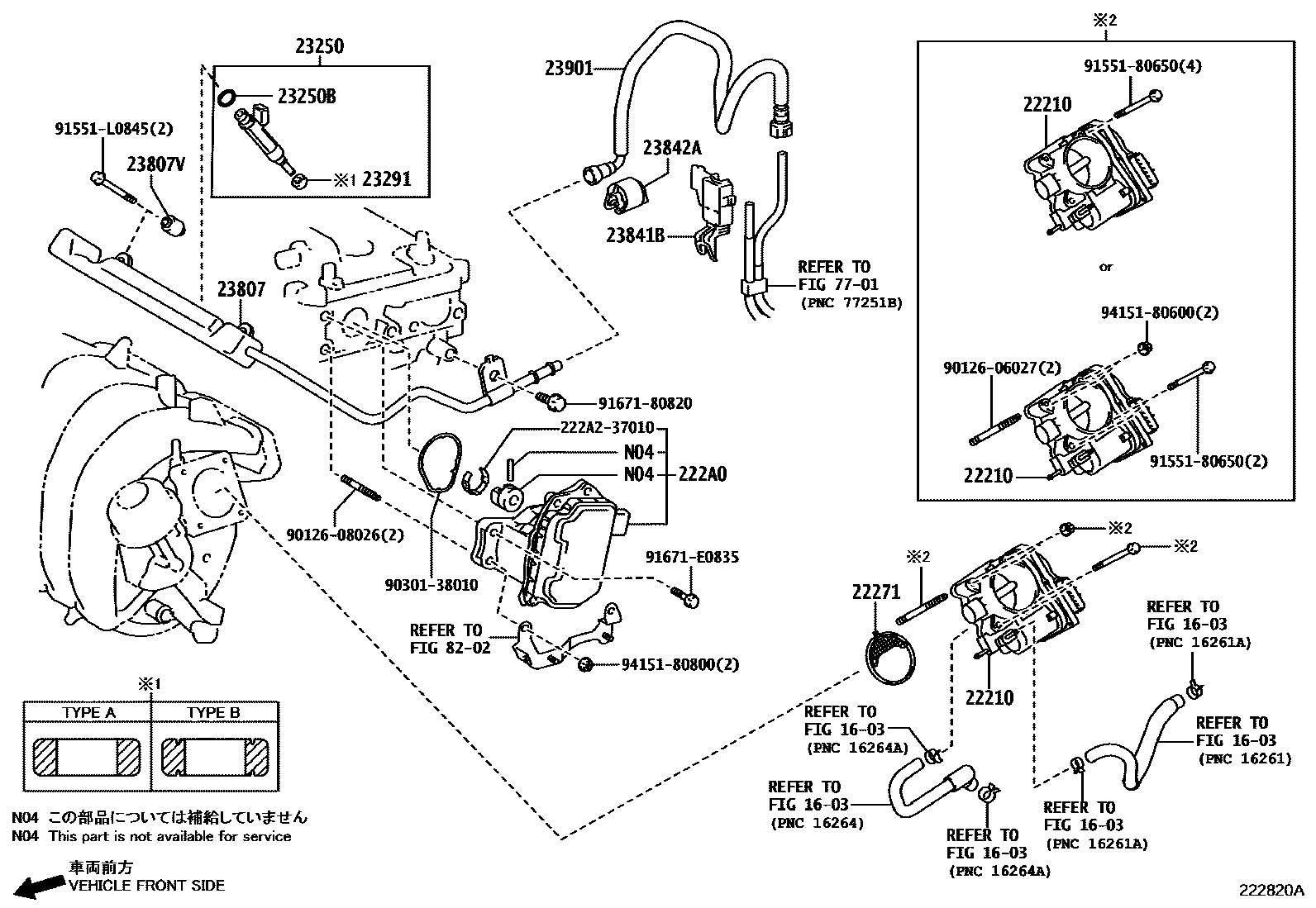

Toyota COROLLA 燃油喷射系统 — Figure 2211
Toyota COROLLA EPC diagram 2211, 燃油喷射系统, with 4 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22030 | Electronic throttle body assembly | 22030-47010 |
| 22210 | Throttle body assembly | 22030-37010 · 22030-37050 · 22210-22150 |
| 22215 | Throttle body cover gasket | 22215-74400 |
| 22270 | Idle speed control valve assembly (for throttle body) | 22270-22050 |
| 22271 | Throttle body gasket | 22271-0D040 · 22271-0T020 · 22271-22070 · 22271-47010 · 22271-75031 |
| 222A0 | Continuously variable valve lift controller assembly | 222A0-37013 · 222A0-37014 |
| 23250 | Fuel injector assembly | 23209-0D020 · 23209-0D030 · 23209-39145 · 23209-39146 · 23209-49205 |
| 23250B | O-ring (for fuel injector) | 90301-07030 · 90301-07037 · 90301-07042 |
| 23250C | Gasket (for injector) | 90080-48058 |
| 23291 | Injector vibration isolation pad | 23291-22010 · 23291-23010 · 23291-28020 · 23291-41010 |
| 23807 | Oil pipe sub-assembly | 23807-22030 · 23814-37050 · 23814-37051 · 23814-47020 |
| 23807V | No. 1 spacer (for oil pipe) | 23891-37010 · 23891-47010 · 90561-08055 |
| 23841B | No. 1 fuel pipe clamp (for EFI) | 23841-21040 · 23841-21050 |
| 23842A | No. 2 fuel line clamp (for EFI) | 23842-22020 · 23842-28010 |
| 23901 | Fuel pipe sub-assembly | 23901-22170 · 23901-22180 · 23901-47010 |
