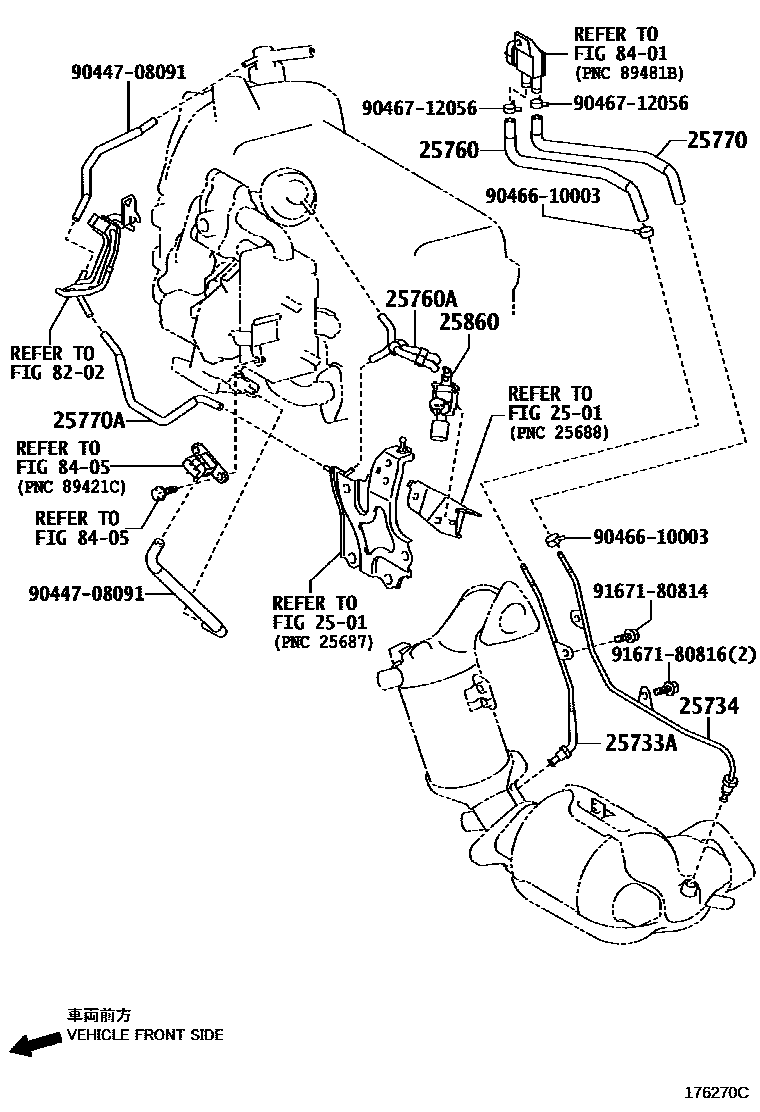

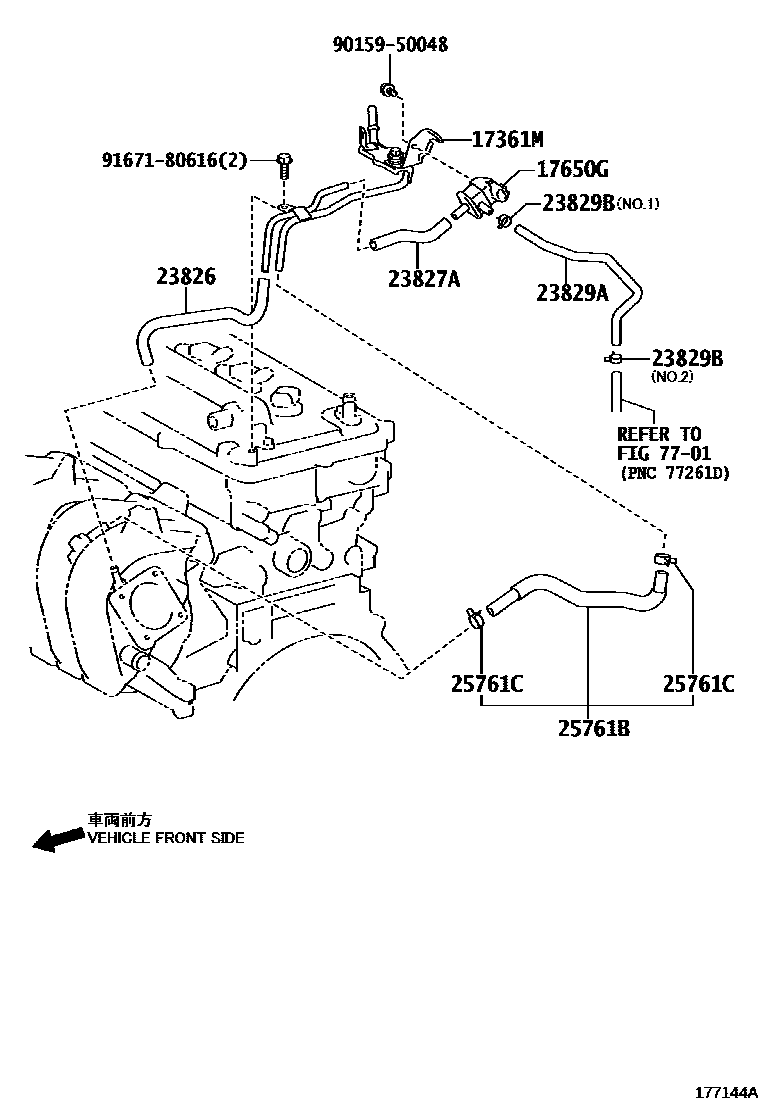

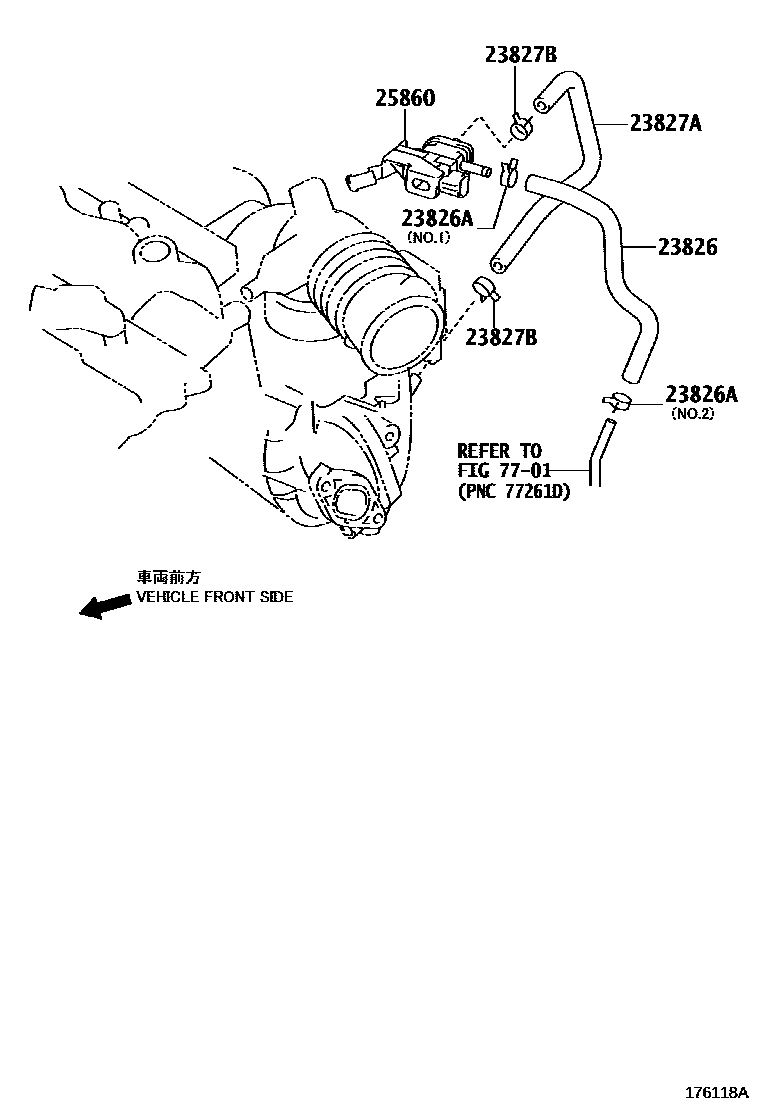

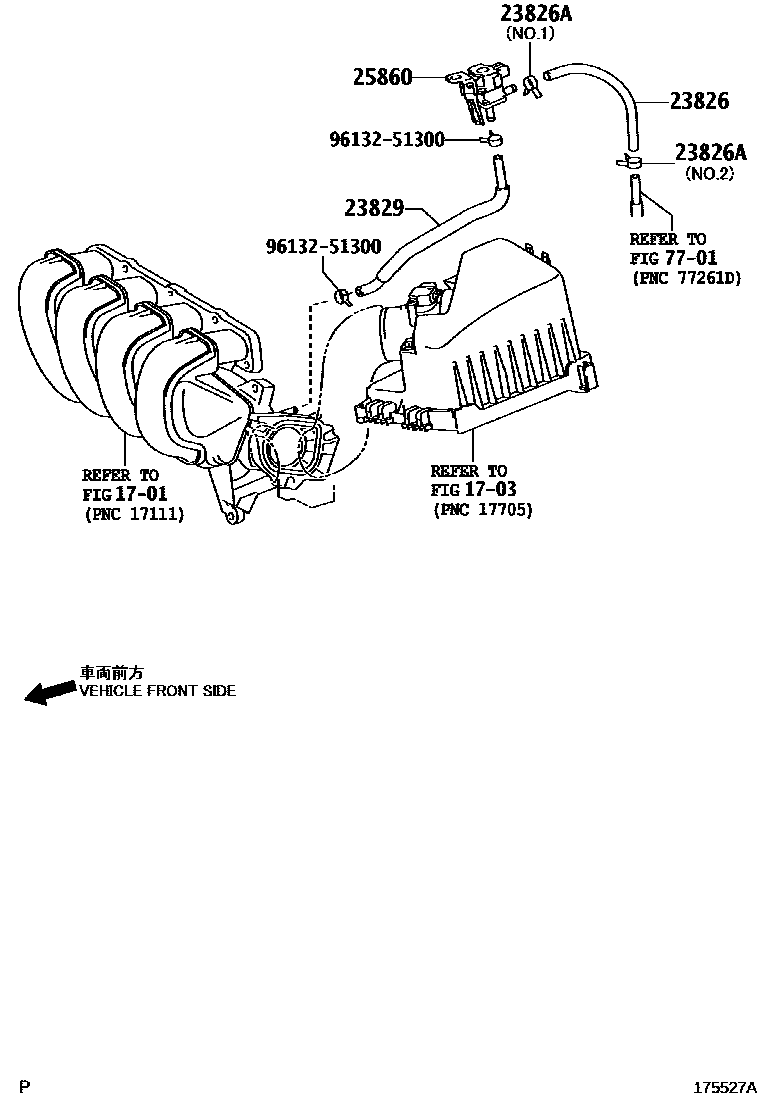

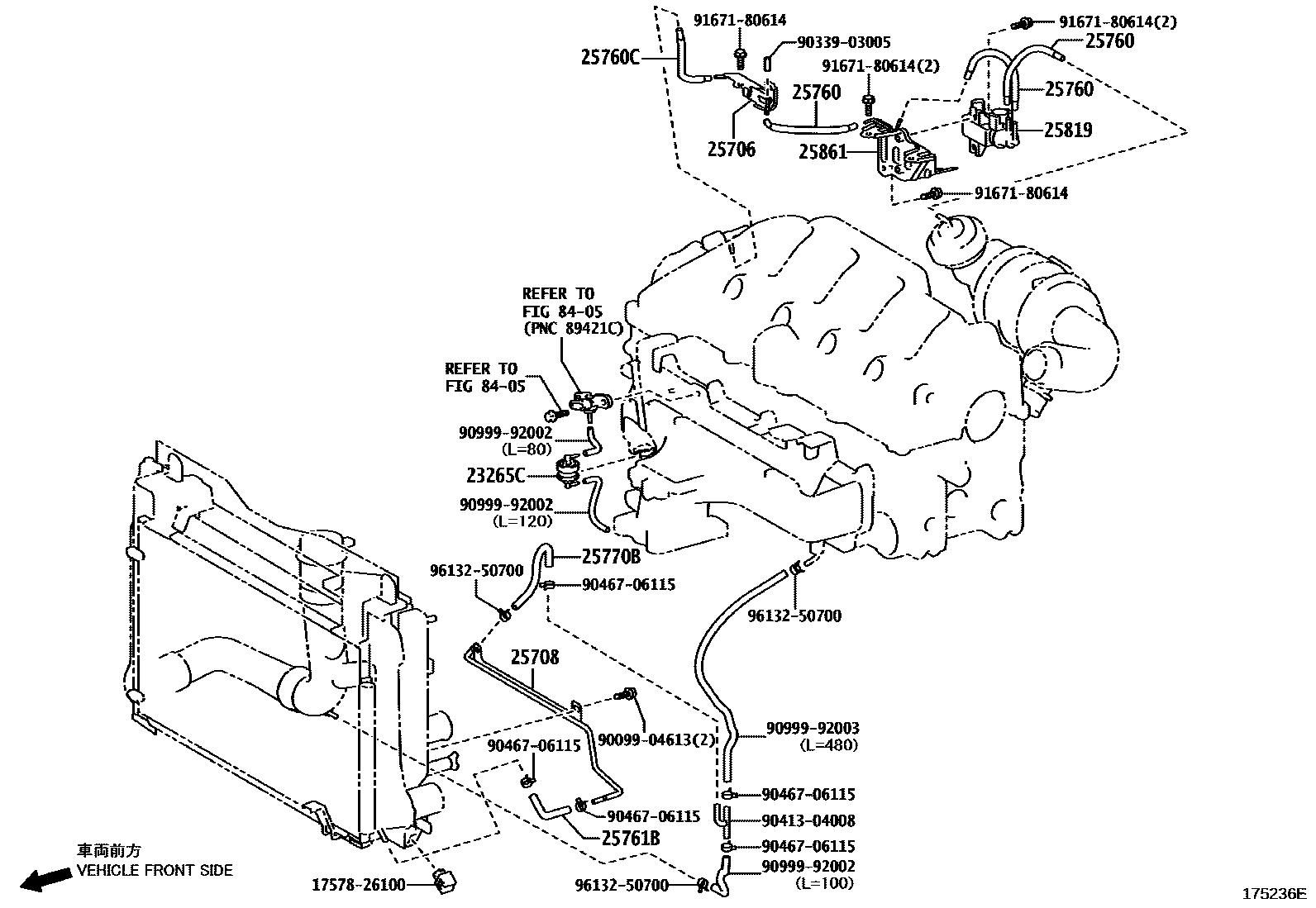

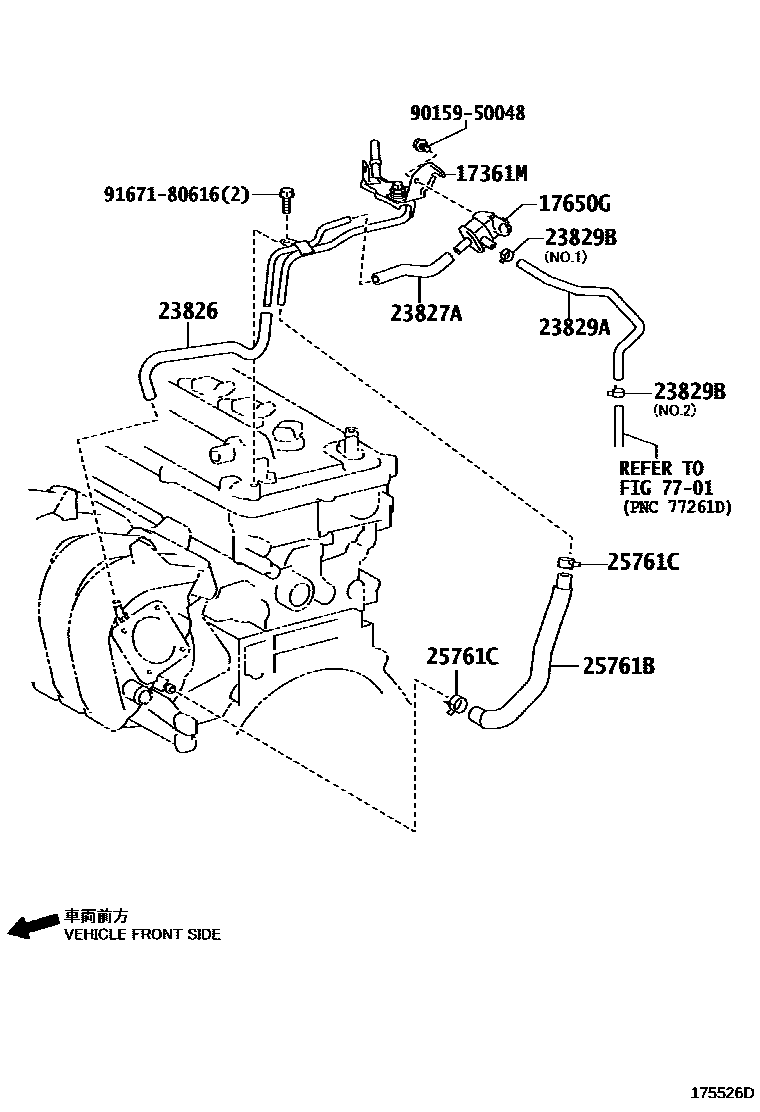

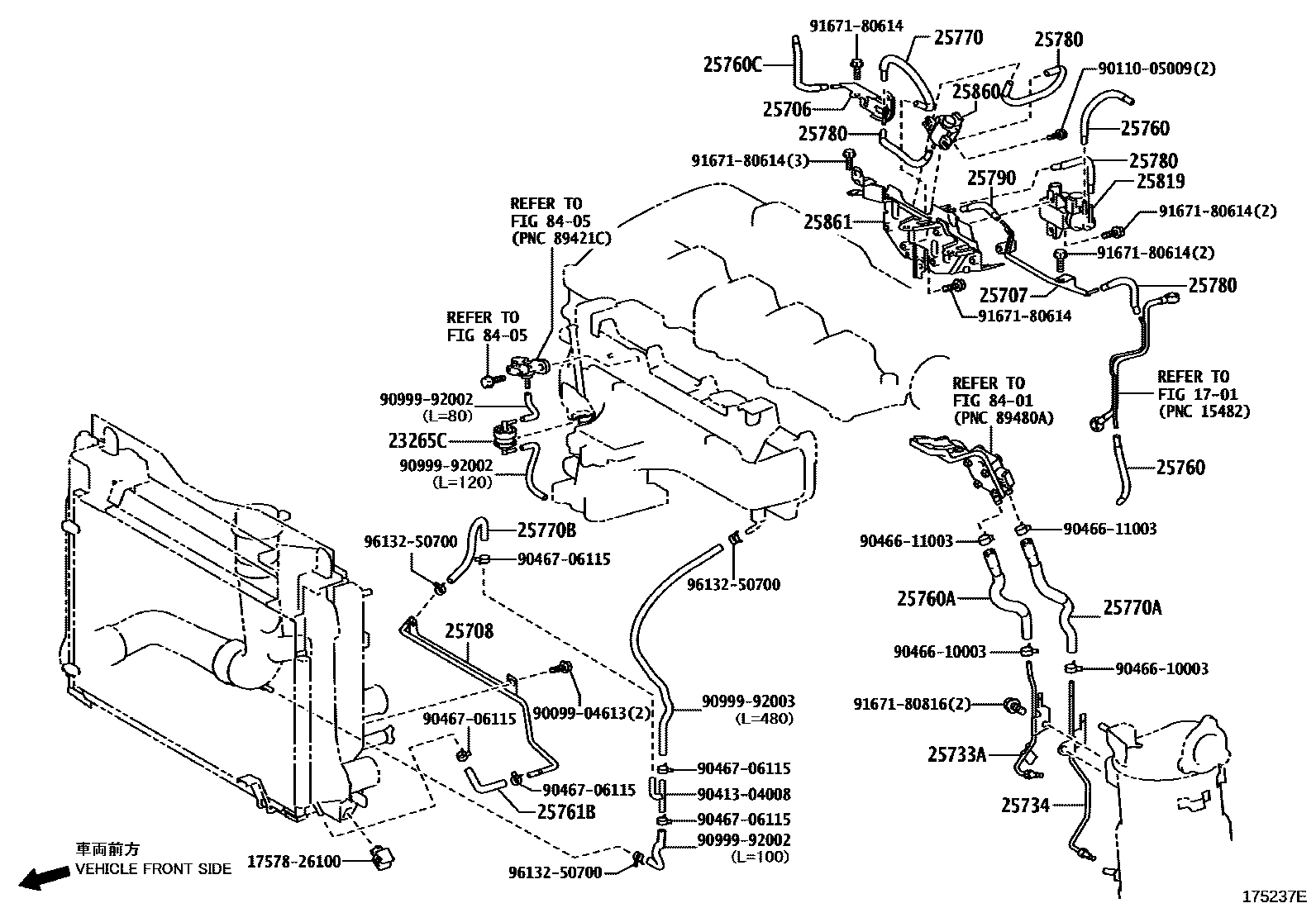

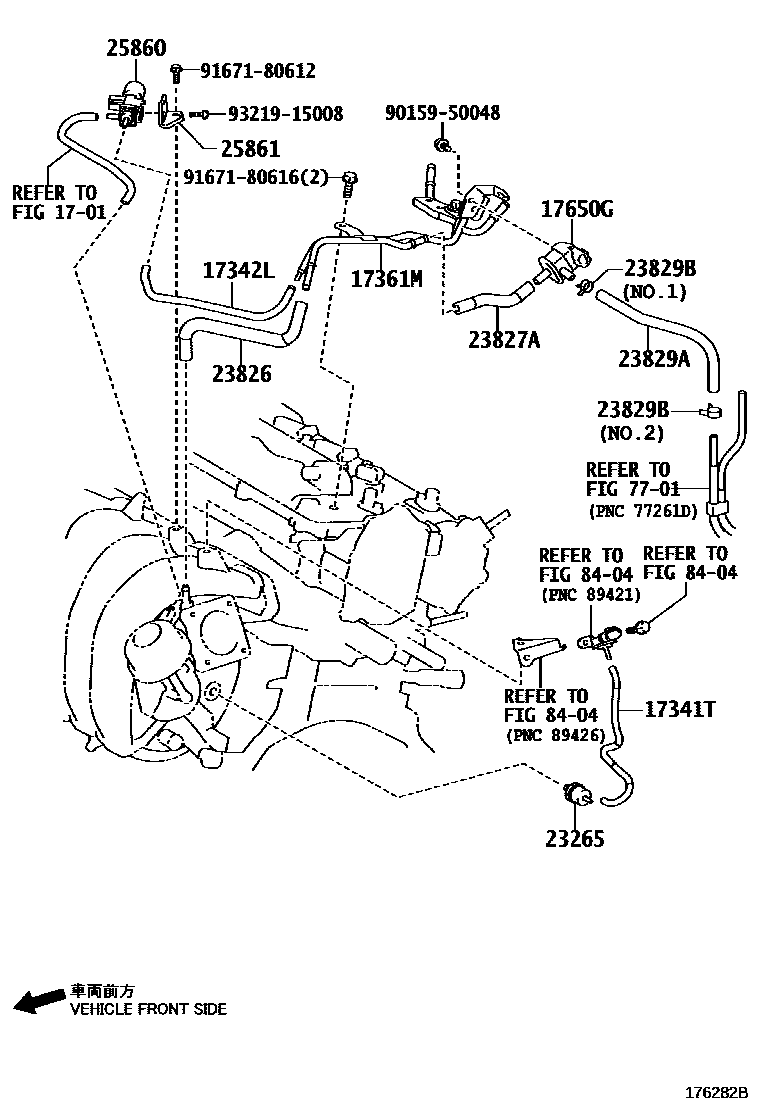

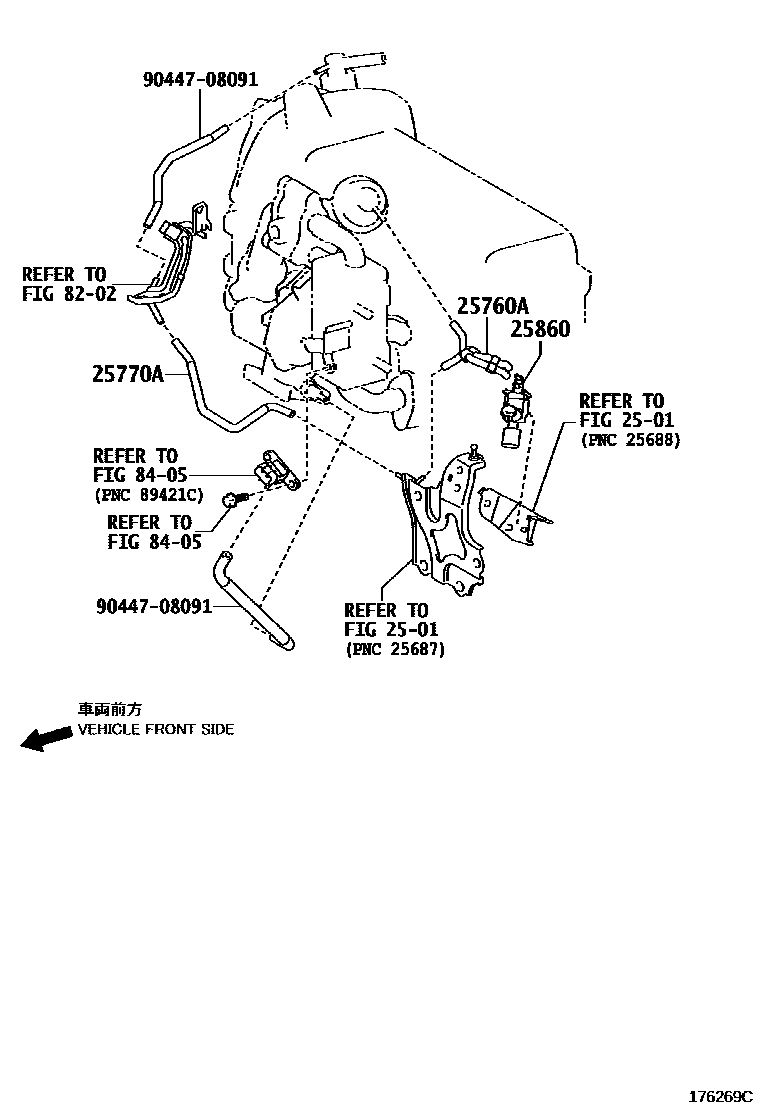

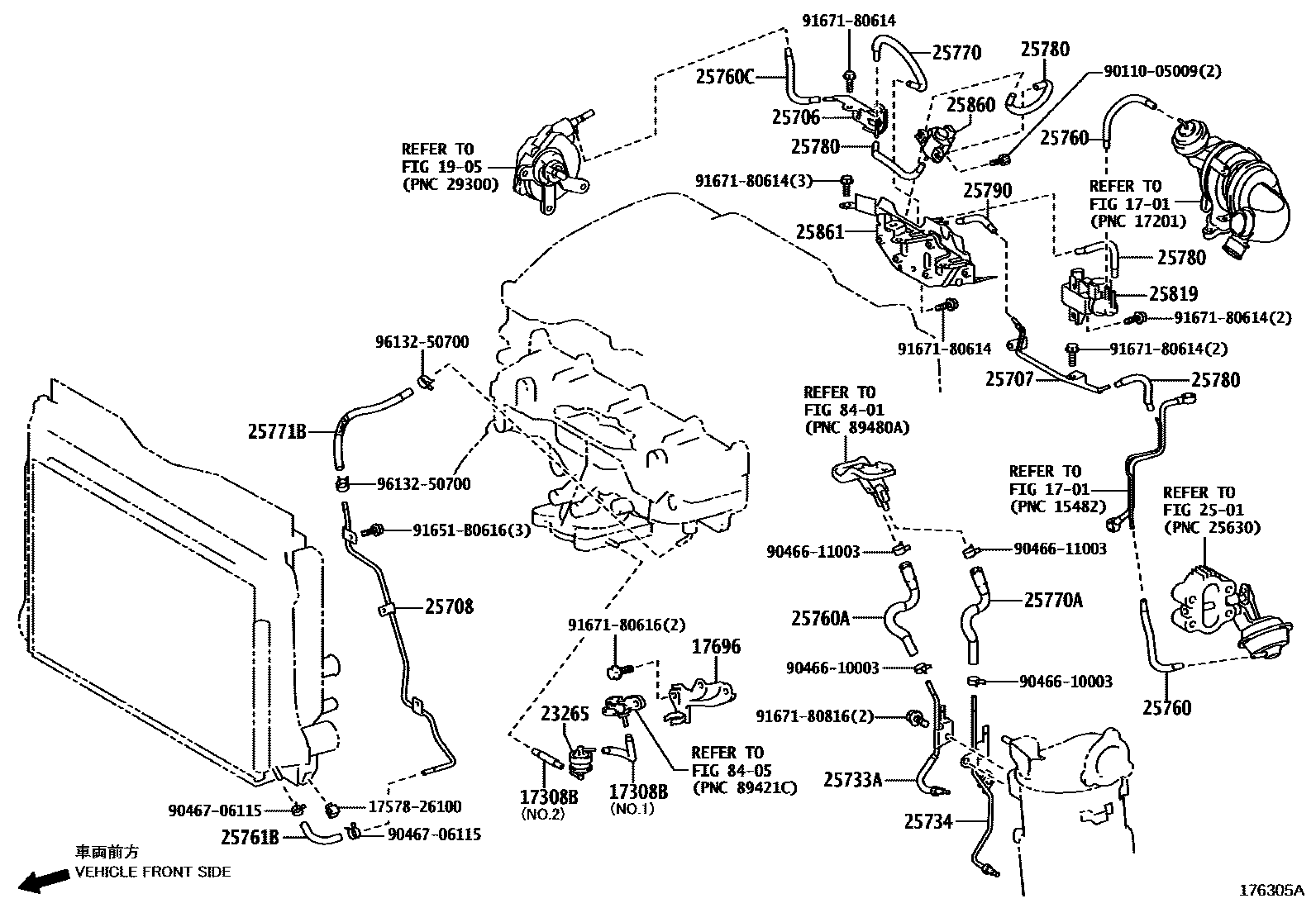

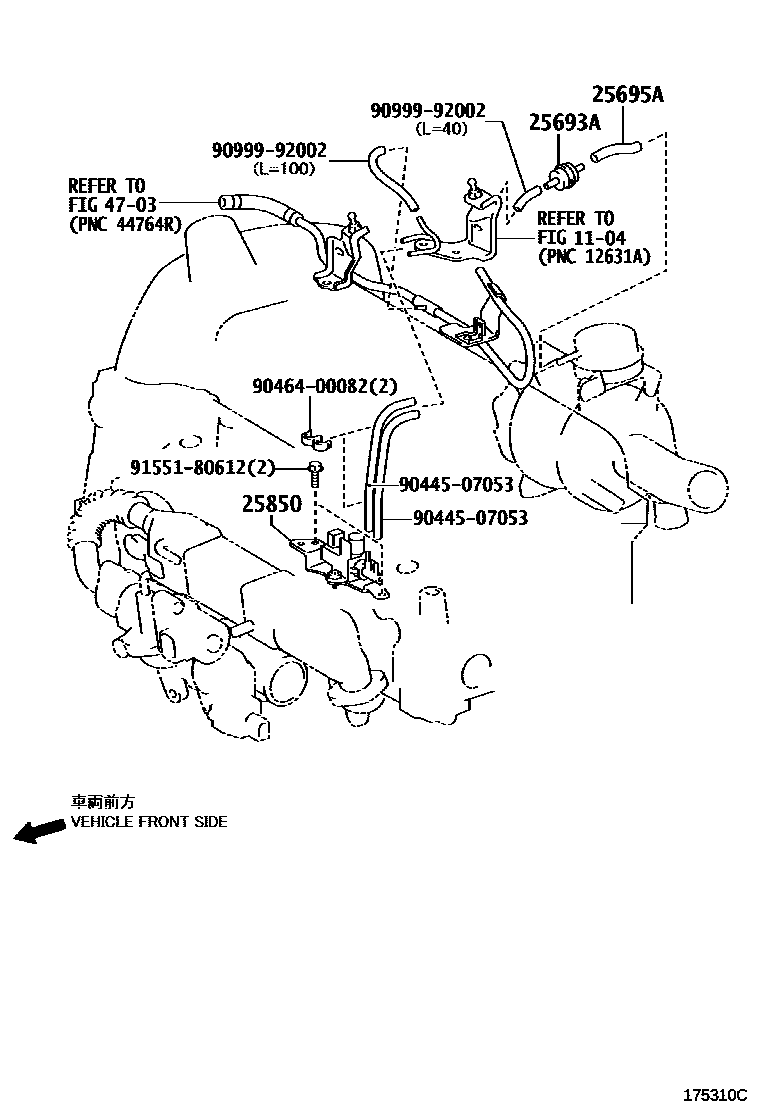

Toyota COROLLA vacuum tube — Figure 1708
Toyota COROLLA EPC diagram 1708, vacuum tube, with 11 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17308B | Vacuum hose sub-assembly | 17308-26030 · 17308-26040 |
| 17341T | Air hose No. 1 | 17341-37060 |
| 17342L | Air hose No. 2 | 17342-37050 |
| 17361M | air tube | 17361-37010 · 17361-37011 · 17361-37020 |
| 17650G | Duty cycle controlled vacuum switching valve | 90910-12276 |
| 17696 | Gas filter bracket | 17696-26010 |
| 23265 | No. 1 gas filter | 90917-11022 · 90917-11044 |
| 23265C | gas filter | 90917-11036 |
| 23826 | No. 1 fuel vapor supply hose | 23826-21130 · 23826-37020 · 23826-37021 · 23826-37050 · 23826-47011 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 96132-51300 · 96136-41501 |
| 23827A | No. 2 fuel vapor supply hose | 23827-37020 · 23827-37030 · 23827-47010 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 96132-51300 |
| 23829 | No. 3 fuel vapor supply hose | 23829-22150 |
| 23829A | Fuel vapor supply hose | 23826-22160 · 23826-37111 |
| 23829B | Clamp (for fuel vapor supply hose) | 96132-51300 · 96136-41501 |
| 25693A | EGR vacuum regulator shock absorber | 25693-58010 |
| 25695A | EGR vacuum regulator hose | 17294-33030 |
| 25706 | No. 1 vacuum transfer tube sub-assembly | 25706-26010 |
| 25707 | No. 2 vacuum transfer pipe sub-assembly | 25707-26010 |
| 25708 | No. 3 vacuum transfer tube sub-assembly | 25736-0R020 · 25736-26030 |
| 25733A | No. 1 vacuum tube | 25733-26010 · 25733-26011 · 25733-26040 · 25733-33010 |
| 25734 | No. 2 vacuum tube | 25734-26010 · 25734-26040 · 25734-33010 |
| 25760 | Vacuum transfer hose assembly | 25760-26021 · 25760-33080 |
| 25760A | Vacuum transfer hose assembly | 25760-26080 · 25760-26160 · 25760-33110 |
| 25760C | No. 3 vacuum transmission hose assembly | 25760-26120 |
| 25761B | No. 1 Vacuum Transfer Hose | 25761-26030 · 25761-37010 · 25761-37011 |
| 25761C | Clamp (No. 1 vacuum transfer hose) | 96133-41500 · 96136-41801 |
| 25770 | No. 2 vacuum transmission hose assembly | 25770-26020 · 25770-33020 |
| 25770A | No. 2 vacuum transmission hose assembly | 25760-33130 · 25770-26050 · 25770-26110 |
| 25770B | No. 3 vacuum transmission hose assembly | 25770-26071 |
| 25771B | No. 2 vacuum transfer hose | 25771-26070 |
| 25780 | No. 3 vacuum transmission hose assembly | 25780-26011 |
| 25790 | No. 4 vacuum transmission hose assembly | 25790-26011 |
| 25819 | Vacuum regulating valve assembly | 25819-0R011 |
| 25850 | Electronic vacuum regulating valve assembly | 25850-33050 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-0R010 · 25860-21100 · 25860-30070 · 25860-47010 · 90910-12281 |
| 25861 | Vacuum switch valve bracket | 25861-26010 · 25861-26040 · 25861-26070 · 25861-37010 |
