Toyota COROLLA Air Cleaner — Figure 1703

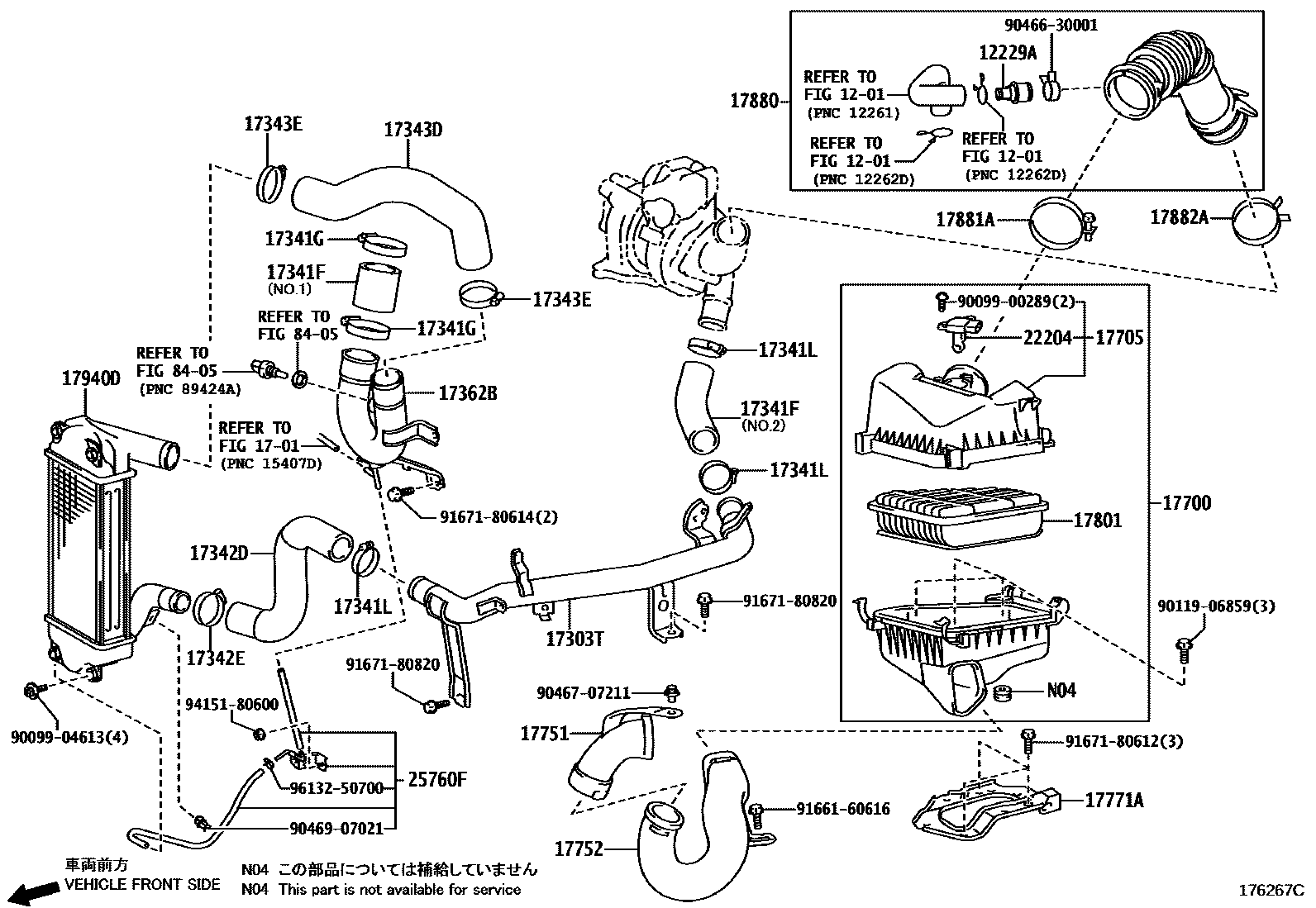

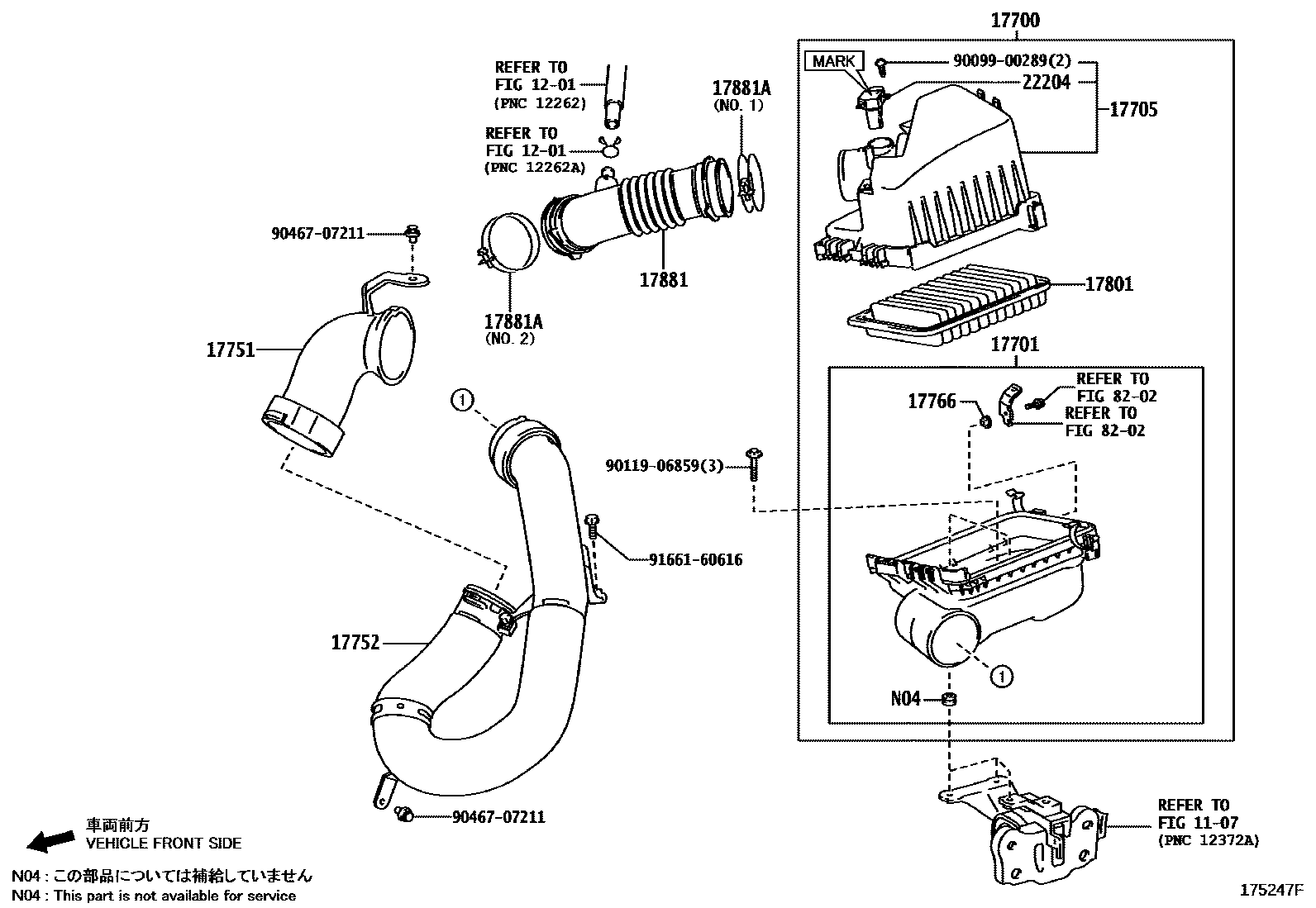

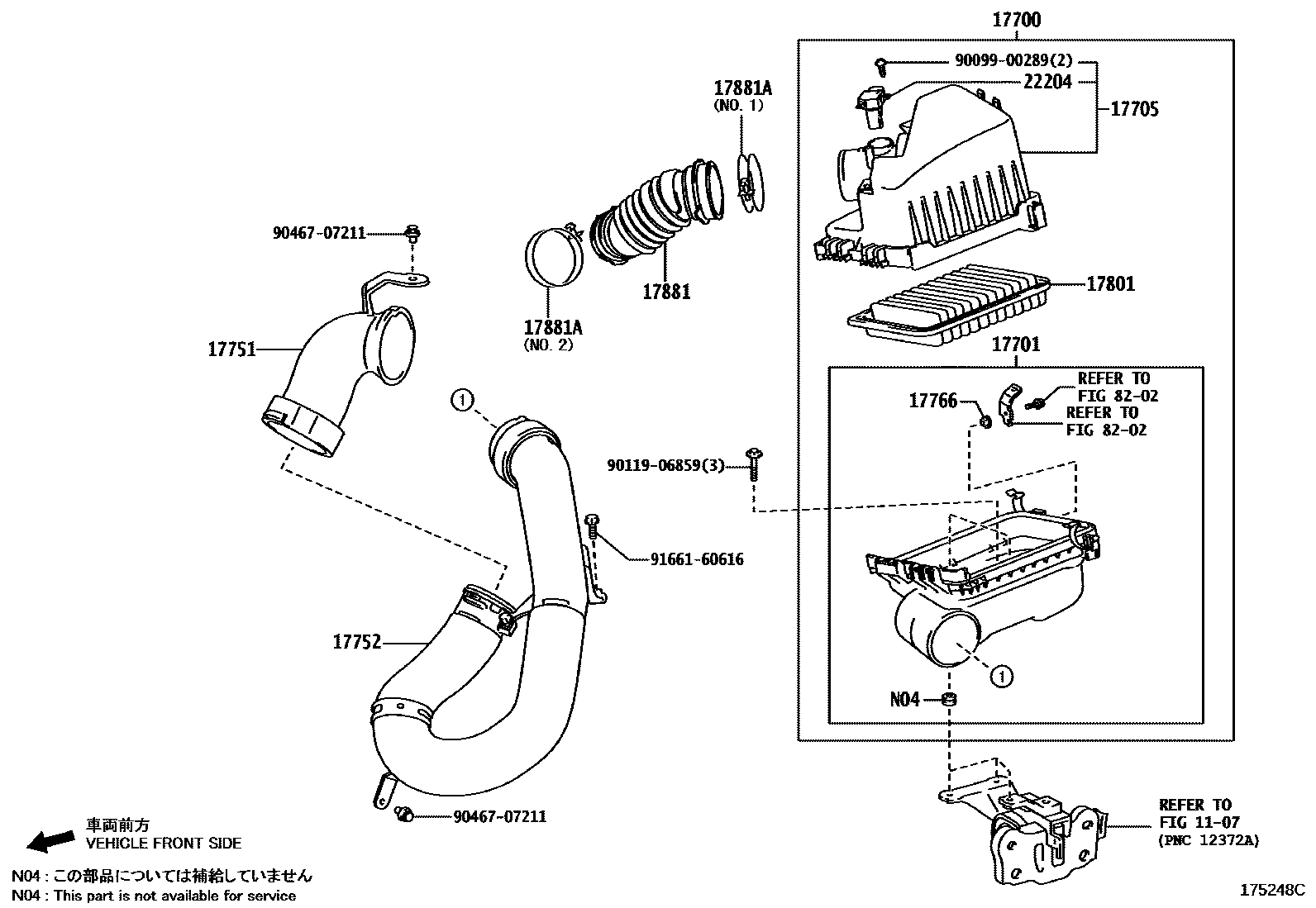

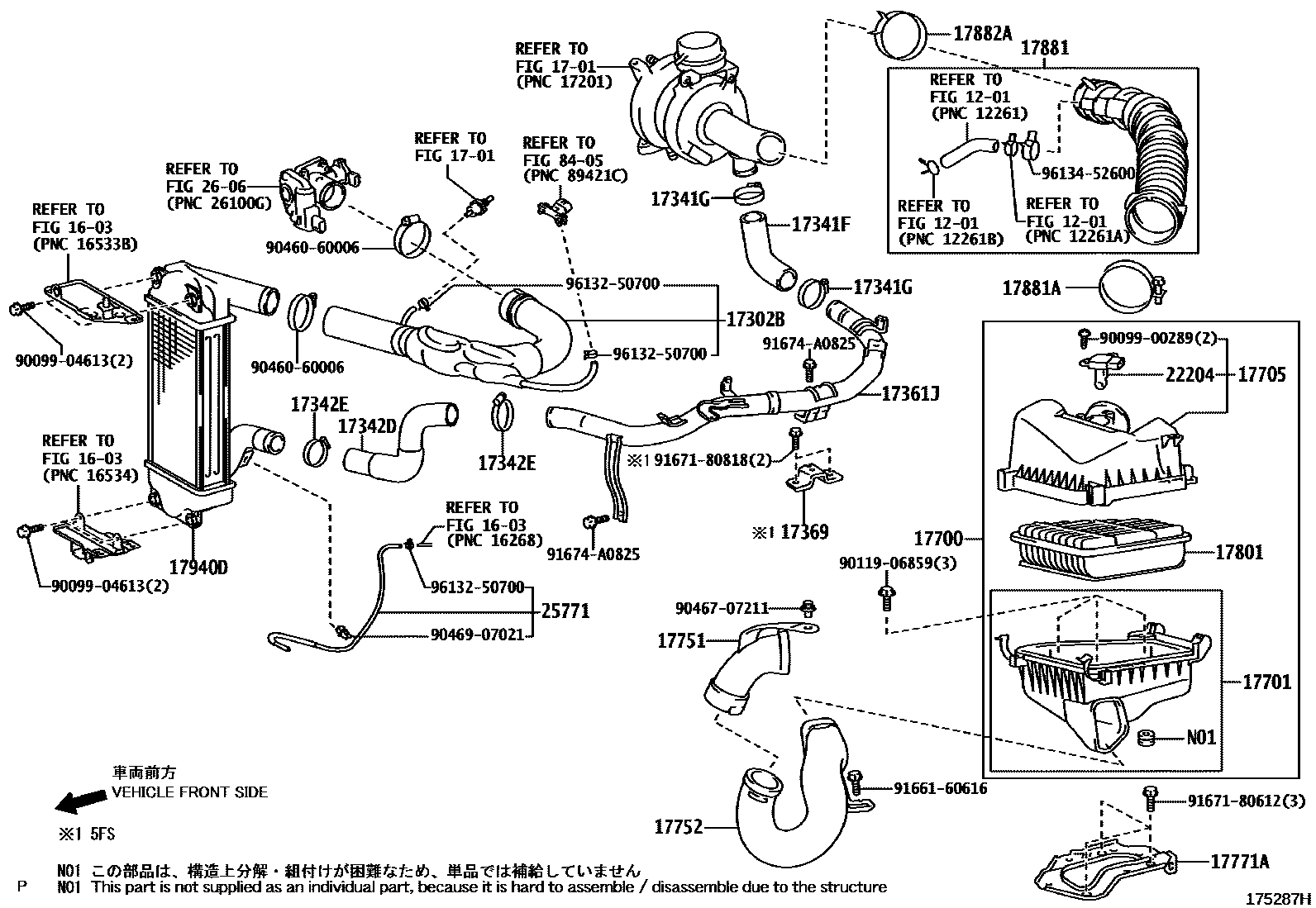

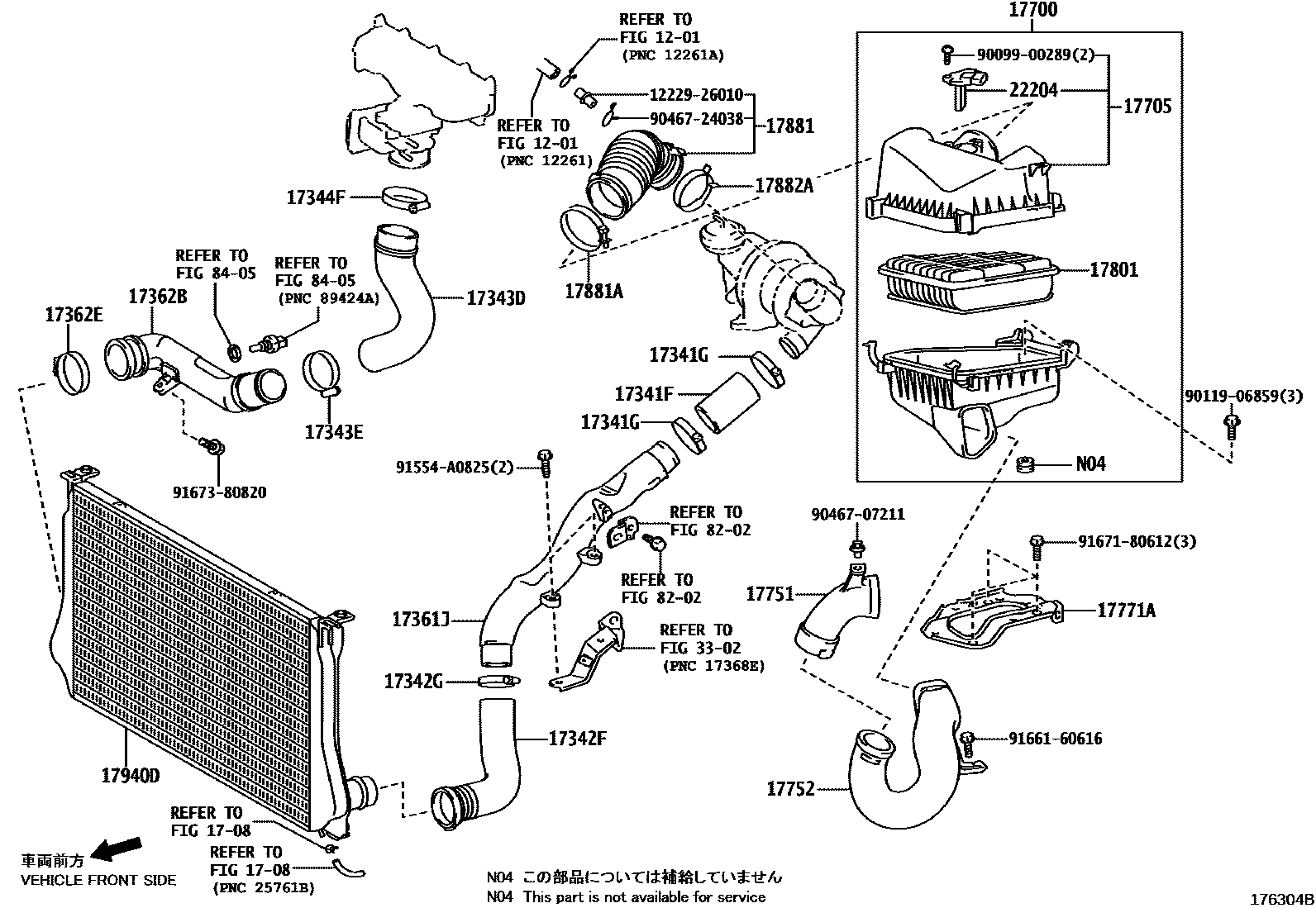

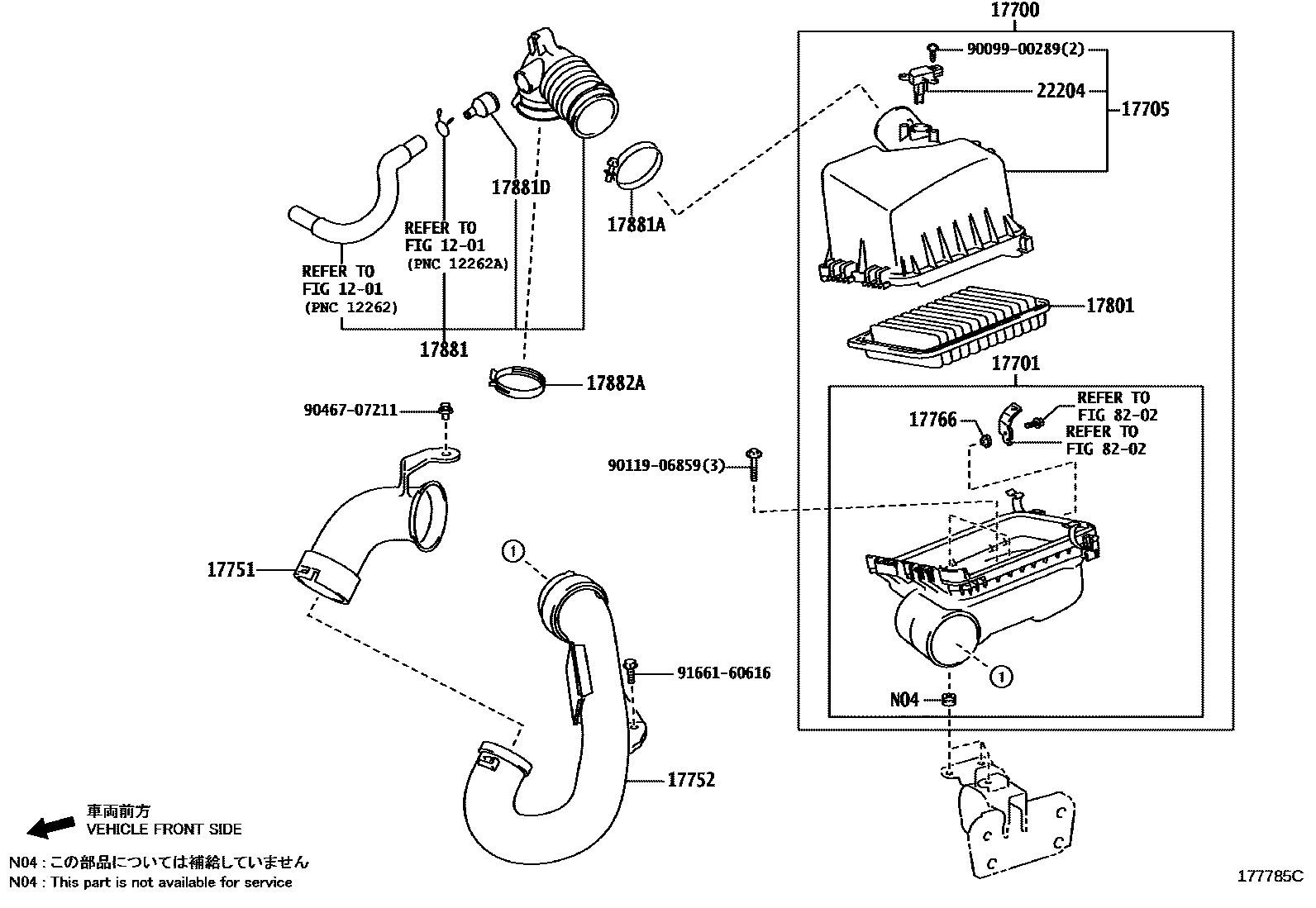

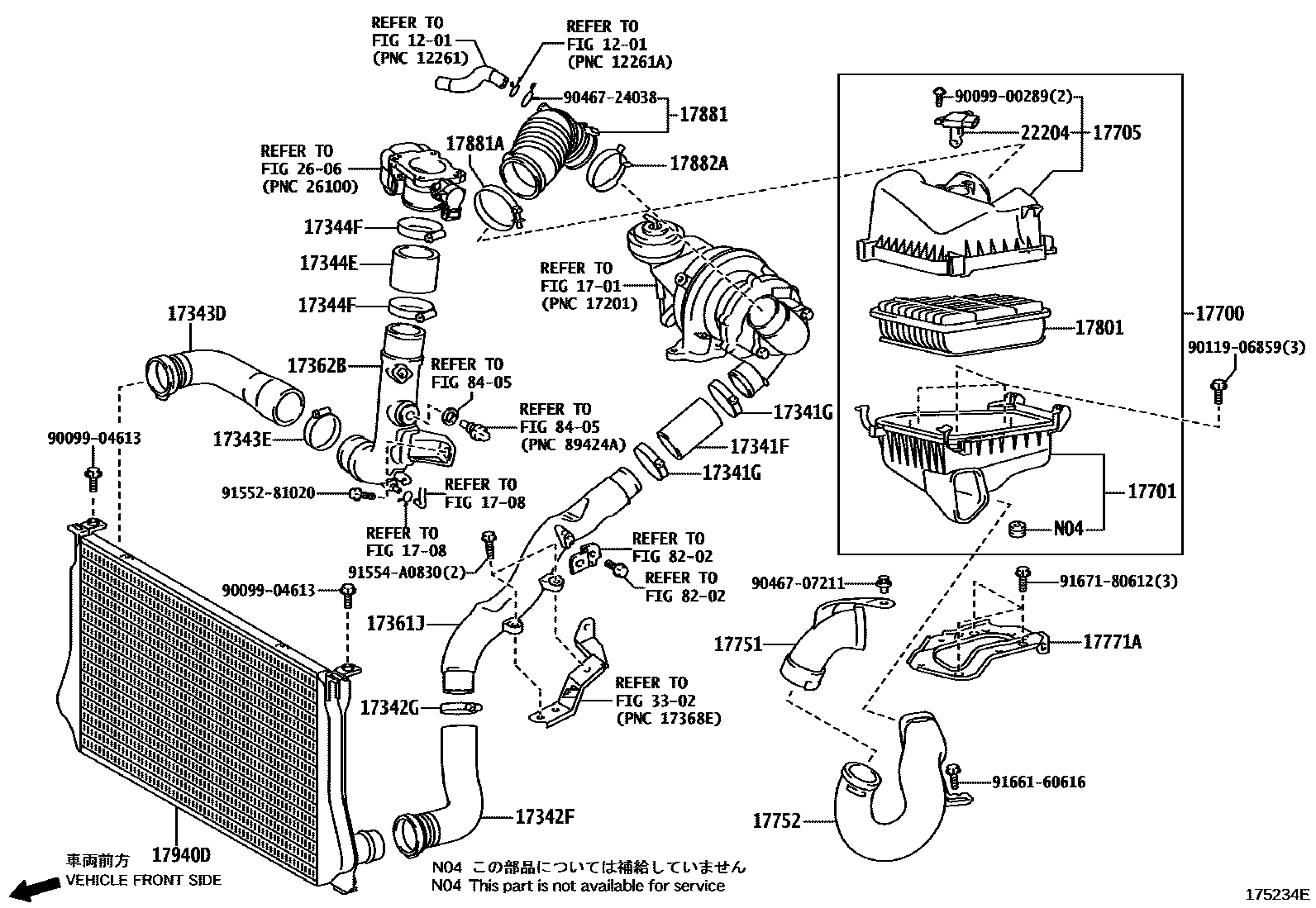

Toyota COROLLA EPC diagram 1703, Air Cleaner, with 7 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12229A | ventilation duct | 12229-33010 |
| 17302B | Air hose sub-assembly | 17302-33010 |
| 17303T | Air pipe subassembly | 17303-33020 |
| 17341F | Air hose No. 1 | 17341-26100 · 17341-26101 · 17341-33040 · 17341-33070 · 17341-33080 |
| 17341G | Clip or clip (for No. 1 air hose) | 90460-50005 · 90460-63011 · 90460-65012 |
| 17341L | hose clamp | 90460-50005 |
| 17342D | Air hose No. 2 | 17342-33040 · 17342-33080 |
| 17342E | Clip or clip (for No. 2 air hose) | 90460-50005 |
| 17342F | Air hose No. 2 (for intercooler) | 17342-26110 |
| 17342G | No. 2 hose clamp (for intercooler) | 90460-70003 |
| 17343D | No. 3 air hose | 17343-26050 · 17343-26060 · 17343-33070 |
| 17343E | Hose clamp (for size 3 air hose) | 90460-60006 · 90460-73011 |
| 17344E | No. 4 air hose | 17344-0R010 |
| 17344F | Hose clamp (for size 4 air hose) | 90460-77002 |
| 17361J | Air tube No. 1 | 17361-26050 · 17361-33030 |
| 17362B | No. 2 air pipe | 17362-26020 · 17362-26030 · 17362-33050 |
| 17362E | Clamp No. 2 (for No. 2 air tube) | 90460-73012 |
| 17369 | Air tube bracket | 17369-33010 |
| 17700 | air filter assembly | 17700-22200 · 17700-22201 · 17700-22210 · 17700-22211 · 17700-26340 · 17700-26370 · 17700-33200 · 17700-33210 · 17700-37230 · 17700-37231 · 17700-47130 |
| 17701 | Air filter housing sub-assembly | 17701-21110 · 17701-26330 |
| 17705 | Air filter cover sub-assembly | 17705-22190 · 17705-22191 · 17705-22220 · 17705-22221 · 17705-26120 · 17705-26150 · 17705-33070 · 17705-33080 · 17705-37110 · 17705-37111 · 17705-47080 |
| 17751 | No. 1 air filter air inlet | 17751-21170 · 17751-26040 · 17751-37050 · 17751-47020 |
| 17752 | No. 2 air filter air inlet | 17752-21060 · 17752-26030 · 17752-37030 · 17752-37130 · 17752-47010 |
| 17766 | No. 2 air filter stay | 17706-21010 · 17706-22010 |
| 17771A | air filter bracket | 17771-26010 · 17771-26020 |
| 17801 | Air filter element sub-assembly | 17801-0R030 · 17801-21050 · 17801-26020 |
| 17880 | Air cleaner hose assembly | 17880-33060 |
| 17881 | No. 1 air cleaner hose | 17880-22040 · 17880-22110 · 17880-22120 · 17880-26030 · 17880-26050 · 17880-33030 · 17880-47010 · 17881-22150 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10730 · 96111-10750 · 96111-10780 · 96111-10800 · 96111-10830 · 96111-10850 |
| 17881D | Connector tube (for air cleaner hose) | 90904-06008 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90466-54002 · 90466-62002 |
| 17940D | Intercooler assembly | 17900-0N020 · 17900-0N040 · 17940-0R020 · 17940-0R040 |
| 22204 | Intake air flow meter assembly | 22204-0T040 · 22204-0V010 · 22204-0V020 · 22204-26010 · 22204-28010 · 22204-30010 · 22204-31010 · 22204-31020 · 22204-33010 · 22204-37010 |
| 25760F | Vacuum transfer hose assembly | 25770-33030 |
| 25771 | No. 2 vacuum transfer hose | 25770-33010 |
