Toyota COROLLA Manifold — Figure 1701

Toyota COROLLA EPC diagram 1701, Manifold, with 11 images and 56 PNC and OE references.

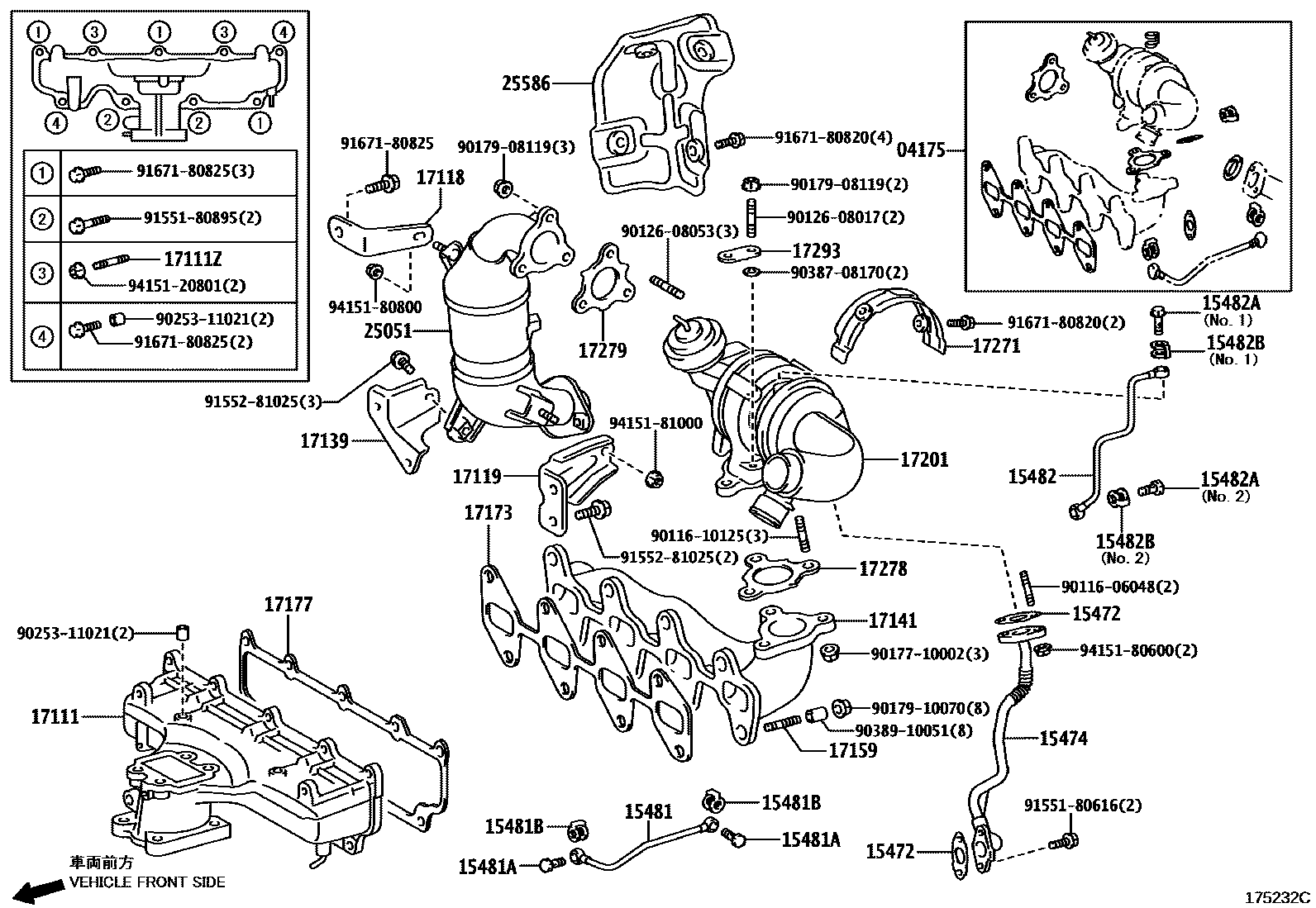

Toyota COROLLA Manifold EPC diagram — 175232C
Manifold — 175232C (200610 – 200901)

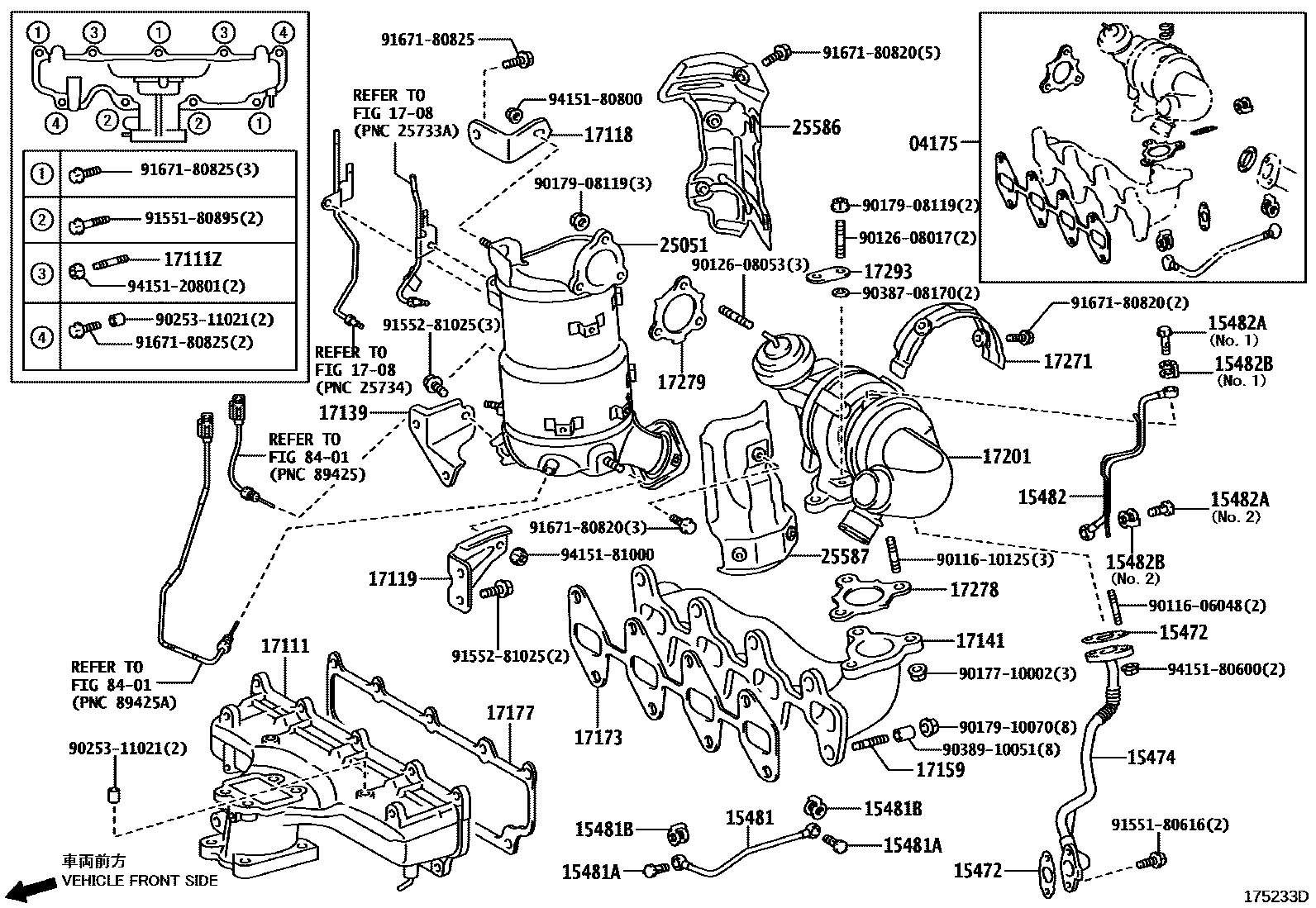

Toyota COROLLA Manifold EPC diagram — 175233D
Manifold — 175233D (200610 – 200901)

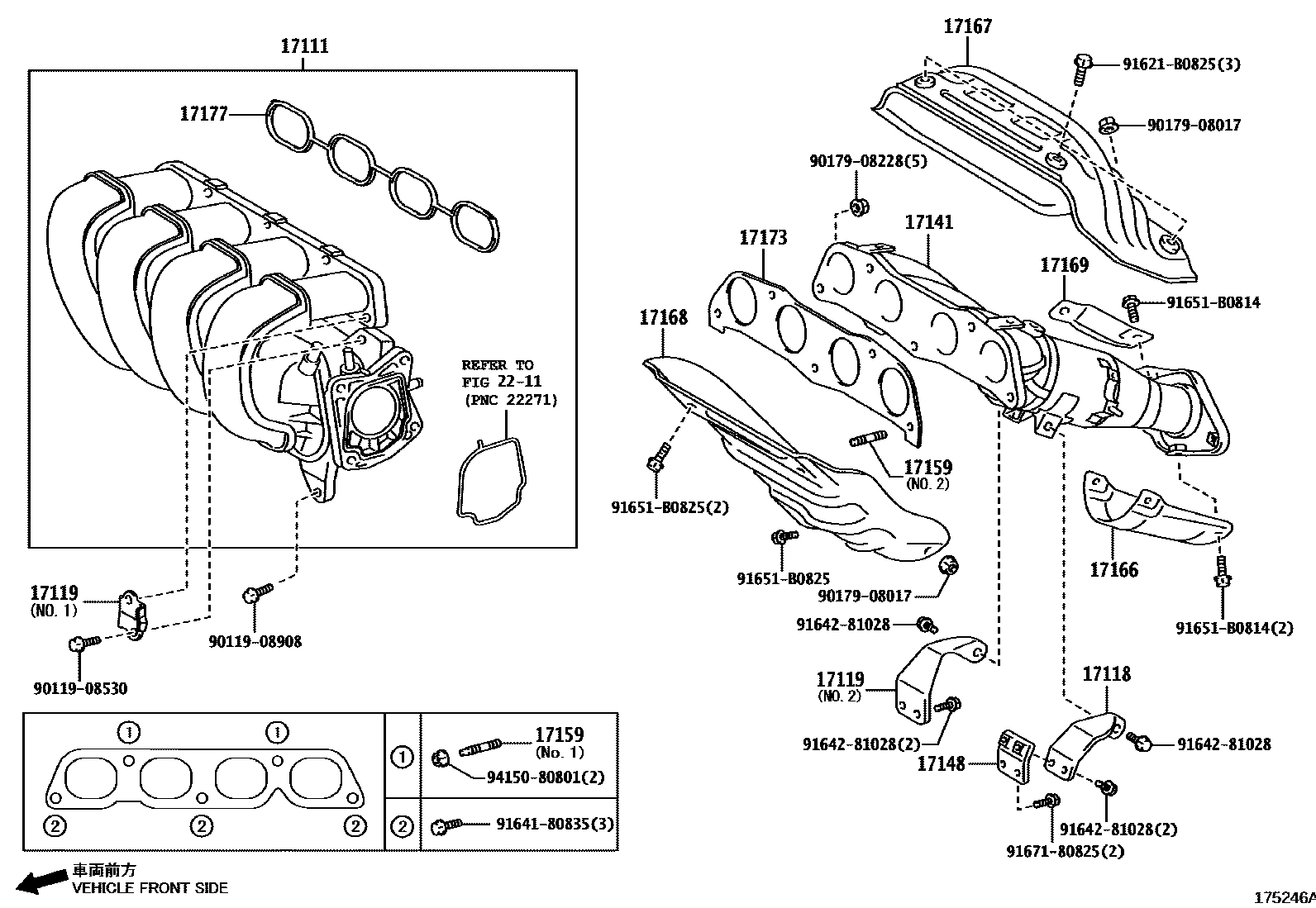

Toyota COROLLA Manifold EPC diagram — 175246A
Manifold — 175246A (200610 – 200812)

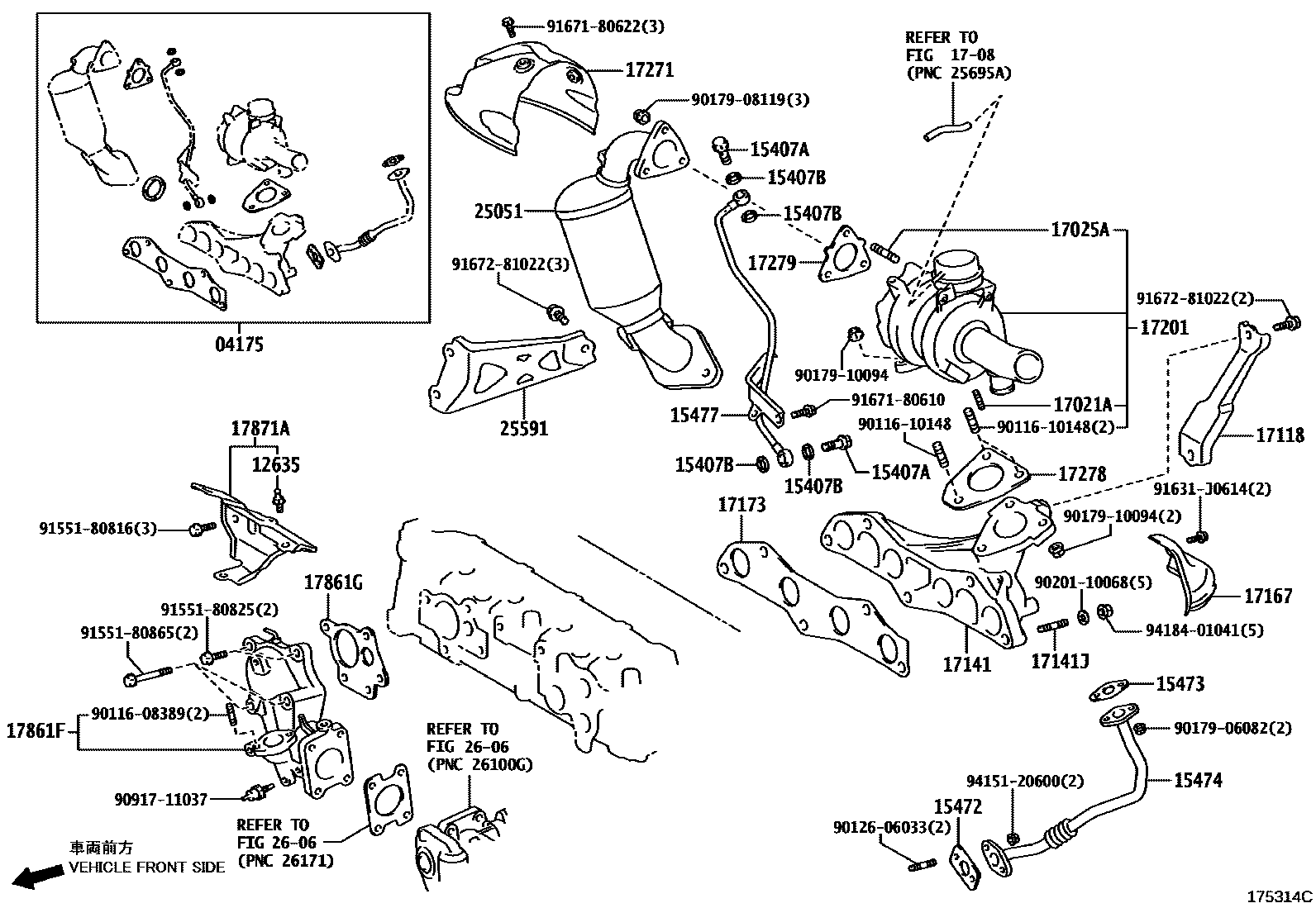

Toyota COROLLA Manifold EPC diagram — 175314C
Manifold — 175314C (200610 – 200812)

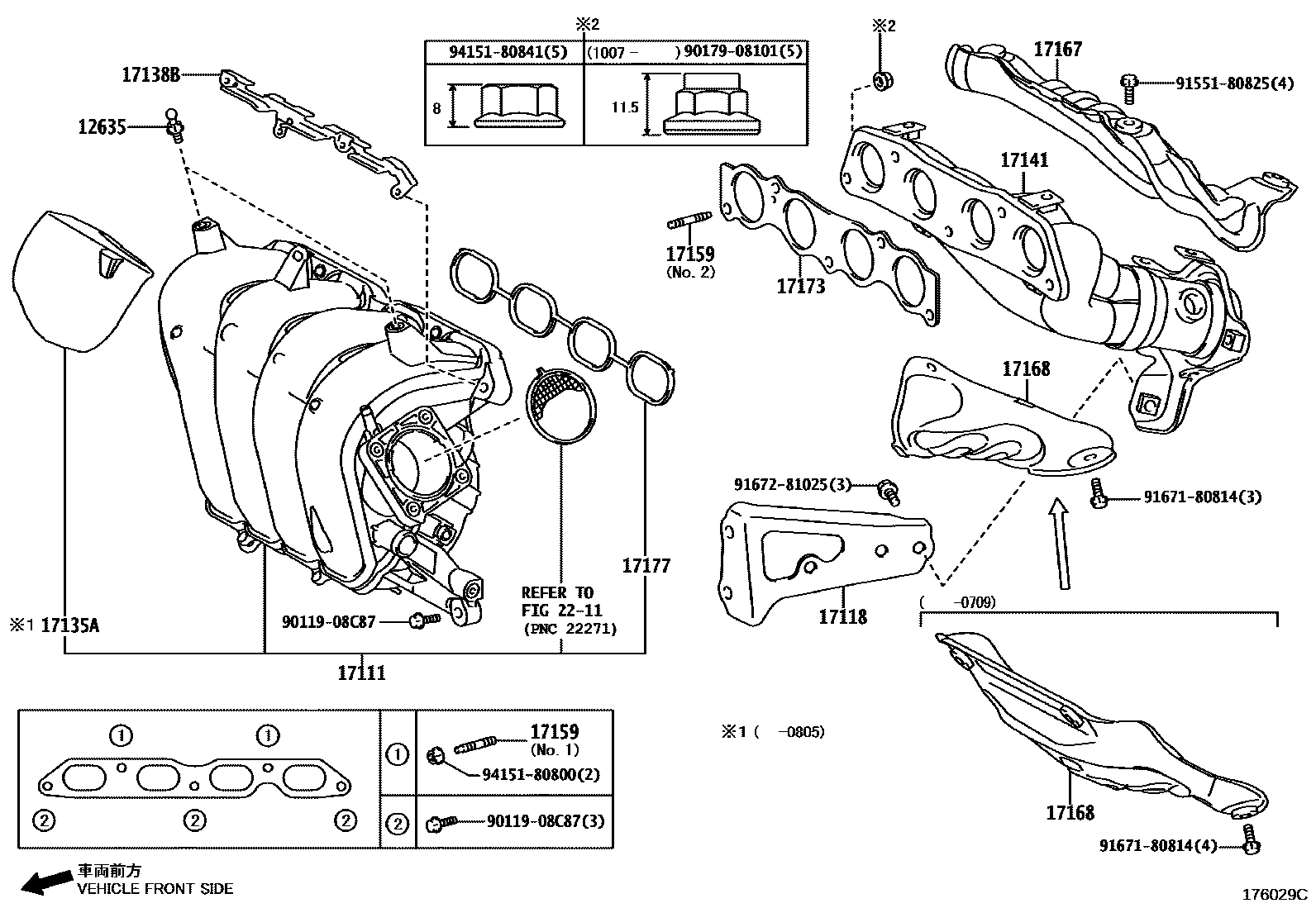

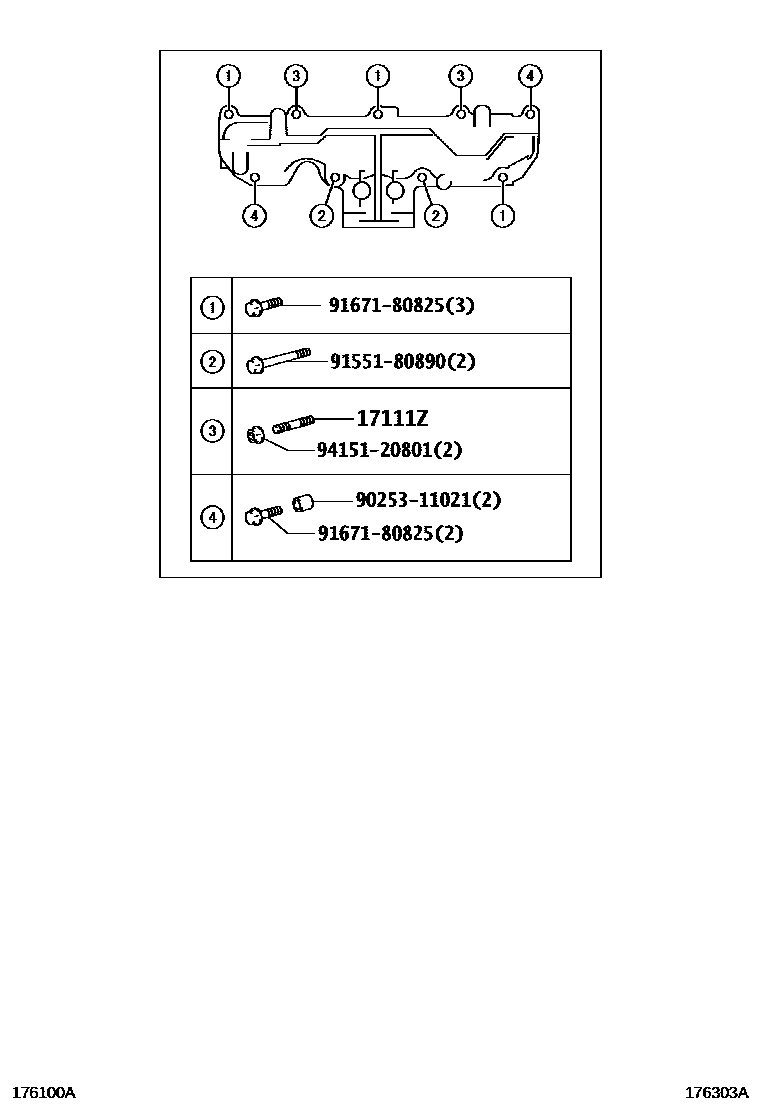

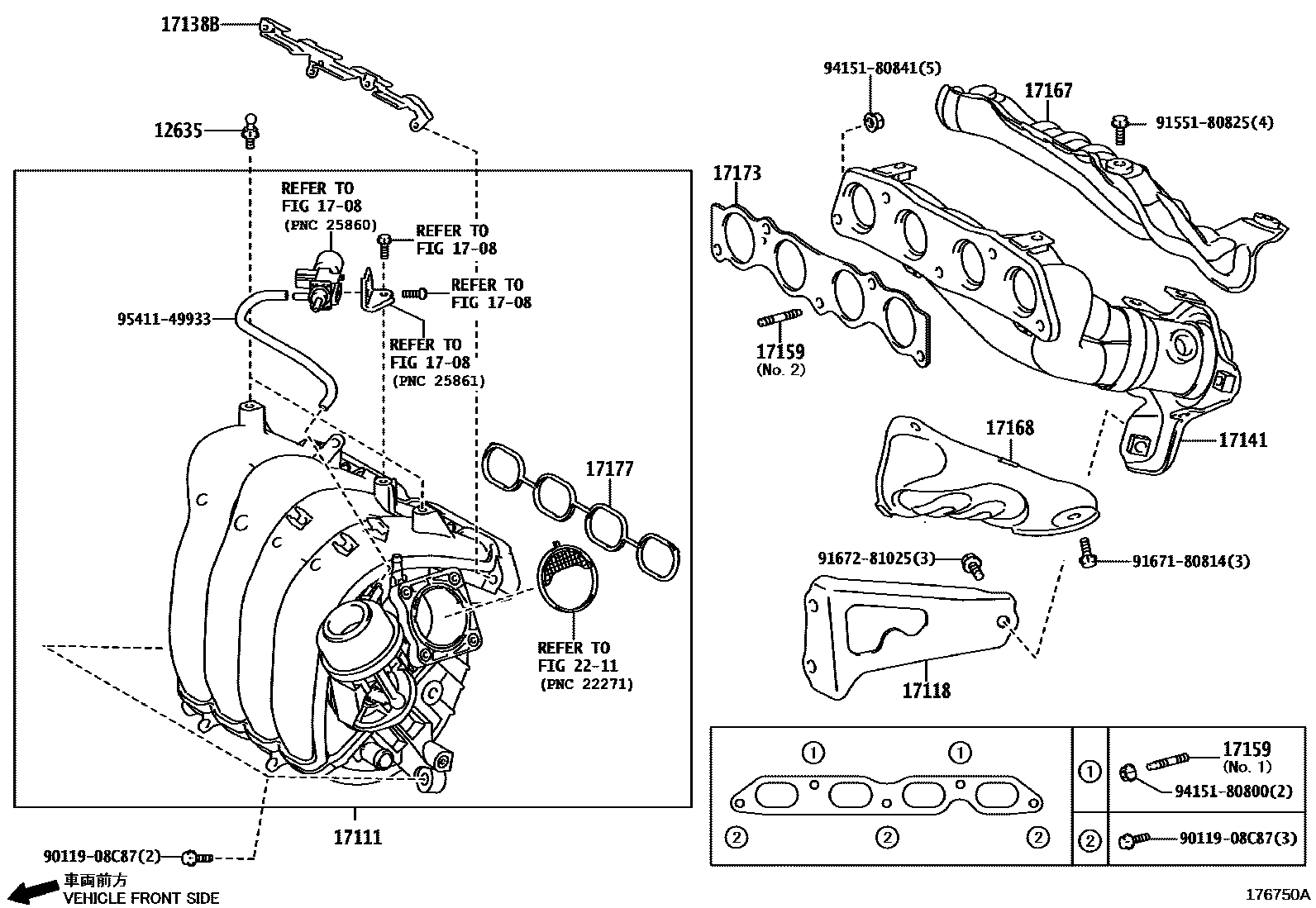

Toyota COROLLA Manifold EPC diagram — 176029C
Manifold — 176029C (200610 – 999999)

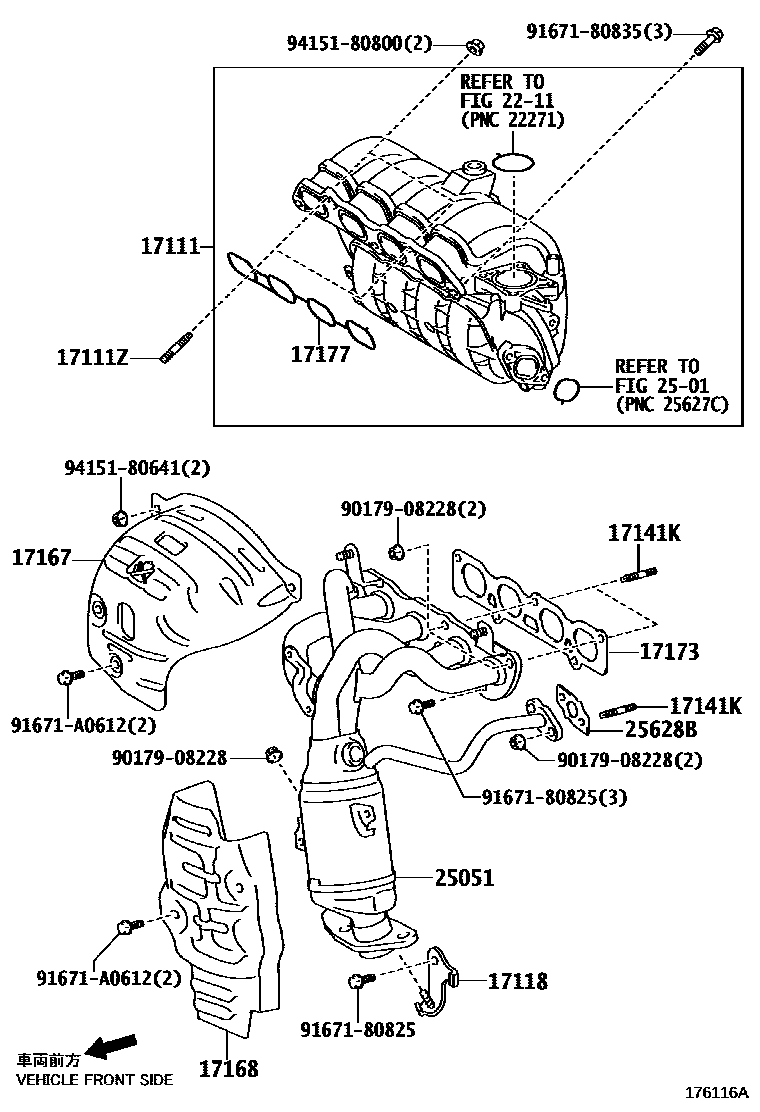

Toyota COROLLA Manifold EPC diagram — 176116A
Manifold — 176116A (200809 – 999999)

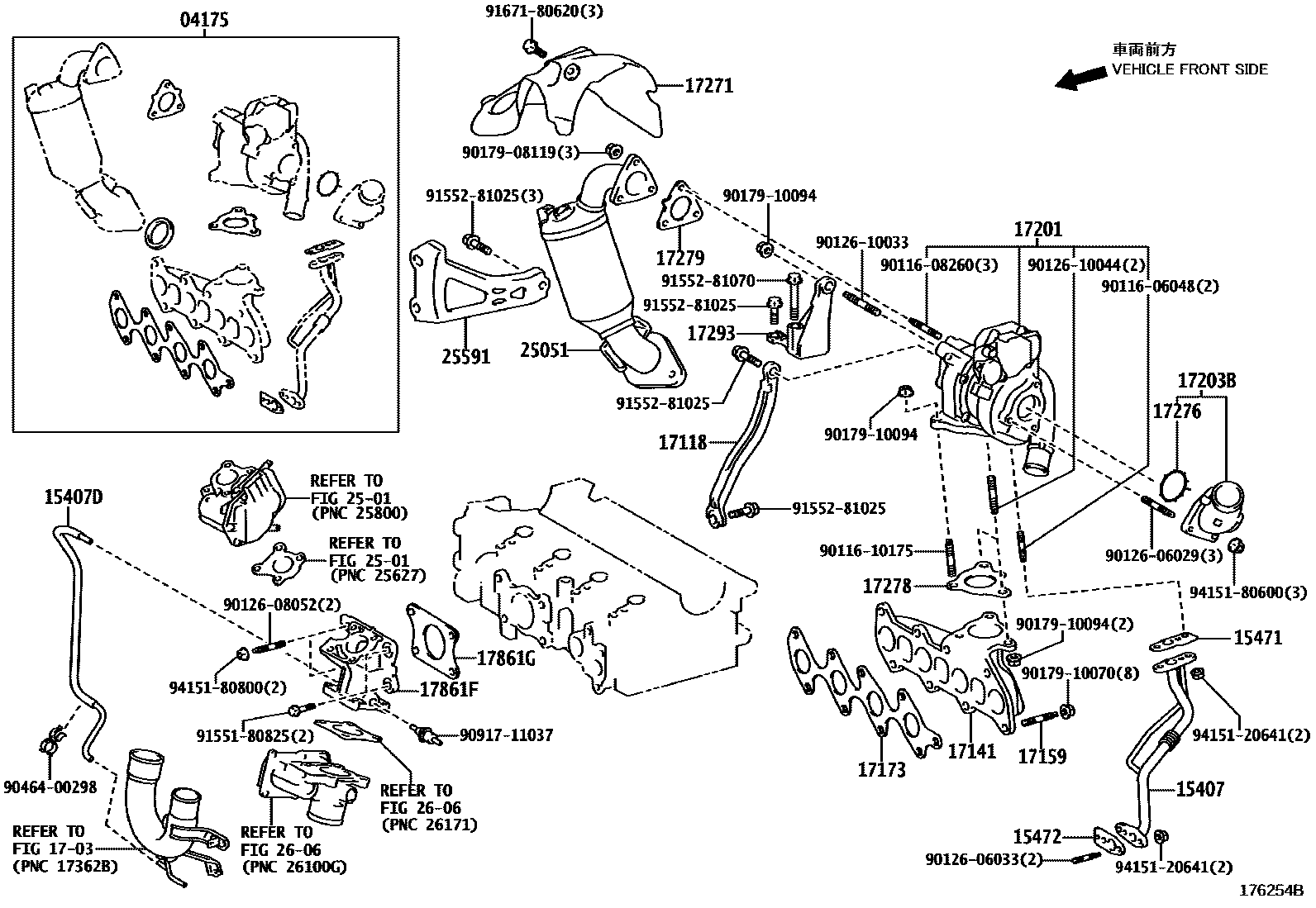

Toyota COROLLA Manifold EPC diagram — 176254B
Manifold — 176254B (200812 – 999999)

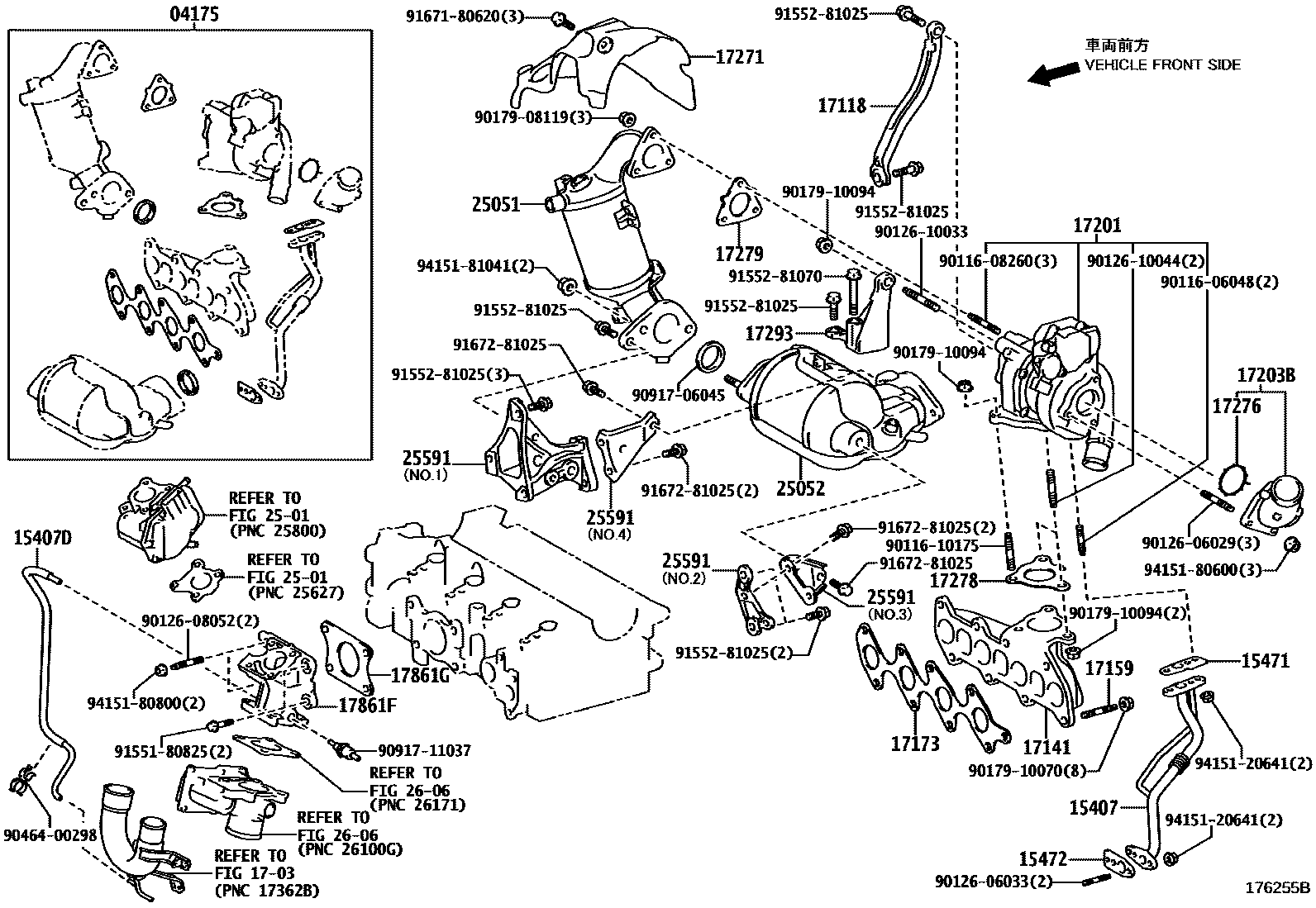

Toyota COROLLA Manifold EPC diagram — 176255B
Manifold — 176255B (200812 – 999999)

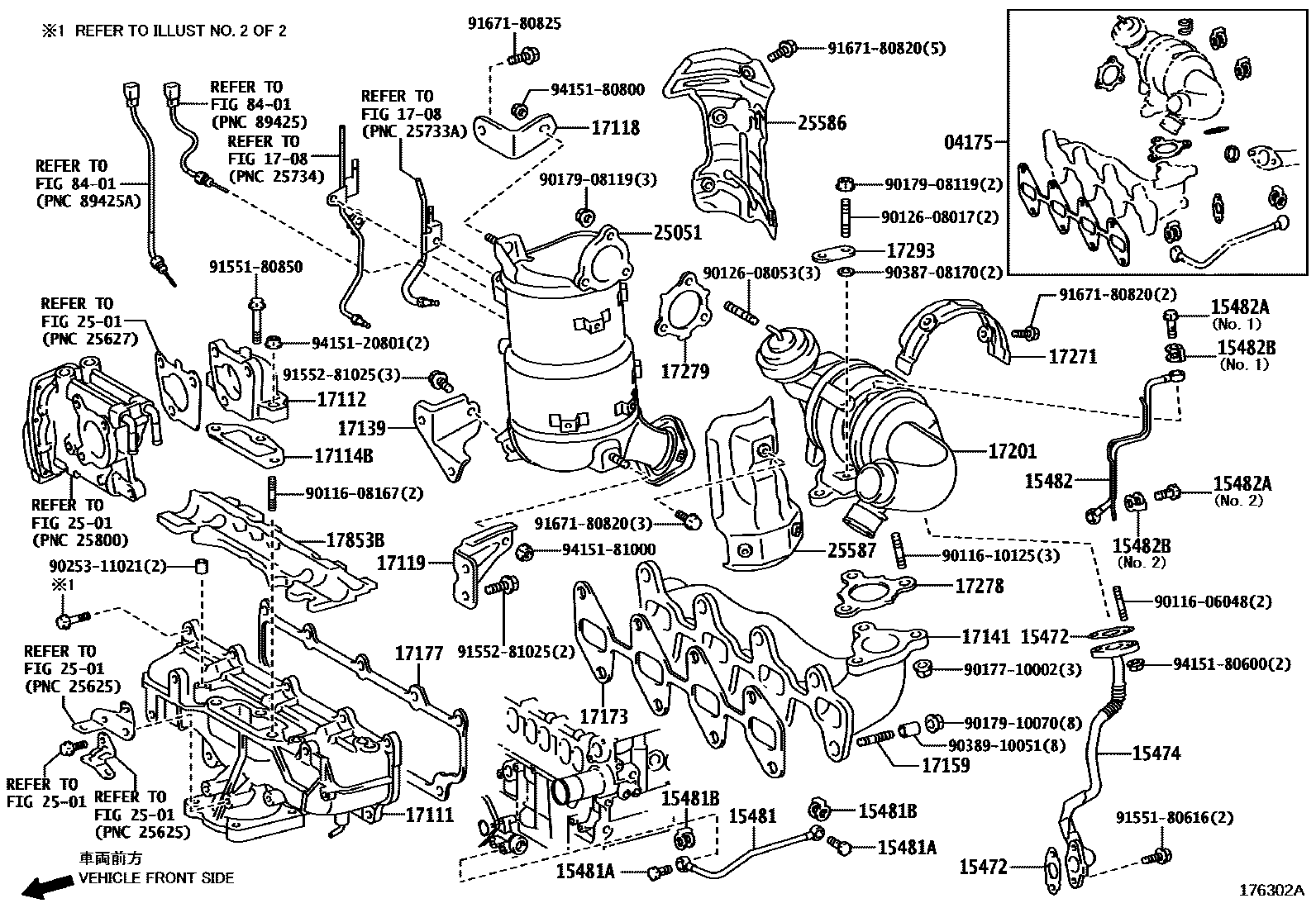

Toyota COROLLA Manifold EPC diagram — 176302A
Manifold — 176302A (200901 – 999999)
Toyota COROLLA Manifold EPC diagram — 176303A
Manifold — 176303A (200901 – 999999)
Toyota COROLLA Manifold EPC diagram — 176750A
Manifold — 176750A (200812 – 999999)

PNC and OE references

PNCPart nameOE numbers
04175Turbocharger gasket assembly04175-26010 · 04175-26020 · 04175-26060 · 04175-33040 · 04175-33070
12635hood connector12635-33010 · 90109-06385
15407Turbine oil inlet pipe sub-assembly15407-33020 · 15407-33021
15407AConnector bolt (for turbine oil inlet pipe)90401-10065
15407BGasket (for turbine oil inlet pipe)90430-10027
15407DNo. 1 oil hose12109-33020
15471Turbine oil inlet pipe gasket15471-33010
15472No. 1 turbine oil outlet pipe gasket15472-0R010 · 15472-26010 · 15472-33010 · 15472-33020
15473No. 2 turbine oil outlet pipe gasket15473-33010
15474Turbine oil outlet pipe15474-26010 · 15474-26030 · 15474-33020
15477Turbine oil inlet pipe15477-33010
15481No. 1 turbine oil pipe15481-0R010 · 15481-26010
15481ANo. 1 joint bolt90401-12039
15481BGasket (for No. 1 joint bolt)90430-12037
15482No. 2 turbine oil pipe15482-0R010 · 15482-0R020 · 15482-26020 · 15482-26030
15482ANo. 2 joint bolt90401-10068 · 90401-12039
15482BGasket (for No. 2 joint bolt)90430-12037 · 90904-30011
17021AStud bolts (for bearing housing)90116-06048
17025AStud bolts (for turbine housing)90116-08260
17111Intake Manifold17101-0R010 · 17101-0R011 · 17101-0R020 · 17120-0D031 · 17120-0T030 · 17120-37011 · 17120-37020 · 17120-37021 · 17120-37022 · 17120-47010
17111ZStud bolts (for intake manifold to cylinder head)90116-08167 · 90126-08060
17112No. 2 intake manifold17112-26010
17114BIntake flange gasket17116-26010
17118Manifold stays17118-22090 · 17118-26030 · 17118-26050 · 17118-26060 · 17118-33030 · 17118-33040 · 17118-37010 · 17118-47010
17119No. 2 manifold stay17119-22070 · 17119-26010 · 17119-26020 · 17119-26060 · 17119-26070 · 17139-22050
17135AIntake manifold No. 1 heat shield17135-37010
17138BIntake manifold stay17138-37010
17139No. 2 manifold stay17139-0R020 · 17139-26010 · 17139-26030
17141exhaust manifold17104-22120 · 17141-0R010 · 17141-26100 · 17141-33040 · 17141-33050 · 17141-37050 · 17141-37051
17141JStuds (for right exhaust manifold)90126-10018
17141KStud bolts (for exhaust manifold to cylinder head)90126-08052
17148Exhaust manifold plate (for EGR intake)17148-22030
17159Studs (for manifold to cylinder head)90126-08026 · 90126-08043 · 90126-08052 · 90126-10024 · 90126-10033
17166Exhaust manifold No. 4 heat shield17166-22011
17167Exhaust manifold No. 1 heat shield17167-22121 · 17167-33010 · 17167-37010 · 17167-37011 · 17167-47010
17168Exhaust manifold No.2 insulation pad17168-22120 · 17168-37060 · 17168-37100 · 17168-47010
17169Exhaust manifold No. 3 heat shield17169-22030
17173Gasket (exhaust manifold to cylinder head)17173-0R010 · 17173-22010 · 17173-33010 · 17173-33030 · 17173-37010 · 17173-47020
17177No. 1 gasket (intake manifold to cylinder head)17171-0D030 · 17171-0R010 · 17171-22030 · 17177-0T030 · 17177-37030 · 17177-47010
17201Turbocharger sub-assembly17201-0N030 · 17201-0N041 · 17201-0N042 · 17201-0R040 · 17201-0R041 · 17201-0R070 · 17201-26050 · 17201-26051 · 17201-26080
17203BCompressor oil inlet elbow sub-assembly17203-33010
17271No. 1 turbine vibration isolation pad17271-0R020 · 17271-33030 · 17271-33060 · 17271-33090
17276Compressor oil inlet gasket17276-33010
17278Gasket (turbo to exhaust manifold)17278-0R010 · 17278-0R020 · 17278-27010 · 17278-33010
17279Turbine outlet elbow gasket17279-0R010 · 17279-27020
17293Turbocharger stay17293-26010 · 17293-33010
17853BIntake manifold heat shield17853-26030
17861FIntake connecting pipe17861-33020 · 17861-33040
17861GIntake connecting pipe gasket26171-33011 · 26171-33050
17871AAir intake connecting pipe stay17872-33020
25051Exhaust manifold three-way catalytic converter sub-assembly25051-0R010 · 25051-26030 · 25051-26031 · 25051-26070 · 25051-33051 · 25051-33060 · 25051-33090 · 25051-47010
25052No. 2 exhaust manifold three-way catalytic converter sub-assembly25052-33020
25586No. 1 manifold three-way catalytic converter vibration isolation pad25586-0R011 · 25586-0R020 · 25586-26010 · 25586-26030
25587No. 2 manifold three-way catalytic converter vibration isolation pad25587-26010 · 25587-26020
25591Manifold bracket25591-33020 · 25591-33030 · 25591-33050 · 25592-33020 · 25593-33010 · 25594-33010
25628BEGR air intake gasket25628-47010
