Toyota COROLLA V-Belt — Figure 1605

Toyota COROLLA EPC diagram 1605, V-Belt, with 3 images and 1 PNC and OE references.

Toyota COROLLA V-Belt EPC diagram — 162988D
V-Belt — 162988D (200610 – 999999)

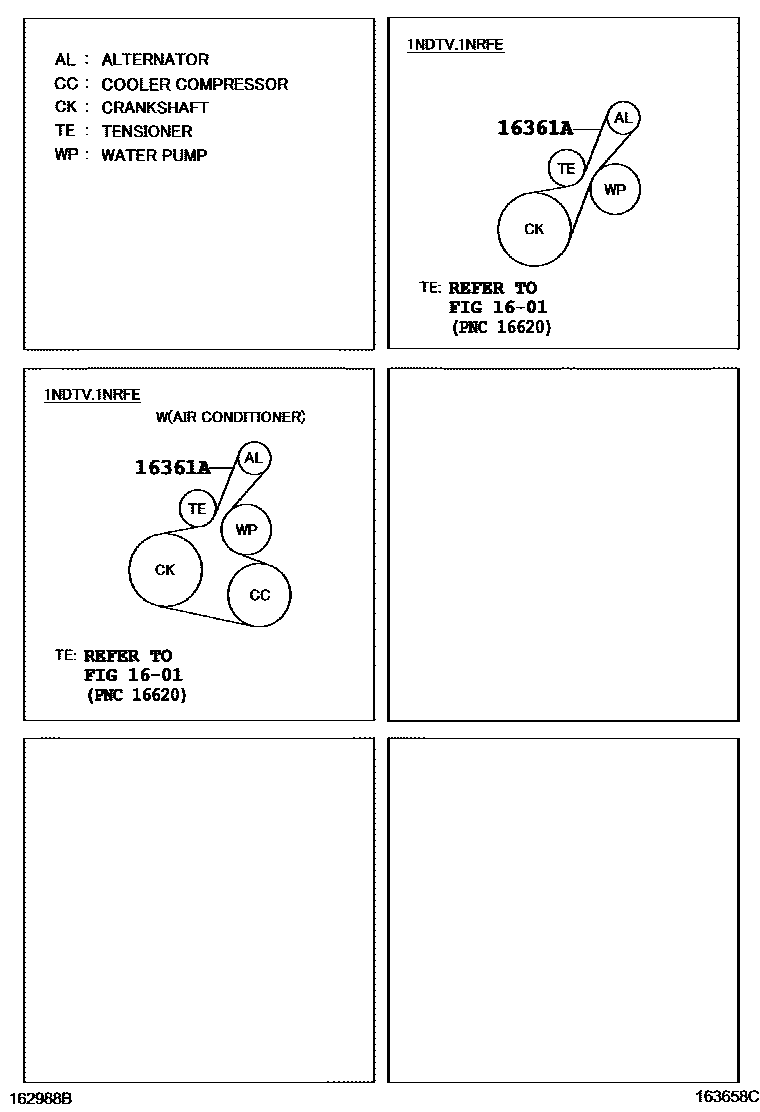

Toyota COROLLA V-Belt EPC diagram — 163658C
V-Belt — 163658C (200809 – 999999)

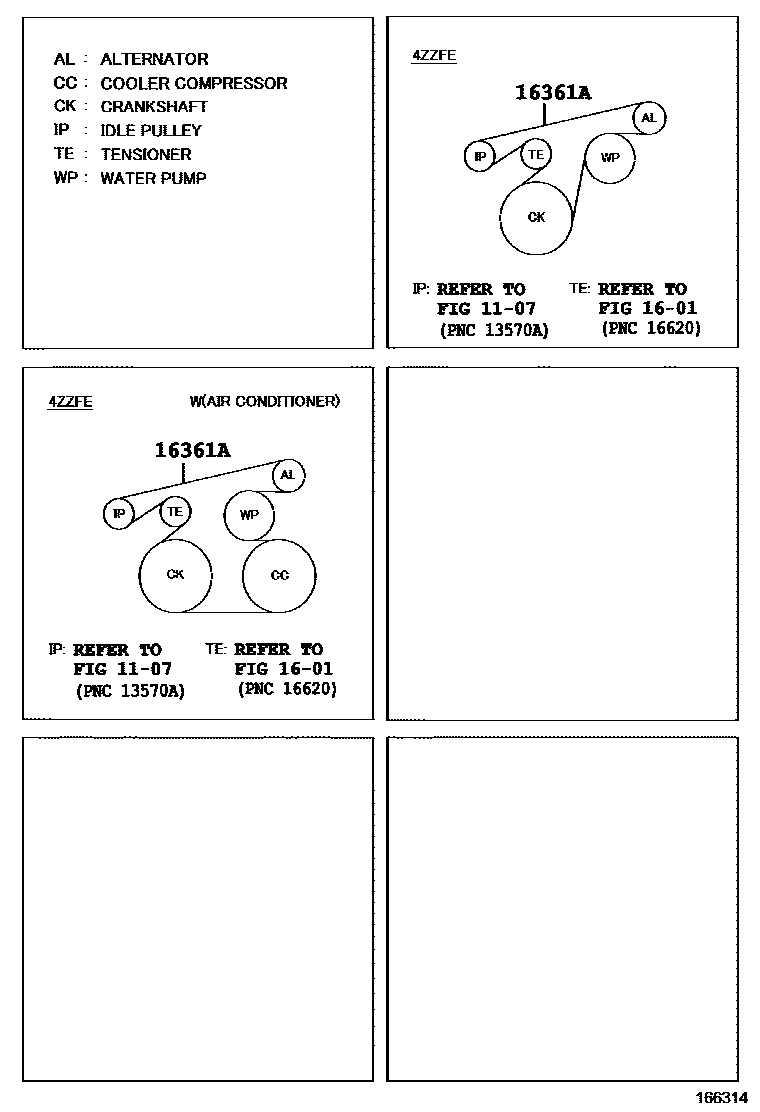

Toyota COROLLA V-Belt EPC diagram — 166314
V-Belt — 166314 (200610 – 999999)

PNC and OE references

PNCPart nameOE numbers
16361AV-belts (for fans and generators)90916-02539 · 90916-02574 · 90916-02650 · 90916-02664 · 90916-02673 · 90916-02674 · 90916-02675 · 90916-02676 · 90916-02677 · 90916-02678 · 90916-W2013 · 90916-W2014 · 99366-C0970 · 99366-K0910 · 99366-K1230 · 99367-L1370 · 99367-L1870
