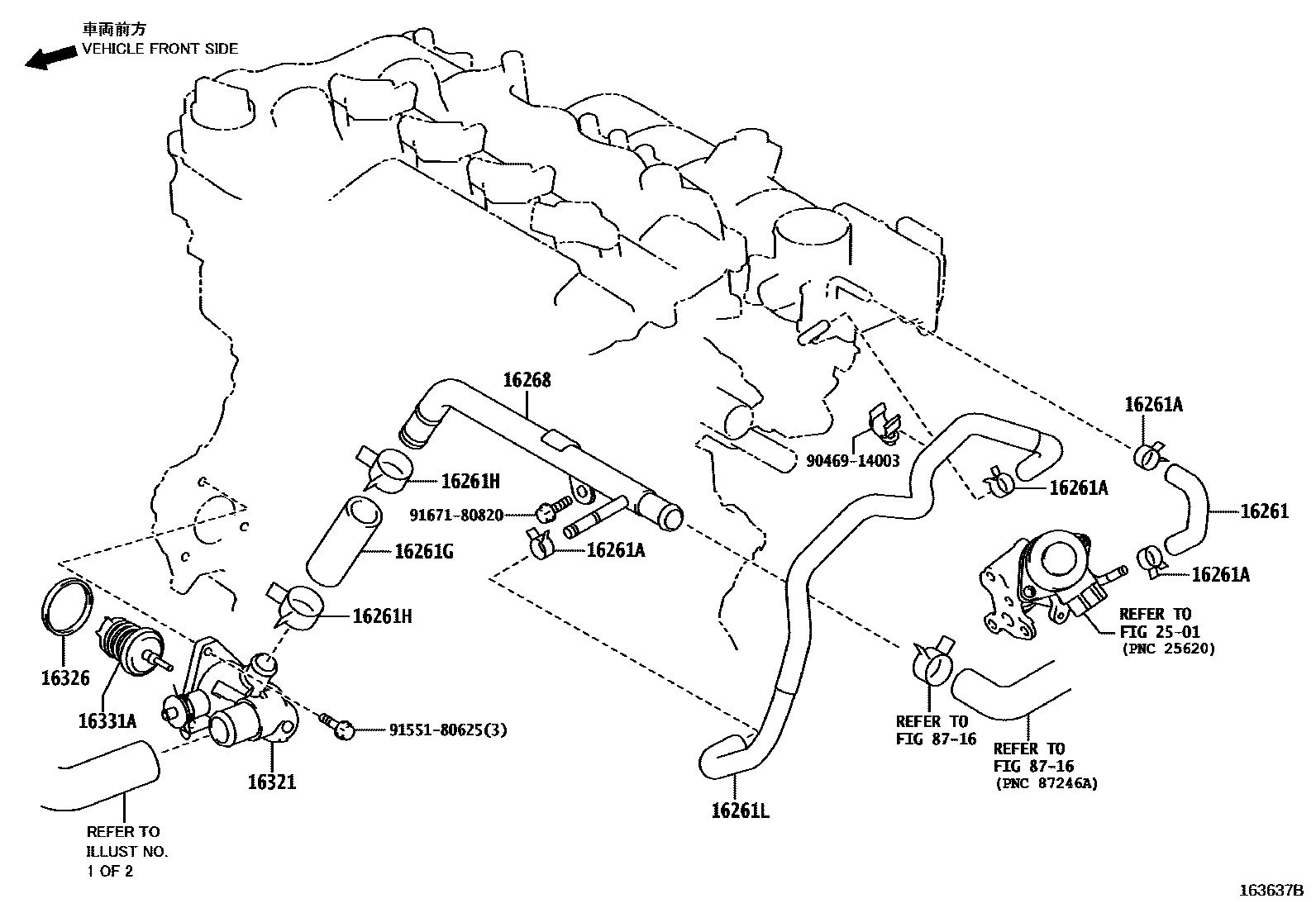

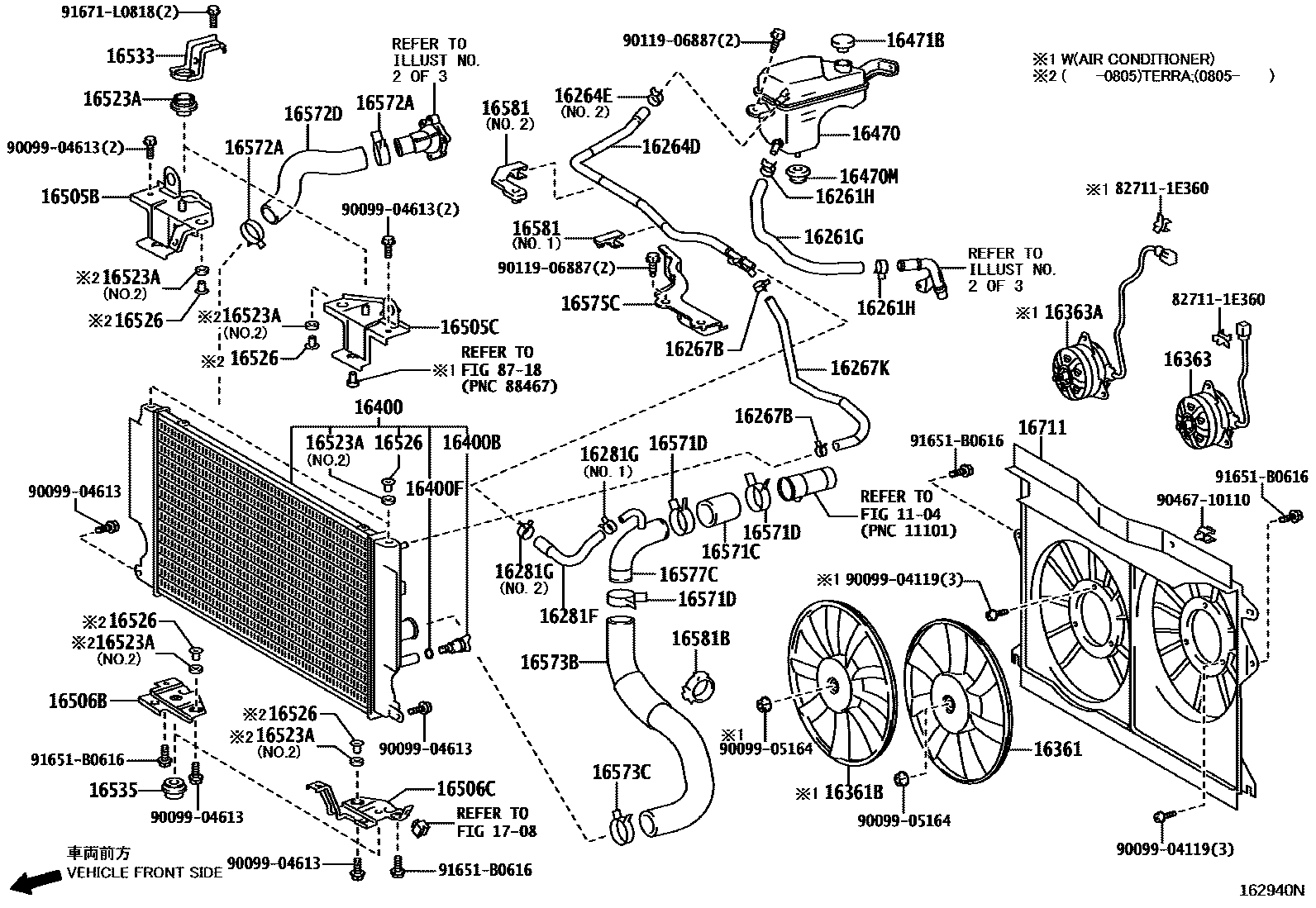

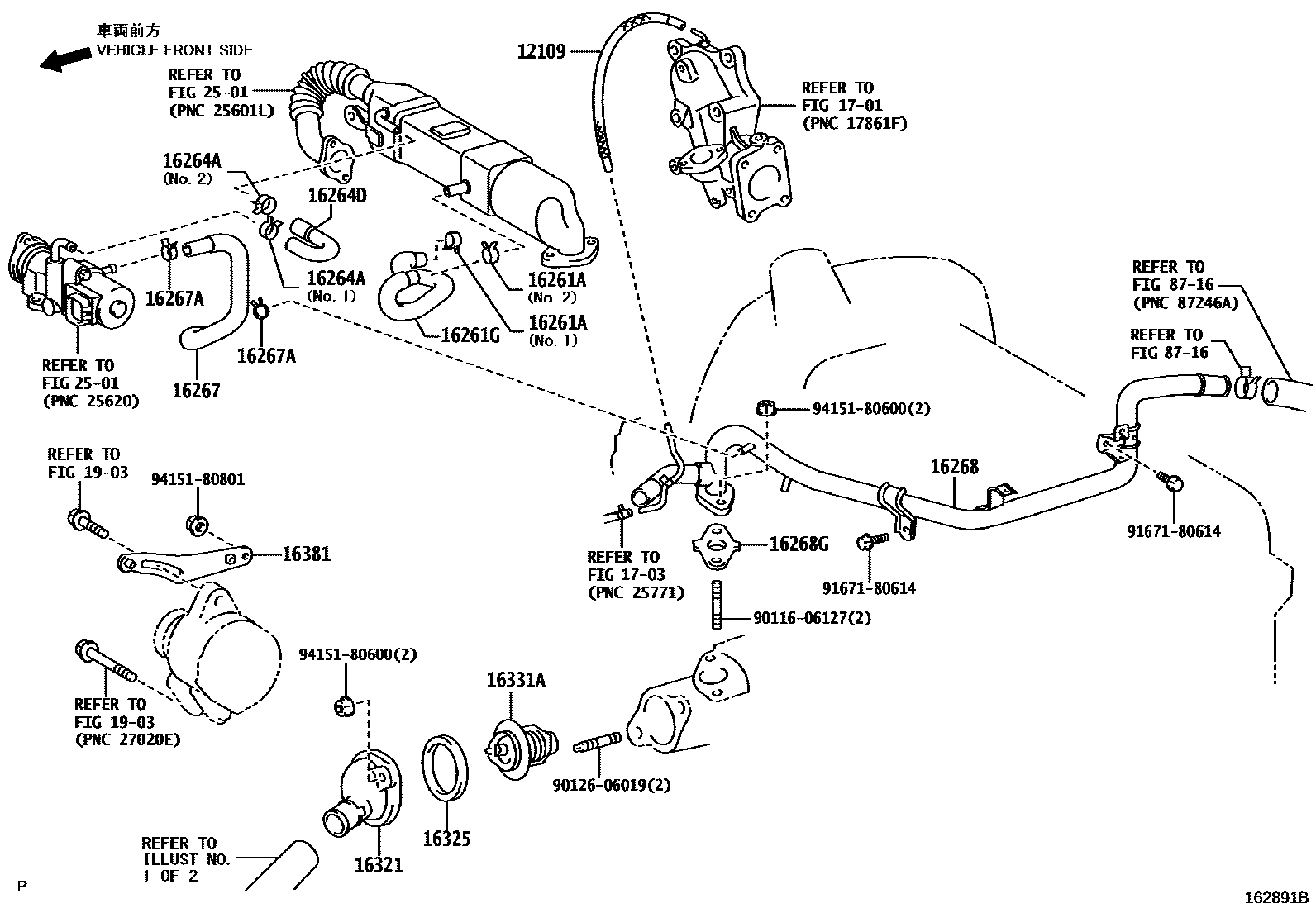

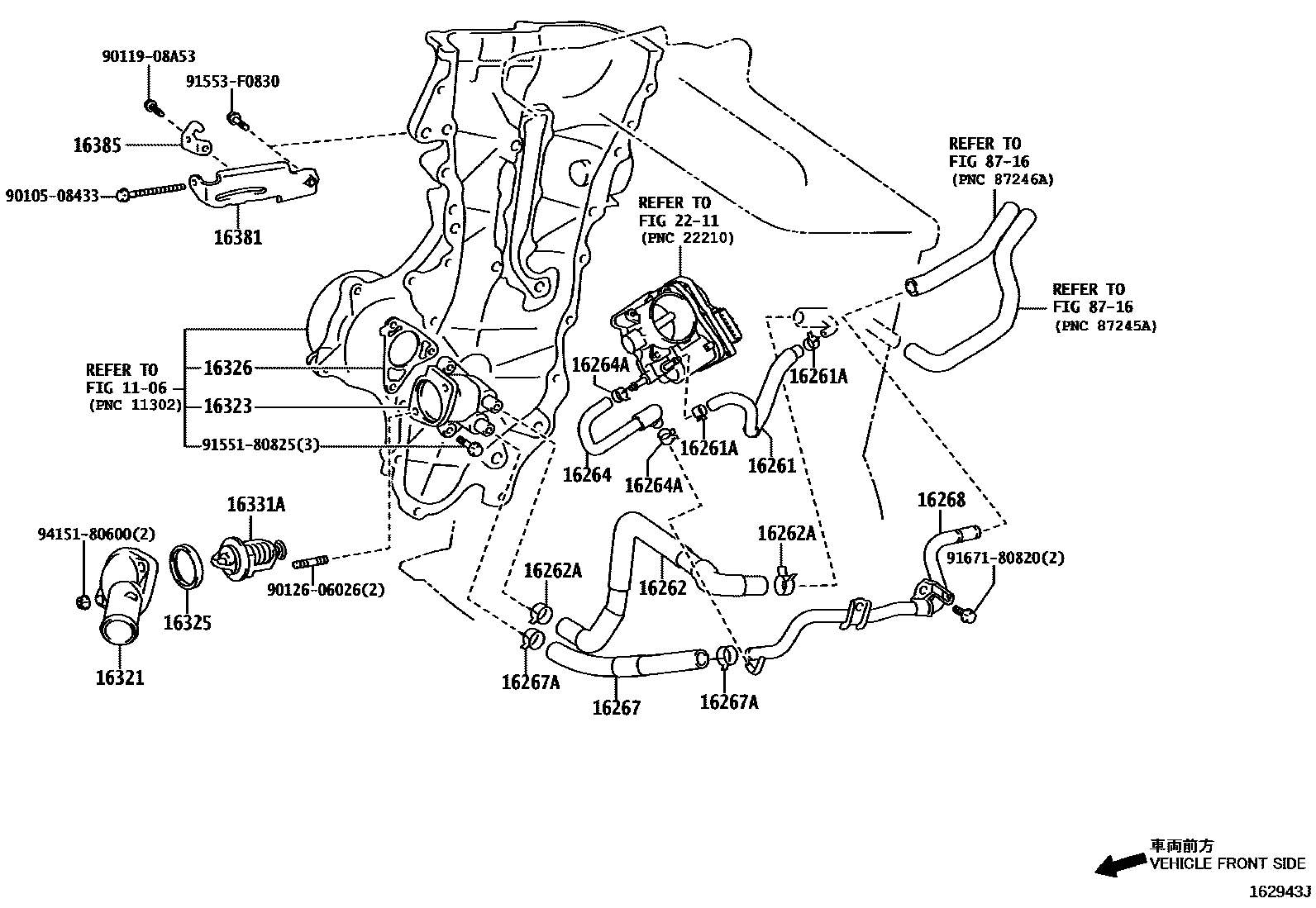

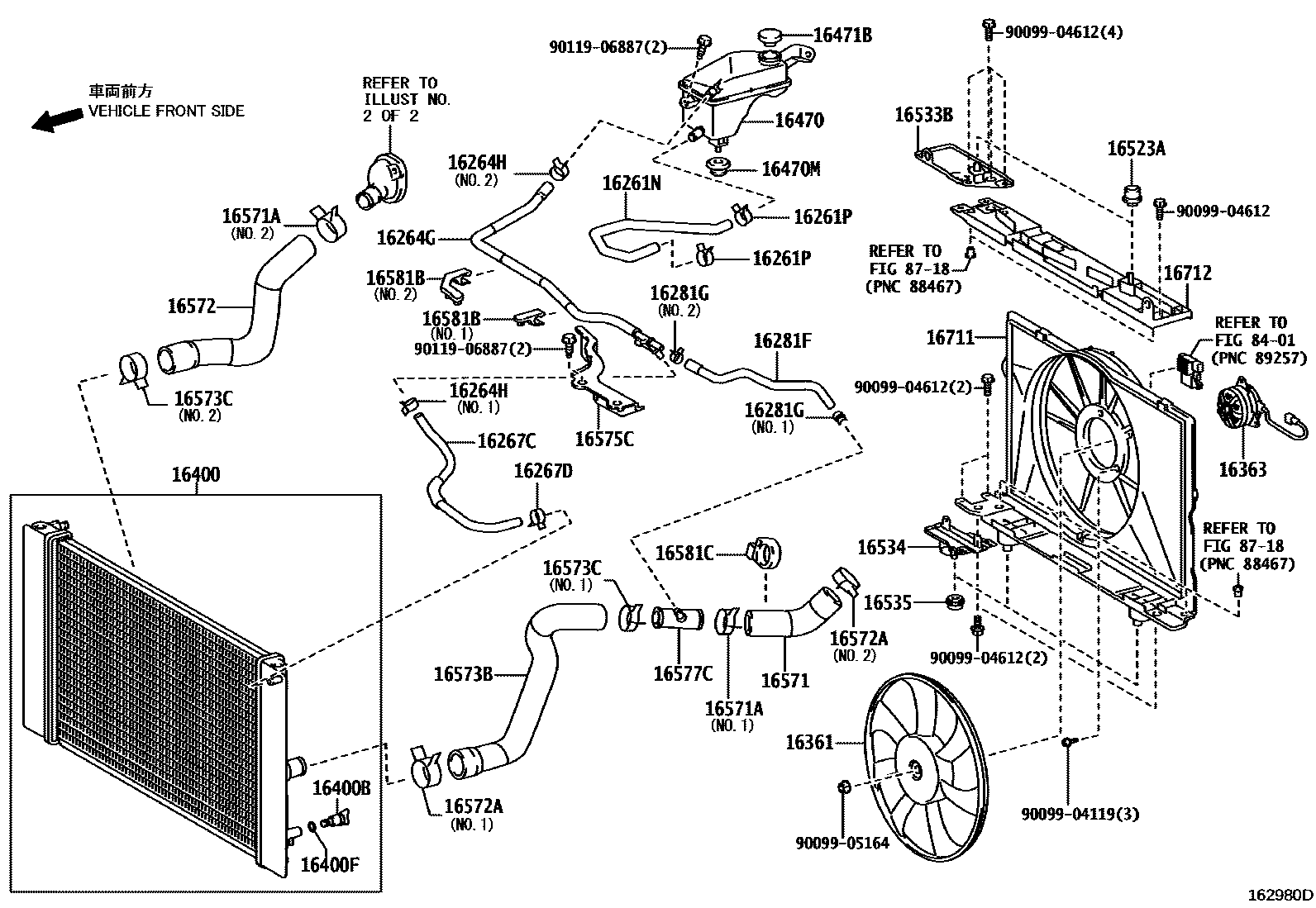

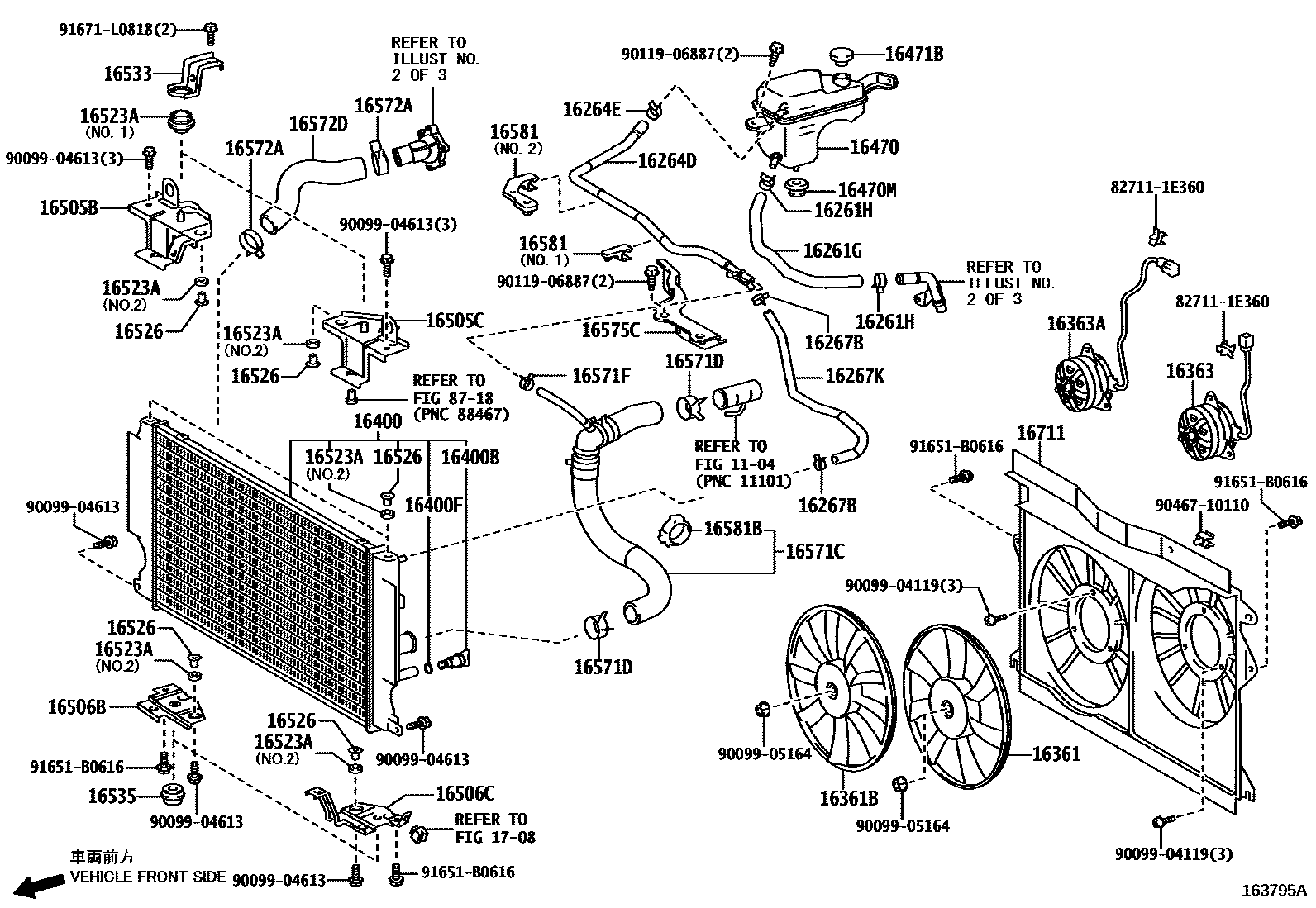

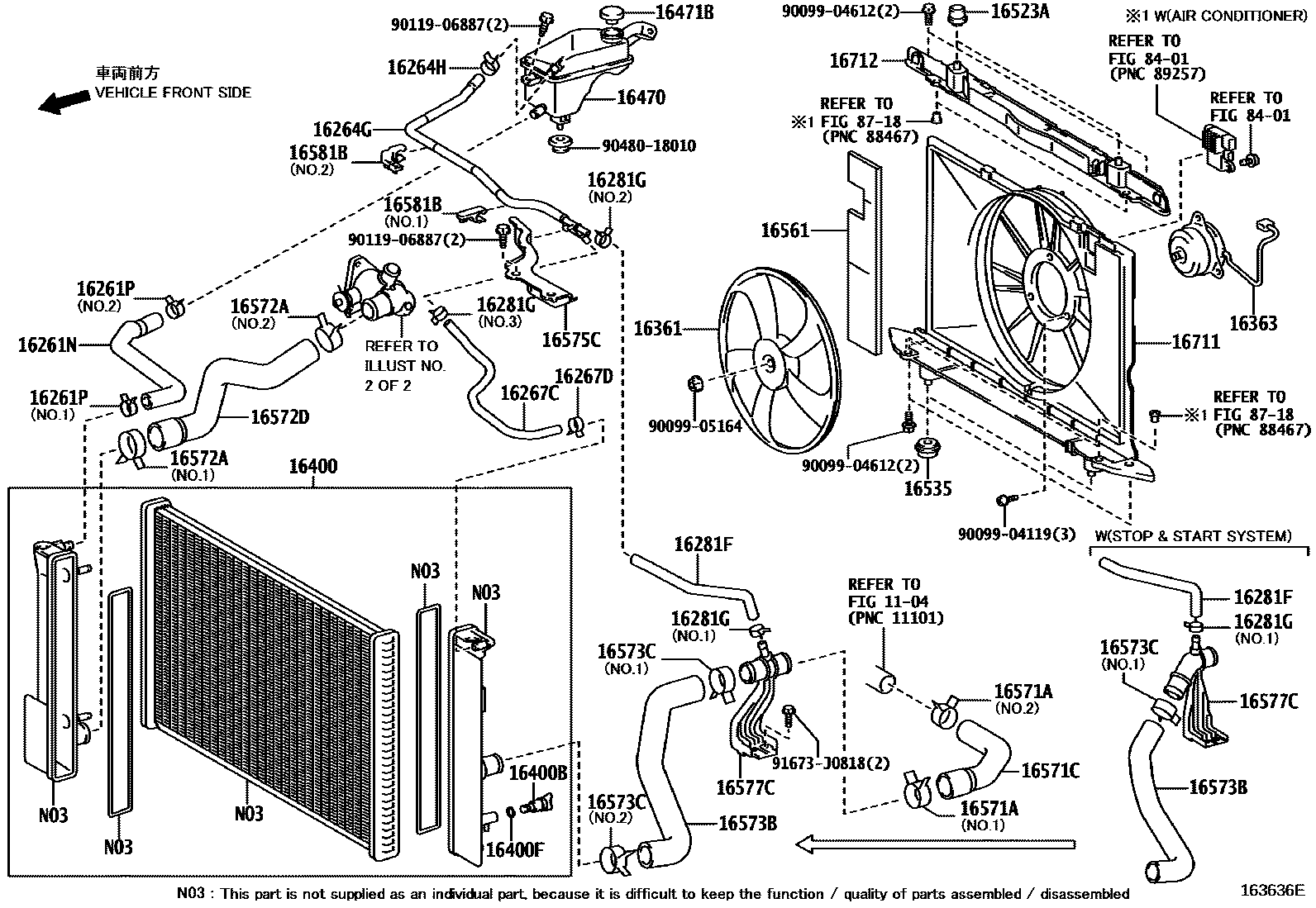

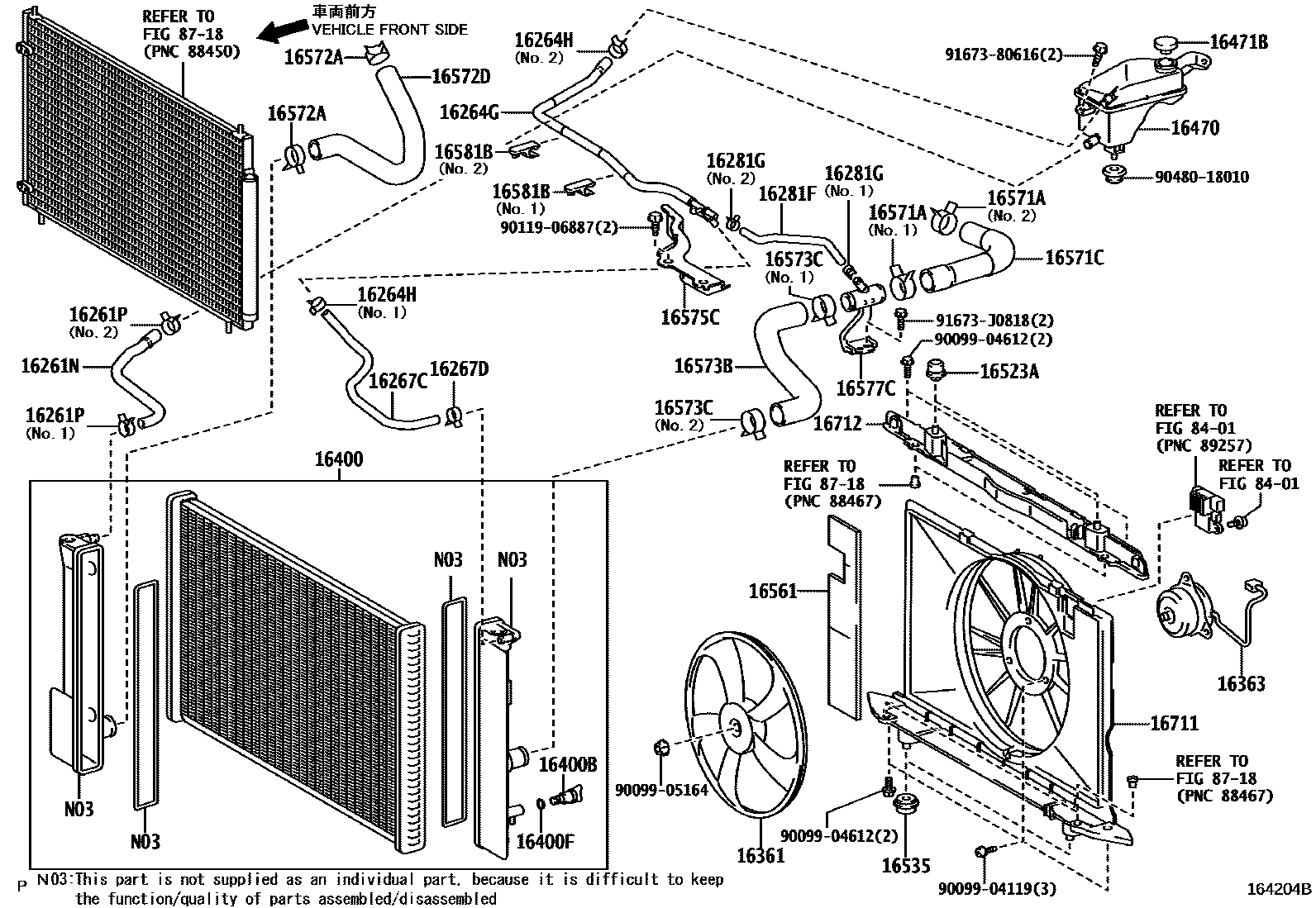

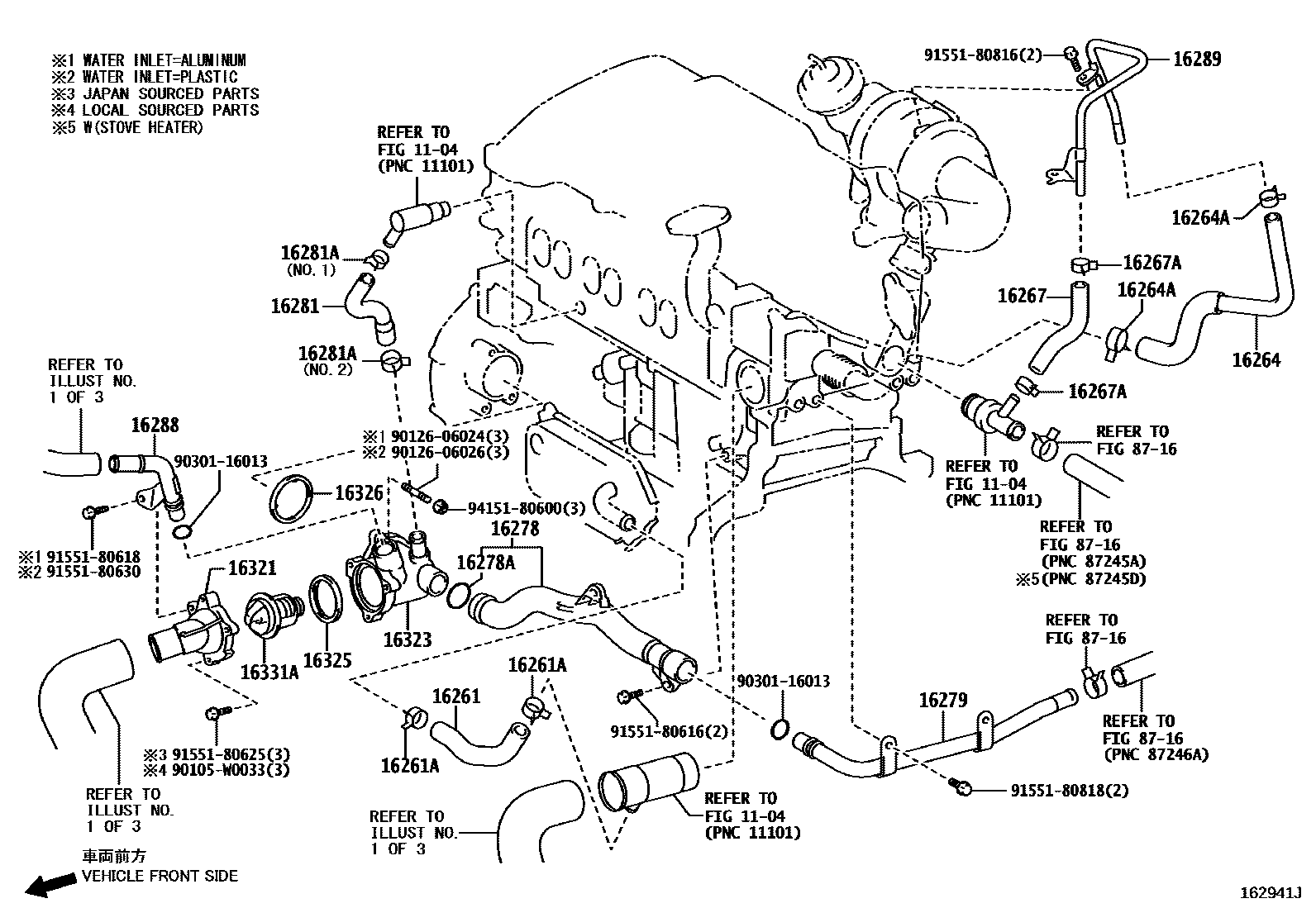

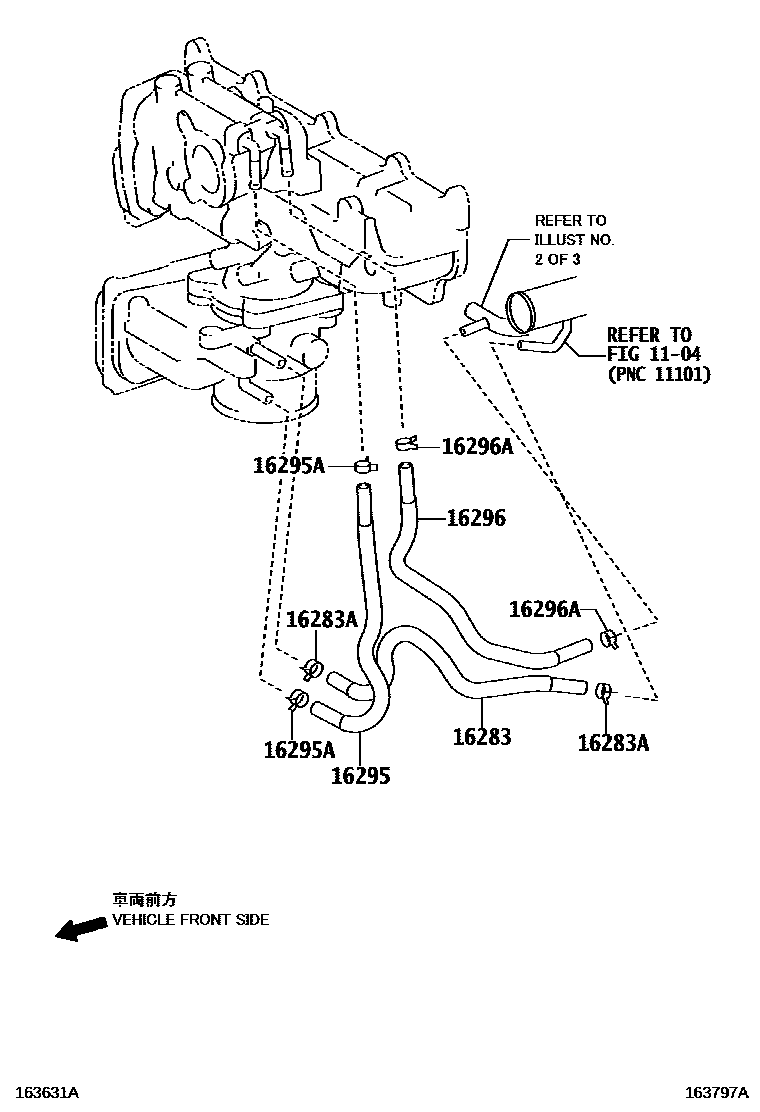

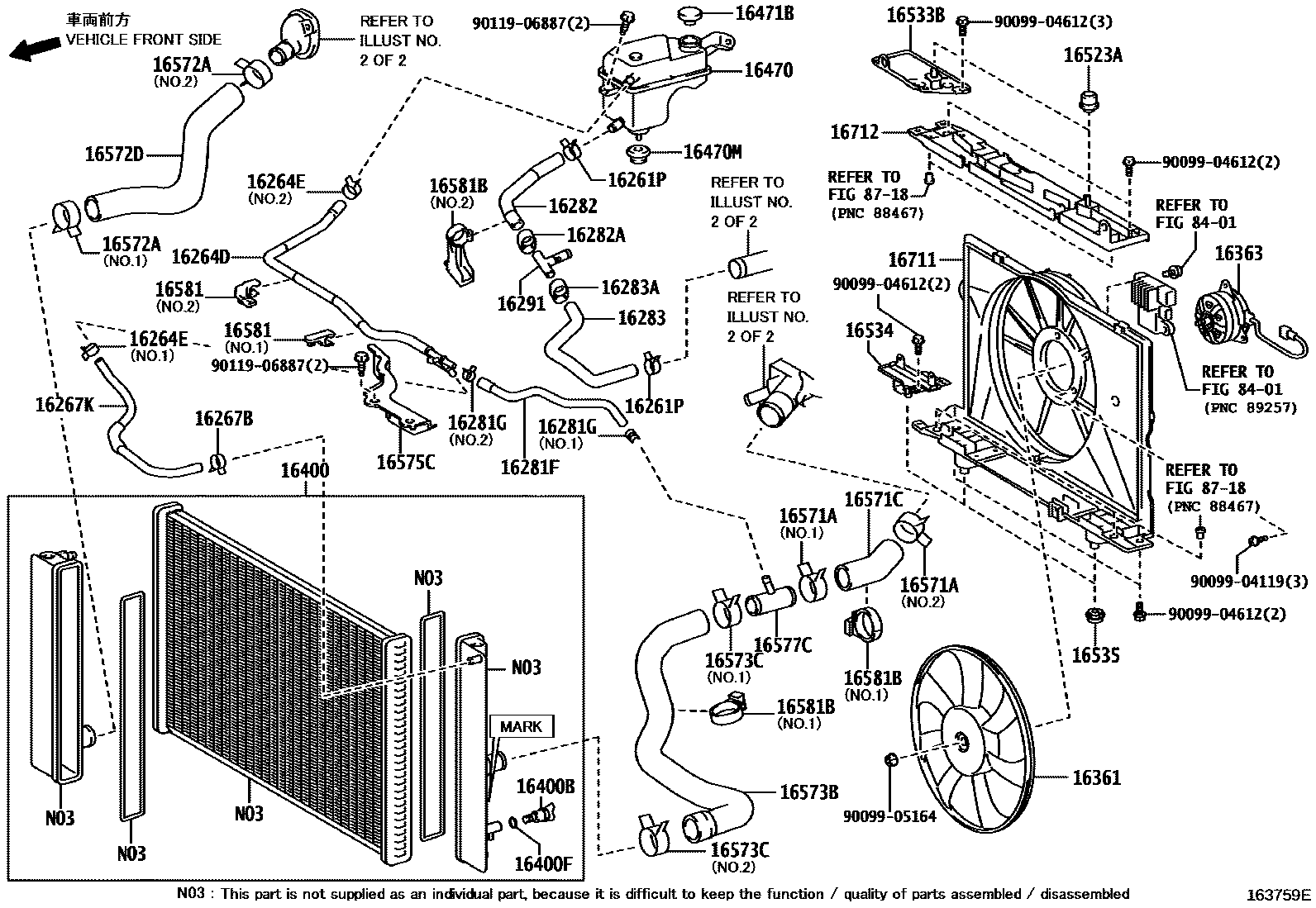

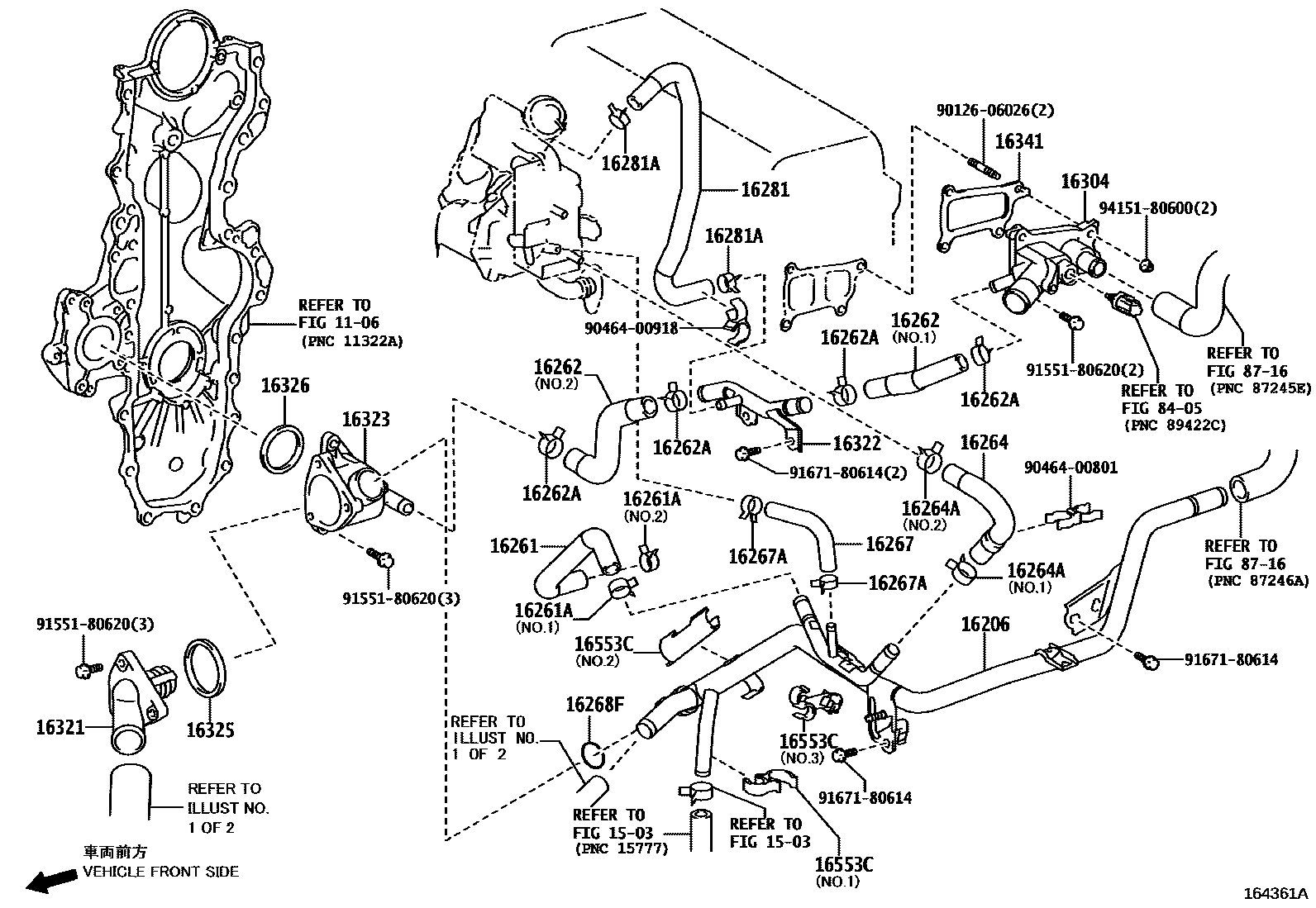

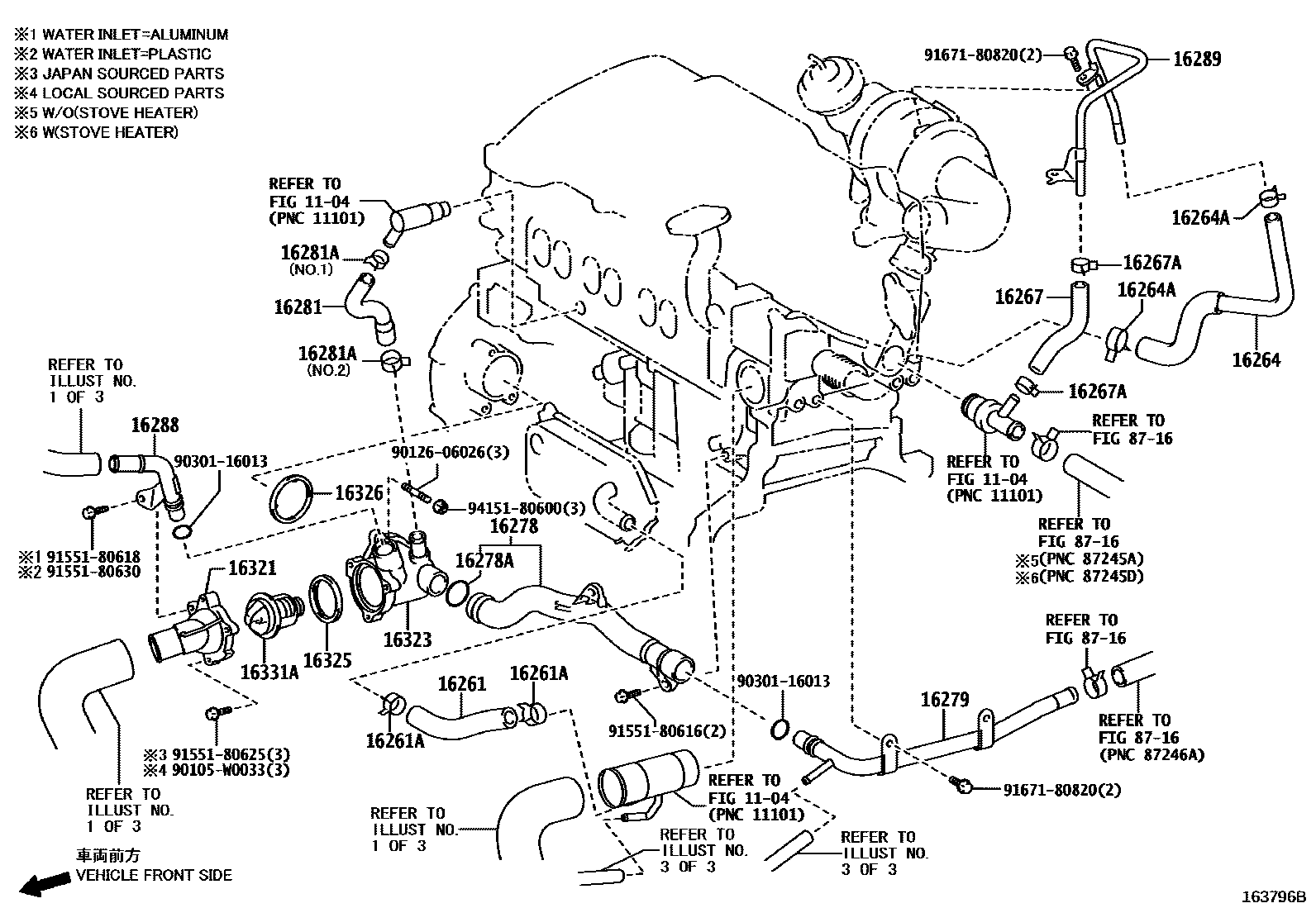

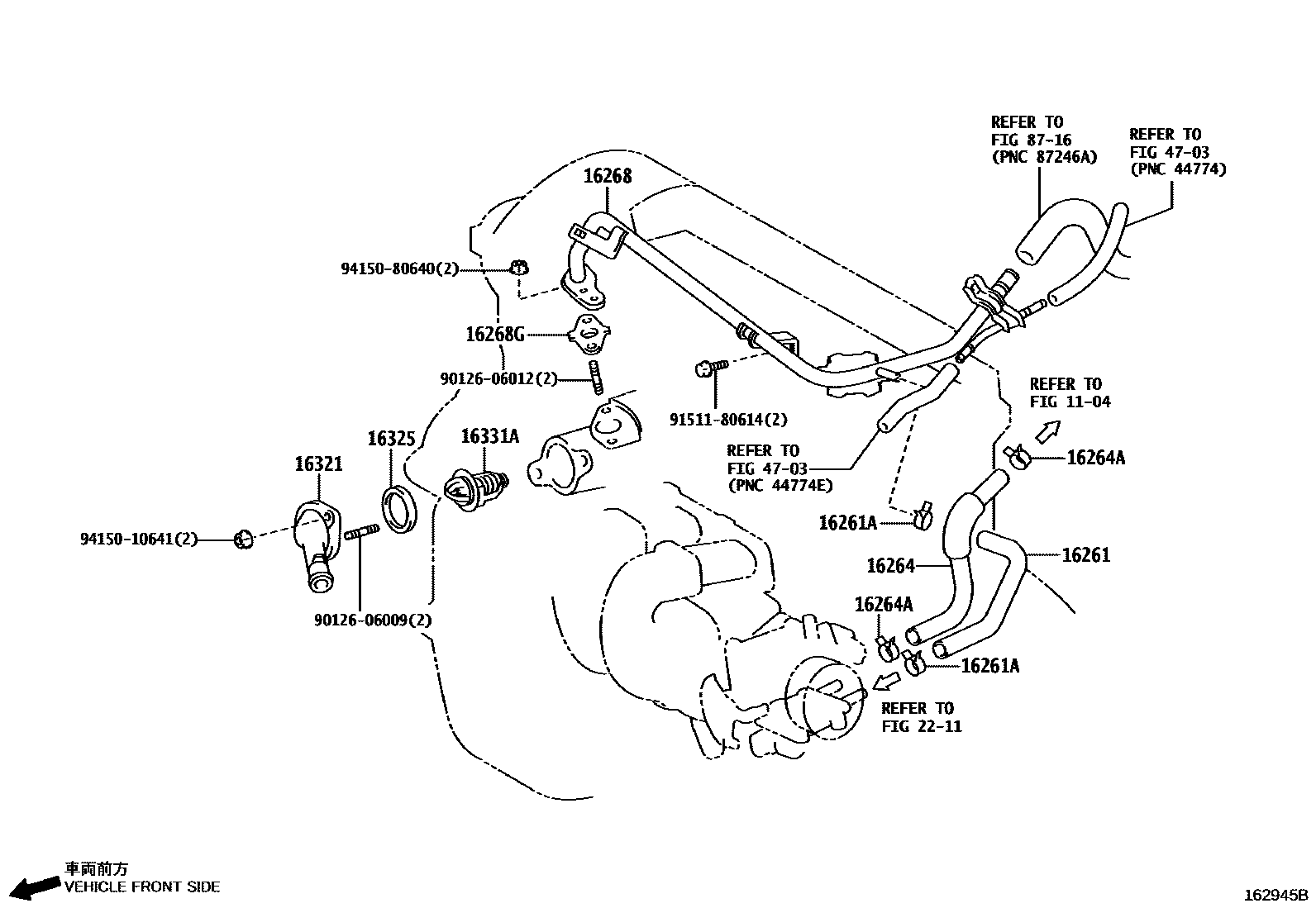

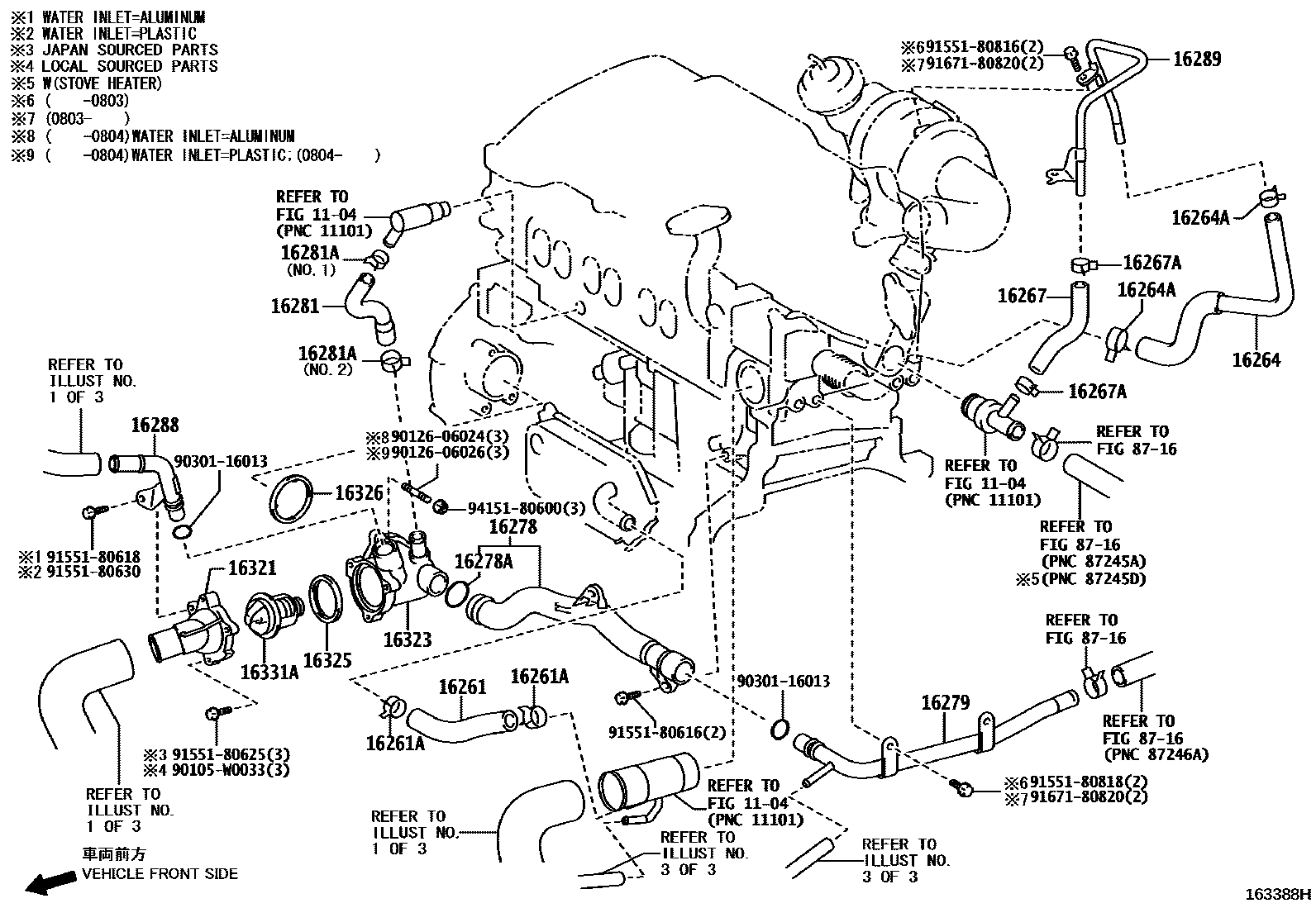

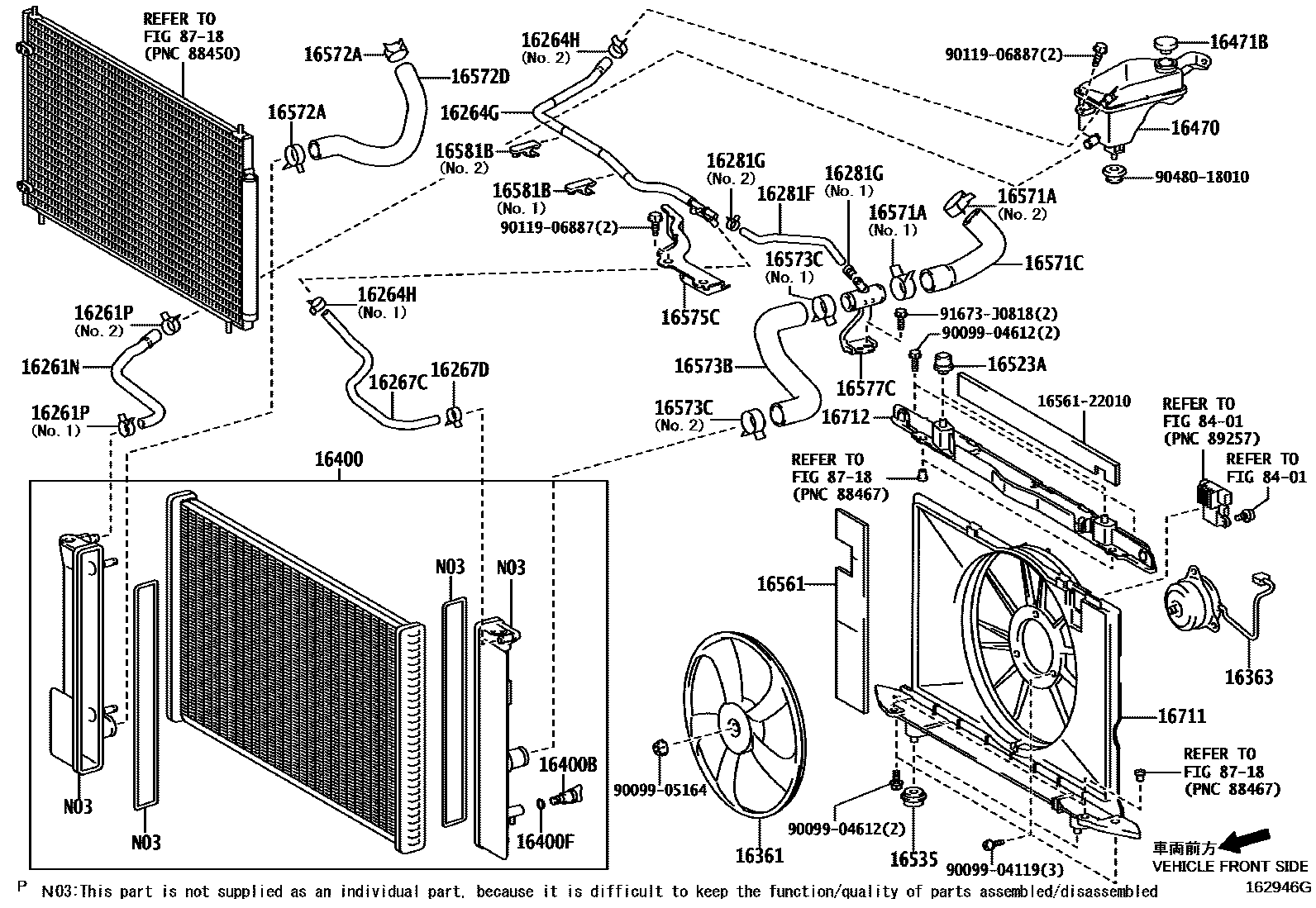

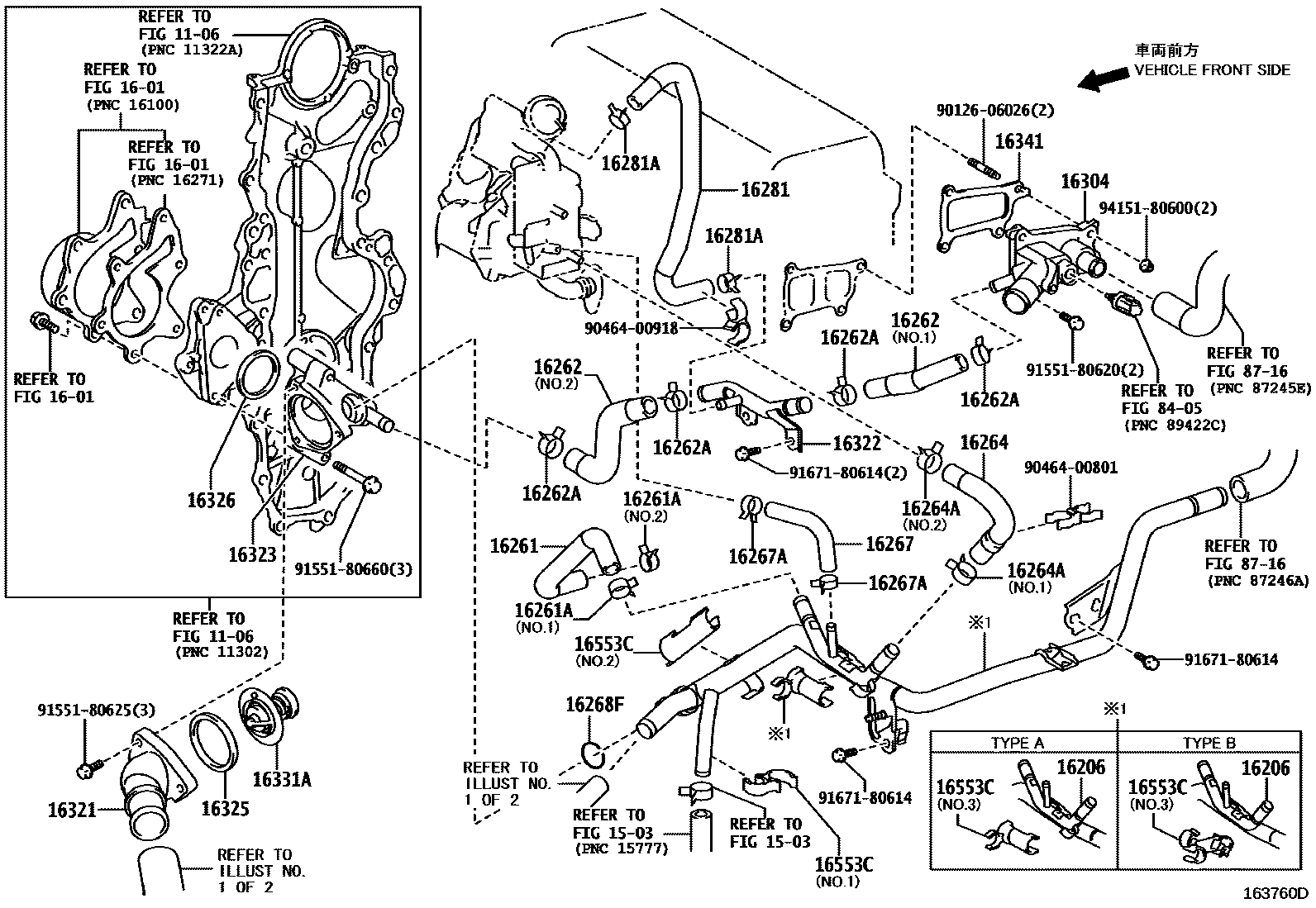

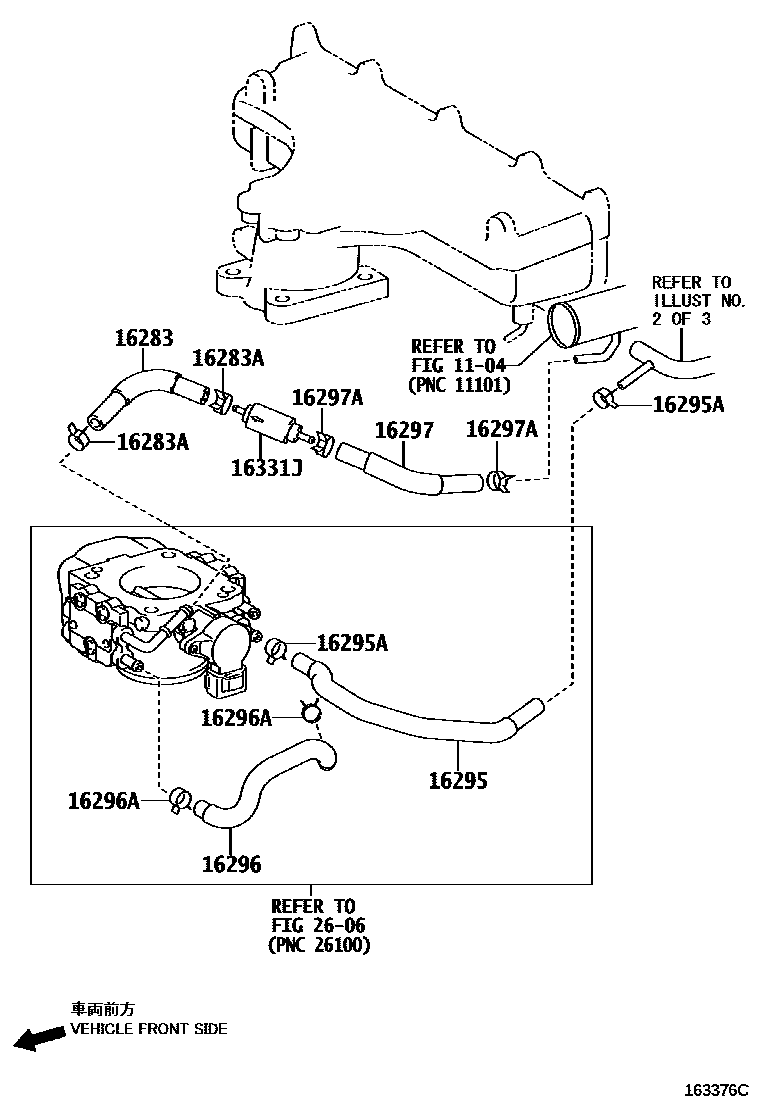

Toyota COROLLA RADIATOR & WATER OUTLET — Figure 1603
Toyota COROLLA EPC diagram 1603, RADIATOR & WATER OUTLET, with 18 images and 96 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12109 | drain hose | 12109-33010 |
| 16206 | PIPE SUB-ASSY, WATER BY-PASS | 16206-33020 · 16206-33040 · 16206-33041 |
| 16261 | HOSE, WATER BY-PASS | 16261-0D040 · 16261-0R020 · 16261-0R081 · 16261-22100 · 16261-33050 · 16261-37020 · 16261-37021 · 16261-37022 · 16261-37051 · 16261-47010 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90467-13054 · 90467-15022 · 90467-21006 · 96136-41501 · 96137-41501 · 96137-41701 · 96137-41901 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-26030 · 16261-33030 · 16261-47020 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 96136-42901 · 96136-52501 |
| 16261L | HOSE, WATER BY-PASS | 16261-47030 |
| 16261N | HOSE, WATER BY-PASS, NO.2 | 16261-21110 · 16261-21150 · 16261-33040 |
| 16261P | CLIP, WATER BY-PASS HOSE NO.2 | 96136-42201 · 96136-42501 · 96136-52201 · 96136-52501 |
| 16262 | water inlet hose | 16262-33010 · 16262-33011 · 16262-37010 · 16263-33010 · 16263-33030 |
| 16262A | Clamp (for water inlet hose) | 96136-42101 · 96136-42501 · 96136-52201 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-0D030 · 16264-22110 · 16264-26020 · 16264-26080 · 16264-33030 · 16264-37020 · 16264-37021 · 16264-37022 · 16264-37041 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90467-13054 · 90467-15022 · 96137-41501 · 96137-41701 · 96137-41901 |
| 16264D | HOSE, WATER BY-PASS, NO.2 | 16264-21090 · 16264-33020 |
| 16264E | CLIP, WATER BY-PASS HOSE NO.2 | 90467-15022 · 96136-42101 · 96136-52101 |
| 16264G | HOSE, WATER BY-PASS, NO.3 | 16264-21090 |
| 16264H | Clamp (for No. 3 water bypass hose) | 90467-15022 · 96136-42101 · 96136-52101 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-26020 · 16267-26021 · 16267-33010 · 16267-33030 · 16267-37010 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90467-13054 · 90467-15022 · 96136-41501 · 96136-42501 |
| 16267B | Clip (for water bypass hose) | 90467-15022 |
| 16267C | HOSE, WATER BY-PASS, NO.4 | 16267-21030 · 16267-21040 · 16267-33020 |
| 16267D | CLIP, WATER BY-PASS HOSE NO.4 | 90467-15022 |
| 16267K | HOSE, WATER BY-PASS, NO.3 | 16267-0N040 · 16267-0R040 · 16267-26040 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-22100 · 16268-22101 · 16268-33070 · 16268-37030 · 16268-37031 · 16268-47030 |
| 16268F | O-ring (for water bypass pipe) | 90301-20016 · 96761-24021 |
| 16268G | Gasket (for water bypass pipe) | 16258-21020 · 16258-22010 · 16258-28030 |
| 16278 | PIPE, WATER BY-PASS, NO.2 | 16278-0R010 |
| 16278A | water bypass liner | 16258-0R010 |
| 16279 | No. 3 water bypass pipe | 16279-0R030 · 16279-26020 · 16279-26050 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-0R010 · 16281-0R030 · 16281-33030 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 90467-21010 · 96134-41900 · 96134-52100 · 96136-41501 |
| 16281F | HOSE, WATER BY-PASS, NO.5 | 16281-22080 · 16281-26010 · 16281-33010 · 16281-33011 · 16281-33040 · 16281-37040 · 16281-47010 |
| 16281G | CLIP, WATER BY-PASS HOSE NO.5 | 90467-15022 · 90467-17013 · 96136-41901 · 96136-51901 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-33050 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 96136-52501 |
| 16283 | HOSE, WATER BY-PASS, NO.6 | 16283-0R010 · 16283-26011 · 16283-26060 · 16283-33020 · 16283-33040 |
| 16283A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.6 | 96136-41501 · 96136-52501 |
| 16288 | No. 4 water bypass pipe | 16288-0R020 |
| 16289 | No. 5 water bypass pipe | 16289-26010 · 16289-26011 |
| 16291 | water hose connector | 16291-33020 |
| 16295 | HOSE, WATER BY-PASS, NO.7 | 16295-0R010 · 16295-26020 · 16295-26060 |
| 16295A | CLIP, WATER BY-PASS HOSE NO.7 | 96136-41501 |
| 16296 | HOSE, WATER BY-PASS, NO.8 | 16296-26010 · 16296-26020 |
| 16296A | CLIP, WATER BY-PASS HOSE NO.8 | 96136-41501 |
| 16297 | No. 9 water bypass hose | 16297-26011 |
| 16297A | Clamp (for No. 9 water bypass hose) | 96136-41501 |
| 16304 | Water outlet sub-assembly | 16304-33010 · 16304-33011 |
| 16321 | water inlet | 16321-0R011 · 16321-0R020 · 16321-22070 · 16321-26010 · 16321-26030 · 16321-33010 · 16321-33020 · 16321-33050 · 16321-37010 · 16321-47010 |
| 16322 | PIPE, WATER INLET | 16322-33010 |
| 16323 | HOUSING, WATER INLET | 16323-0R011 · 16323-26010 · 16323-33010 · 16323-33030 · 16323-37010 · 16323-37020 · 16323-37021 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-0H020 · 16325-26011 · 16325-28010 · 16325-62010 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-26011 · 16326-26020 · 16326-33010 · 16326-33030 · 16326-37010 · 16326-47010 |
| 16331A | thermostat | 90916-03093 · 90916-03125 · 90916-03129 · 90916-03143 · 90916-03144 · 90916-03147 |
| 16331J | manifold thermostat | 90916-03141 |
| 16341 | GASKET, WATER OUTLET | 16341-33010 |
| 16361 | Fan | 16361-0N040 · 16361-0R020 · 16361-22100 |
| 16361B | Fan No. 2 | 16361-0R030 |
| 16363 | cooling fan motor | 16363-0N020 · 16363-0R020 · 16363-22120 · 16363-33050 |
| 16363A | Cooling fan motor No. 2 | 16363-0R030 |
| 16381 | Fan belt adjustment lever | 16381-33040 · 16381-37010 |
| 16385 | Fan belt adjustment slider | 16385-37010 |
| 16400 | Radiator assembly | 16400-0N060 · 16400-0R030 · 16400-22160 · 16400-22250 · 16400-33090 |
| 16400B | Radiator drain switch screw plug | 16417-0Q040 · 16417-21280 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 |
| 16470 | Radiator reservoir assembly | 16480-22080 · 16480-26030 |
| 16470M | gasket | 90480-18010 |
| 16471B | Reservoir tank cover | 16475-28120 · 16475-51010 |
| 16505B | Radiator upper right bracket sub-assembly | 16505-0R020 |
| 16505C | Radiator upper left bracket sub-assembly | 16505-0R010 |
| 16506B | Radiator lower right bracket sub-assembly | 16506-0R020 · 16506-0R070 |
| 16506C | Radiator lower left bracket sub-assembly | 16506-0R010 |
| 16523A | Radiator bracket cushion | 16523-0R020 · 16523-21060 · 16523-28030 |
| 16526 | Radiator bracket fixings | 16526-0R010 |
| 16533 | Radiator upper bracket | 16533-26050 |
| 16533B | Radiator bracket No. 1 | 16505-0N010 |
| 16534 | Radiator bracket No. 2 | 16506-0N010 |
| 16535 | Radiator lower support | 16535-0R050 · 16535-20030 · 16535-74230 |
| 16553C | hose clamp | 16581-33040 · 16581-33050 · 16581-33060 · 16581-33130 |
| 16561 | Seal No. 1 (radiator to bracket) | 16561-22030 |
| 16571 | Radiator water inlet hose | 16571-33060 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90467-33006 · 96136-43901 · 96136-44301 |
| 16571C | Radiator hose No. 1 | 16571-22180 · 16571-22190 · 16571-26140 · 16571-26151 · 16571-33080 · 16571-47040 · 16571-47050 |
| 16571D | No. 1 radiator hose clip | 96136-54801 |
| 16571F | Clamps or clips (for water hoses) | 96136-51901 |
| 16572 | Radiator outlet hose | 16572-33020 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 96136-43901 · 96136-44301 · 96136-54801 |
| 16572D | Radiator hose No. 2 | 16572-22120 · 16572-22130 · 16572-26070 · 16572-26090 · 16572-33060 · 16572-47040 |
| 16573B | Radiator hose No. 3 | 16573-22020 · 16573-26030 · 16573-33010 · 16573-33020 · 16573-37040 · 16573-47020 |
| 16573C | No. 3 radiator hose clamp or clip | 90466-35001 · 90467-33006 · 96136-44301 · 96136-54801 |
| 16575C | No. 1 water hose clamp bracket | 16575-22020 · 16575-37020 |
| 16577C | radiator pipe | 16577-22020 · 16577-26040 · 16577-33020 · 16577-37030 · 16577-47050 |
| 16581 | Hose clamp (for water hose) | 16581-22110 · 16581-22120 |
| 16581B | Hose clamp (for radiator hose) | 16581-22110 · 16581-22120 · 16581-26040 · 16581-28070 · 16581-33020 · 16581-33100 |
| 16581C | Hose clamp (for No. 2 radiator hose) | 16581-33020 |
| 16711 | fan cover | 16711-0N040 · 16711-0N041 · 16711-0R020 · 16711-0R060 · 16711-22150 |
| 16712 | No. 2 fan cover | 16712-0N010 · 16712-22040 |
