Toyota COROLLA Oil Filter — Figure 1502

Toyota COROLLA EPC diagram 1502, Oil Filter, with 7 images and 14 PNC and OE references.

Toyota COROLLA Oil Filter EPC diagram — 150151H
Oil Filter — 150151H (200610 – 200812)

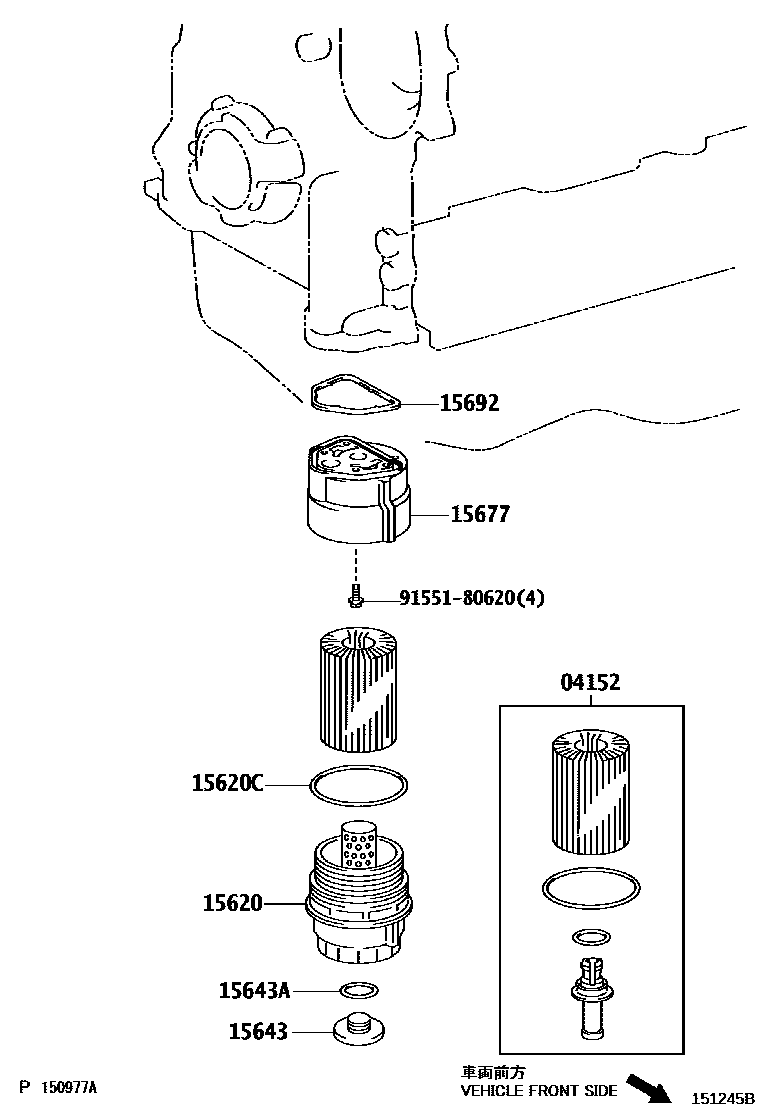

Toyota COROLLA Oil Filter EPC diagram — 151245B
Oil Filter — 151245B (200610 – 999999)

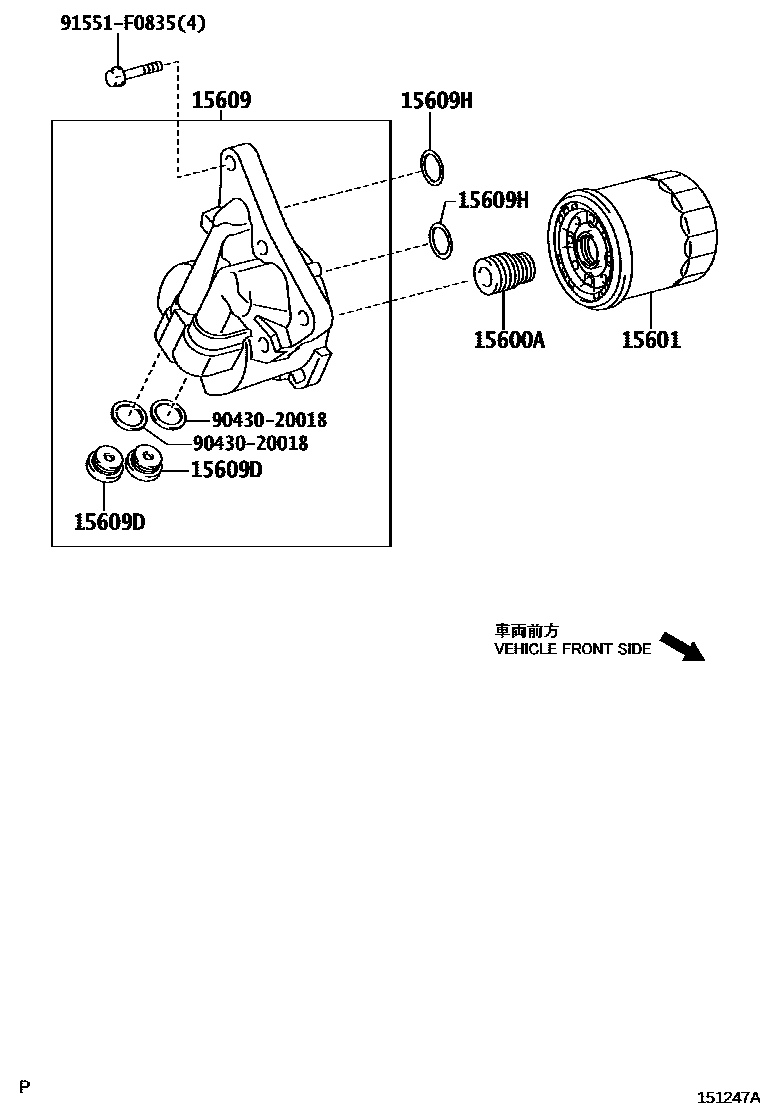

Toyota COROLLA Oil Filter EPC diagram — 151247A
Oil Filter — 151247A (200610 – 200812)

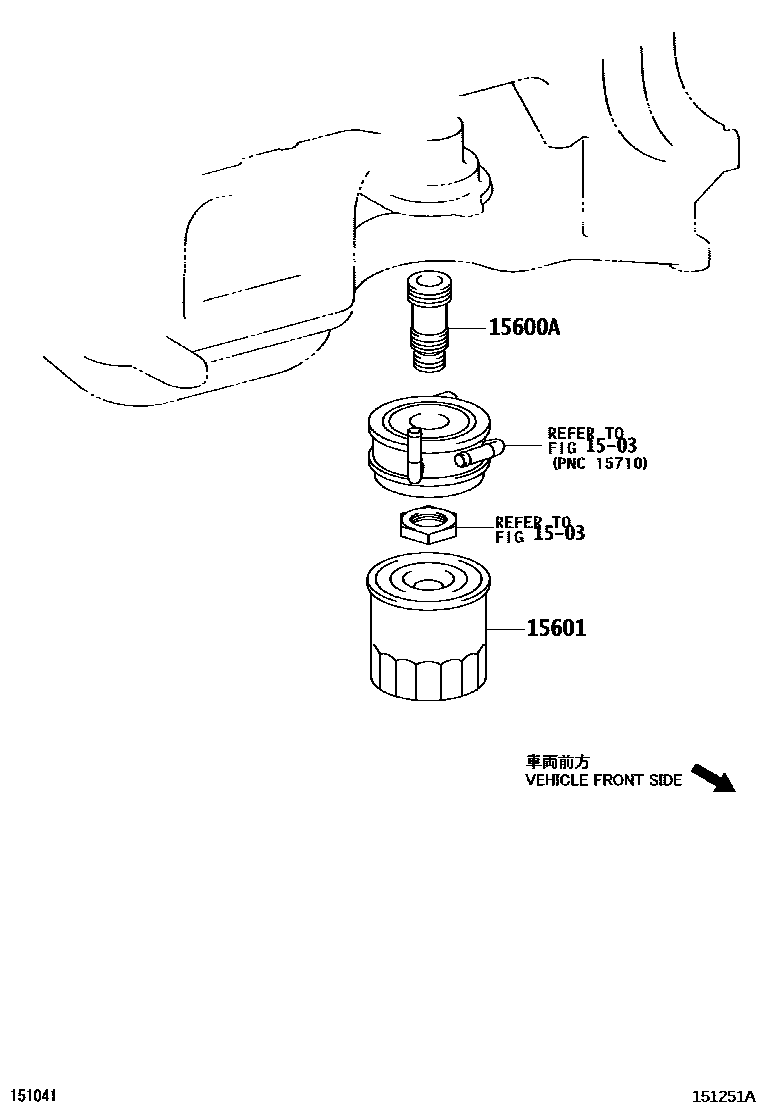

Toyota COROLLA Oil Filter EPC diagram — 151251A
Oil Filter — 151251A (200610 – 200812)

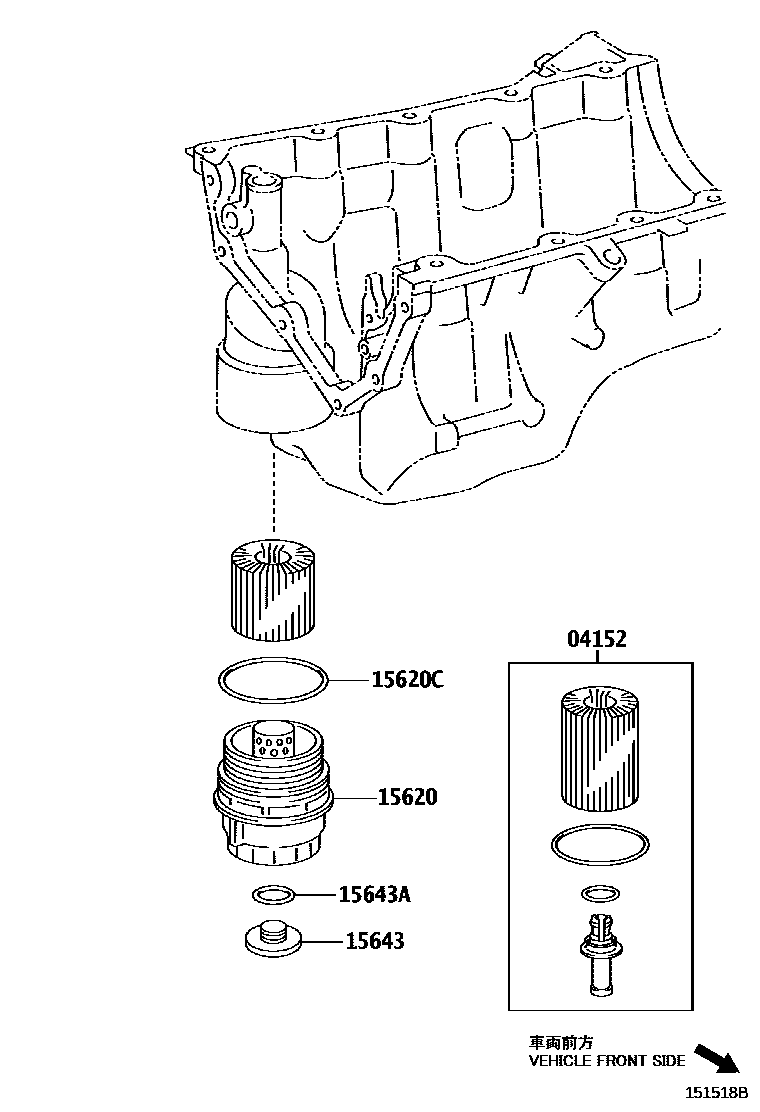

Toyota COROLLA Oil Filter EPC diagram — 151518B
Oil Filter — 151518B (200809 – 999999)

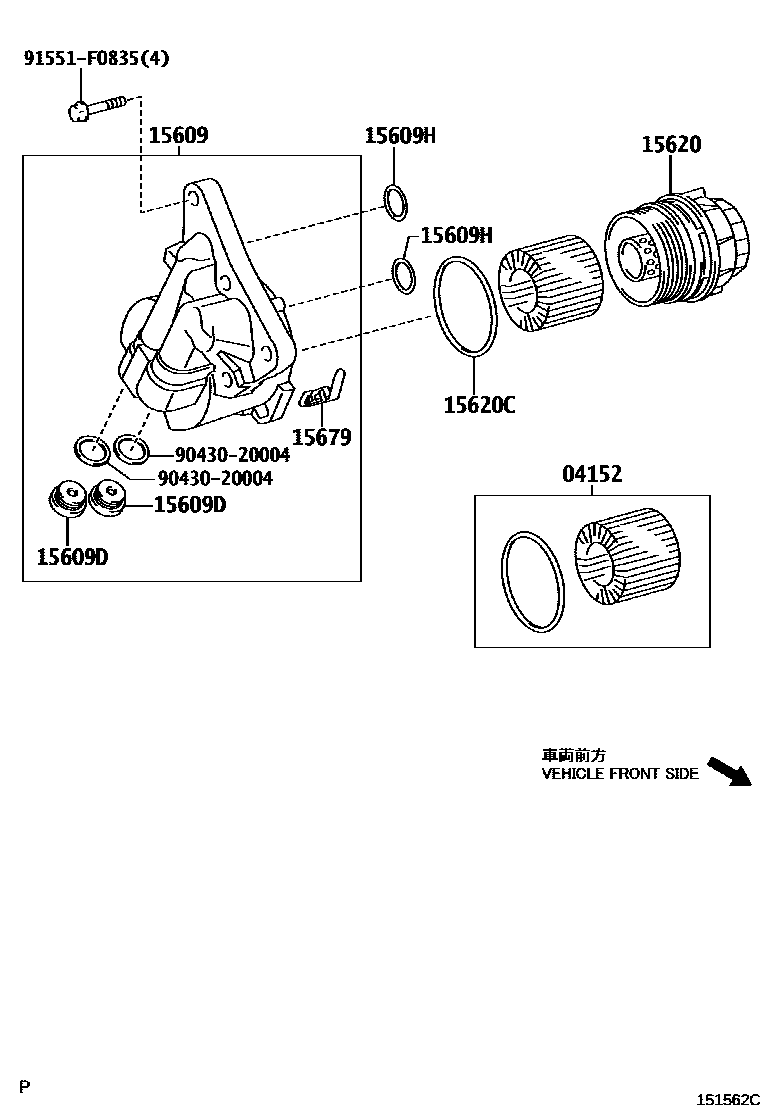

Toyota COROLLA Oil Filter EPC diagram — 151562C
Oil Filter — 151562C (200812 – 999999)

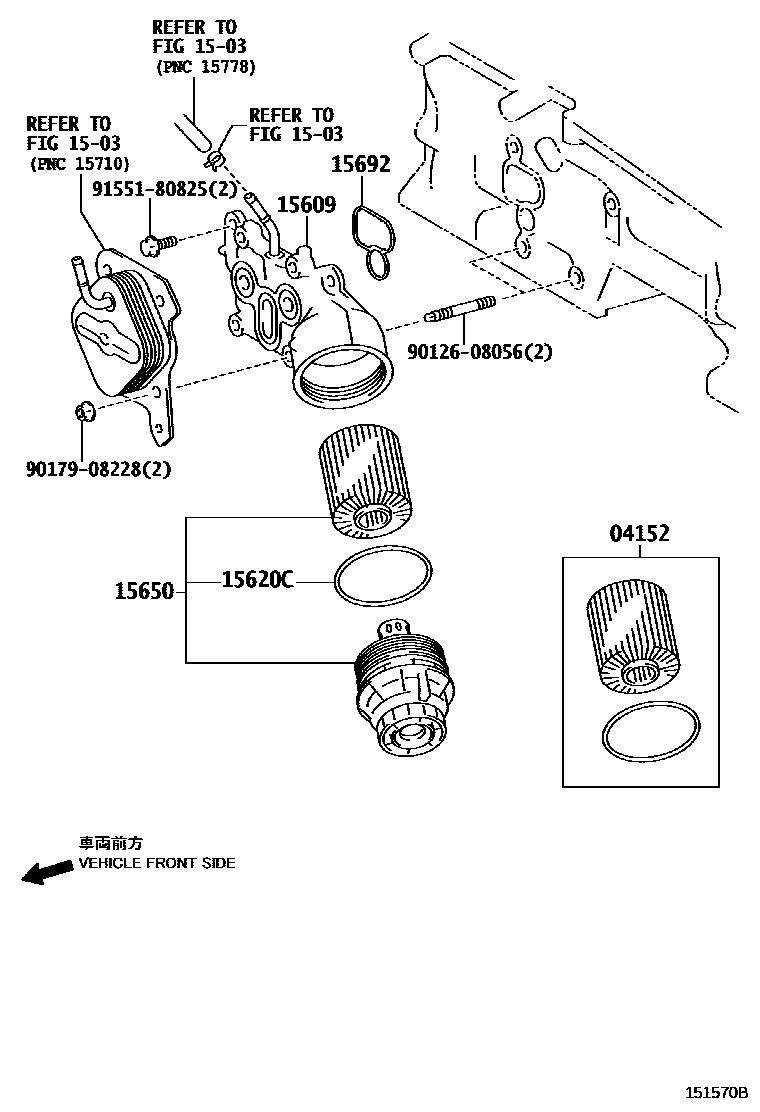

Toyota COROLLA Oil Filter EPC diagram — 151570B
Oil Filter — 151570B (200812 – 999999)

PNC and OE references

PNCPart nameOE numbers
04152Oil Filter Element Kit04152-31110 · 04152-37010 · 04152-38010 · 04152-40060
15600AConnector (for oil filter)90904-04002 · 90904-04006 · 90904-04008
15601Oil filter sub-assembly90915-10003 · 90915-20003
15609Oil filter bracket sub-assembly15609-33030 · 15609-37010 · 15609-37040
15609DStraight threaded plug with head (for oil filter bracket)90341-20002
15609HO-ring (for oil filter bracket)96723-24020
15620Oil filter cover assembly15620-26010 · 15620-37010 · 15620-40030
15620CGasket (for oil filter cover)90301-69011 · 90301-79006
15643Oil filter drain plug15643-31040 · 15643-31050
15643AO-ring (for oil filter drain plug)96723-35028
15650Oil filter cover assembly with filter element15650-33010
15677Oil filter bracket15677-0R010
15679Oil filter bracket clip15679-37010
15692Oil filter holder gasket15692-26010 · 15692-33010
