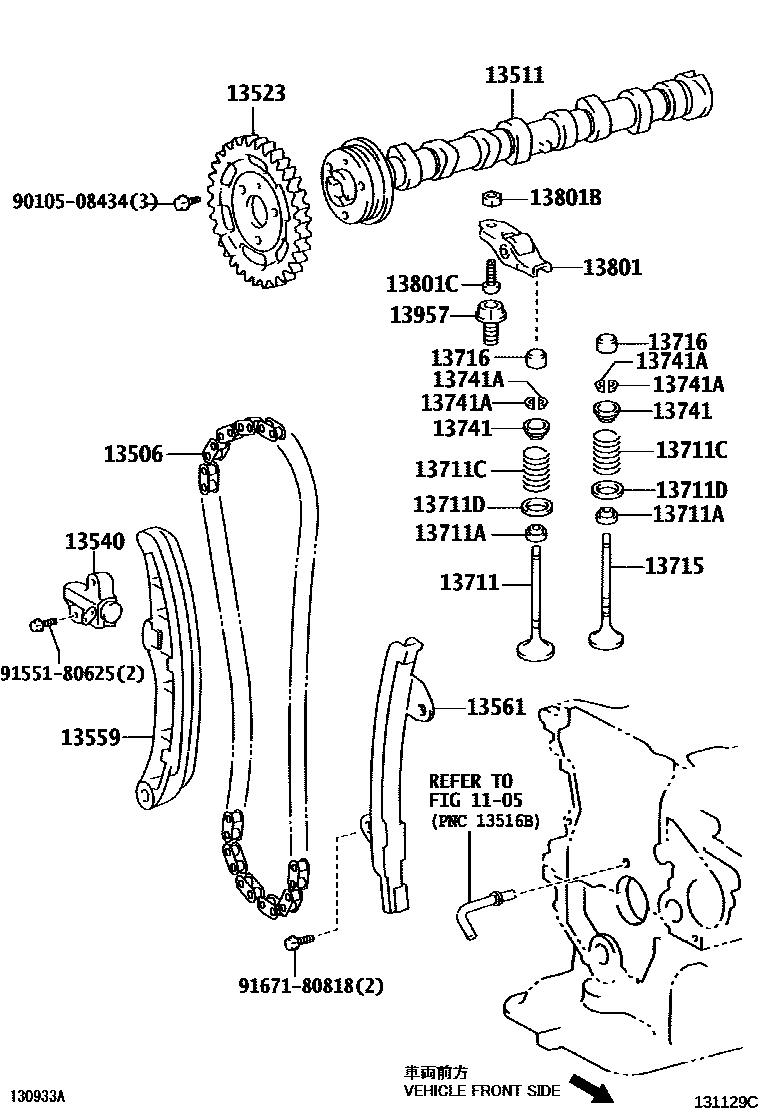

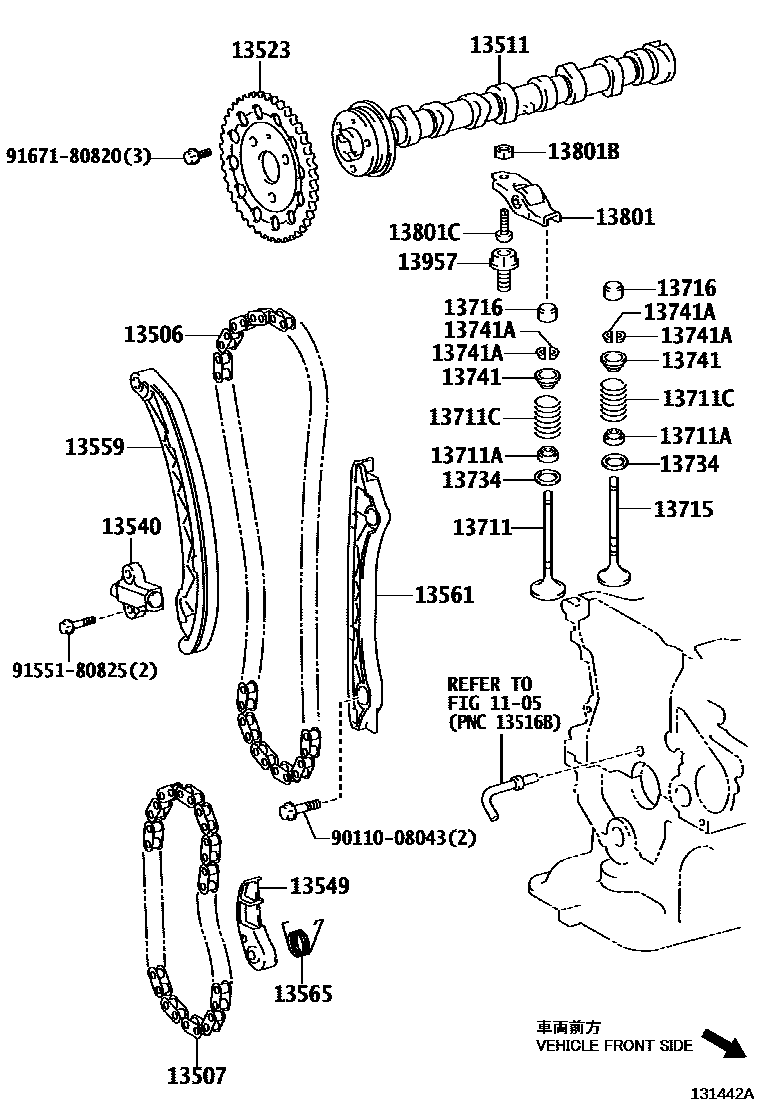

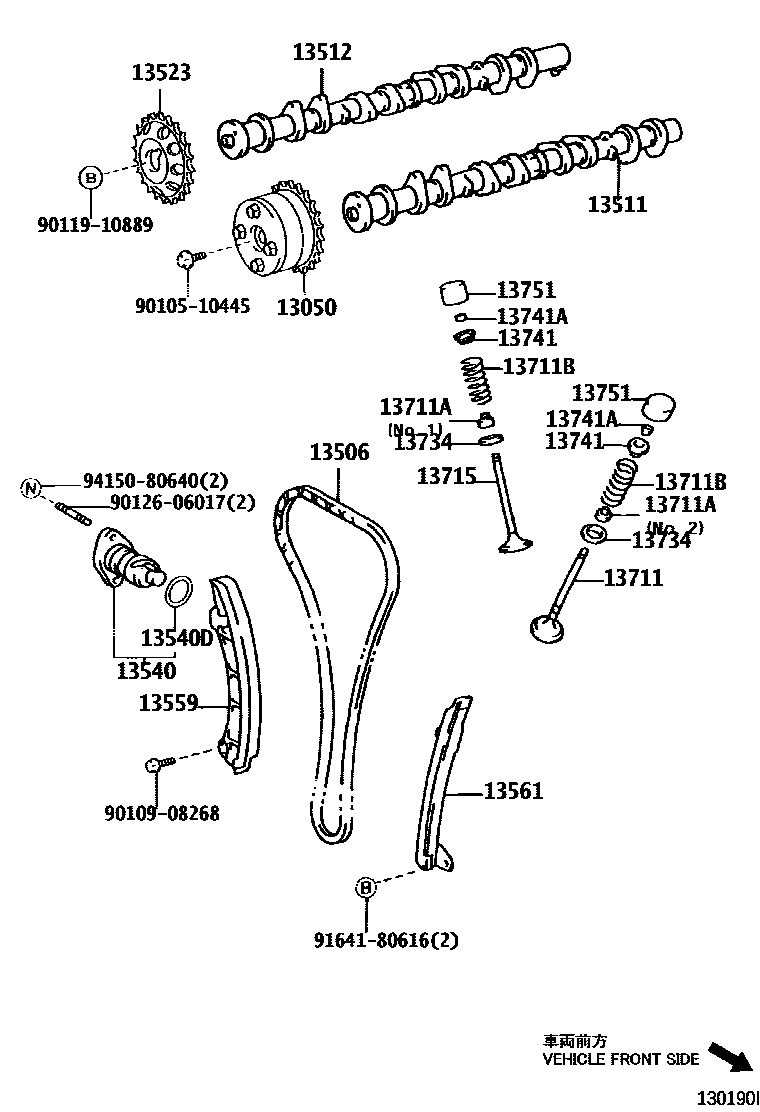

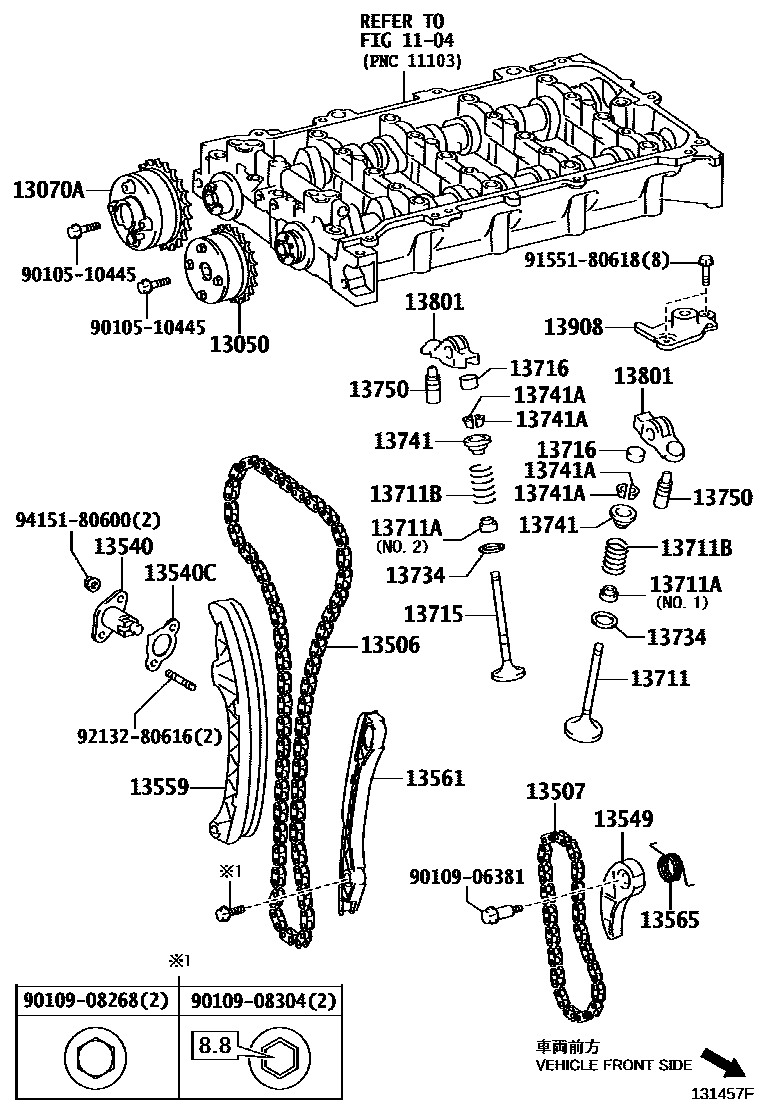

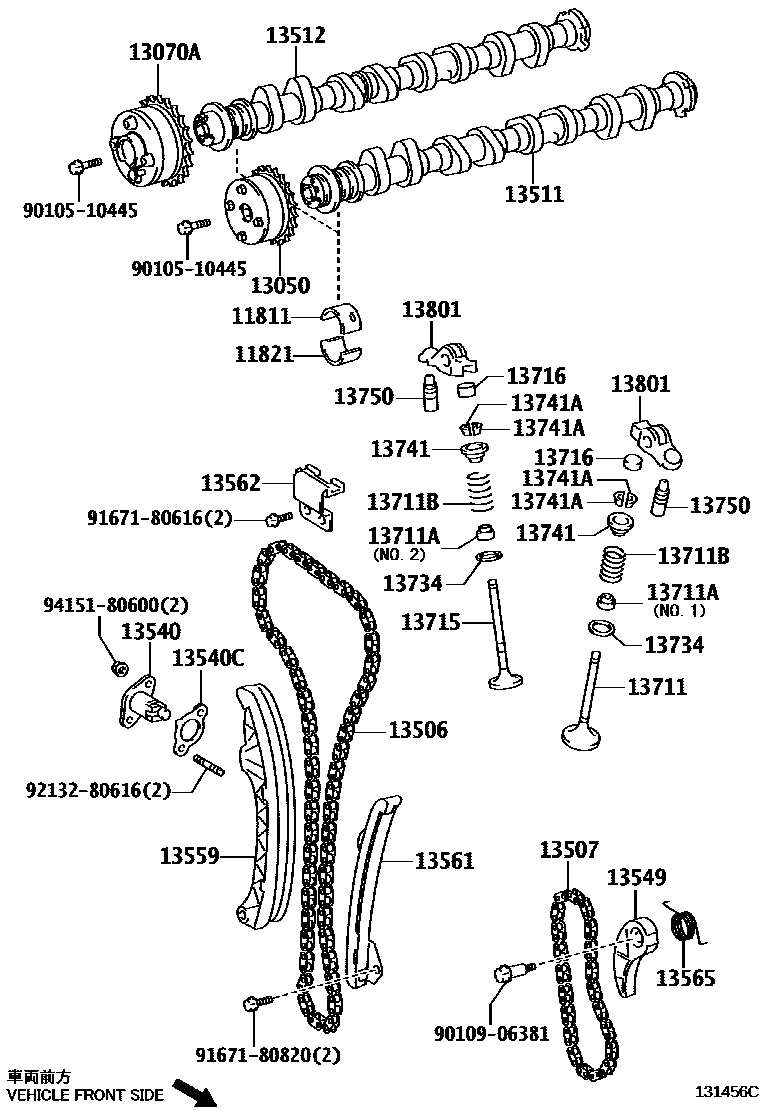

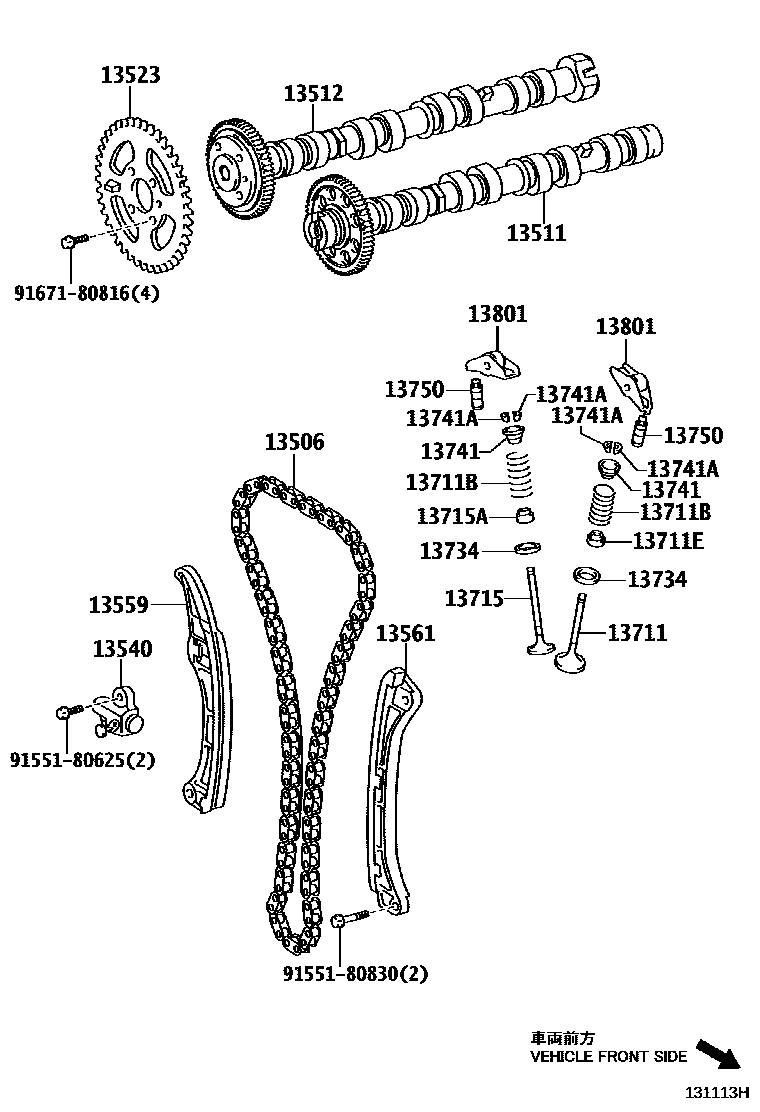

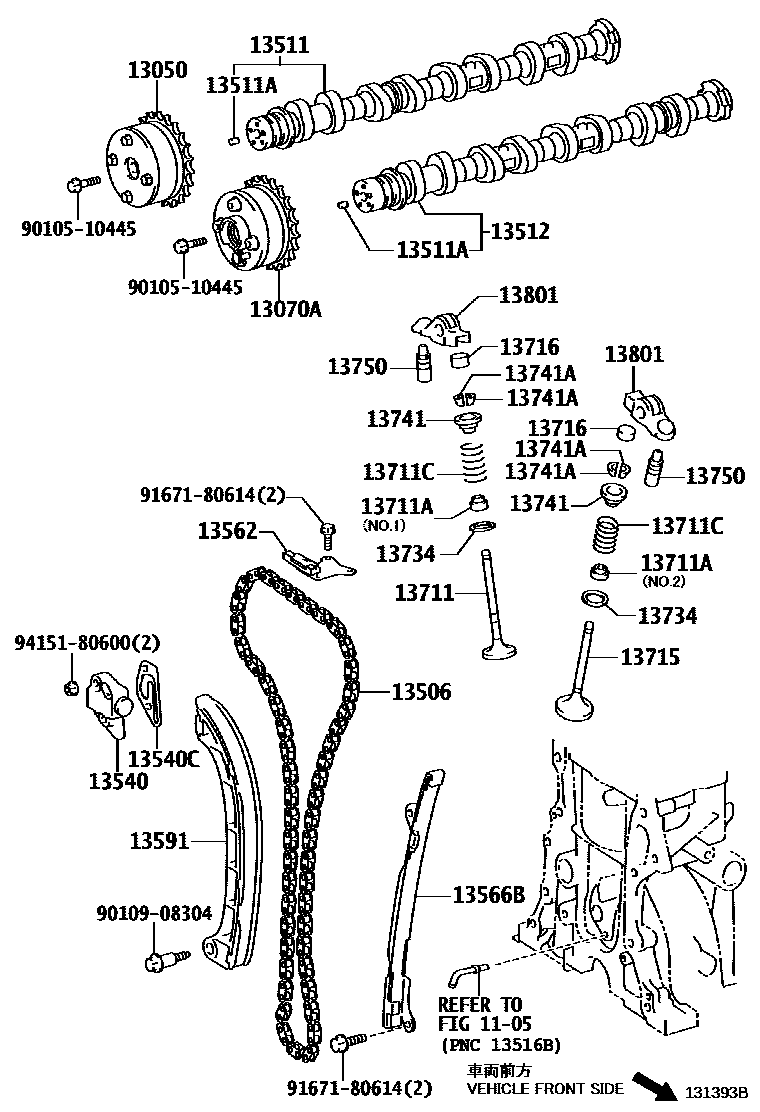

Toyota COROLLA Camshaft & Valve — Figure 1302
Toyota COROLLA EPC diagram 1302, Camshaft & Valve, with 7 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11811 | No. 1 camshaft bearing | 11811-37010 |
| 11821 | No. 2 camshaft bearing | 11821-37010 |
| 13050 | Camshaft timing gear assembly | 13050-0D010 · 13050-0T010 · 13050-0T011 · 13050-0T021 · 13050-0T022 · 13050-22012 · 13050-37011 · 13050-37012 · 13050-47010 |
| 13070A | Exhaust camshaft timing gear assembly | 13070-37010 · 13070-47010 |
| 13506 | Chain sub-assembly | 13506-22030 · 13506-26010 · 13506-33020 · 13506-33030 · 13506-37010 · 13506-37040 · 13506-47010 |
| 13507 | No. 2 chain sub-assembly | 13507-28010 · 13507-33010 |
| 13511 | camshaft | 13501-0R010 · 13501-0T030 · 13501-22061 · 13501-22062 · 13501-26010 · 13501-33010 · 13501-33040 · 13501-33041 · 13501-33042 · 13501-37010 · 13501-37011 · 13501-47020 |
| 13511A | Direct pin (for camshaft locking pin) | 90250-05027 |
| 13512 | Camshaft No. 2 | 13502-0R010 · 13502-0T030 · 13502-22011 · 13502-26010 · 13502-37010 · 13502-47010 |
| 13523 | Camshaft timing gear or sprocket | 13523-0R010 · 13523-22020 · 13523-33021 · 13523-33030 |
| 13540 | No. 1 chain tensioner assembly | 13540-22022 · 13540-26010 · 13540-33020 · 13540-33030 · 13540-37010 · 13540-37020 · 13540-37030 · 13540-47010 |
| 13540C | Pad (for chain tensioner) | 13552-37010 · 13552-47010 |
| 13540D | O-ring (for chain tensioner) | 90301-22013 |
| 13549 | chain tensioner pressure plate | 13549-33010 · 13549-37010 |
| 13559 | chain tensioner guide plate | 13559-0R010 · 13559-22011 · 13559-33010 · 13559-33020 · 13559-37010 |
| 13561 | No. 1 chain shock absorber | 13561-0R010 · 13561-22020 · 13561-33020 · 13561-33030 · 13561-37010 · 13561-37020 |
| 13562 | No. 2 chain shock absorber | 13562-37010 · 13562-47010 |
| 13565 | chain damper spring | 13565-33010 · 13565-37010 |
| 13566B | Timing chain guide plate | 13566-47010 |
| 13591 | Timing chain tensioner arm | 13591-47010 |
| 13711 | intake valve | 13711-0R010 · 13711-22040 · 13711-33030 · 13711-33031 · 13711-37020 · 13711-47010 · 13711-51030 |
| 13711A | Oil seal or O-ring (for valve stem) | 90913-02101 · 90913-02111 · 90913-02112 · 90913-02121 · 90913-02124 |
| 13711B | Compression spring (for inner side) | 90501-28039 · 90501-31024 · 90501-31027 · 90501-W0006 · 90905-01084 |
| 13711C | Compression spring (for outside) | 90501-32060 · 90501-32062 · 90501-36006 |
| 13711D | Flat washer (for valve spring seat) | 90201-19008 |
| 13711E | Intake valve stem oil seal | 90913-02124 · 90913-W2001 |
| 13715 | exhaust valve | 13715-0R010 · 13715-22040 · 13715-33040 · 13715-33041 · 13715-37030 · 13715-47010 · 13715-51030 |
| 13715A | Exhaust valve stem oil seal | 90913-02124 · 90913-W2001 |
| 13716 | valve stem cover | 13716-33010 · 13716-75020 |
| 13734 | Valve spring seat | 13734-33020 · 13734-62020 · 13734-74010 · 90562-13002 |
| 13741 | Valve spring seat ring | 13741-0R010 · 13741-10020 · 13741-20021 · 13741-22021 · 13741-33020 |
| 13741A | Valve spring seat lock plate | 90913-03021 · 90913-03028 |
| 13750 | Valve lash adjuster assembly | 13750-0R010 · 13750-0R020 · 13750-26010 · 13750-75020 |
| 13751 | valve lifter | 13751-46030 · 13751-46040 · 13751-46050 · 13751-46060 · 13751-46070 · 13751-46080 · 13751-46090 · 13751-46100 · 13751-46110 · 13751-46120 · 13751-46130 · 13751-46140 · 13751-46150 · 13751-46160 · 13751-46170 · 13751-46180 · 13751-46190 · 13751-46200 · 13751-46210 · 13751-46220 · 13751-46230 · 13751-46240 · 13751-46250 · 13751-46260 · 13751-46270 · 13751-46280 · 13751-46290 · 13751-46300 · 13751-46310 · 13751-46320 · 13751-46330 · 13751-46340 · 13751-46350 · 13751-46360 · 13751-46370 |
| 13801 | No. 1 valve rocker arm sub-assembly | 13801-0R010 · 13801-23011 · 13801-26010 · 13801-33020 |
| 13801B | Hex nut (for valve adjustment) | 90170-07004 |
| 13801C | valve adjustment screw | 13788-33010 · 13788-33011 |
| 13908 | Valve rocker arm lost motion damper sub-assembly | 13908-37011 |
| 13957 | valve rocker arm pivot | 13957-33010 |
