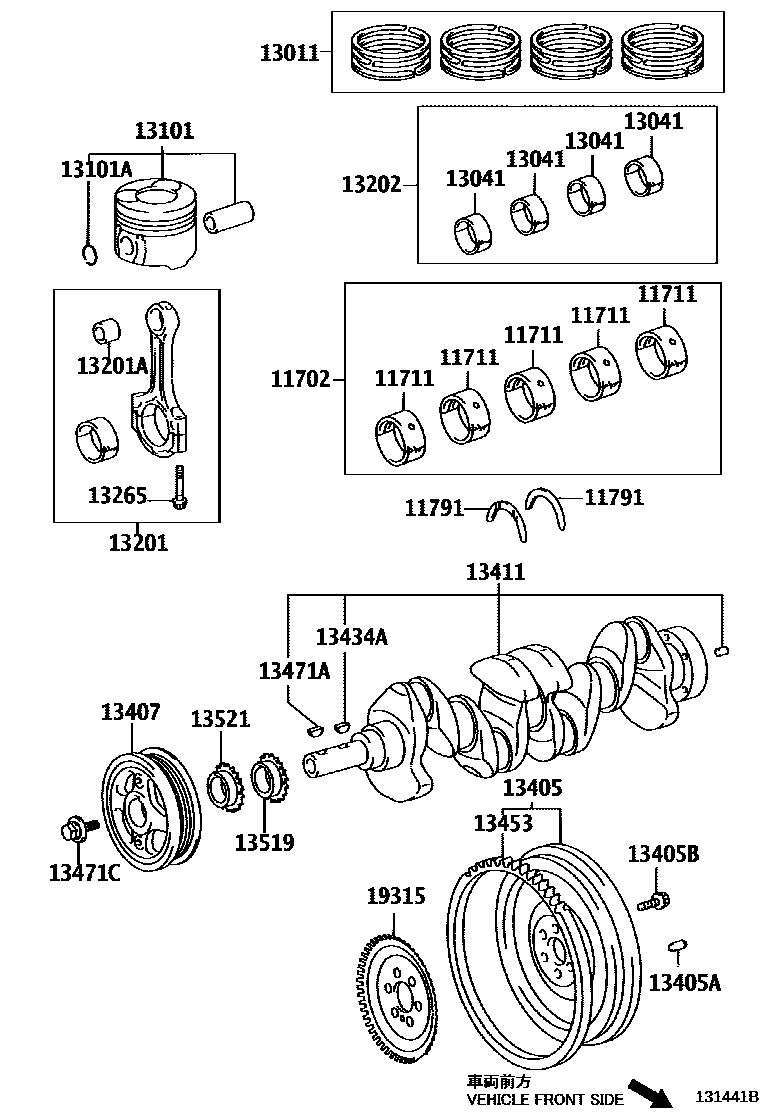

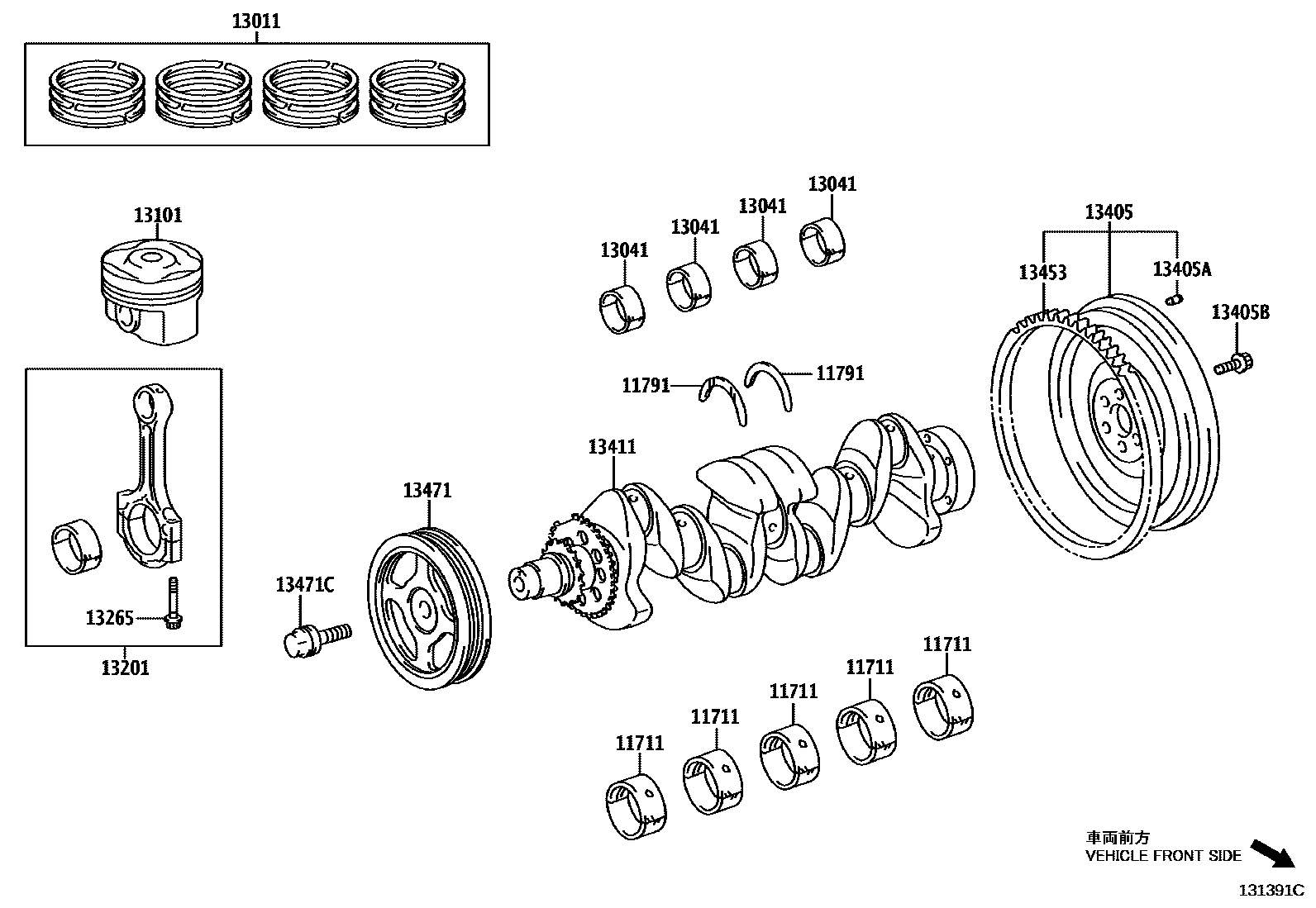

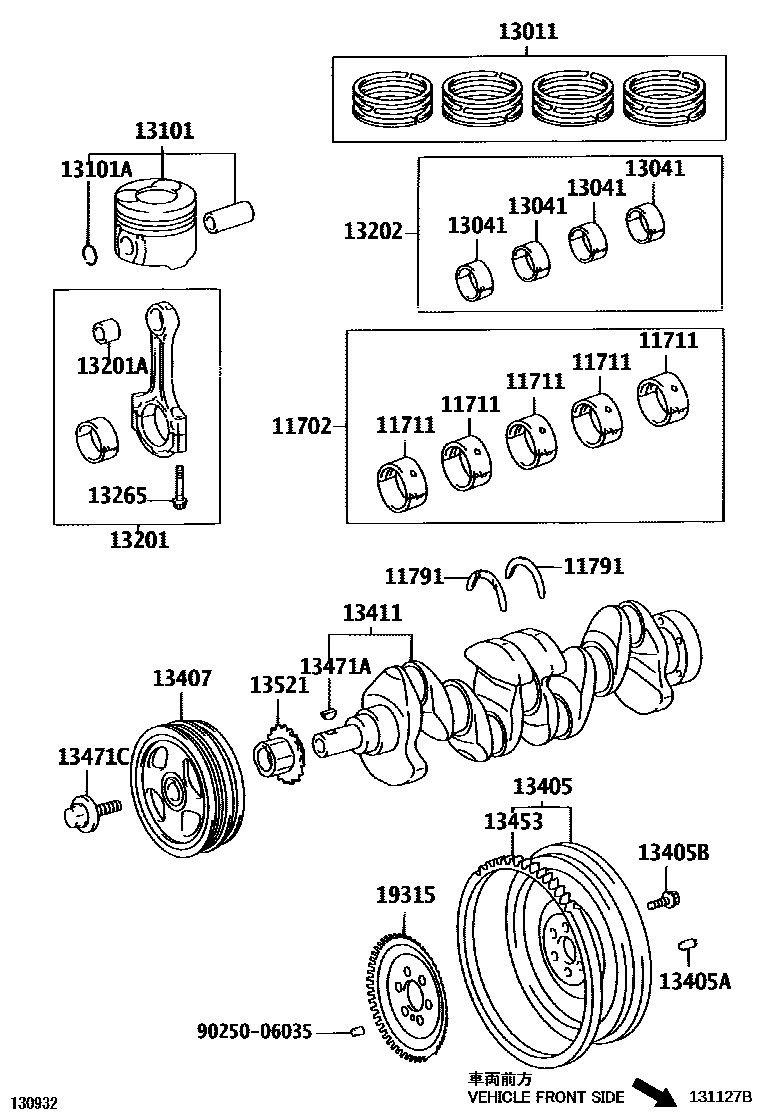

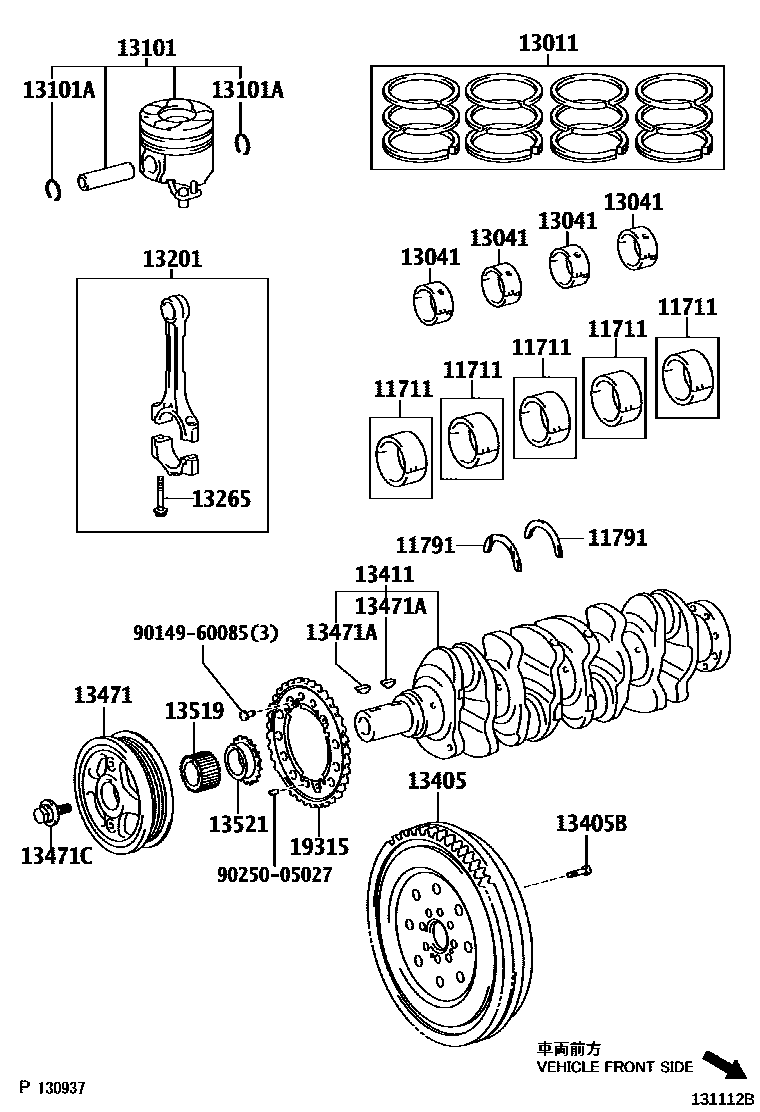

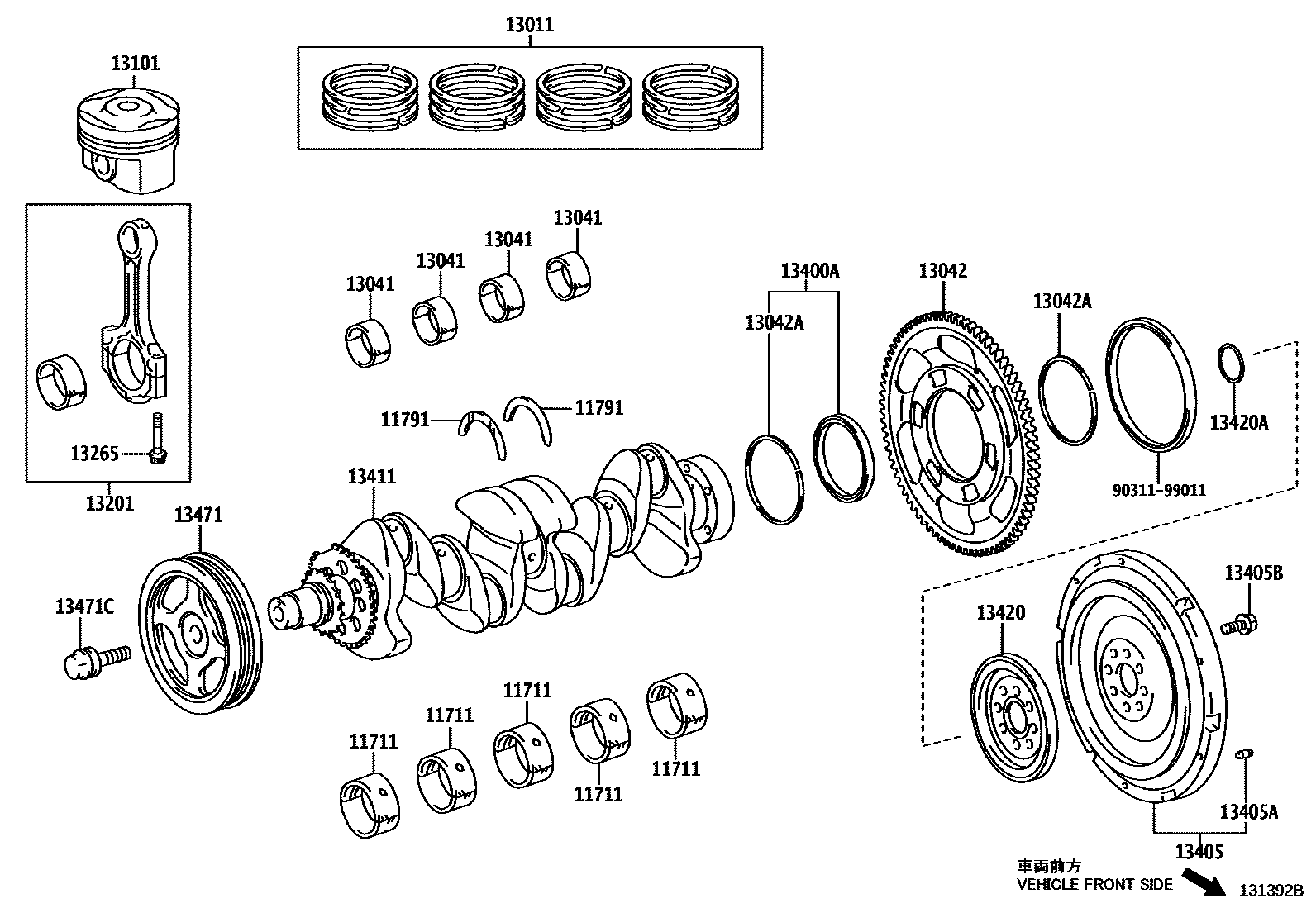

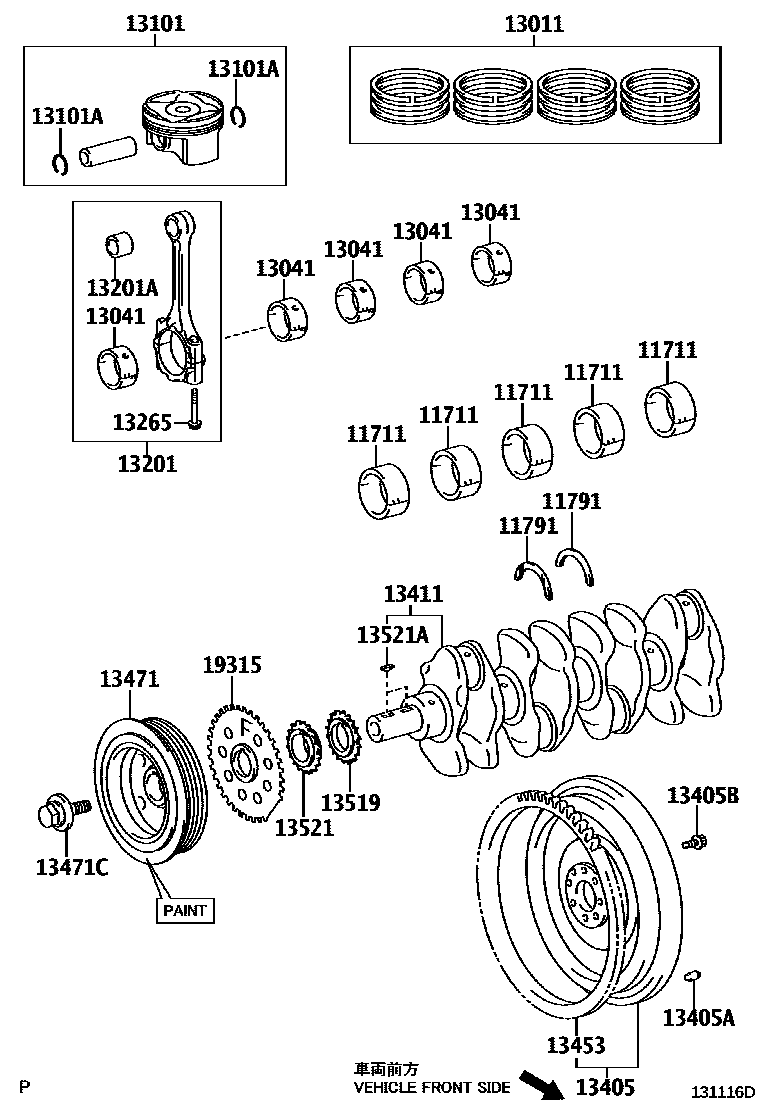

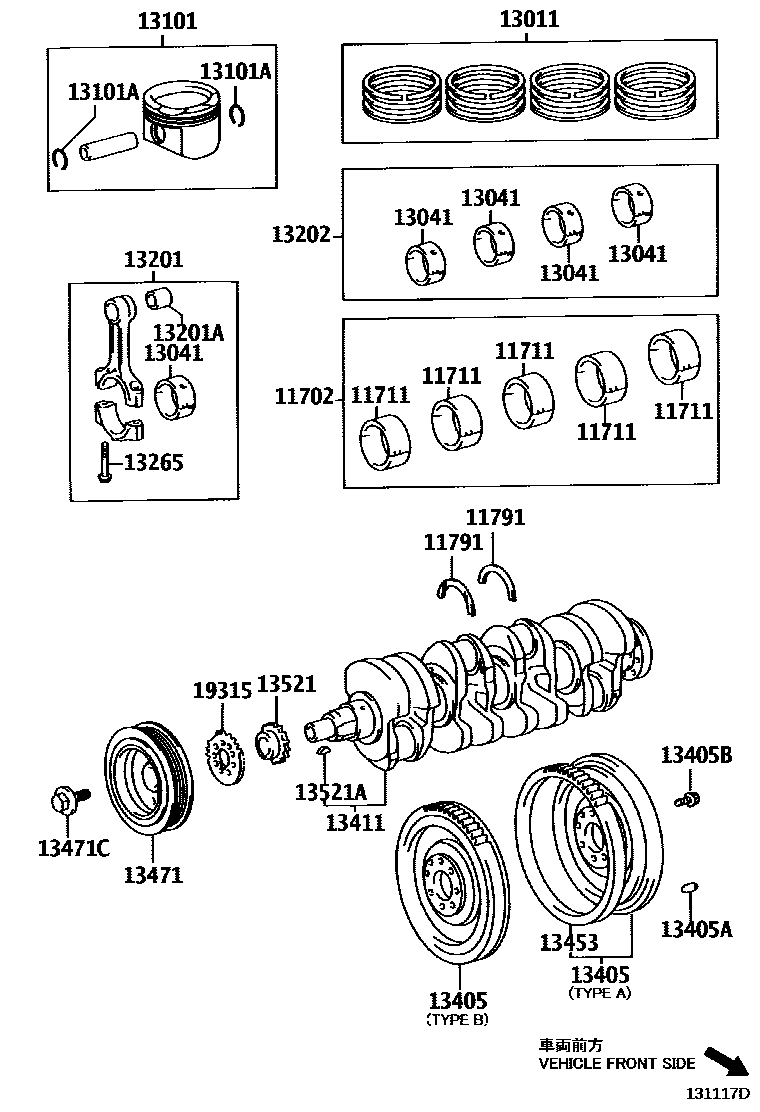

Toyota COROLLA Crankshaft & Piston — Figure 1301
Toyota COROLLA EPC diagram 1301, Crankshaft & Piston, with 7 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11702 | crankshaft bearing assembly | 11704-21020 · 11704-21031 · 11704-22011 |
| 11791 | Thrust washer on crankshaft | 11791-22020 · 11791-26010 · 11791-33030 · 11791-47010 · 11792-33030 · 11793-33030 |
| 13011 | Piston ring assembly | 13011-0R011 · 13011-0R012 · 13011-0R030 · 13011-22220 · 13011-22221 · 13011-26071 · 13011-26080 · 13011-26090 · 13011-26100 · 13011-33050 · 13011-33051 · 13011-33052 · 13011-33053 · 13011-33070 · 13011-37090 · 13011-47030 |
| 13042 | ERS ring gear sub-assembly | 13042-47010 |
| 13042A | Snap ring (for ring gear) | 90520-95001 |
| 13101 | Piston sub-assembly with pin | 13101-0R030 · 13101-0R031 · 13101-0R070 · 13101-0T080 · 13101-0T090 · 13101-22072 · 13101-37081 · 13101-47020 |
| 13101A | Bore snap ring (for piston pin) | 90080-52139 · 90520-20064 · 90520-W0001 |
| 13201 | Connecting rod sub-assembly | 13201-09580 · 13201-09581 · 13201-09A30 · 13201-0R020 · 13201-0R021 · 13201-26020 · 13201-26021 · 13201-39055 · 13201-39185 · 13201-49085 |
| 13201A | Bushing (for connecting rod small end) | 90999-73140 · 90999-73147 · 90999-73151 |
| 13202 | Connecting rod bearing assembly | 13204-22024 · 13204-33041 |
| 13265 | Connecting rod bolts | 13265-21020 · 13265-22020 · 13265-22030 · 13265-22031 |
| 13400A | Bearings (for crankshaft) | 90369-78001 |
| 13405 | Flywheel sub-assembly | 13405-22030 · 13405-33020 · 13405-33030 · 13405-37050 · 13405-47020 · 13405-47030 · 13450-0R010 · 13451-22030 |
| 13405A | Direct sales (for flywheel) | 90250-08054 · 90250-08120 |
| 13405B | Flywheel fixing bolt | 90148-10004 · 90910-02103 · 90913-01024 · 90913-01027 · 90913-01029 |
| 13407 | Crankshaft damper sub-assembly | 13407-33030 · 13407-33050 |
| 13411 | crankshaft | 13401-0R010 · 13401-0R011 · 13401-22040 · 13401-33011 · 13401-33020 · 13401-37010 · 13401-37020 · 13401-47010 |
| 13420 | ERS one-way clutch assembly | 13420-47010 |
| 13420A | O-ring (for one-way clutch) | 90301-36013 |
| 13434A | Key (for oil pump active spline) | 95161-30416 |
| 13453 | flywheel ring gear | 13453-0T010 · 13453-10010 · 13453-55010 |
| 13471 | crankshaft pulley | 13408-0R011 · 13408-0R030 · 13470-22041 · 13470-37020 · 13470-37050 · 13470-47050 |
| 13471A | Crankshaft key (for crankshaft pulley assembly) | 95161-30416 · 95161-30516 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90119-12127 · 90119-12345 · 90119-14106 · 90119-16004 · 90119-18003 |
| 13519 | Oil pump driving gear | 13519-26010 · 13519-33010 · 13519-37010 |
| 13521 | Crankshaft timing gear or sprocket | 13521-22020 · 13521-26010 · 13521-33020 · 13521-33030 · 13521-37010 |
| 13521A | Key (for crankshaft timing gear) | 90280-04003 · 95161-30416 |
| 19315 | No. 1 crankshaft angle signal plate | 19315-0R011 · 19315-22030 · 19315-33010 · 19315-33020 · 19315-33021 · 19315-37010 · 19315-37020 |
