Toyota COROLLA Heating & Air Conditioning - Compressor — Figure 8719

Toyota COROLLA EPC diagram 8719, Heating & Air Conditioning - Compressor, with 3 images and 1 PNC and OE references.

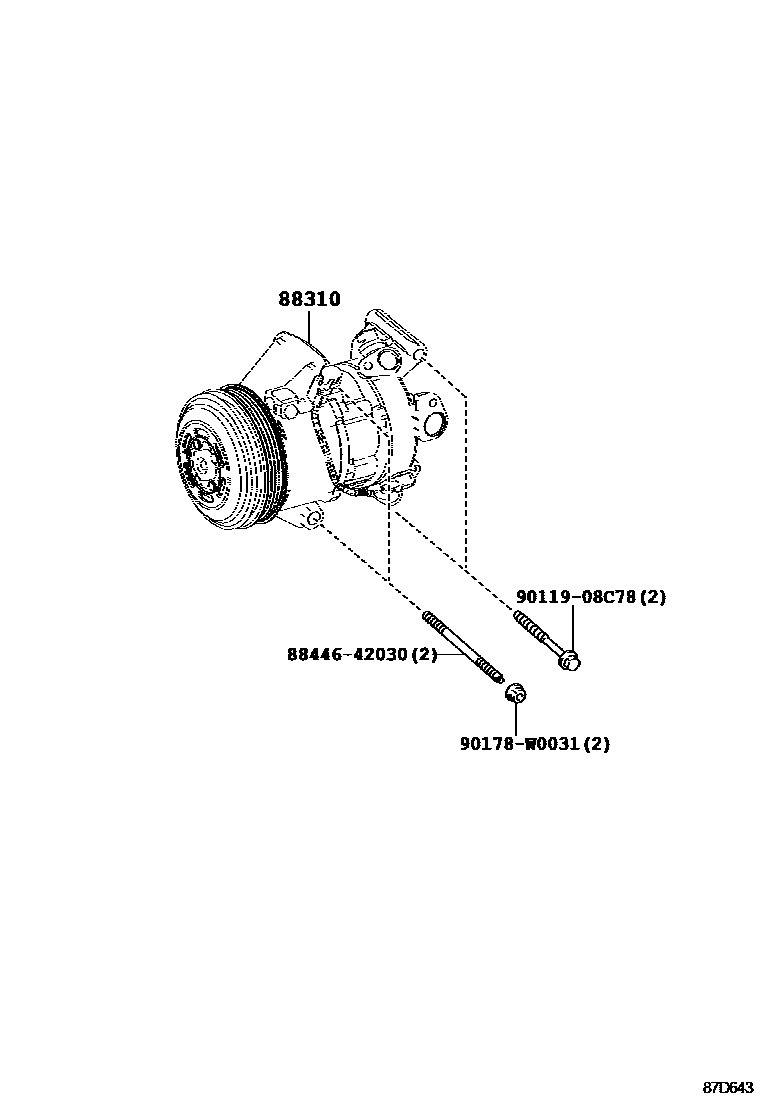

Toyota COROLLA Heating & Air Conditioning - Compressor EPC diagram — 87D643 — Heating & Air Conditioning - Compressor — 87D643 (201306 – 999999)

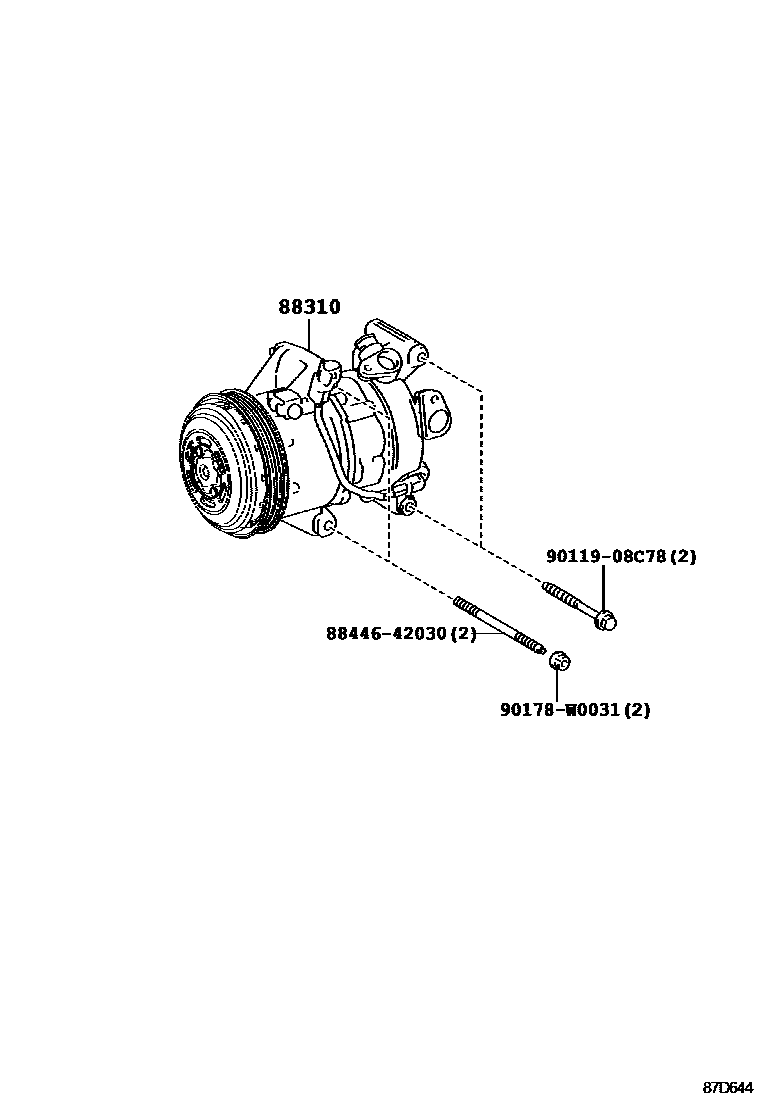

Toyota COROLLA Heating & Air Conditioning - Compressor EPC diagram — 87D644 — Heating & Air Conditioning - Compressor — 87D644 (201306 – 999999)

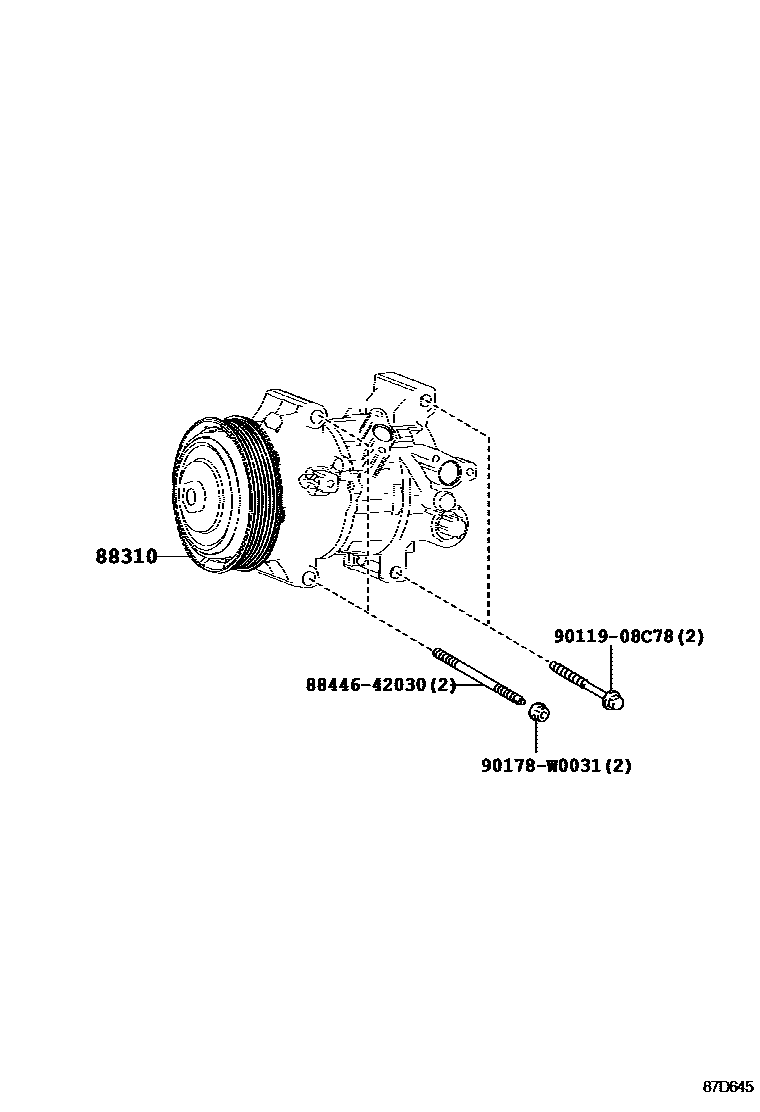

Toyota COROLLA Heating & Air Conditioning - Compressor EPC diagram — 87D645 — Heating & Air Conditioning - Compressor — 87D645 (201306 – 999999)

PNC and OE references

PNC	Part name	OE numbers
88310	Compressor assembly with pulley	88310-02780 · 88310-02790 · 88310-02800 · 88310-02810 · 88310-02830 · 88310-02840
