Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715

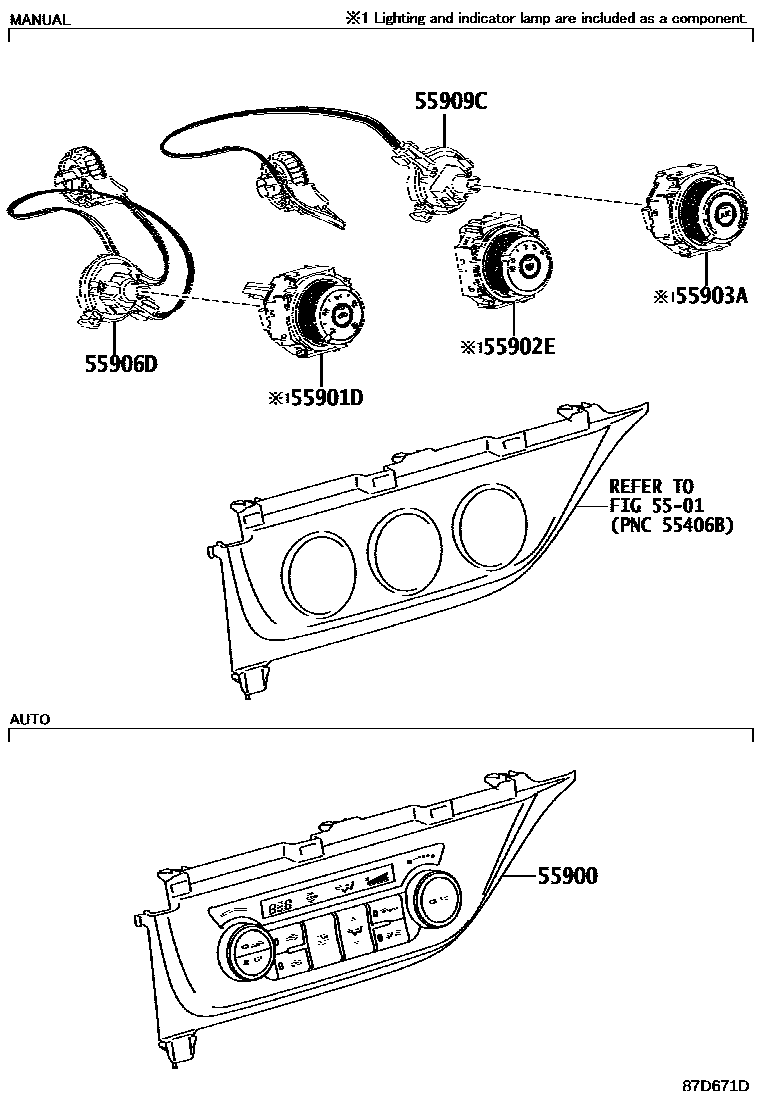

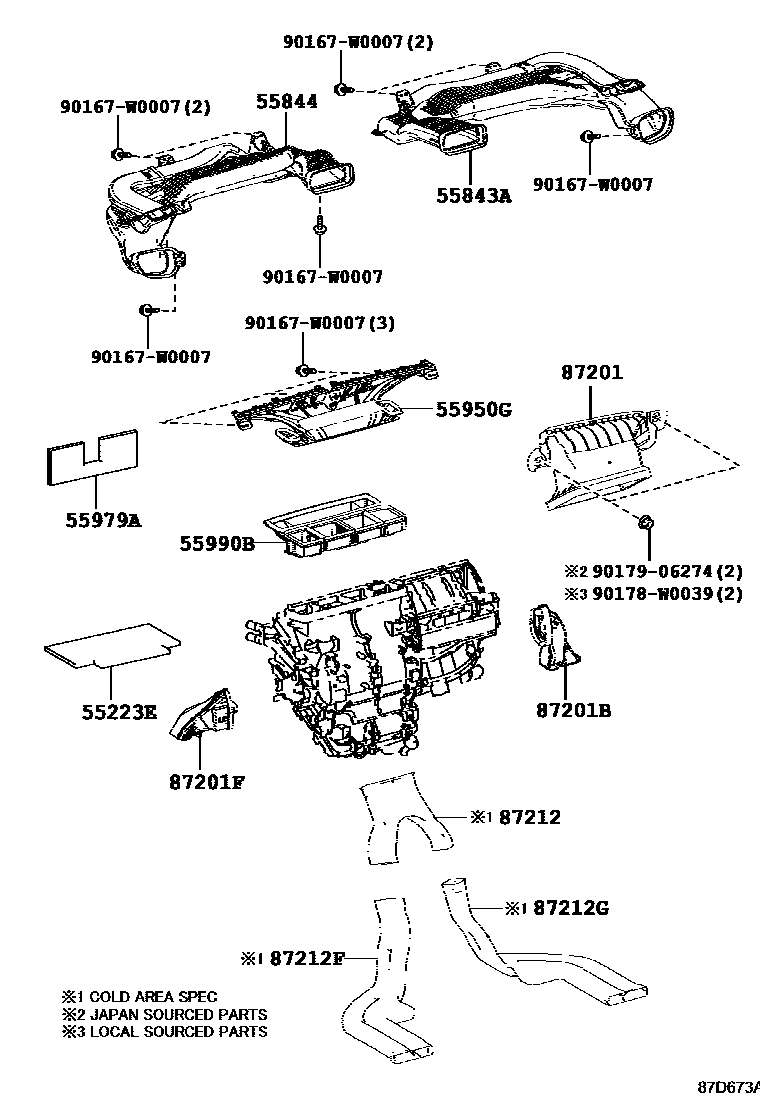

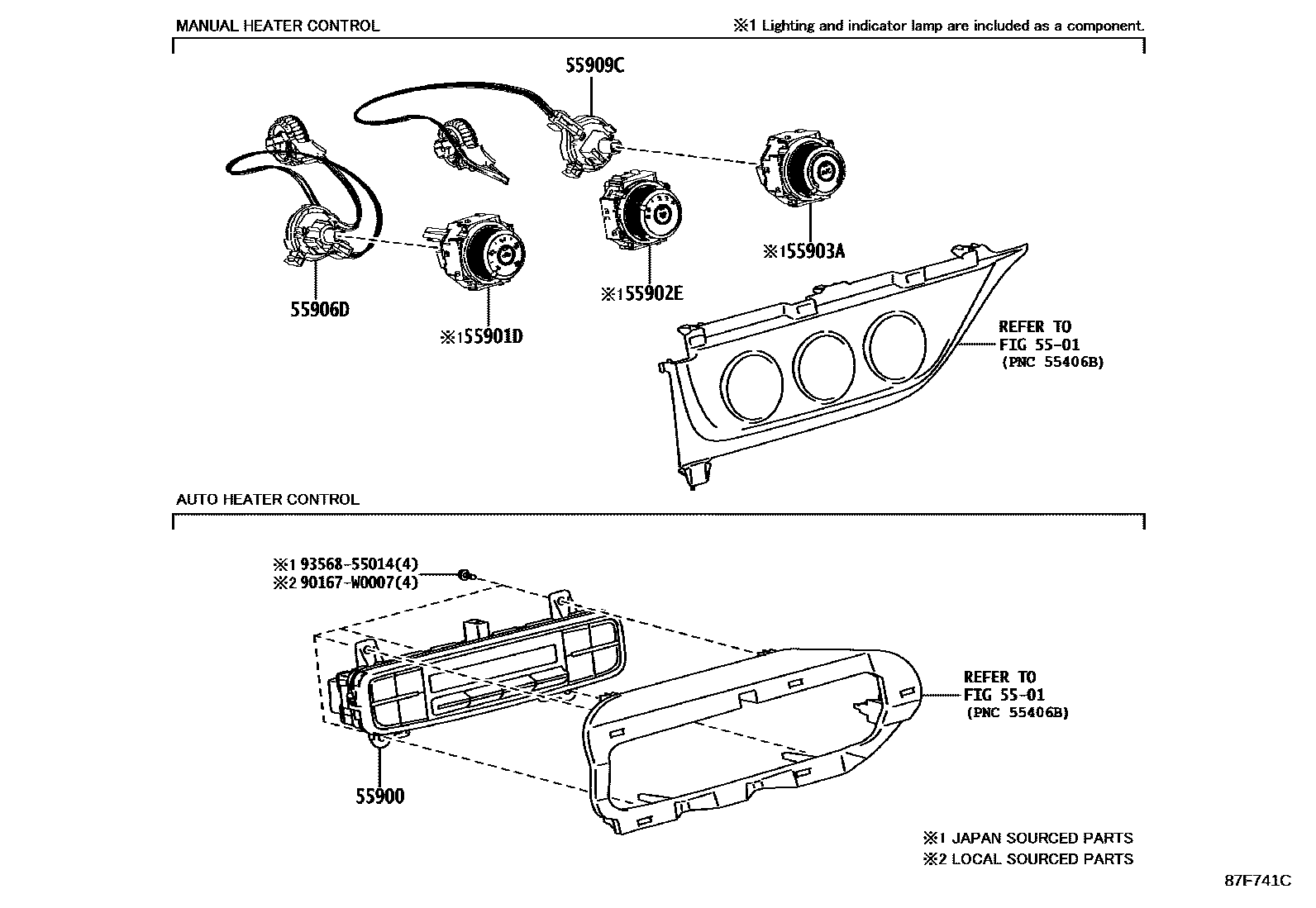

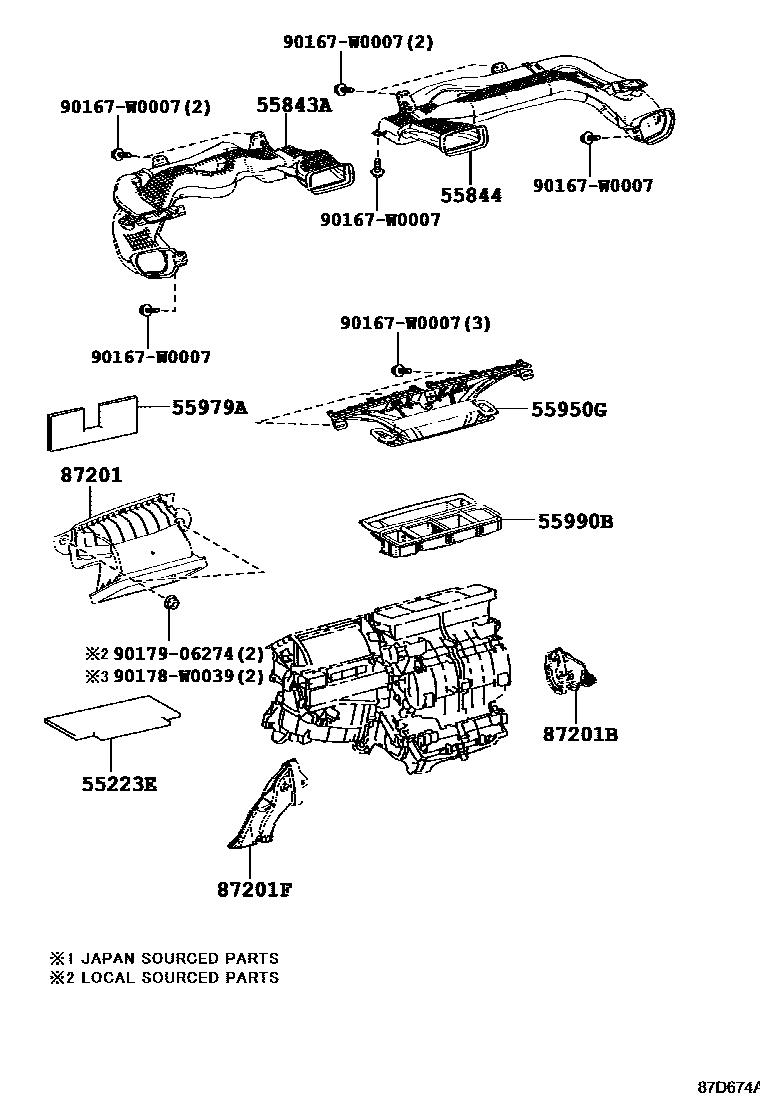

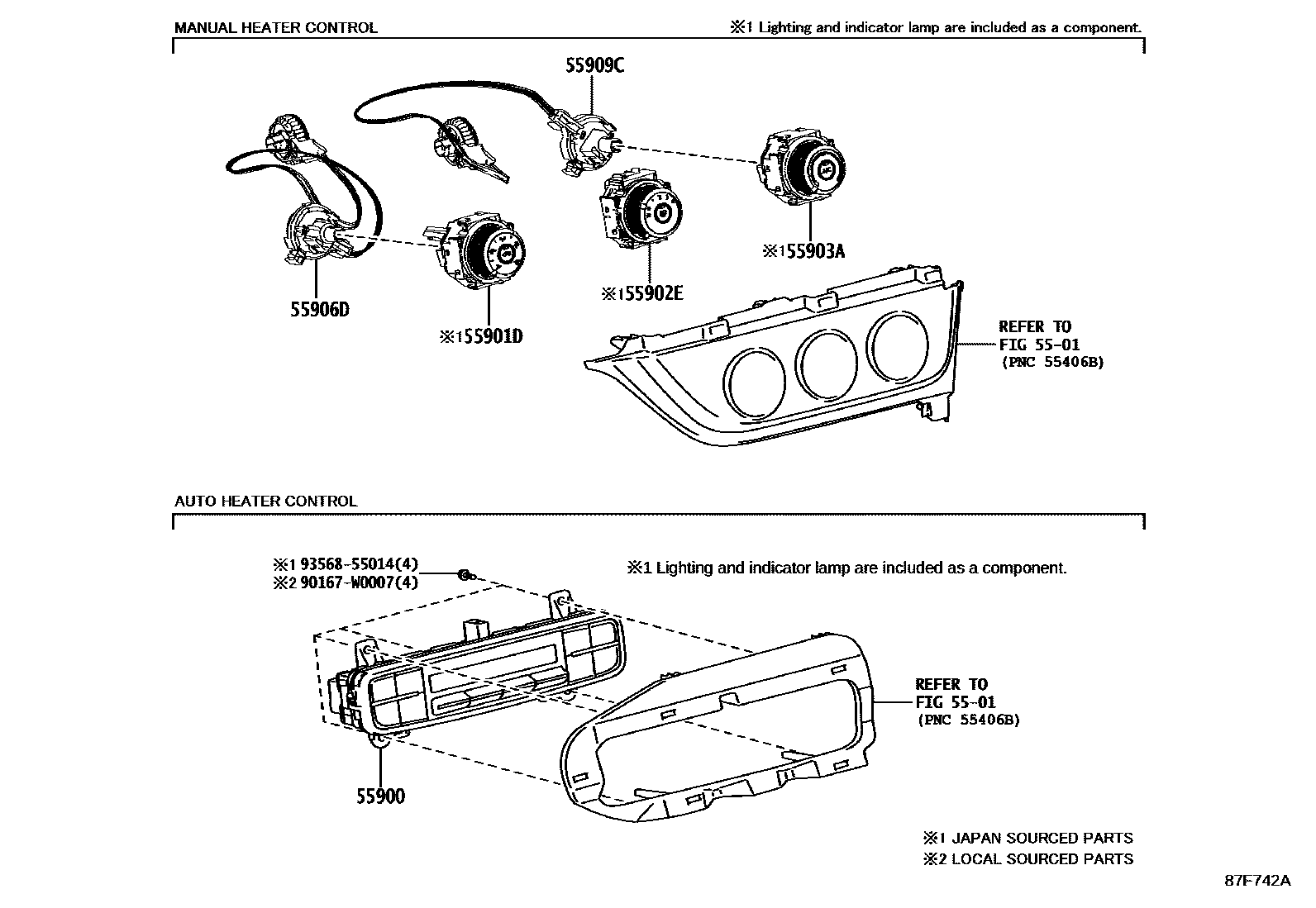

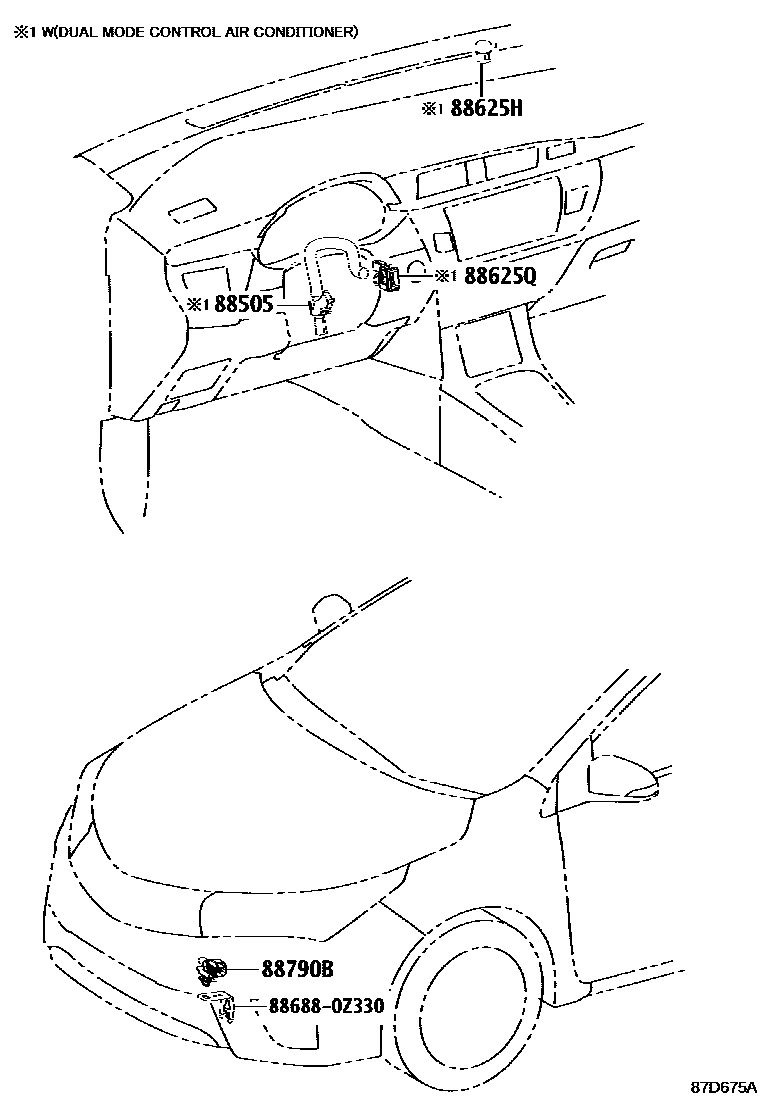

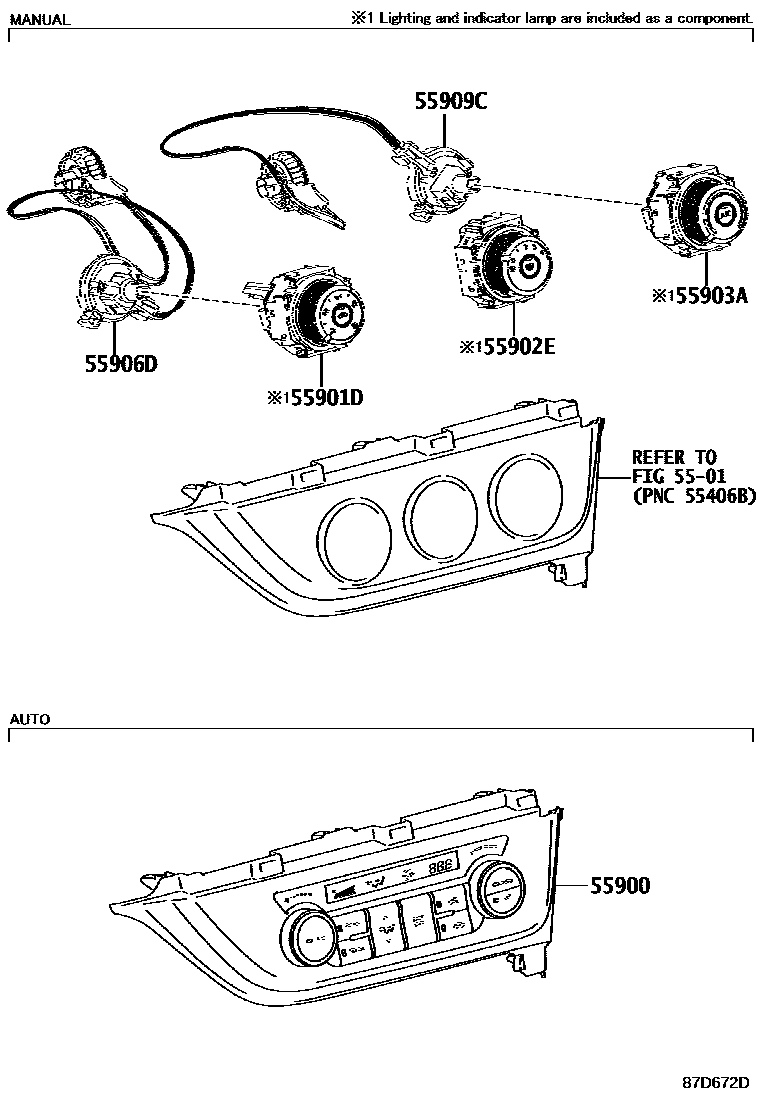

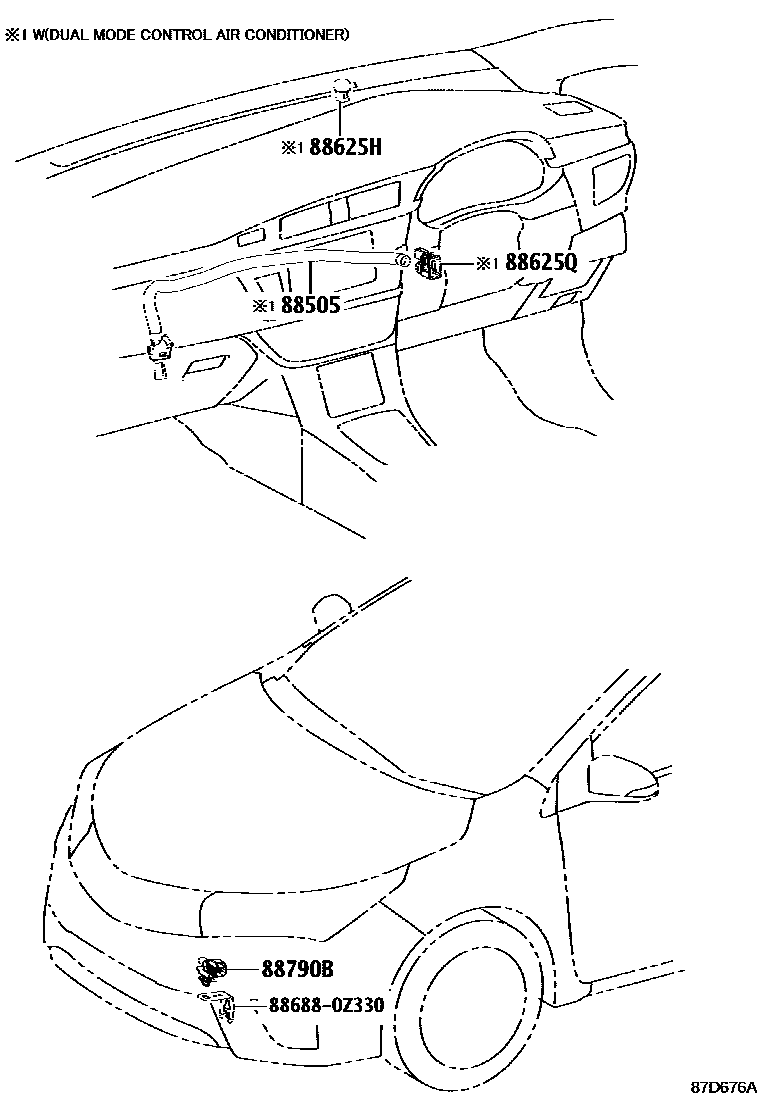

Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 8 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55223E | ISOLANT, CHALEUR TABLEAU DE BORD, NO.1 | 55223-02310 |
| 55843A | Air duct No. 1 from heater to air register | 55086-02230 · 55086-02240 · 55086-02370 · 55086-02380 |
| 55844 | Air duct No. 2 from heater to air regulator | 55084-02210 · 55084-02220 · 55084-02390 · 55084-02400 |
| 55900 | Air conditioning control assembly | 55900-02700 · 55900-02710 · 55900-02720 · 55900-02730 · 55900-02740 · 55900-02890 · 55900-02B60 · 55900-02D10 |
| 55901D | No. 1 heater control sub-assembly | 55901-12320 · 55901-42040 |
| 55902E | No. 2 heater control sub-assembly | 55902-12180 · 55902-12330 · 55902-12340 · 55902-42160 |
| 55903A | No. 3 heater control sub-assembly | 55903-12260 · 55903-12270 · 55903-12320 · 55903-12340 · 55903-12350 · 55903-12370 · 55903-42090 · 55903-42100 |
| 55906D | No. 2 heater control cable sub-assembly | 55906-0K010 |
| 55909C | Air mix damper control cable sub-assembly | 55909-0K010 |
| 55950G | Defroster nozzle assembly | 55950-02270 |
| 55979A | COUSSIN, TUYERE DE DEGIVREUR | 55979-02080 |
| 55990B | Lower defroster nozzle assembly | 55990-02160 |
| 87201 | No. 1 air duct sub-assembly | 87220-02150 · 87220-02300 |
| 87201B | No. 2 air duct sub-assembly | 87211-02520 · 87211-05070 |
| 87201F | No. 3 air duct sub-assembly | 87211-02540 · 87211-05050 |
| 87212 | No. 1 rear air duct | 87215-02070 |
| 87212F | No. 2 rear air duct | 87213-02090 |
| 87212G | No. 3 rear air duct | 87212-02090 |
| 88505 | Air conditioning duct sub-assembly | 88505-02020 · 88505-02140 |
| 88625H | Cooler thermistor (sunlight sensor) | 88625-51010 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
| 88790B | Thermistor assembly | 88790-22131 |
