Toyota COROLLA antenna — Figure 8604

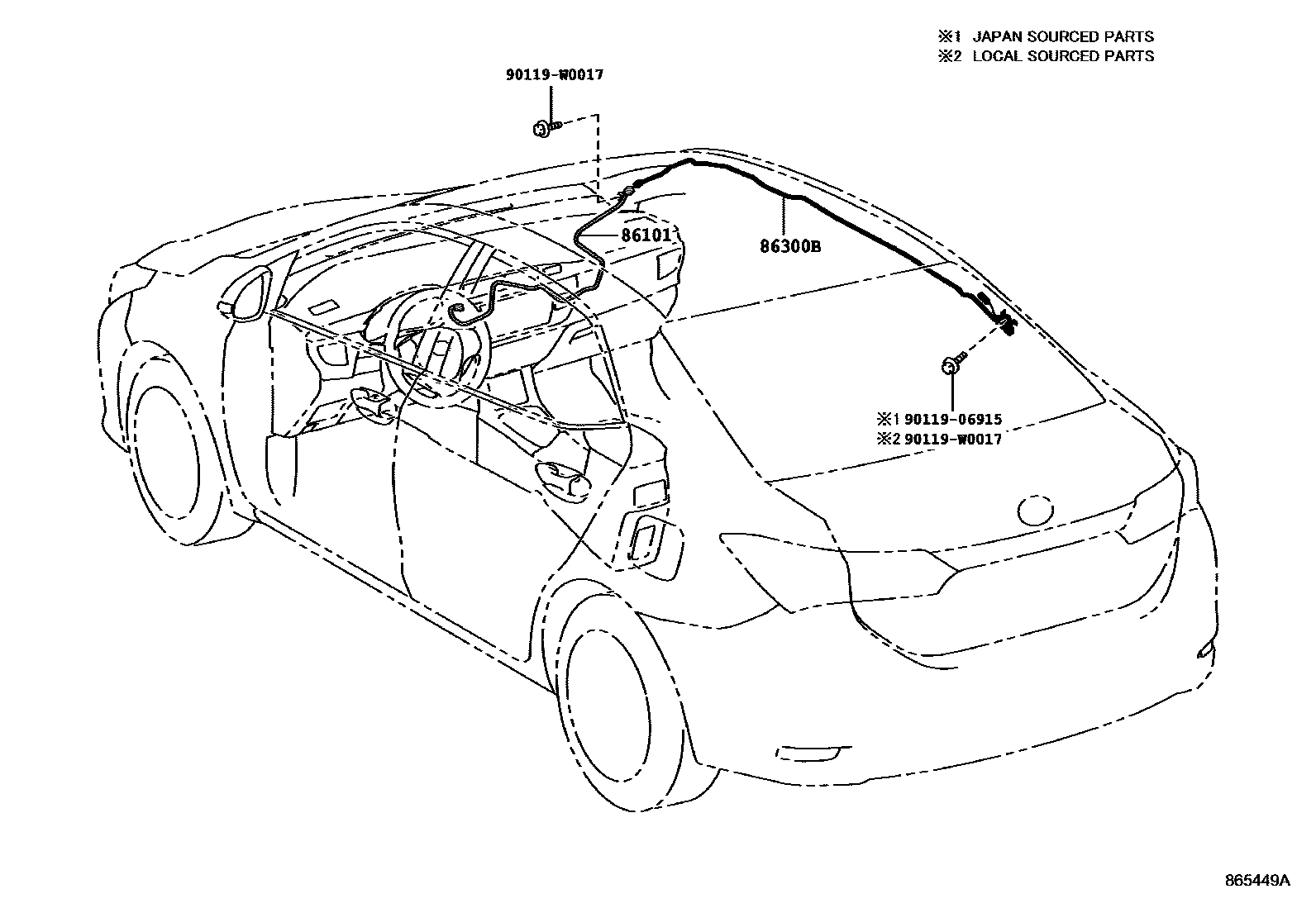

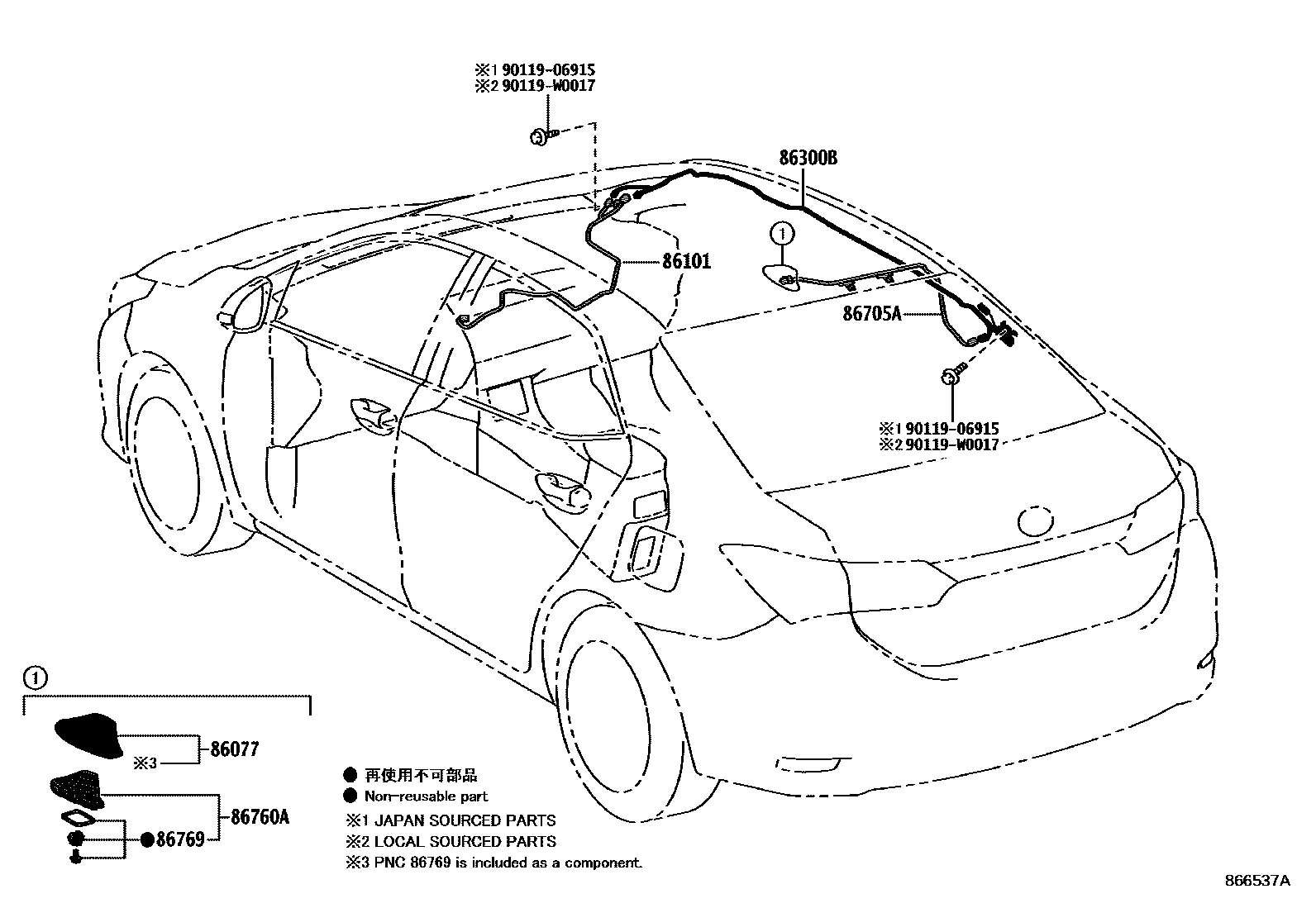

Toyota COROLLA EPC diagram 8604, antenna, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-02310 · 86101-02311 · 86101-02320 · 86101-02580 |
| 86300B | Amplifier antenna assembly | 86300-02380 · 86300-02520 |
| 86705A | Telephone antenna wire sub-assembly | 86705-02080 · 86705-02100 |
| 86760A | Telephone antenna assembly | 86760-58010 |
| 86769 | LOGEMENT, ANTENNE DE TOIT | 86769-53010 |
