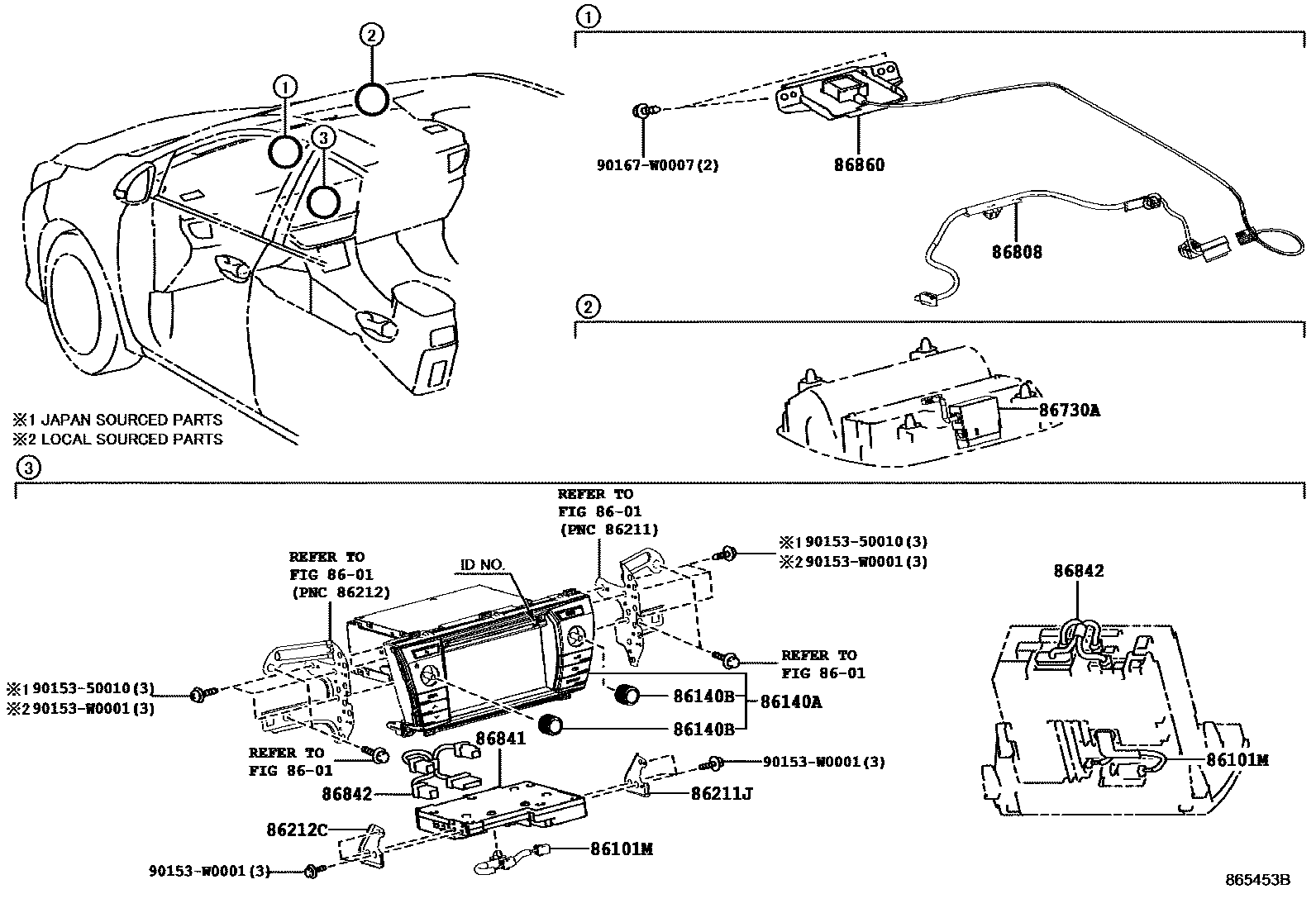

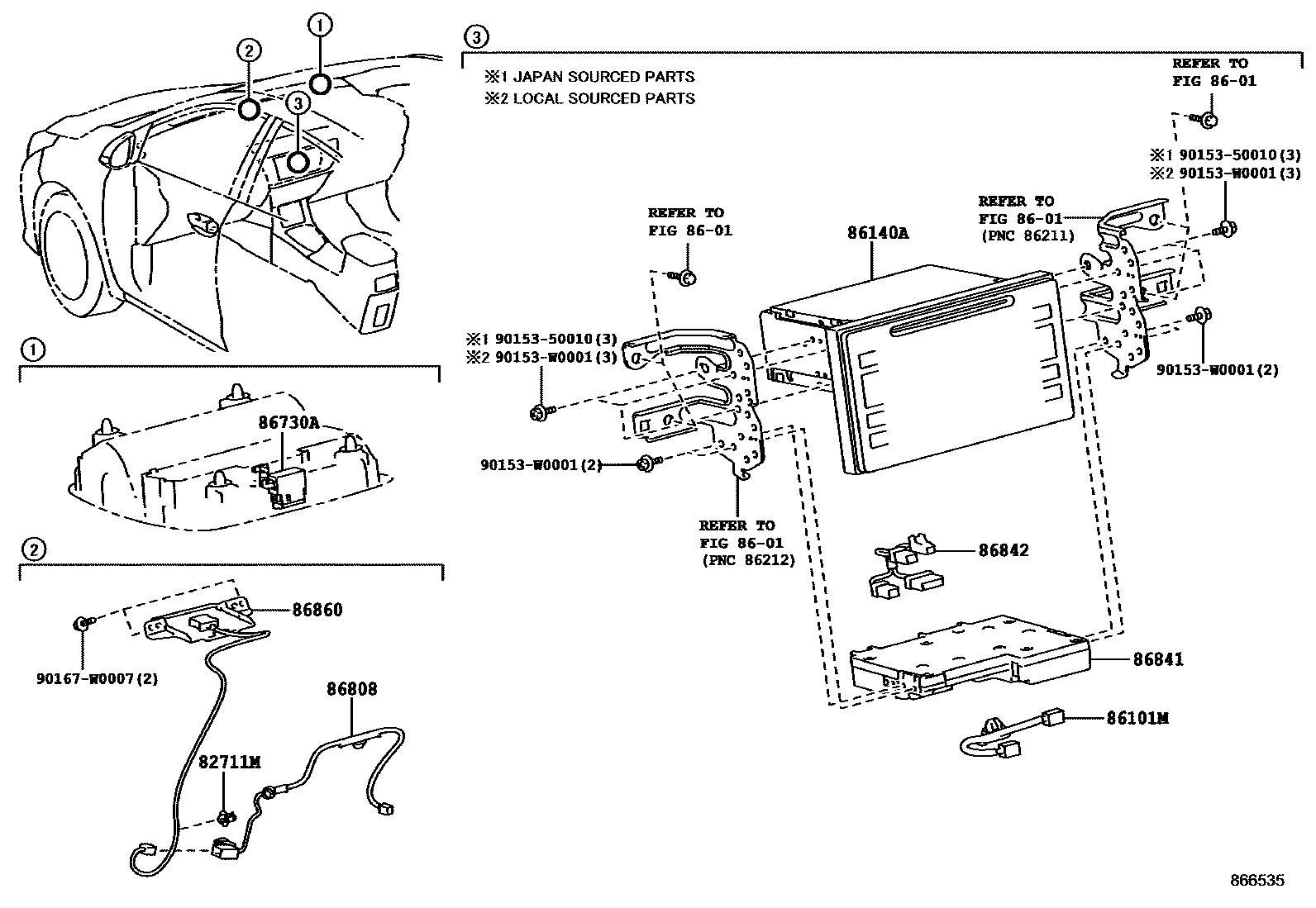

Toyota COROLLA 导航和前监视器显示屏 — Figure 8603
Toyota COROLLA EPC diagram 8603, 导航和前监视器显示屏, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82711M | Wire harness clip | 82711-1A750 |
| 86101M | Antenna wire sub-assembly | 86705-02070 |
| 86140A | Radio and display receiver assembly | 86140-02080 · 86140-02130 · 86140-02220 · 86140-02230 · 86140-02480 · 86140-12100 |
| 86140B | Radio and display receiver switch button | 90011-25215 |
| 86211J | No. 1 radio bracket | 86211-02400 |
| 86212C | No. 2 radio bracket | 86212-02390 |
| 86730A | Telephone amplifier assembly | 86730-02010 · 86730-02020 |
| 86808 | No. 1 navigation antenna wire sub-assembly | 86808-02110 · 86808-02111 |
| 86841 | Navigation ECU | 86840-02011 · 86840-02012 · 86840-02013 · 86840-02014 · 86840-0F020 · 86840-0F040 · 86840-0W013 |
| 86842 | Navigation harness No. 1 | 86842-12010 |
| 86860 | Navigation antenna assembly | 86860-02010 · 86860-02011 |
