Toyota COROLLA 收音机、放大器和冷凝器 — Figure 8601

Toyota COROLLA EPC diagram 8601, 收音机、放大器和冷凝器, with 3 images and 8 PNC and OE references.

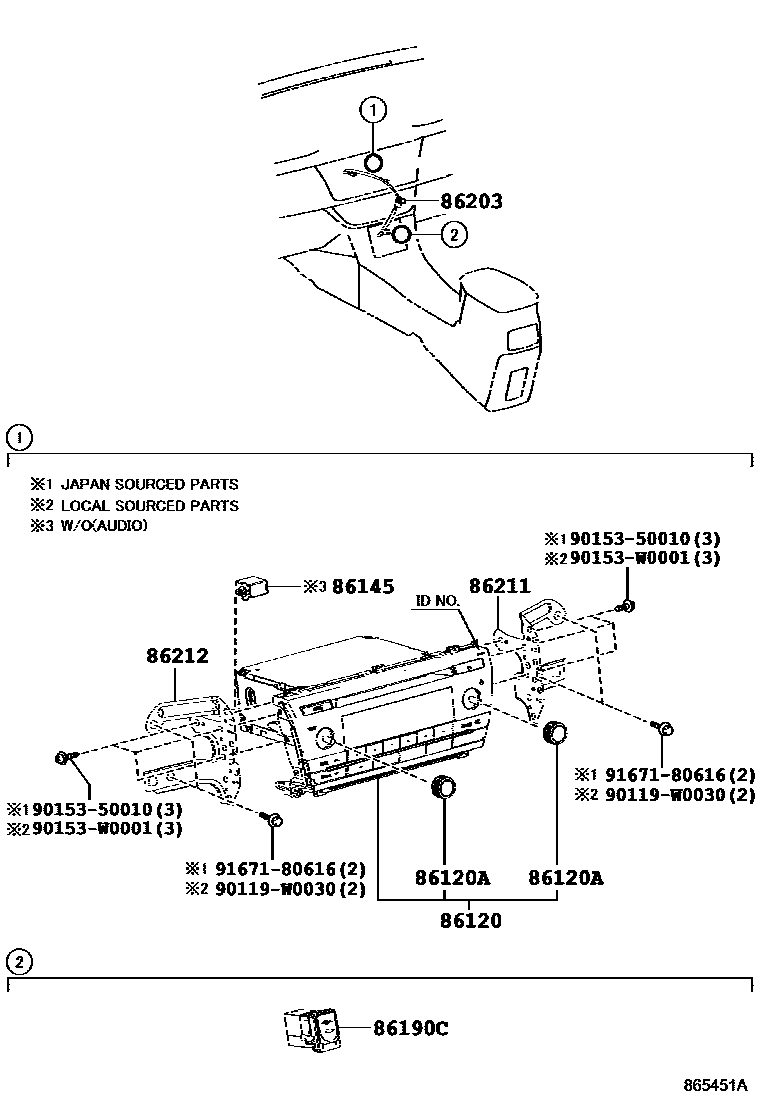

Toyota COROLLA 收音机、放大器和冷凝器 EPC diagram — 865451A
收音机、放大器和冷凝器 — 865451A (201306 – 201606)

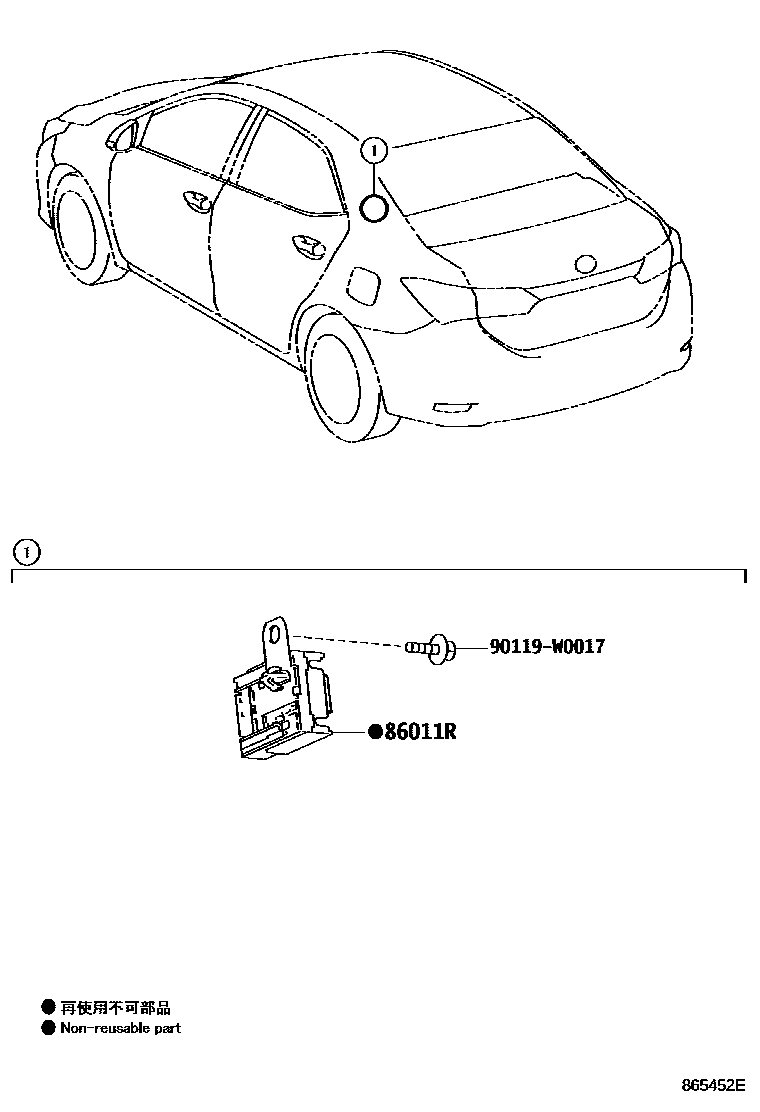

Toyota COROLLA 收音机、放大器和冷凝器 EPC diagram — 865452E
收音机、放大器和冷凝器 — 865452E (201306 – 999999)

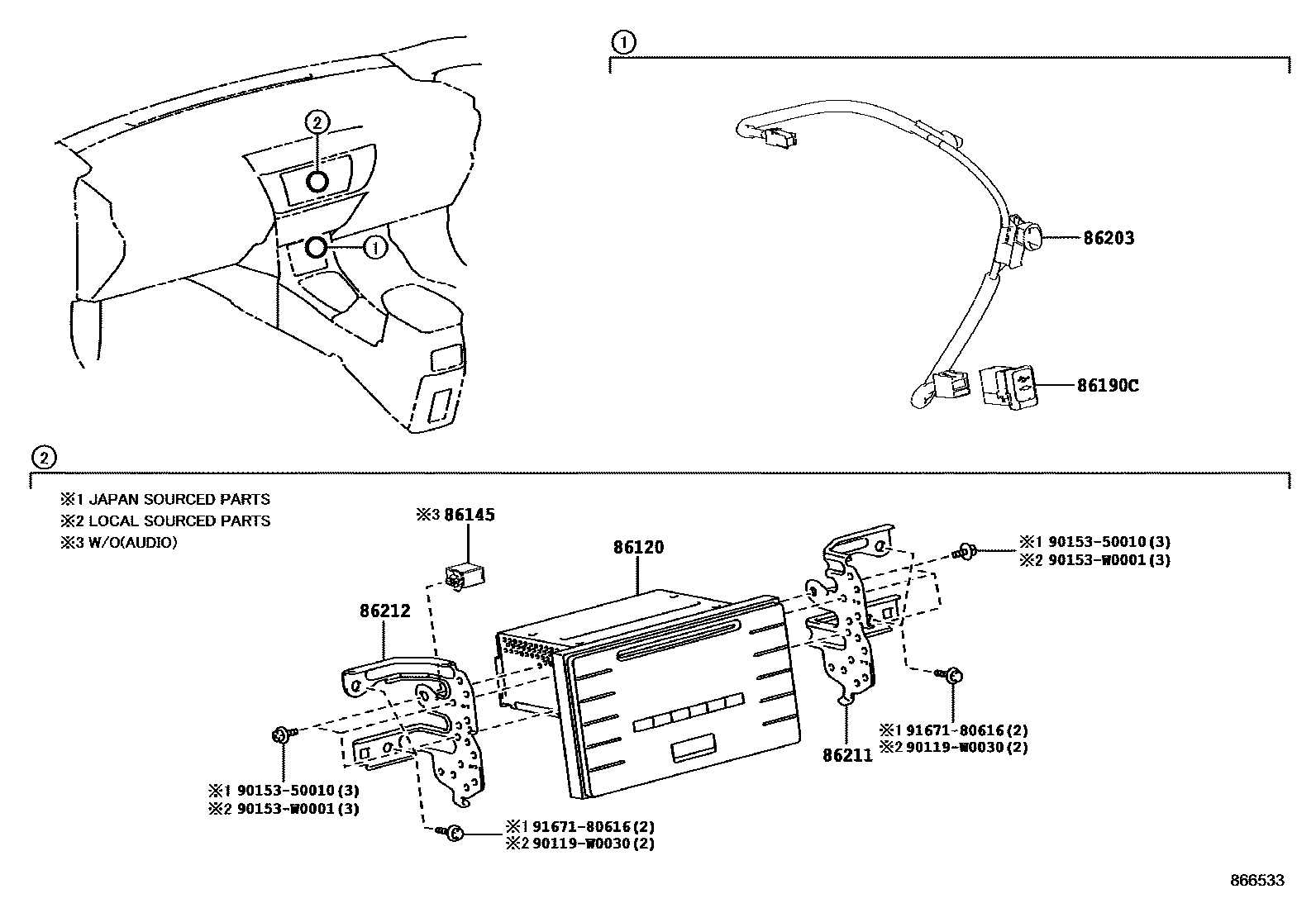

Toyota COROLLA 收音机、放大器和冷凝器 EPC diagram — 866533
收音机、放大器和冷凝器 — 866533 (201606 – 999999)

PNC and OE references

PNCPart nameOE numbers
86011Rradio settings phase modulator90980-04204
86120Radio assembly86120-02F70 · 86120-02F80 · 86120-02G00 · 86120-02G10 · 86120-02G11 · 86120-02J80 · 86120-02J81 · 86120-02J90 · 86120-02J91
86120ARadio switch knob90011-25214
86145Antenna connector86145-52010
86190CStereo socket connector assembly No. 186190-0D030
86203radio wiring harness86203-12500
86211No. 1 radio bracket86211-02300 · 86211-02440
86212No. 2 radio bracket86212-02290 · 86212-02430
