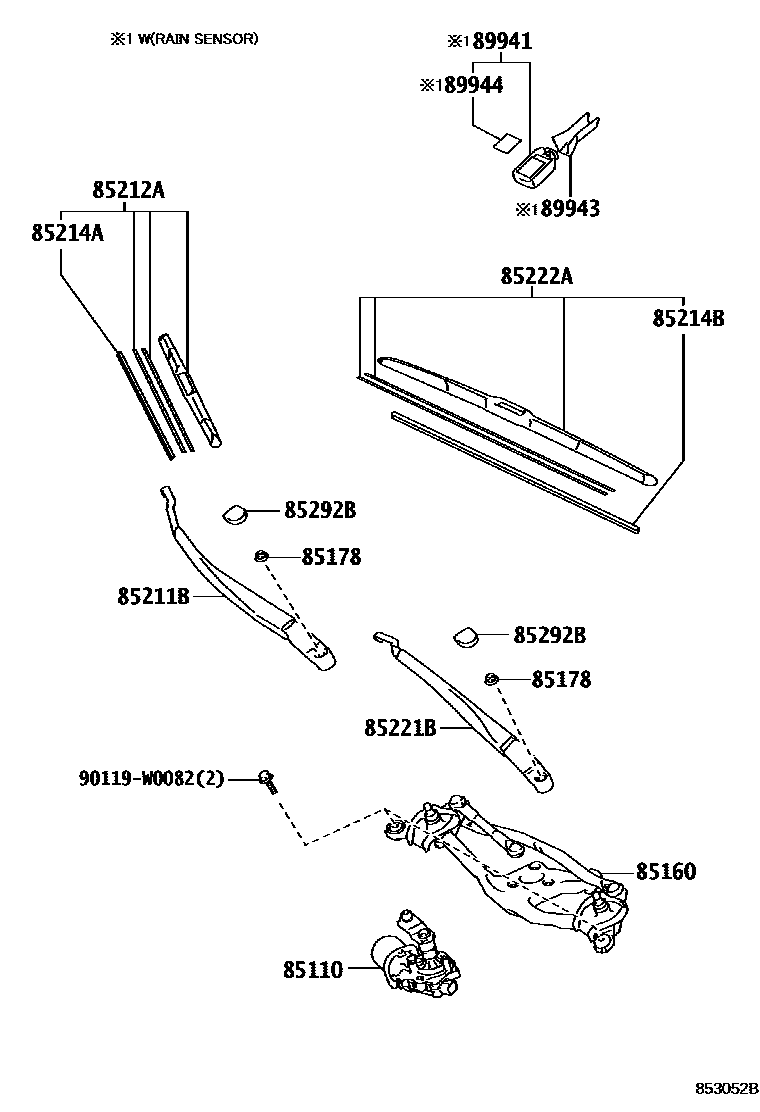

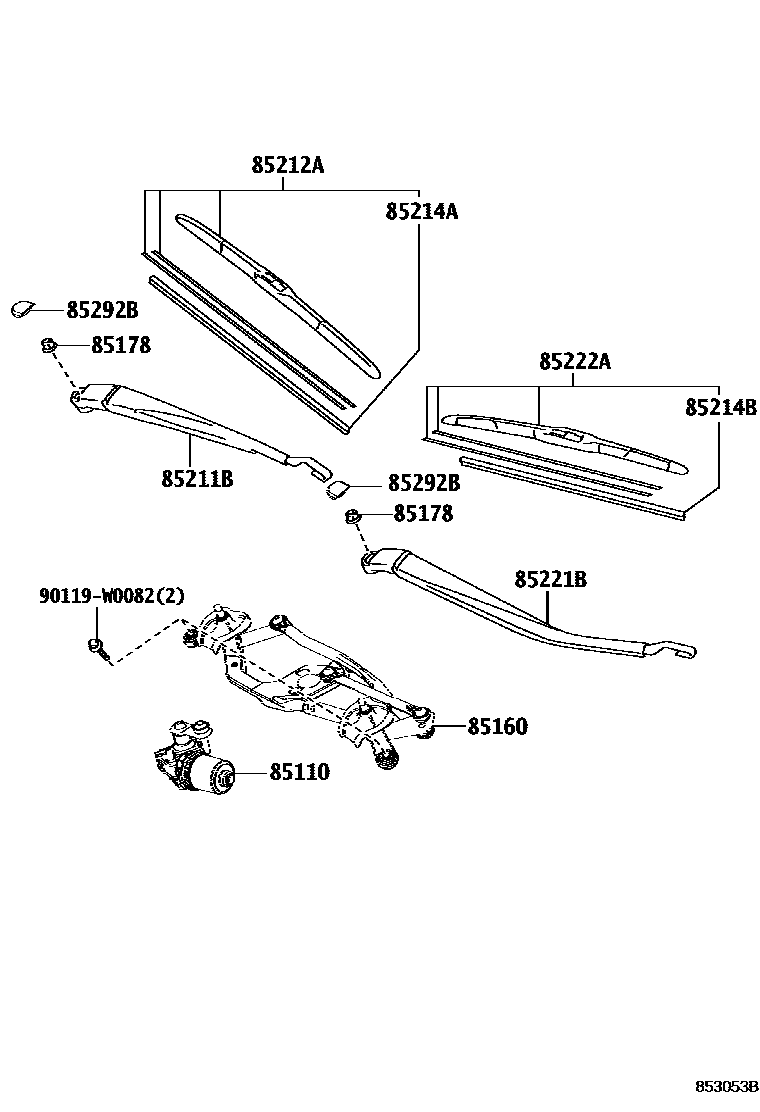

Toyota COROLLA 挡风玻璃刮水器 — Figure 8501
Toyota COROLLA EPC diagram 8501, 挡风玻璃刮水器, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-02330 · 85110-02340 |
| 85160 | Windshield wiper connecting rod assembly | 85150-02320 · 85150-02340 |
| 85178 | Nut (for securing front wiper arm) | 90182-10006 |
| 85211B | Right front wiper arm | 85211-02290 · 85211-02300 |
| 85212A | Right front wiper blade | 85212-02250 · 85212-02290 |
| 85214A | Right wiper rubber strip | 85214-02260 · 85214-02340 |
| 85214B | Left wiper rubber strip | 85214-02260 · 85214-02340 · 85214-68030 |
| 85221B | Left front wiper arm | 85221-02300 · 85221-02310 |
| 85222A | Left front wiper blade | 85222-02260 · 85222-02300 |
| 85292B | Front wiper arm cap | 85292-0F010 |
| 89941 | rain sensor | 89941-0D010 |
| 89943 | Rain sensor cover | 89943-02020 |
| 89944 | Rain sensor tape | 89944-02010 |
