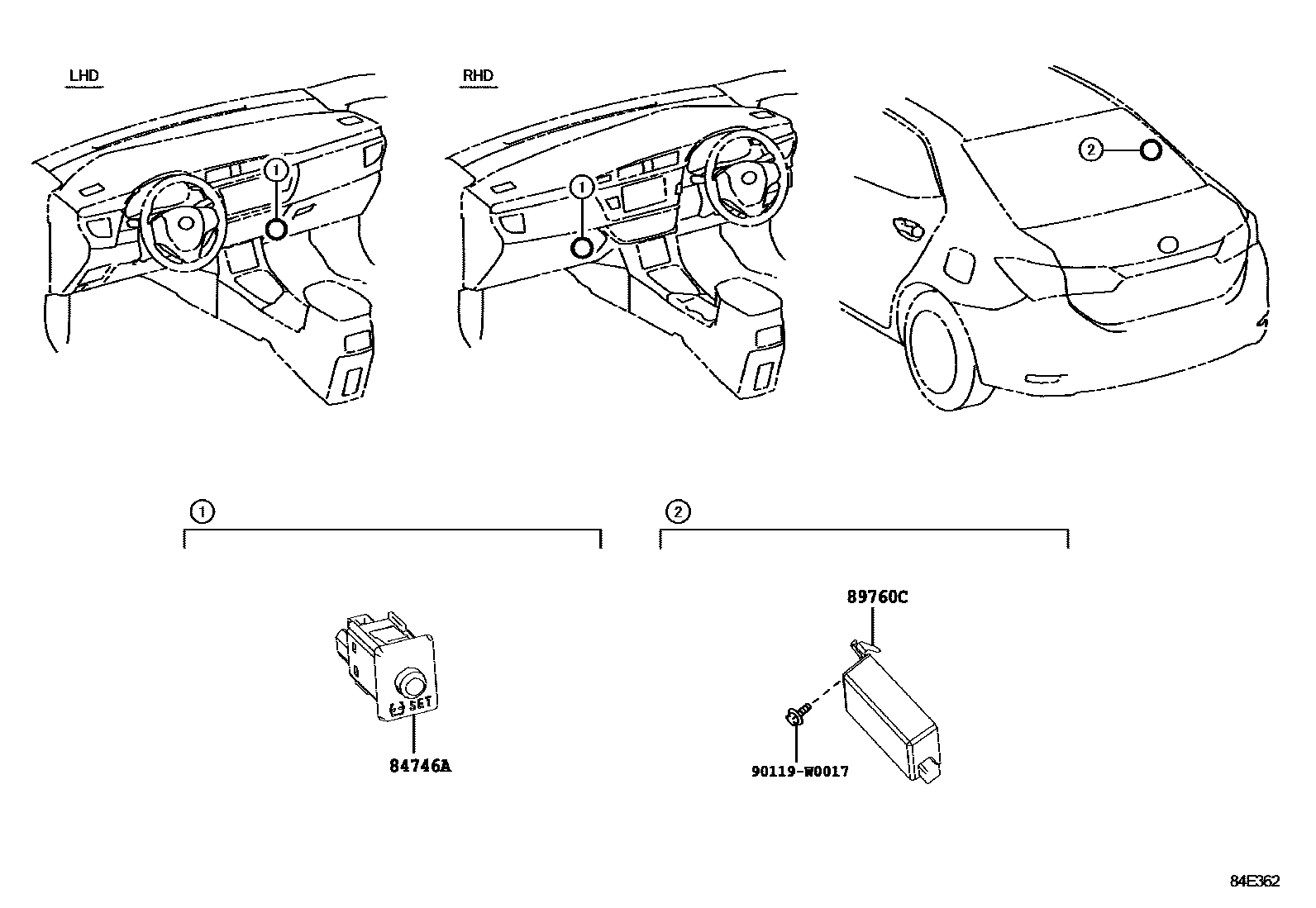

Toyota COROLLA 轮胎压力警告系统 — Figure 8435
Toyota COROLLA EPC diagram 8435, 轮胎压力警告系统, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84746A | Tire pressure warning switch No. 1 | 84746-02020 |
| 89760C | Tire pressure monitoring receiver assembly | 89760-02050 · 89760-02051 · 89760-02060 · 89760-02061 · 89760-02070 · 89760-02071 · 89760-02080 · 89760-02081 · 89760-02170 · 89760-02171 · 89760-02180 · 89760-02181 |
