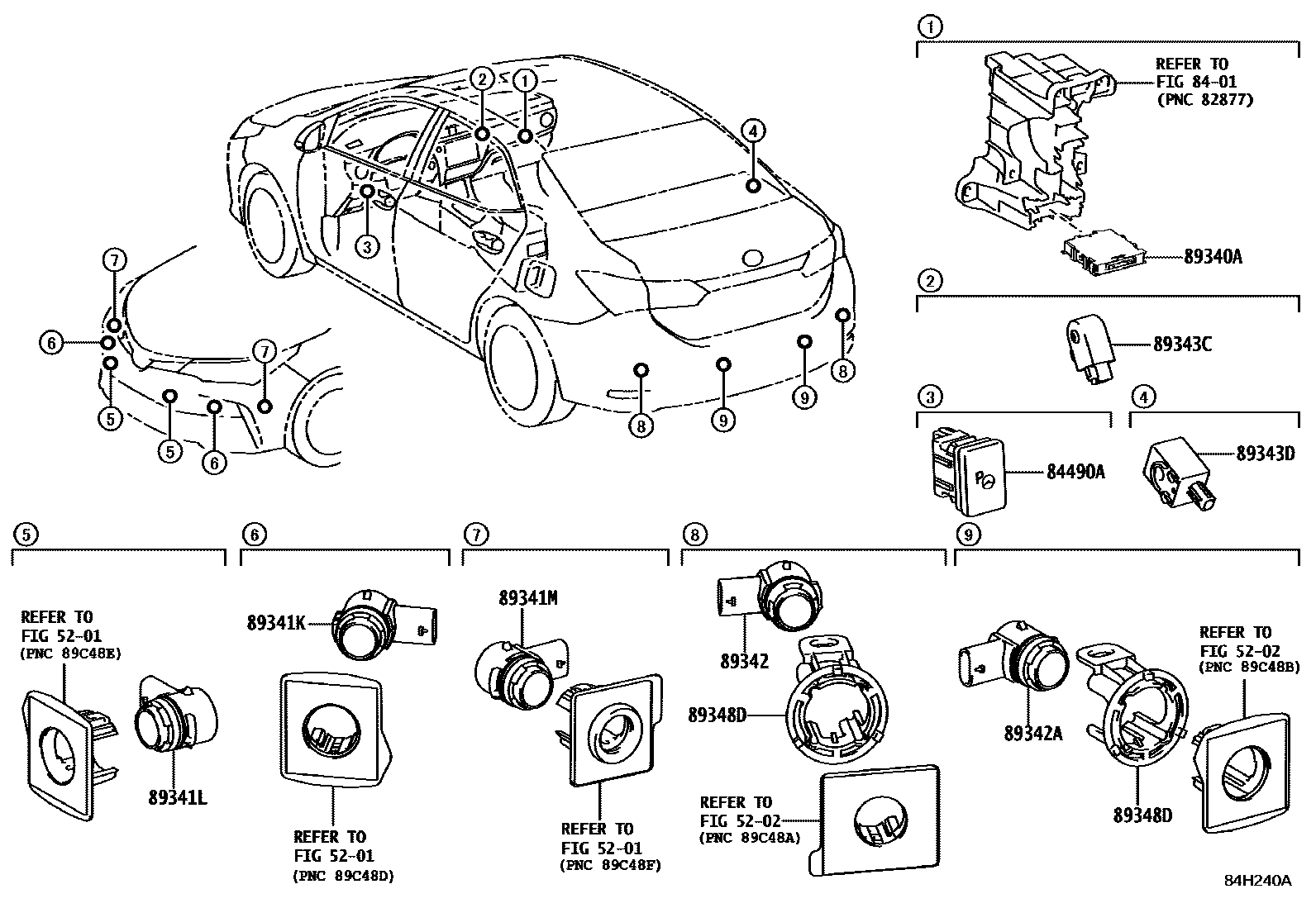

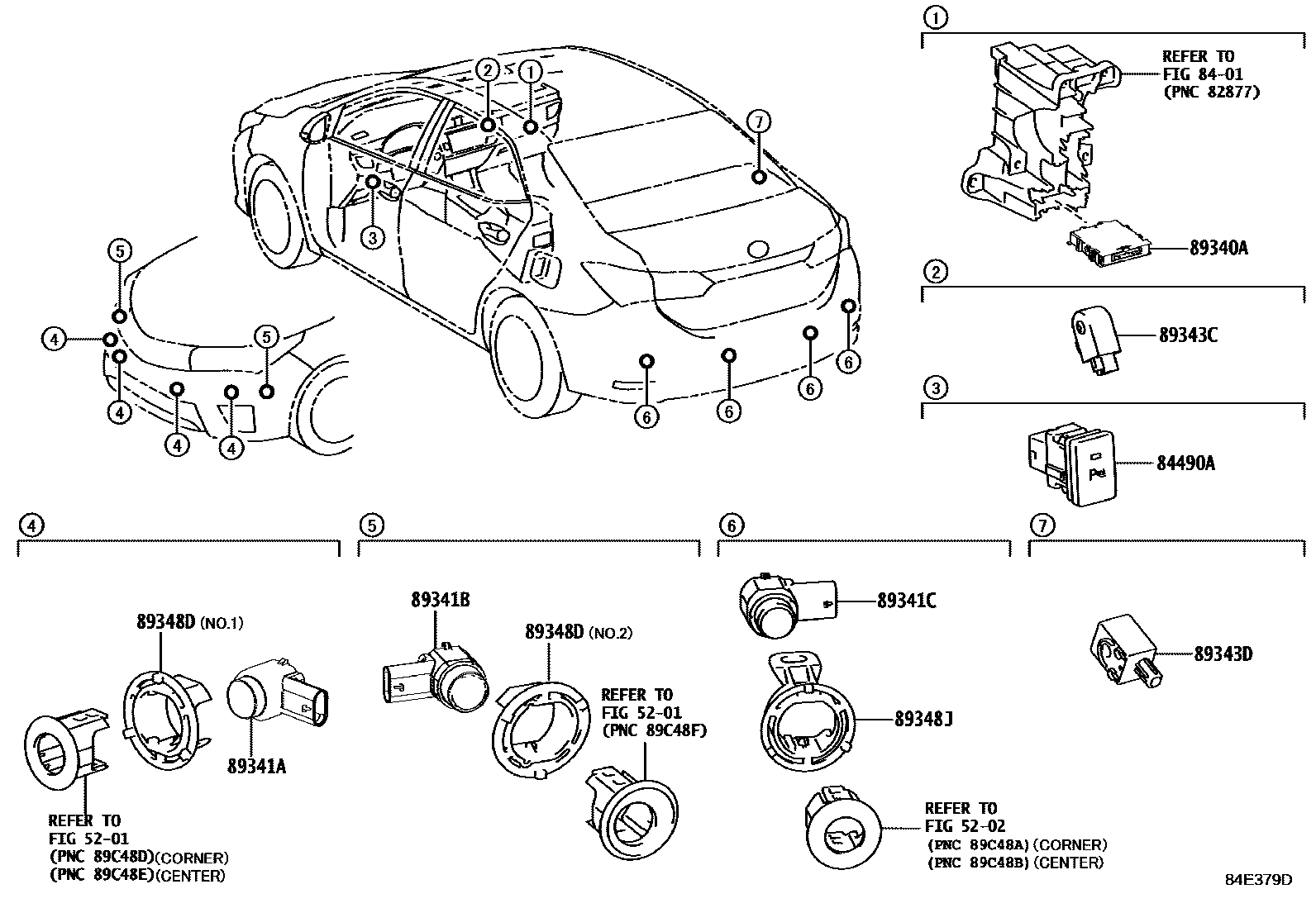

Toyota COROLLA 测距雷达和倒车雷达 — Figure 8417
Toyota COROLLA EPC diagram 8417, 测距雷达和倒车雷达, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84490A | Reversing radar or ranging radar switch assembly | 84490-02020 · 84490-02021 · 84490-02090 |
| 89340A | Distance warning ECU assembly | 89340-02050 · 89340-02130 · 89340-02150 · 89340-02160 |
| 89343C | No. 1 distance warning buzzer | 89343-72010 |
| 89343D | No. 2 vehicle distance warning buzzer | 89343-12020 |
| 89348D | Ultrasonic sensor clip | 89348-02050 · 89348-02140 · 89348-02280 |
| 89348J | Ultrasonic sensor clip | 89348-02020 |
