Toyota COROLLA 燃油箱和燃油管 — Figure 7701

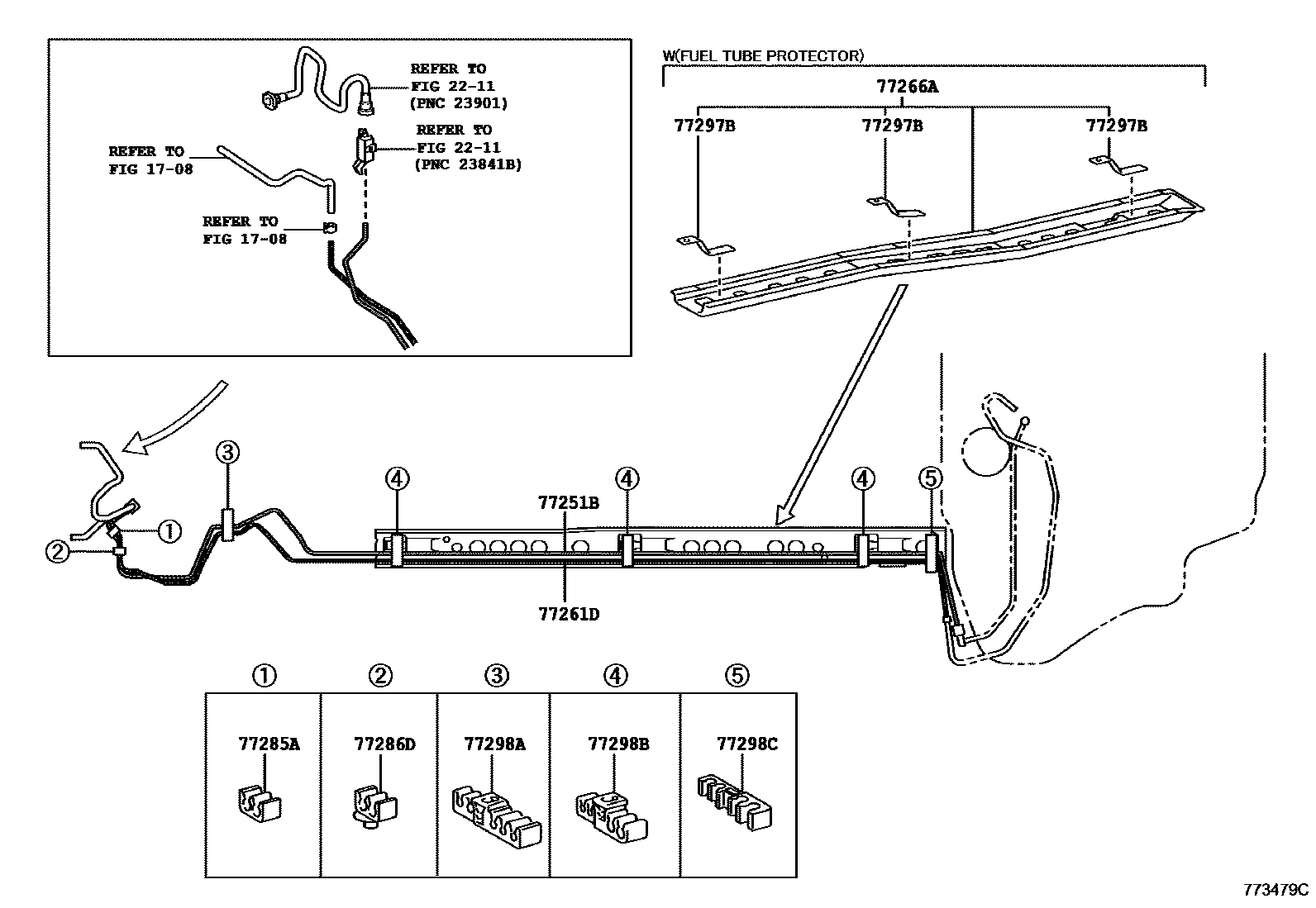

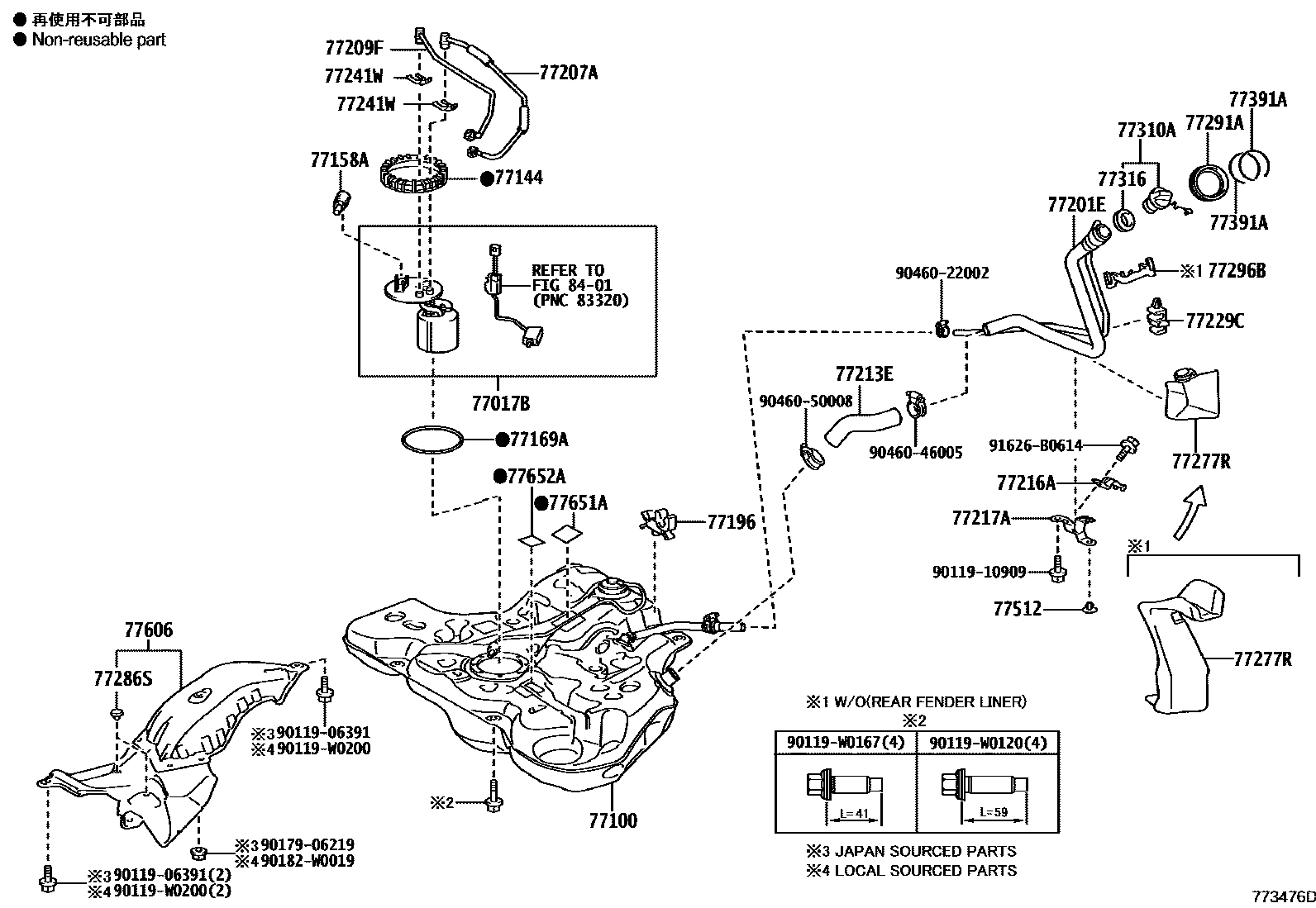

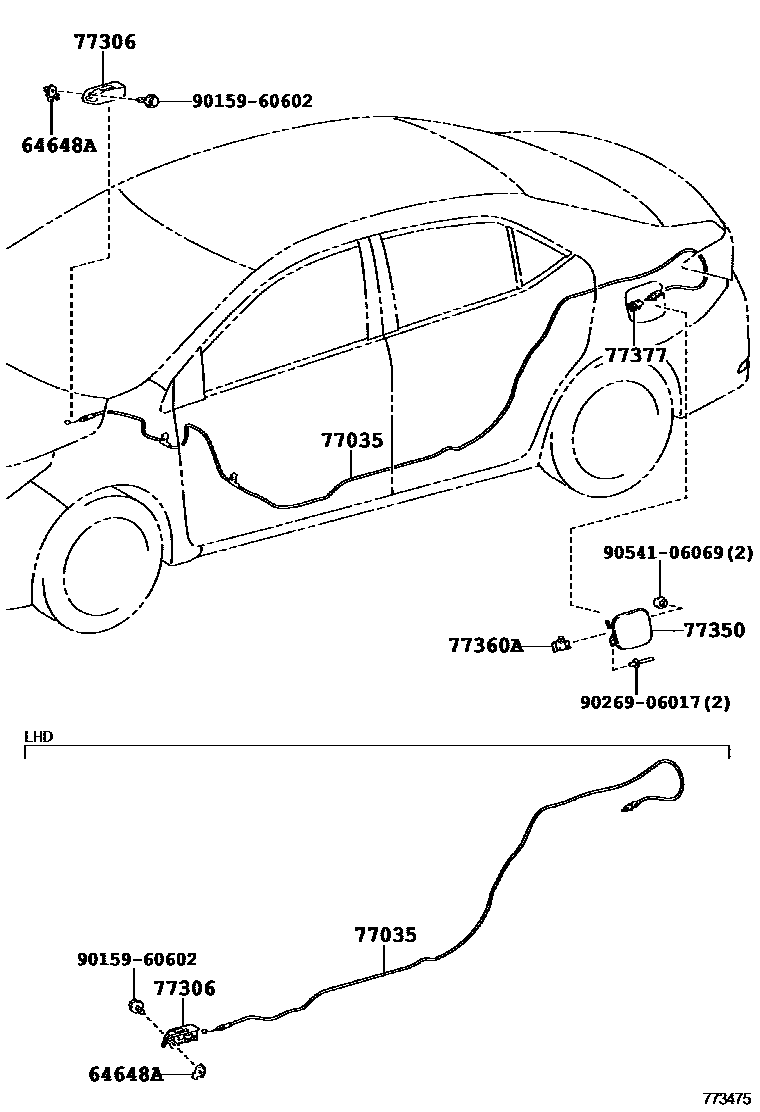

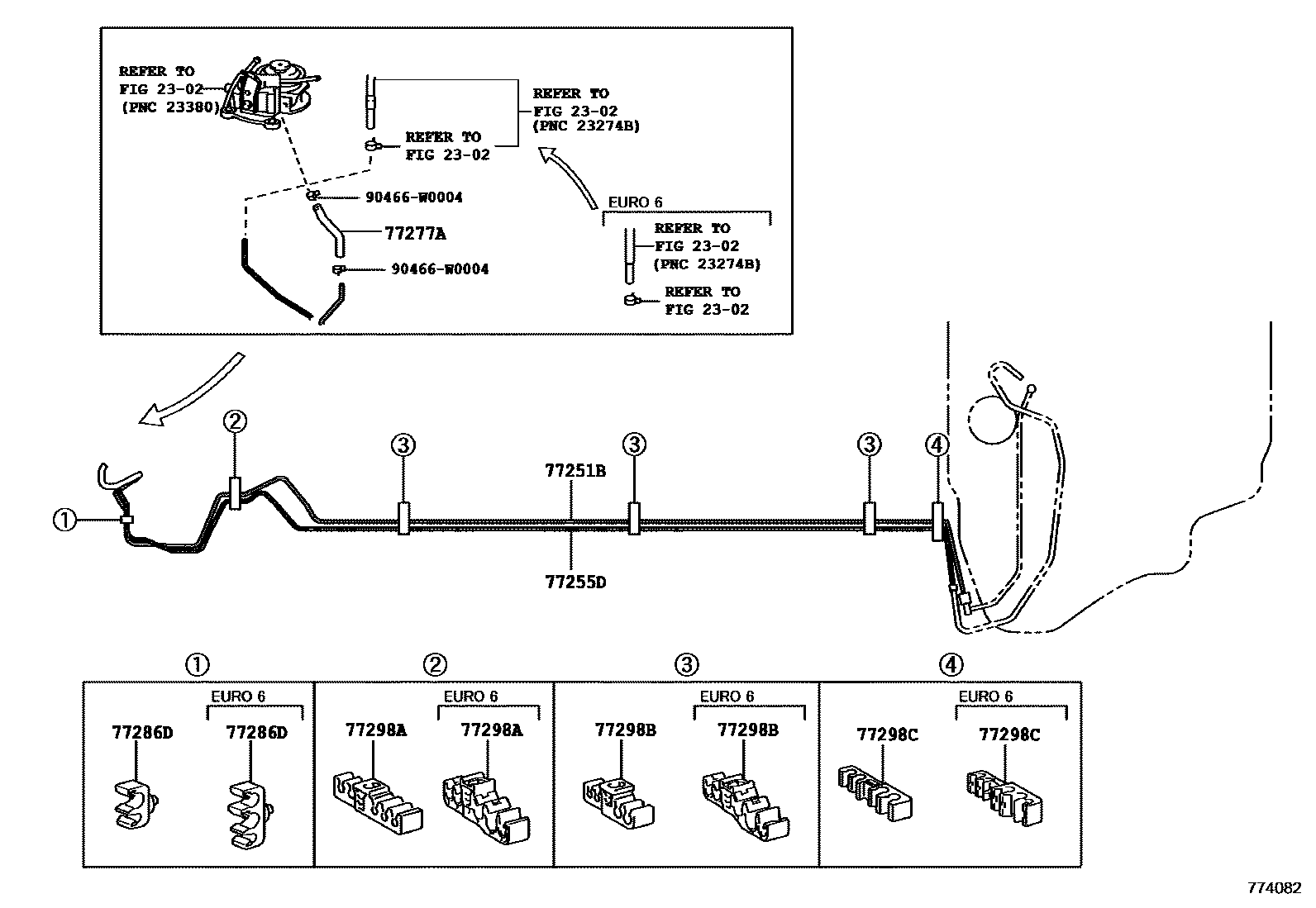

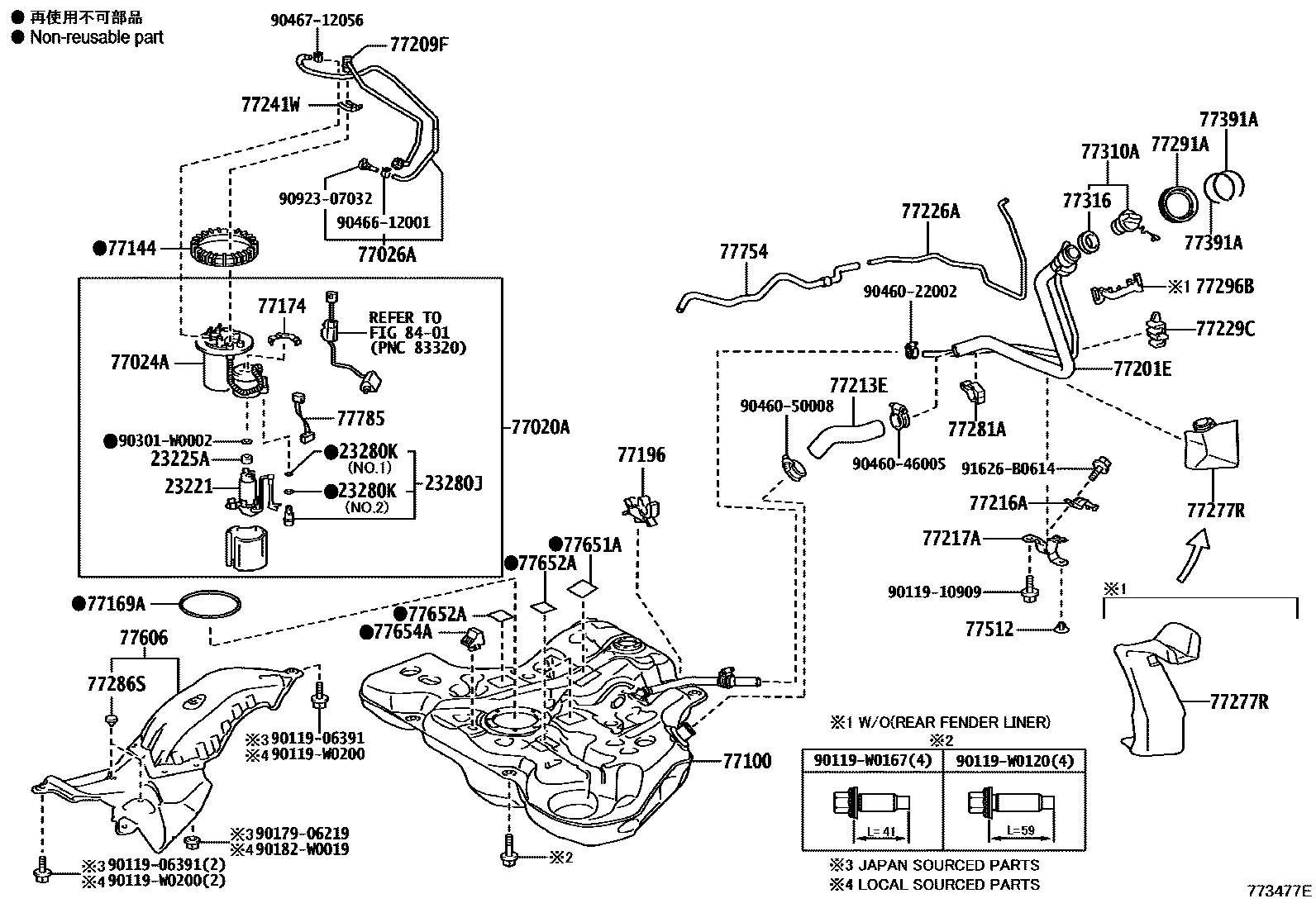

Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 5 images and 55 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23221 | fuel pump | 23220-0Q041 · 23220-0T071 · 23220-0T131 |
| 23225A | fuel pump septum | 23225-0T010 |
| 23280J | Fuel pressure regulator assembly | 23280-21010 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 · 90301-15024 |
| 64648A | Trunk door lock opener seal | 64648-12020 |
| 77017B | Fuel tank vent pipe sub-assembly | 77010-02080 · 77010-02081 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-02550 · 77020-02551 · 77020-02552 · 77020-02560 · 77020-02561 · 77020-02562 · 77020-02570 · 77020-02571 · 77020-02572 |
| 77024A | Fuel absorber sub-assembly | 77024-02320 · 77024-05010 |
| 77026A | No. 1 fuel evaporation pipe sub-assembly | 77026-02030 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-02391 · 77035-02392 · 77035-02393 · 77035-02401 · 77035-02402 · 77035-02403 · 77035-02404 |
| 77100 | fuel tank assembly | 77001-02250 · 77001-02680 |
| 77144 | Fuel pump instrument fixture | 77144-0H010 |
| 77158A | Fuel tank suction pipe bracket | 77158-0D020 |
| 77169A | Fuel suction pipe fixed gasket | 77169-0D030 |
| 77174 | No. 1 oil suction pipe bracket | 77174-05010 |
| 77196 | No. 1 evaporation vent pipe clamp | 77196-02050 |
| 77201E | Fuel tank filling pipe sub-assembly | 77201-02470 · 77201-02480 |
| 77207A | Fuel return pipe sub-assembly | 77204-02050 · 77204-02120 |
| 77209F | Fuel tank main pipe sub-assembly | 77209-02090 |
| 77213E | Fuel tank to filler pipe hose | 77213-02170 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-02170 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-02140 |
| 77226A | No. 6 fuel tank breather pipe | 77226-02060 |
| 77229C | Snorkel clamp | 77229-12070 |
| 77241W | Pipe joint clip | 77241-32060 |
| 77251B | main fuel pipe | 77251-02620 · 77251-02630 |
| 77255D | fuel return pipe | 77255-02340 · 77255-02390 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-02480 |
| 77266A | No. 1 fuel line protection device | 77266-20150 |
| 77277A | No. 1 fuel hose (for No. 1 return pipe) | 95338-08016 |
| 77277R | Fuel tank filler pipe protection device | 77277-02160 · 77277-12180 |
| 77281A | Fuel filler pipe clamp | 77281-12100 |
| 77285A | Fuel return pipe and main pipe bracket | 77285-02080 |
| 77286D | No. 2 fuel pipe clamp | 77286-02030 · 77286-0F010 |
| 77286S | Fuel tank protective shell cushion | 77286-02070 |
| 77291A | Fuel tank filler pipe cover | 77291-02240 |
| 77296B | No. 1 fuel line protector bracket | 77296-52030 |
| 77297B | SUPPORT, PROTECTEUR DU TUYAU DE CARBURANT, NO.2 | 77296-12080 |
| 77298A | No. 4 fuel pipe clamp | 77298-0F020 · 77298-68010 |
| 77298B | No. 4 fuel pipe clamp | 77298-02050 · 77298-0F010 |
| 77298C | No. 4 fuel pipe clamp | 77298-02040 · 77298-0F030 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 64606-02130 · 64606-33020 · 64606-33030 |
| 77310A | Fuel tank cap assembly | 77300-12020 · 77300-12030 |
| 77316 | fuel tank cap gasket | 77316-52040 |
| 77350 | Fuel filler cap assembly | 77350-12560 |
| 77360A | ENS. RESSORT, COUVERCLE OUVERTURE DU REMPLISSAGE RESERVOIR | 77360-02010 |
| 77377 | Fuel filler cap lock retainer | 77377-0D060 |
| 77391A | fuel inlet ring | 77391-12020 |
| 77512 | fuel tank rear bracket | 77512-35140 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77606-02021 |
| 77651A | No. 1 fuel tank liner | 77651-12070 |
| 77652A | No. 2 fuel tank liner | 77652-45020 |
| 77654A | No. 4 fuel tank liner | 77654-02020 |
| 77754 | No. 1 carbon canister outlet hose | 77754-02060 |
| 77785 | fuel pump wiring harness | 77785-02081 |
