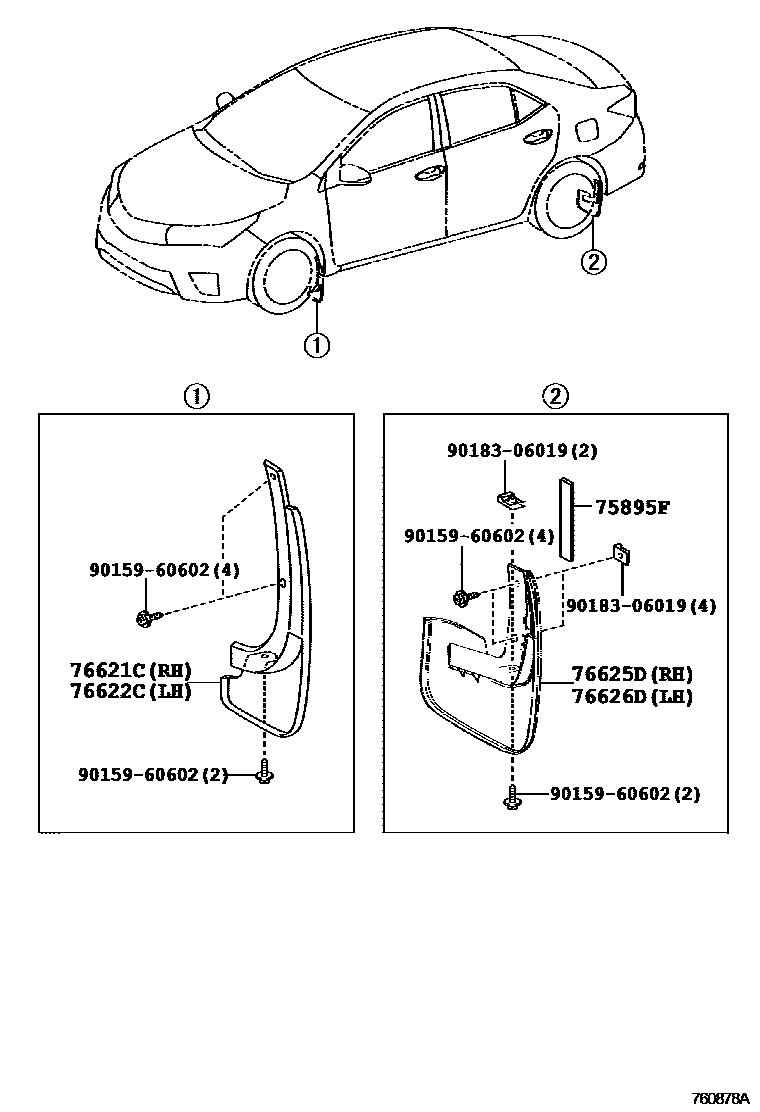

Toyota COROLLA 挡泥板和扰流板 — Figure 7601
Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75895F | No. 1 protective strip tape | 75895-02110 |
| 76621C | Right front fender fender | 76621-02220 |
| 76622C | Left front fender fender | 76622-02220 |
| 76625D | Right rear side fender | 76625-02360 |
| 76626D | Left rear side fender | 76626-02360 |
