Toyota COROLLA 后防护条 — Figure 7504

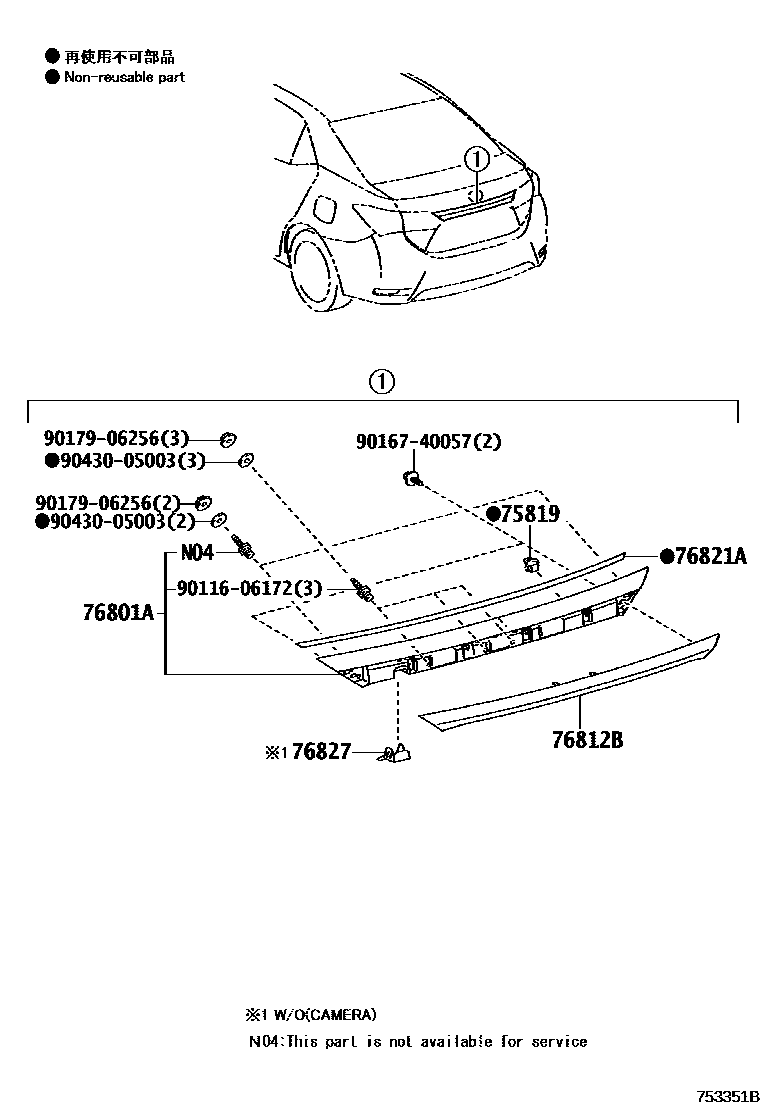

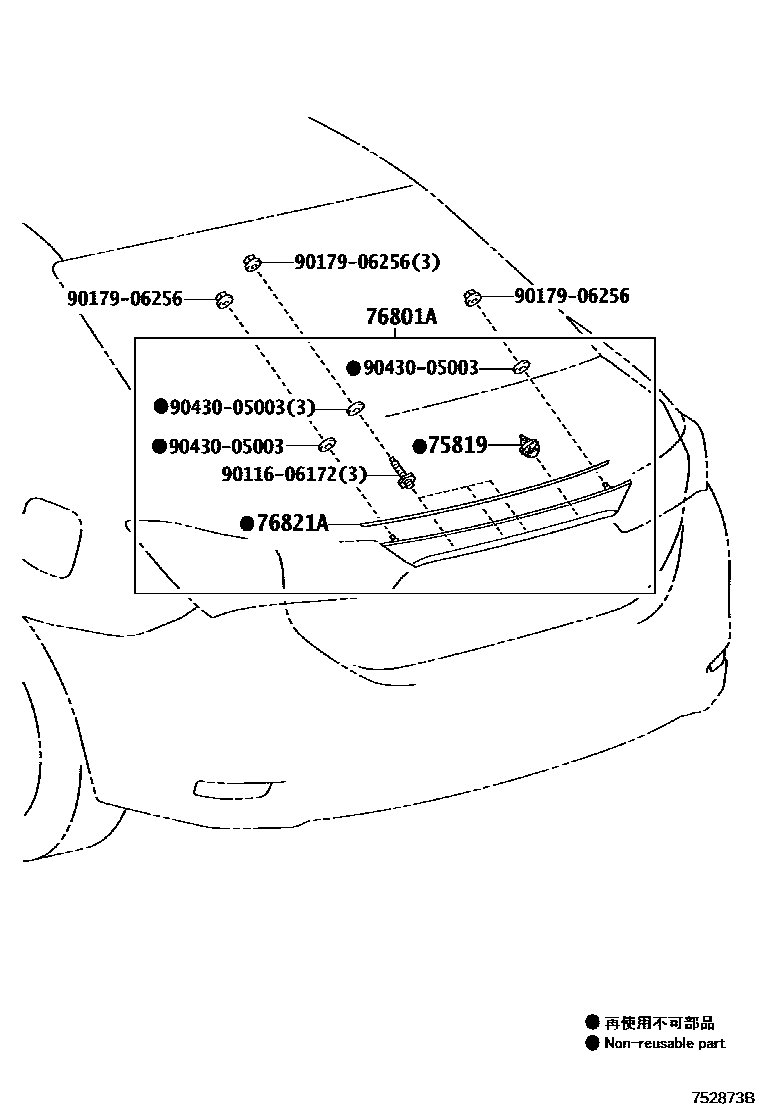

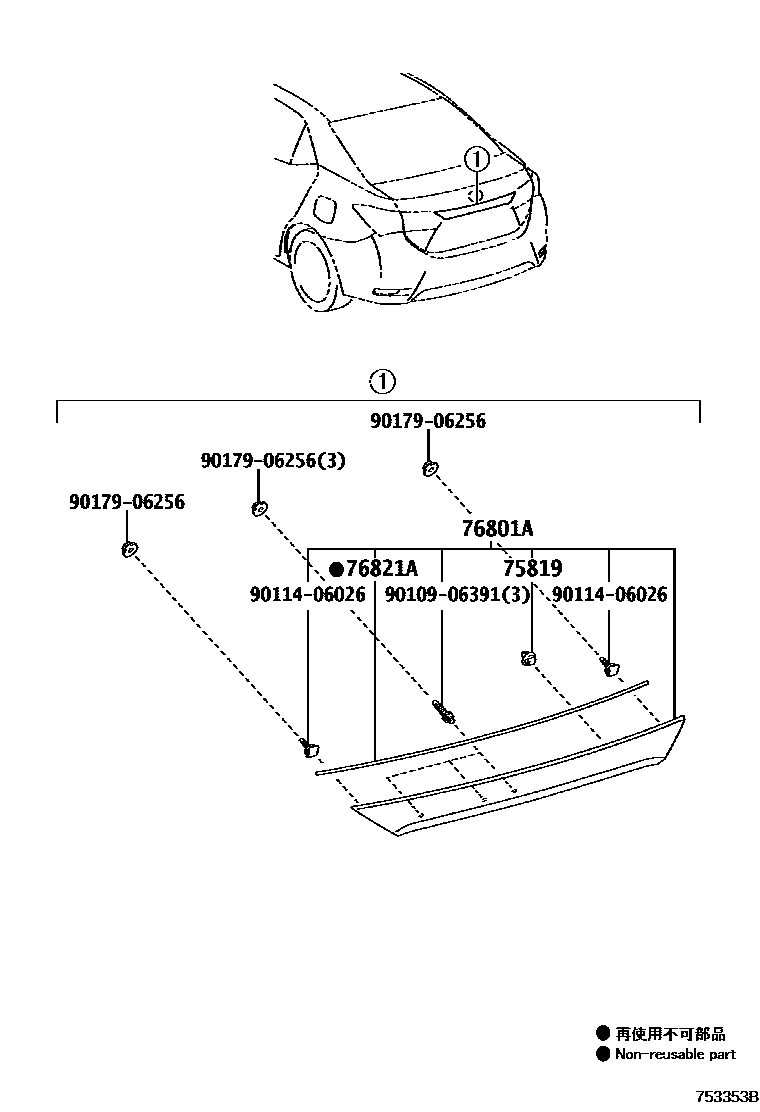

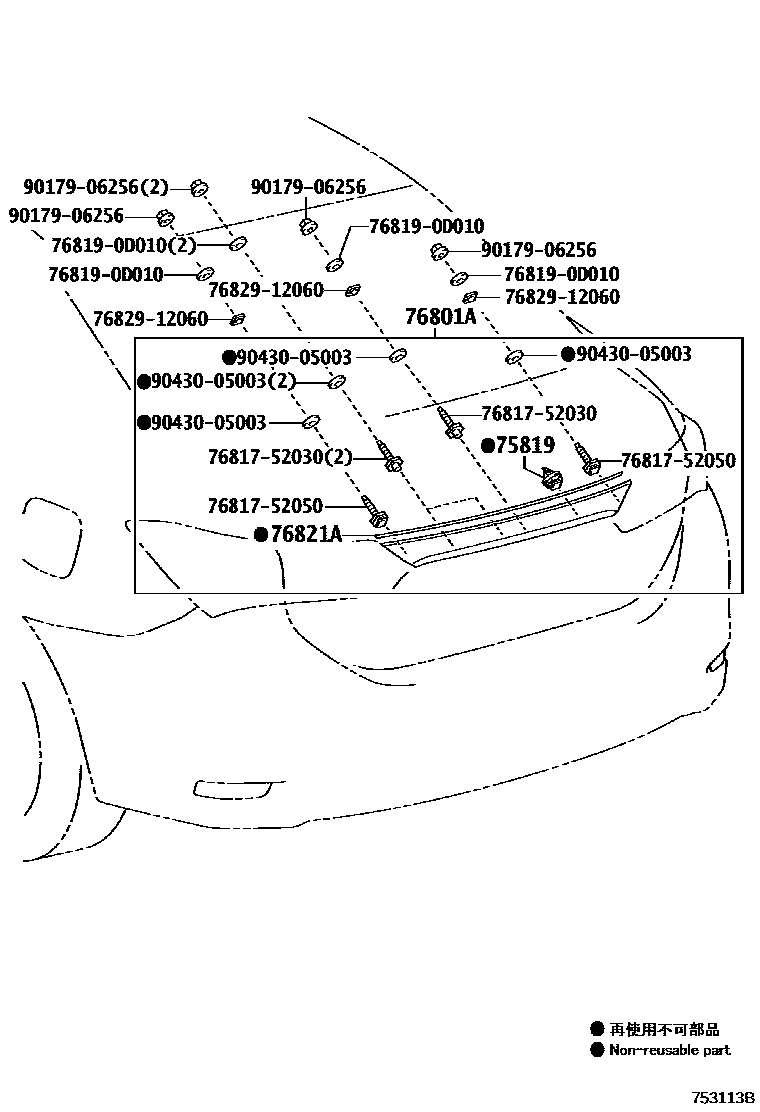

Toyota COROLLA EPC diagram 7504, 后防护条, with 4 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75819 | Trunk door protective strip clip | 75819-33010 |
| 76801A | Trunk door outer decorative strip sub-assembly | 76801-02A80 · 76801-02A82 · 76801-02A83 · 76801-02A90 · 76801-02A92 · 76801-02B20 · 76801-02B22 · 76801-02B23 · 76801-02B30 · 76801-02B32 · 76811-02954 |
| 76812B | No. 2 suitcase door outer decorative strip | 76812-02090 |
| 76821A | Luggage door outer decorative strip protective cover | 76825-02160 · 76825-02290 |
| 76827 | No. 2 rear door trim strip fixings | 76827-02010 |
