Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 5 PNC and OE references.

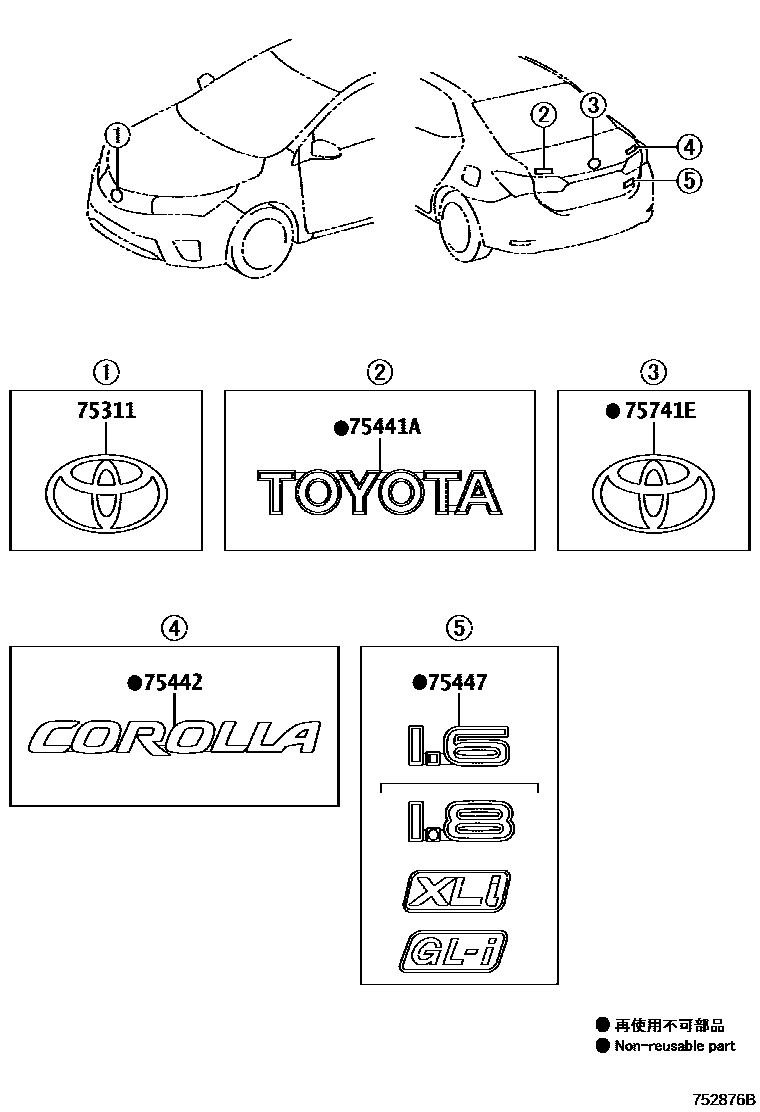

Toyota COROLLA 丰田徽标和铭牌(车外和车内) EPC diagram — 752876B
丰田徽标和铭牌(车外和车内) — 752876B (201306 – 999999)

PNC and OE references

PNCPart nameOE numbers
75311Radiator grille (or front panel) plate75311-05040 · 90975-W2009
75441ATrunk door No. 1 name plate75441-02280 · 75441-02290
75442Trunk door number plate No. 275442-02300 · 75442-02310
75447Trunk door No. 7 nameplate75444-02800 · 75444-02810 · 75447-02220 · 75447-02240
75741Elogo90975-W2007 · 90975-W2008
