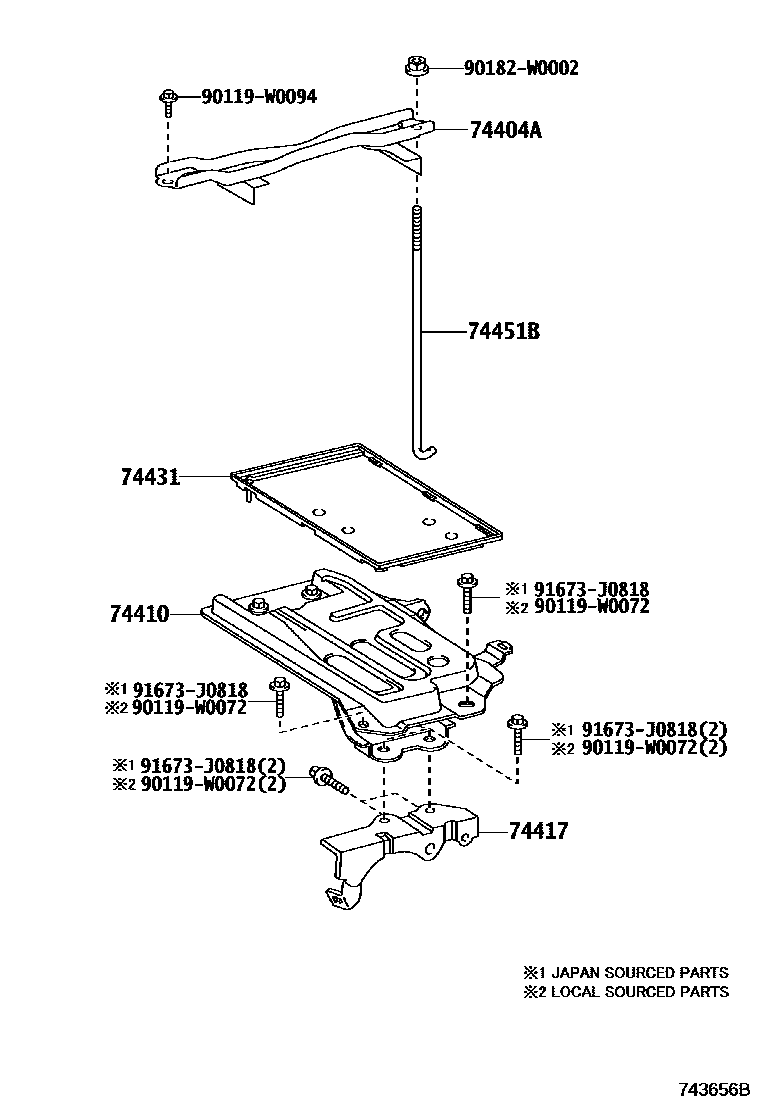

Toyota COROLLA battery holder — Figure 7402
Toyota COROLLA EPC diagram 7402, battery holder, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74404A | Battery clip sub-assembly | 74404-02350 |
| 74410 | Battery bracket assembly | 74410-02020 · 74410-02030 |
| 74417 | battery holder bracket | 74401-02010 |
| 74431 | battery tray | 74431-02150 · 74431-02160 · 74431-02170 |
| 74451B | Battery clamp bolt | 74451-02140 · 74451-30110 |
