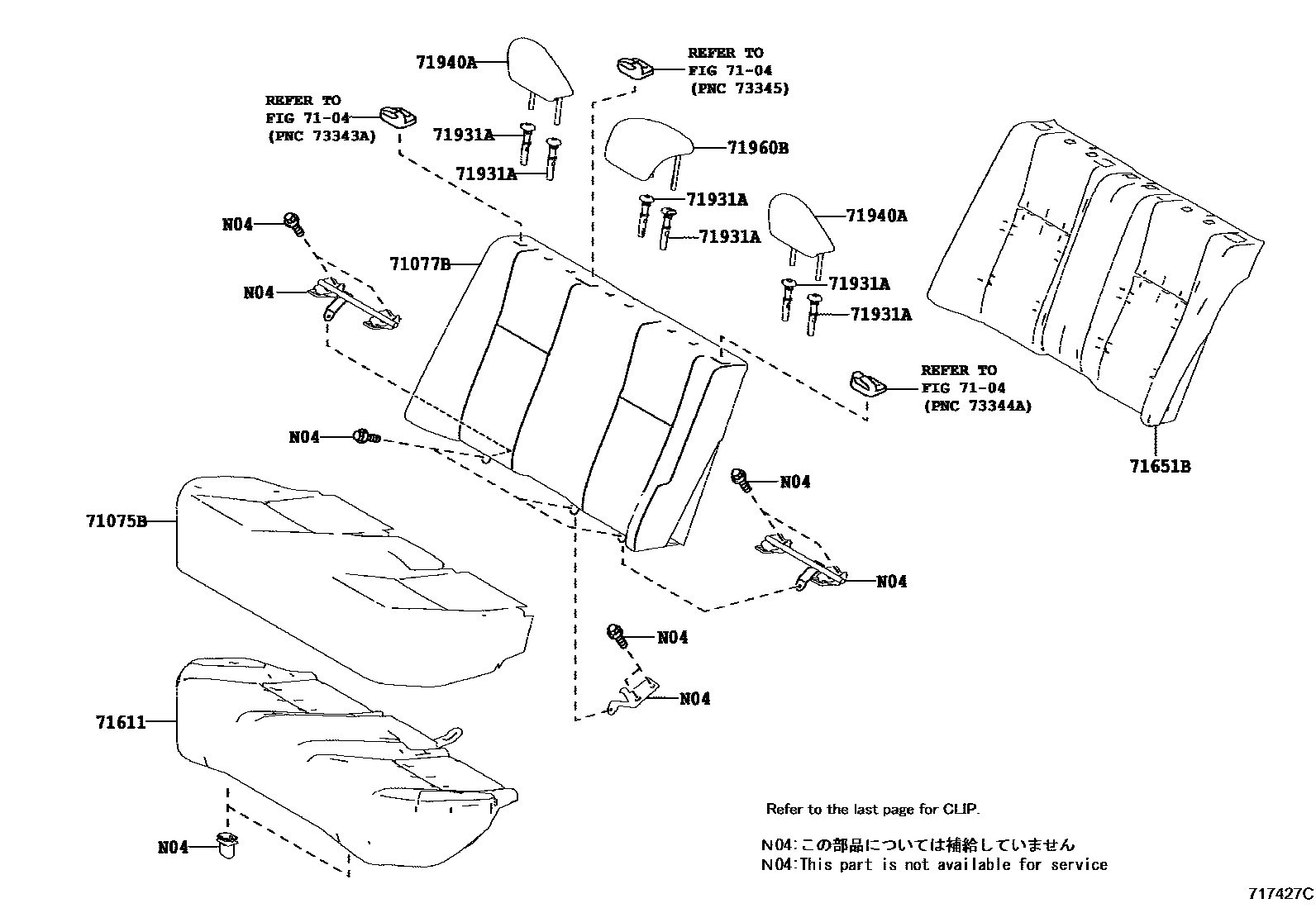

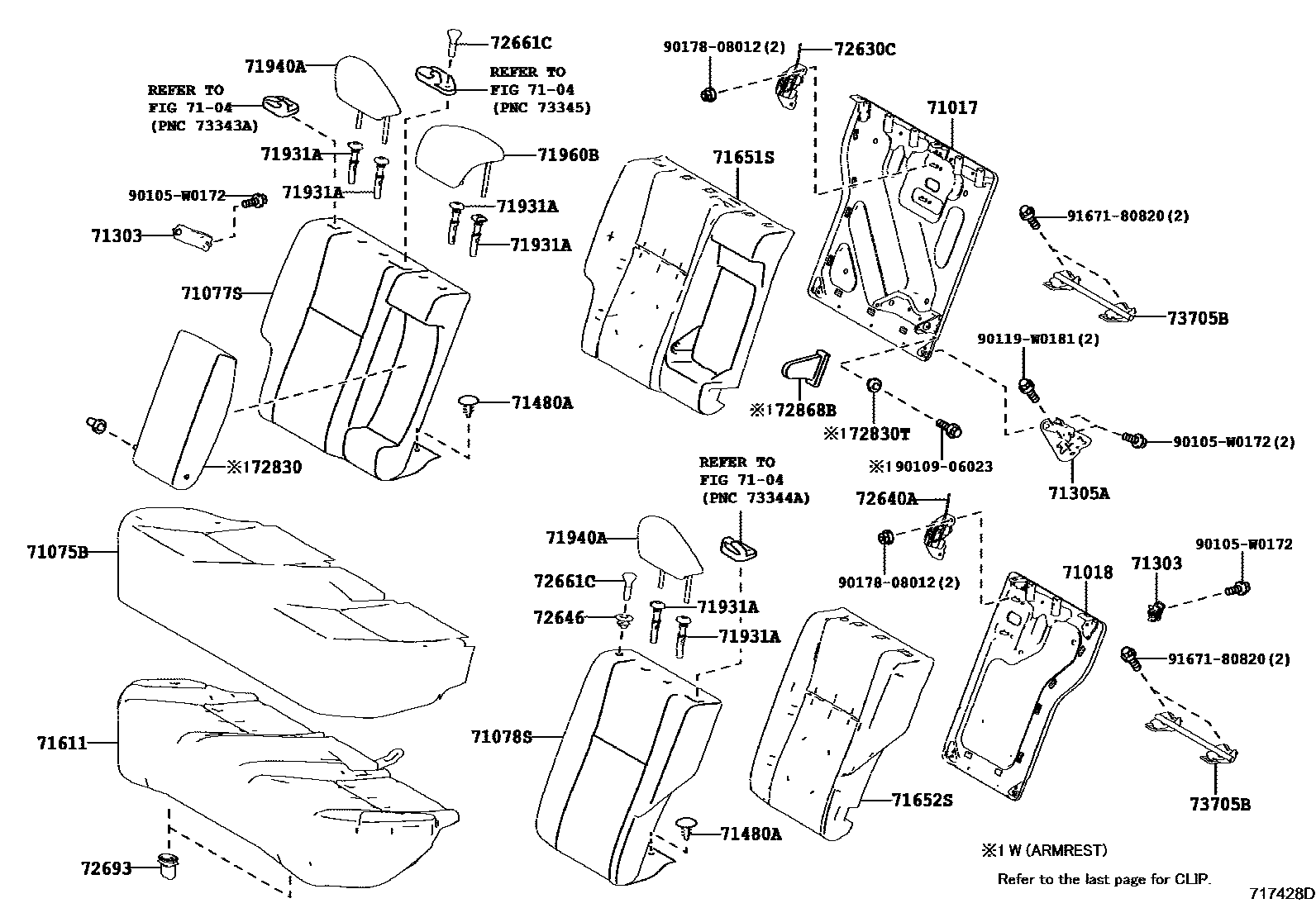

Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102
Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-02610 · 71017-02760 |
| 71018 | Rear left seat back frame sub-assembly | 71018-02380 |
| 71303 | Rear seat back hinge sub-assembly | 71303-02230 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-02240 |
| 71611 | Rear seat cushion cushion | 71503-02290 |
| 71651B | Rear seat back cushions (for bench seats) | 71507-02220 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-02540 · 71651-02640 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-02470 |
| 72630C | Rear right seat back lock assembly | 72630-02120 |
| 72640A | Rear left seat back lock assembly | 72640-02120 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 72830T | Bushing (for rear seat center armrest) | 90386-08077 |
| 73705B | Cross anchor bracket sub-assembly | 73705-02160 |
