Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

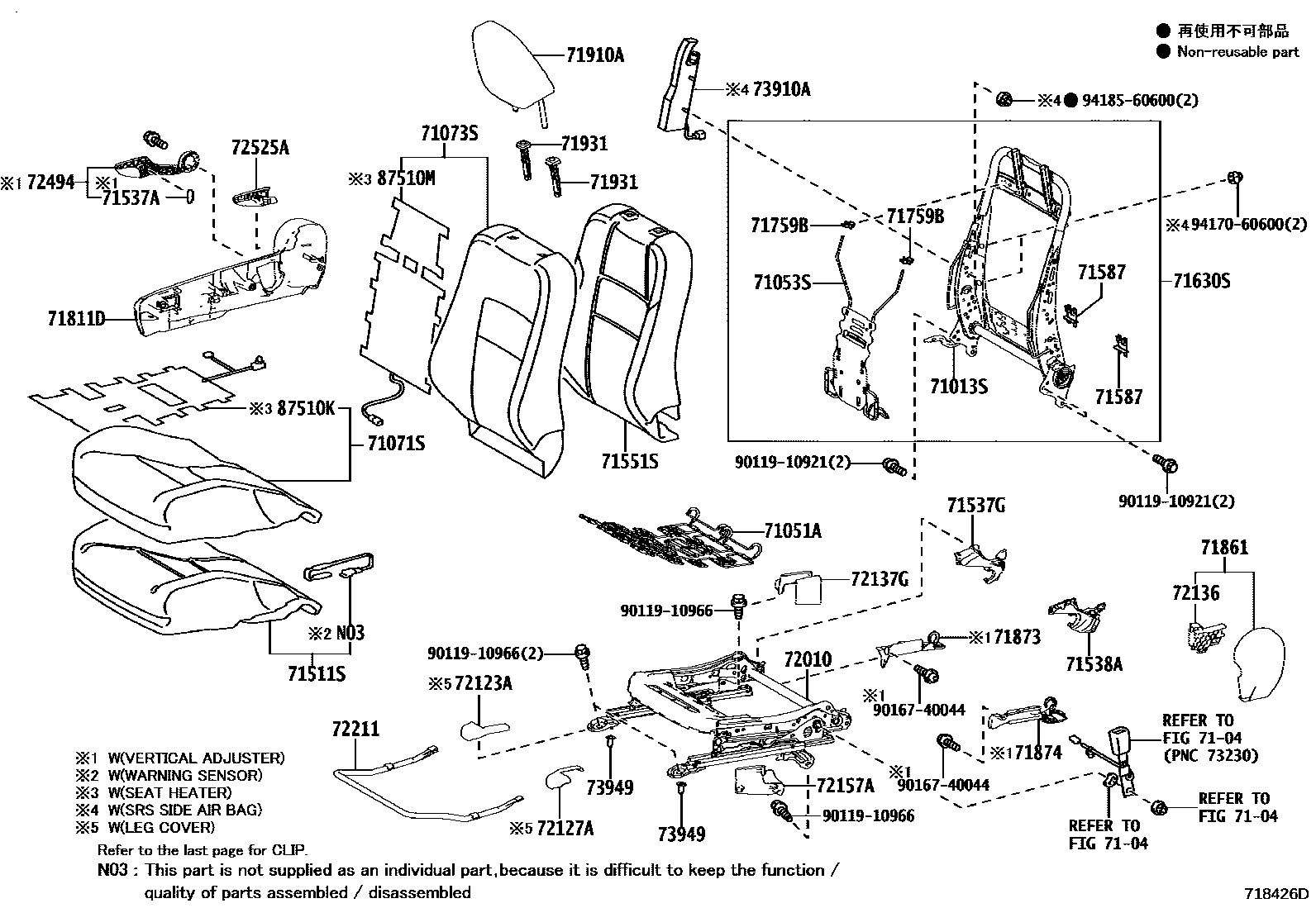

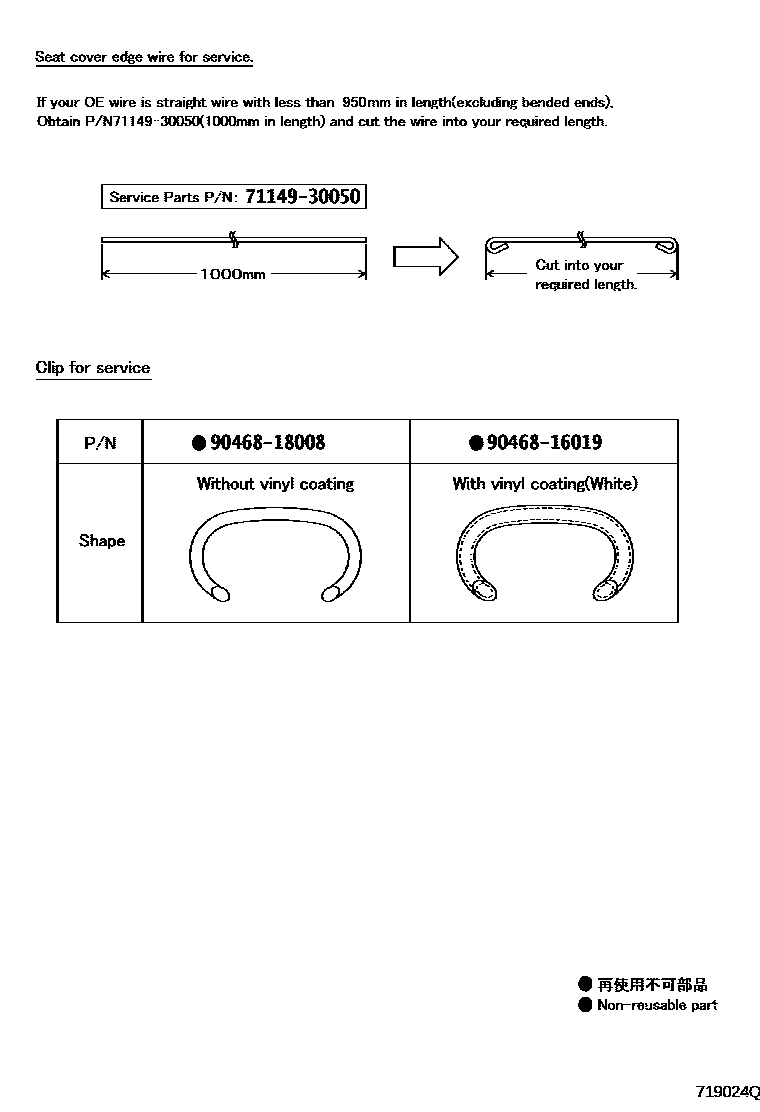

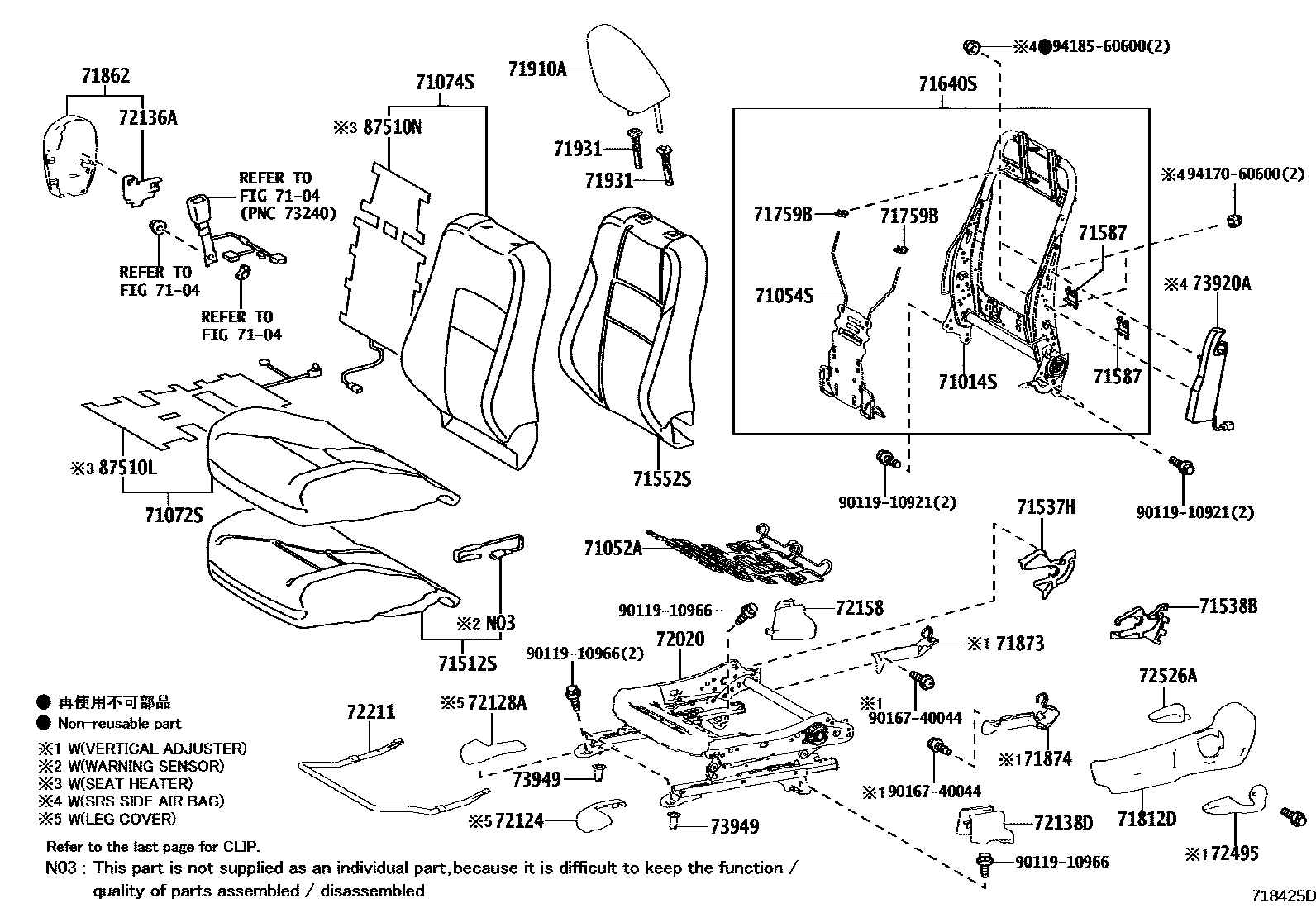

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 3 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71013S | Front right seat back frame sub-assembly | 71013-02150 · 71013-02160 |
| 71014S | Front left seat back frame sub-assembly | 71014-02080 · 71014-02090 |
| 71051A | Front right seat cushion spring sub-assembly | 71051-02310 · 71051-0D060 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-02310 · 71051-0D060 |
| 71053S | Front right seat back spring sub-assembly | 71053-02090 |
| 71054S | Front left seat back spring sub-assembly | 71053-02090 |
| 71511S | Front right seat cushion cushion (for split seats) | 71501-02030 · 71501-02031 · 71501-02240 · 71501-02241 · 71511-02710 · 71511-02A70 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-02080 · 71502-02081 · 71502-02250 · 71512-02500 · 71512-02780 |
| 71537A | Front seat cushion protective cover | 71537-47040 |
| 71551S | Front right seat back cushion (for split seats) | 71551-02880 · 71551-02890 |
| 71552S | Front left seat back cushion (for split seats) | 71551-02880 · 71552-02710 |
| 71587 | Front seat back edge protective cover | 71587-02020 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-02640 · 71630-02650 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-02600 · 71640-02610 |
| 71759B | Front seat back hook | 71759-02020 · 71759-47011 |
| 71873 | Front right seat cushion lower guard panel | 71873-02140 |
| 71874 | Front left seat cushion lower guard | 71874-02130 |
| 72010 | Front right seat adjuster assembly | 72010-02510 · 72010-02511 · 72010-02520 · 72010-02521 |
| 72020 | Front left seat adjuster assembly | 72020-02500 · 72020-02501 · 72020-02520 · 72020-02521 |
| 72136 | No. 1 seat slide rail lower rail | 72136-02170 · 72136-02180 |
| 72136A | No. 2 seat slide rail lower rail | 72136-02200 · 72136-02210 |
| 72211 | Seat slide adjustment handle | 72211-02130 |
| 73910A | Front right seat airbag assembly | 73910-02240 |
| 73920A | Front left seat airbag assembly | 73920-02090 |
| 73949 | cover | 71848-02040 |
| 87510K | Front right seat cushion heater assembly | 87510-02140 |
| 87510L | Front left seat cushion heater assembly | 87510-02140 |
| 87510M | Front right seat back heater assembly | 87530-02060 |
| 87510N | Front left seat back heater assembly | 87530-02060 |
