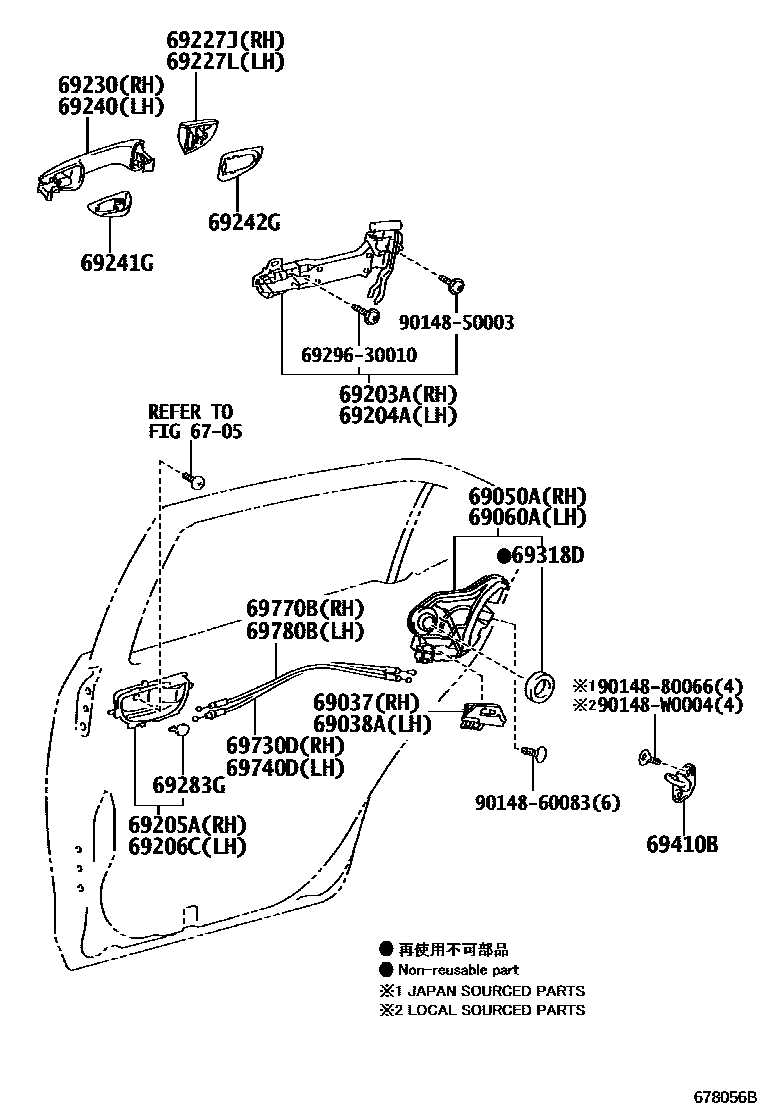

Toyota COROLLA 后门锁和后门把手 — Figure 6706
Toyota COROLLA EPC diagram 6706, 后门锁和后门把手, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69037 | SOUS-ENSEMBLE COUVERCLE, VERROU DE PORTE ARRIERE, MD | 69037-02020 |
| 69038A | SOUS-ENSEMBLE COUVERCLE, VERROU DE PORTE ARRIERE, MG | 69038-02020 |
| 69050A | Right rear door lock assembly with motor | 69050-02380 · 69050-02381 · 69050-02390 · 69050-02391 |
| 69060A | Left rear door lock assembly with motor | 69060-02380 · 69060-02381 · 69060-02390 · 69060-02391 |
| 69203A | Right rear door outer handle frame sub-assembly | 69203-02250 |
| 69204A | Left rear door outer handle frame sub-assembly | 69204-02250 |
| 69227J | Right rear door outer handle cover | 69227-02922 |
| 69227L | Left rear door outer handle cover | 69228-02900 |
| 69230 | Right rear door outer handle assembly | 69211-02925 |
| 69240 | Left rear door outer handle assembly | 69212-02900 |
| 69241G | Rear door front exterior handle pad | 69241-02160 · 69242-02150 |
| 69242G | Rear door rear outer handle pad | 69241-02170 · 69242-02160 |
| 69318D | door lock harness seal | 69318-51010 |
| 69410B | Rear door lock plate assembly | 69410-20110 |
| 69730D | Right rear door lock remote control cable assembly | 69730-02210 |
| 69740D | Left rear door lock remote control cable assembly | 69730-02210 |
| 69770B | Right rear door inner lock cable assembly | 69770-02300 |
| 69780B | Left rear door inner lock cable assembly | 69770-02300 |
