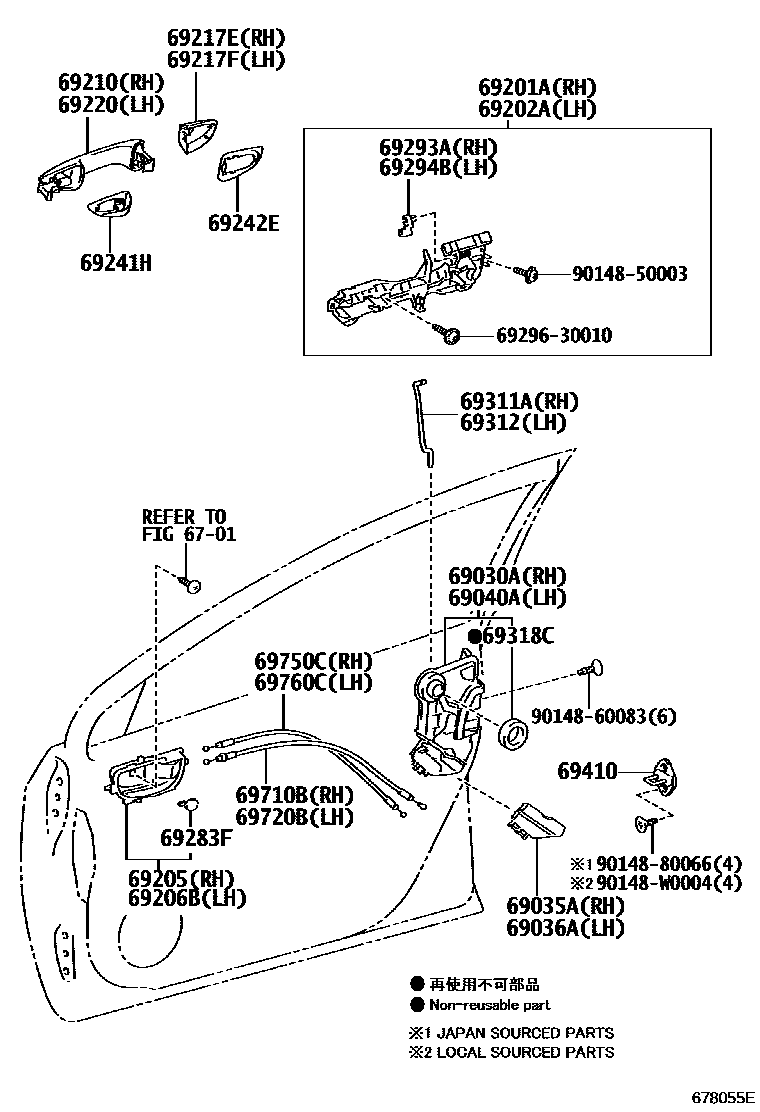

Toyota COROLLA 前门锁和车门把手 — Figure 6703
Toyota COROLLA EPC diagram 6703, 前门锁和车门把手, with 1 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69030A | Right front door lock assembly with motor | 69030-02500 · 69030-02501 · 69030-02510 · 69030-02511 · 69030-02520 · 69030-02521 · 69030-02560 |
| 69035A | SOUS-ENSEMBLE COUVERCLE, VERROU DE PORTE AVANT, MD | 69035-02020 |
| 69036A | Left front door lock cover sub-assembly | 69036-02020 |
| 69040A | Left front door door lock assembly with motor | 69040-02490 · 69040-02491 · 69040-02500 · 69040-02501 |
| 69201A | Right front door outer handle frame sub-assembly | 69201-02260 |
| 69202A | Left front door outer handle frame sub-assembly | 69202-02200 |
| 69210 | Right front door outer handle assembly | 69211-02925 |
| 69217E | Right front door outer handle cover | 69217-02942 · 69217-02943 |
| 69217F | Left front door outer handle cover | 69218-02900 · 69218-02901 |
| 69220 | Left front door outer handle assembly | 69212-02900 |
| 69241H | Front door exterior handle pad | 69241-02160 · 69242-02150 |
| 69242E | Front door rear outer handle pad | 69241-02170 · 69242-02160 |
| 69293A | Front door outer handle buckle | 69293-12030 |
| 69294B | Left front door outer handle buckle | 69293-12040 |
| 69311A | Right front door lock opening lever | 69311-02270 |
| 69312 | Left front door lock opening lever | 69312-02270 |
| 69318C | door lock harness seal | 69318-51010 |
| 69410 | Front door lock plate assembly | 69410-20110 |
| 69710B | Right front door lock remote control cable assembly | 69710-02240 |
| 69720B | Left front door lock remote control cable assembly | 69710-02240 |
| 69750C | Right front door inner lock cable assembly | 69750-02270 |
| 69760C | Left front door inner lock cable assembly | 69750-02270 |
