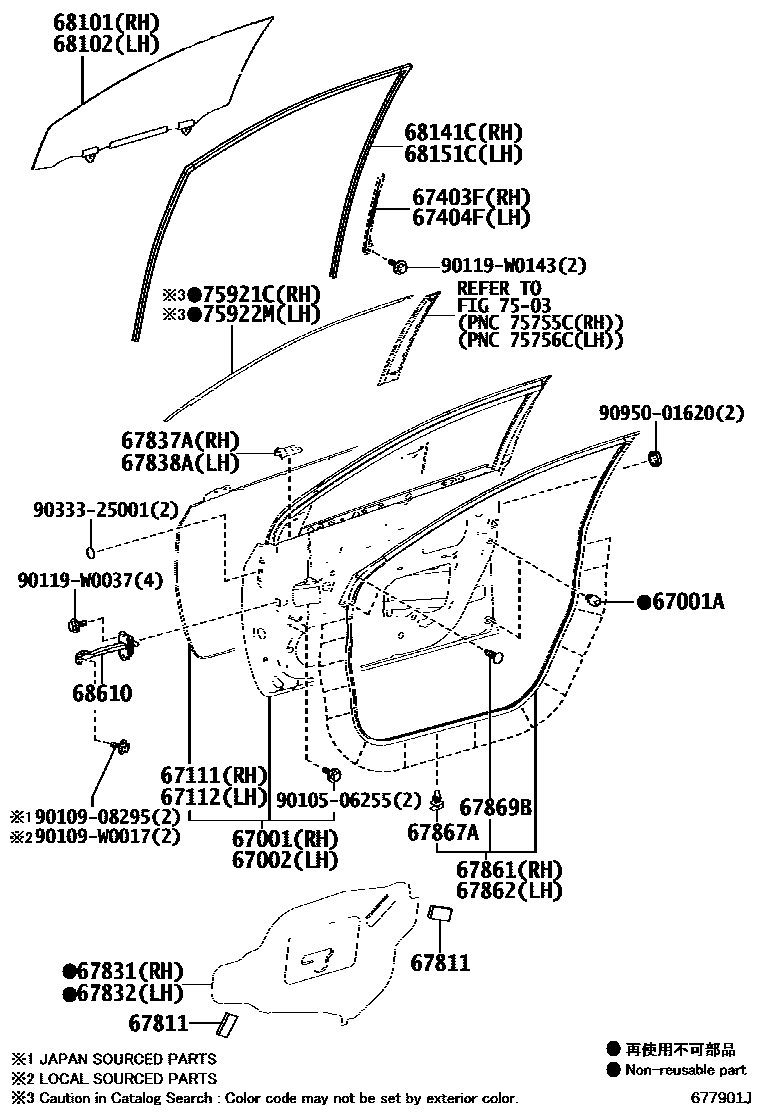

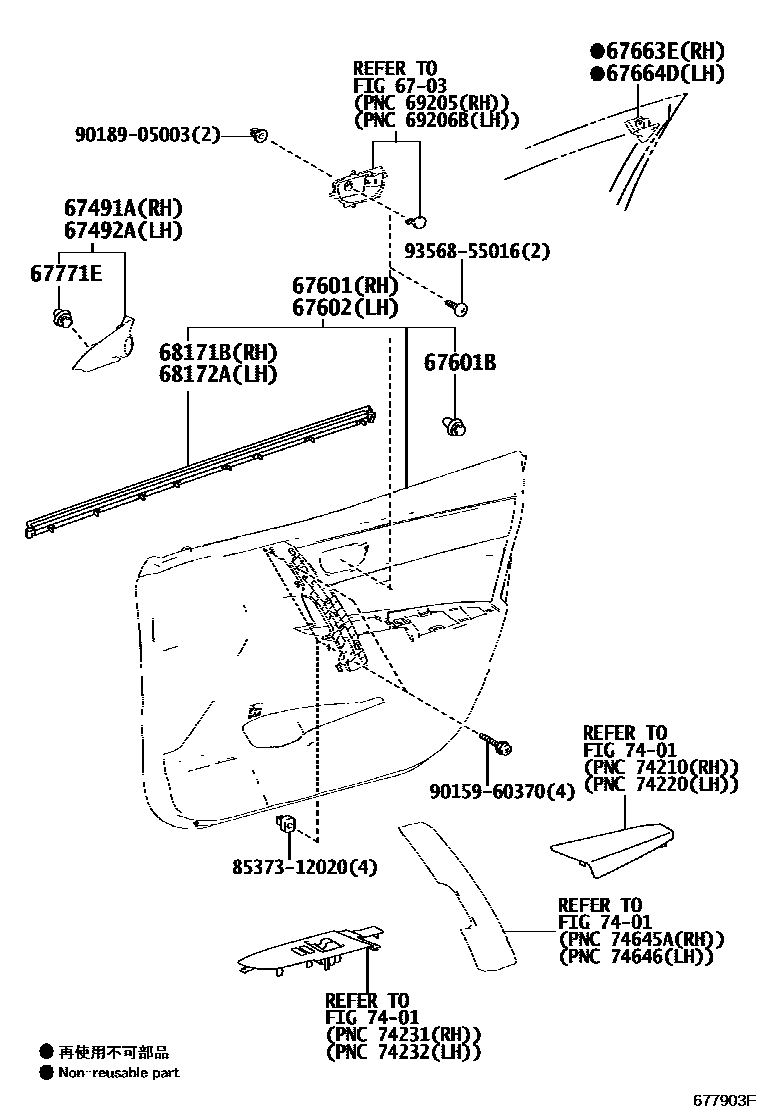

Toyota COROLLA 前门板和前门玻璃 — Figure 6701
Toyota COROLLA EPC diagram 6701, 前门板和前门玻璃, with 2 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-02390 |
| 67001A | Front door panel cushion | 90541-09124 |
| 67002 | Left front door panel sub-assembly | 67002-02390 |
| 67111 | Outer right front door panel | 67111-02230 |
| 67112 | Outer left front door panel | 67112-02230 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-12320 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-12300 |
| 67491A | Right front door lower door frame bracket decorative strip | 67491-02430 · 67491-02431 · 67491-02440 · 67491-02441 |
| 67492A | Left front door lower door frame bracket decorative strip | 67492-02430 · 67492-02431 · 67492-02440 · 67492-02441 |
| 67601B | Catch (for front door trim panel) | 67773-0E020 |
| 67663E | Right door frame decorative strip | 67663-48010 |
| 67664D | Left door frame decorative strip | 67664-48010 |
| 67771E | Fixing piece (for front door frame bracket) | 67771-12060 |
| 67811 | Front door silencer pad | 67811-02300 |
| 67831 | Right front door access hole cover | 67831-02330 |
| 67832 | Left front door access hole cover | 67832-02330 |
| 67837A | Right front door ventilator seal | 67837-02050 |
| 67838A | Left front door ventilator seal | 67838-02020 |
| 67861 | Right front door seal | 67861-02270 |
| 67862 | Left front door seal | 67862-02270 |
| 67867A | Door seal strip clip (for front door) | 67867-12150 |
| 67869B | Front door seal strip clip | 67869-20030 |
| 68101 | Right front door glass sub-assembly | 68101-02430 |
| 68102 | Left front door glass sub-assembly | 68102-02430 |
| 68141C | Right front door glass lift channel | 68141-02310 |
| 68151C | Left front door glass lift channel | 68151-02300 |
| 68171B | Right front door glass inner sealing strip | 68171-02260 |
| 68172A | Left front door glass inner sealing strip | 68172-02250 |
| 68610 | Front door opening limiter assembly | 68610-02240 · 68610-02241 · 68610-02242 |
| 75921C | No. 1 right side light-shielding film | 75921-02160 |
| 75922M | No. 1 left shading film | 75922-02160 |
