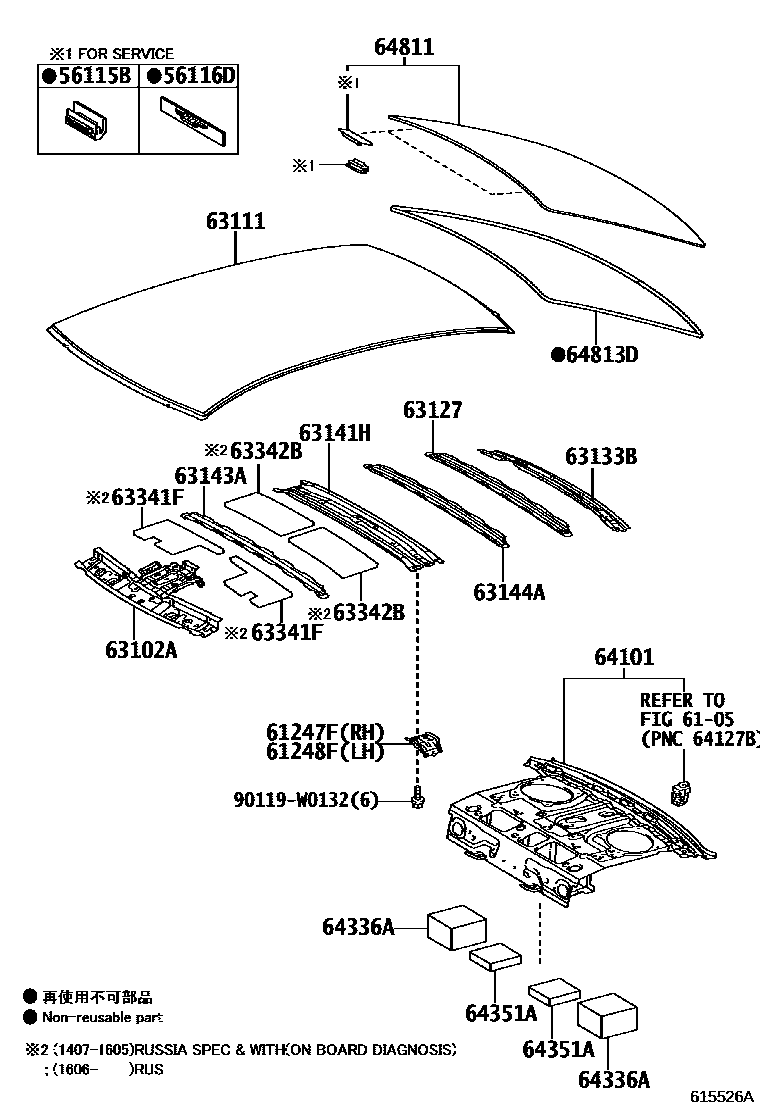

Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104
Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56115-30120 |
| 56116D | No. 2 stopper for back window glass | 56116-22050 |
| 61247F | Roof inner longitudinal beam reinforcement | 61247-02060 |
| 61248F | Roof left inner longitudinal beam reinforcement | 61247-02060 |
| 63102A | Windshield roof sub-assembly | 63102-02300 |
| 63111 | roof panel | 63111-02450 · 63111-02580 |
| 63127 | No. 5 roof panel reinforcement | 63127-02080 |
| 63133B | back window frame | 63133-02130 · 63133-02131 |
| 63141H | Center roof panel reinforcement | 63141-02170 |
| 63143A | Roof panel reinforcement | 63143-02150 |
| 63144A | No. 4 roof panel reinforcement | 63144-02180 |
| 63341F | No. 1 roof silencer mat | 63342-02380 · 63342-02390 |
| 63342B | No. 2 roof muffler pad | 63342-02370 |
| 64101 | Upper back panel sub-assembly | 64101-02330 |
| 64336A | Glove box decorative panel side silencer pad | 64336-02050 |
| 64351A | No. 1 glove box decorative mat | 64351-02060 |
| 64811 | back window glass | 64801-02190 · 64801-02200 · 64801-02370 · 64801-02380 |
| 64813D | Back window glass adhesive seal | 56117-50130 |
