Toyota COROLLA 侧梁 — Figure 6101

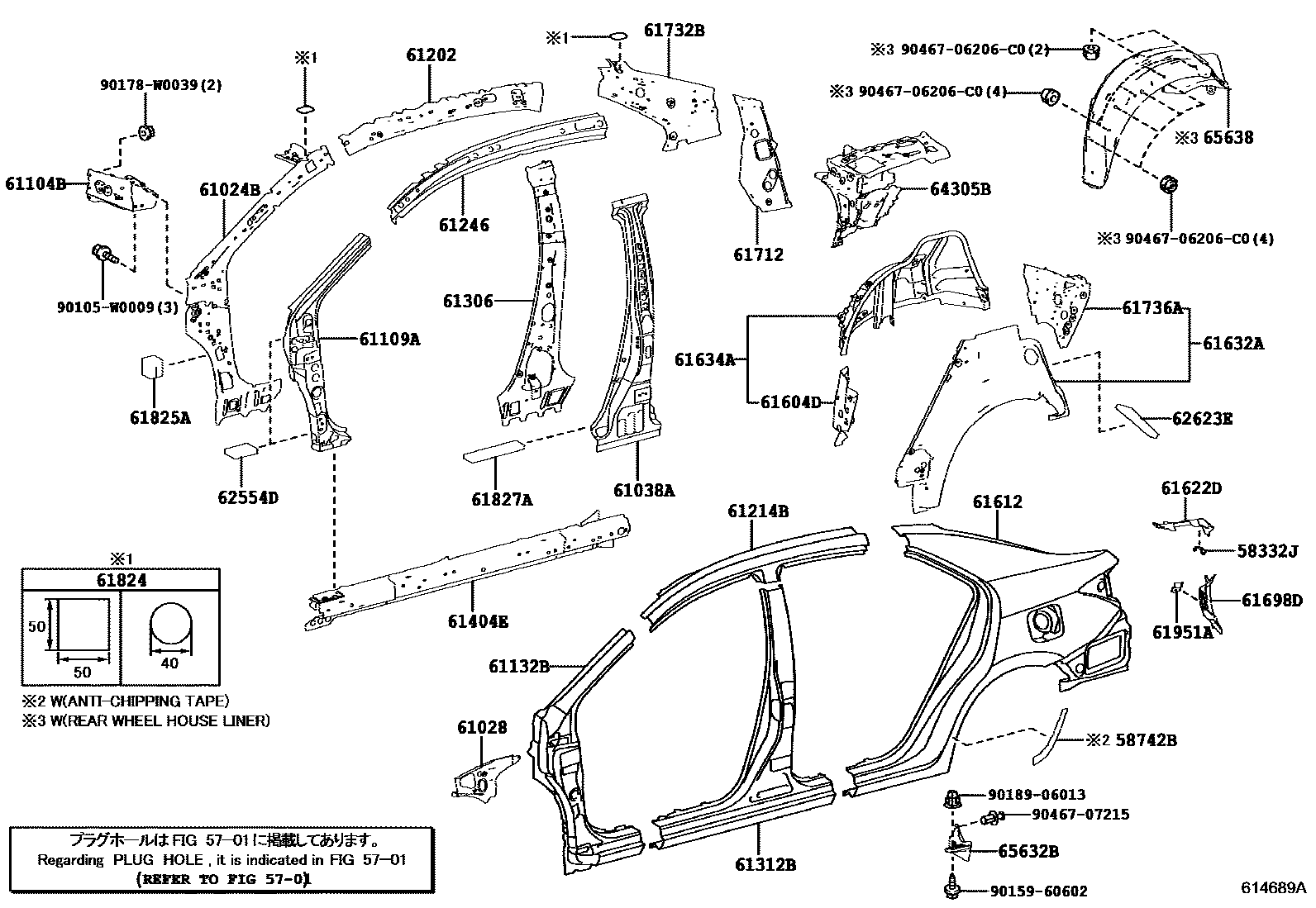

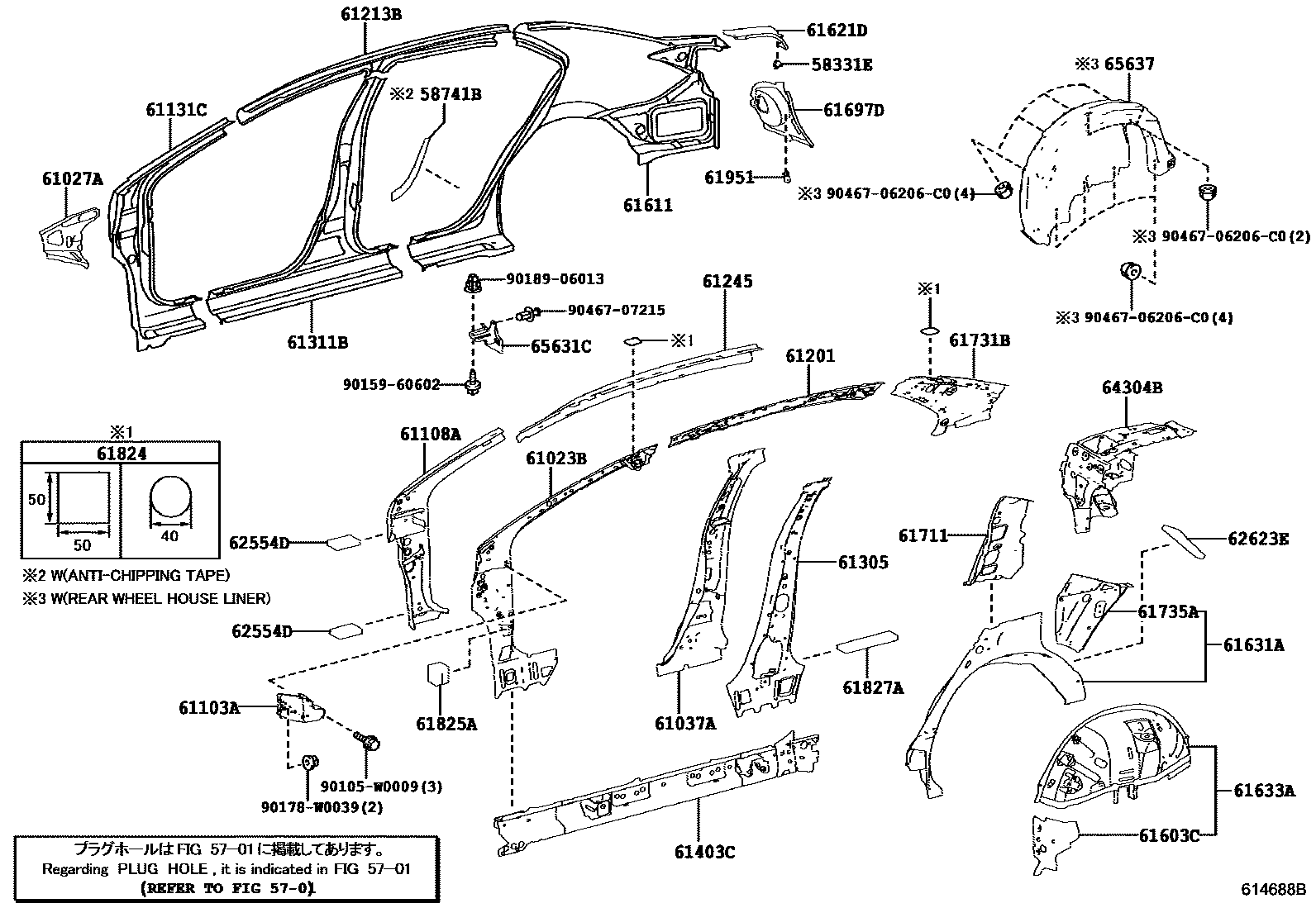

Toyota COROLLA EPC diagram 6101, 侧梁, with 2 images and 59 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58331E | No. 1 suitcase decorative panel bracket | 58331-02120 |
| 58332J | No. 2 suitcase decorative panel bracket | 58332-02080 |
| 58741B | Right side enclosure protection panel | 58741-02180 |
| 58742B | Left side enclosure protection panel | 58742-02170 |
| 61023B | Right body inner front pillar sub-assembly | 61023-02300 |
| 61024B | Left body inner front pillar sub-assembly | 61024-02280 |
| 61027A | Right body outer front pillar sub-assembly | 61027-02020 |
| 61028 | Right body inner rear pillar sub-assembly | 61028-02020 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-02230 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-02230 |
| 61103A | Right front wall side reinforcement sub-assembly | 61103-02210 · 61103-02211 |
| 61104B | Left front wall side reinforcement sub-assembly | 61104-02200 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-02210 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-02210 |
| 61131C | Right body outer front pillar | 61131-02290 |
| 61132B | Left body outer front pillar | 61132-02320 |
| 61201 | Roof right side longitudinal beam sub-assembly | 61201-02220 |
| 61202 | Roof left side longitudinal beam sub-assembly | 61202-02220 |
| 61213B | No. 2 longitudinal beam on the outer right side of the roof | 61213-02080 |
| 61214B | No. 2 longitudinal beam on the left side of the roof | 61214-02080 |
| 61245 | Roof right outer longitudinal beam reinforcement | 61245-02210 |
| 61246 | Roof left outer longitudinal beam reinforcement | 61246-02210 |
| 61305 | Right body center pillar lower reinforcement sub-assembly | 61305-02130 |
| 61306 | Left body center pillar lower reinforcement sub-assembly | 61306-02130 |
| 61311B | Right body outer center pillar | 61311-02280 |
| 61312B | Left body outer center pillar | 61312-02270 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-02180 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-02180 |
| 61603C | Right wheel cover sub-assembly | 61603-02020 |
| 61604D | Left side wheel cover sub-assembly | 61604-02020 |
| 61611 | Right side hoarding | 61601-02390 |
| 61612 | left side panel | 61602-02420 |
| 61621D | Back door right opening slot | 61621-02210 |
| 61622D | Rear door left opening slot | 61622-02210 |
| 61631A | Right wheel cover outer panel | 61605-02130 |
| 61632A | Left side wheel cover outer panel | 61606-02130 |
| 61633A | Right wheel housing lining panel | 61633-02904 |
| 61634A | Left side wheel housing lining panel | 61634-02906 |
| 61697D | Right side enclosure end cover | 61697-02110 |
| 61698D | Left side enclosure end cover | 61698-02110 |
| 61711 | Roof right side outer panel | 61711-02120 |
| 61712 | Roof left outer panel | 61712-02120 |
| 61731B | Roof right inner panel | 61731-02280 |
| 61732B | Roof left inner panel | 61732-02280 |
| 61735A | Right rear roof inner panel | 61735-02180 |
| 61736A | Left rear roof inner panel | 61736-02180 |
| 61824 | Noise Control Panel No. 1 | 61824-02180 · 61824-12070 · 61824-52030 |
| 61825A | Noise Control Panel No. 2 | 61825-02020 |
| 61827A | Noise Control Panel No. 4 | 61827-02030 |
| 61951 | Right trim part bracket | 61951-02070 |
| 61951A | Left trim part bracket | 61951-02070 |
| 62554D | front pillar pad | 62554-02190 |
| 62623E | Right rear side wheel housing lining block | 62623-02070 |
| 64304B | Glove box bracket right reinforcement sub-assembly | 64304-02170 |
| 64305B | Glove box bracket left reinforcement sub-assembly | 64305-02170 |
| 65631C | Right rear wheel house front panel | 65631-02240 |
| 65632B | Left rear wheel house front panel | 65632-02240 |
| 65637 | Right rear wheel house lining | 65637-02100 |
| 65638 | Left rear wheel house lining | 65638-02100 |
