Toyota COROLLA 中央扶手箱和支架 — Figure 5806

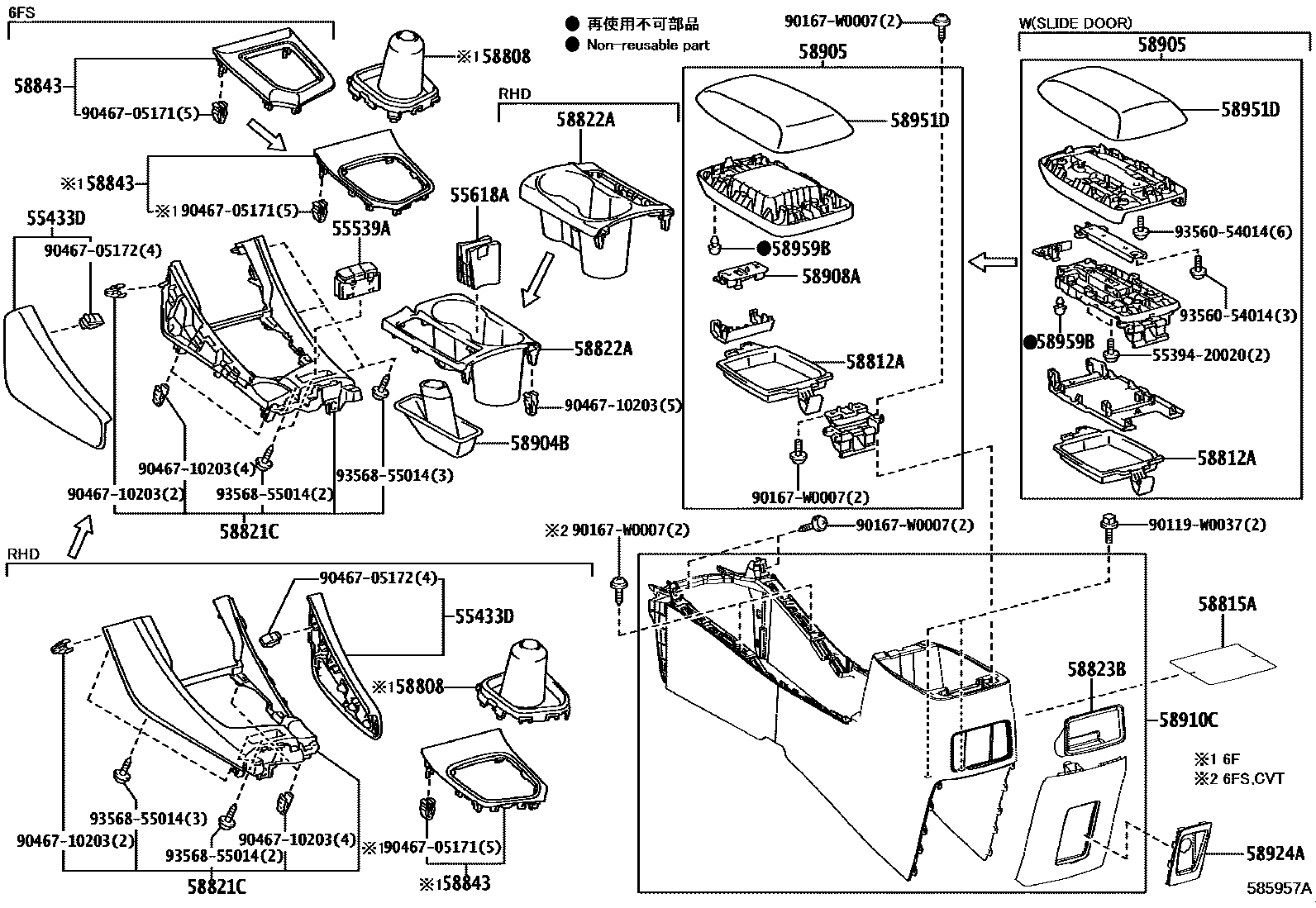

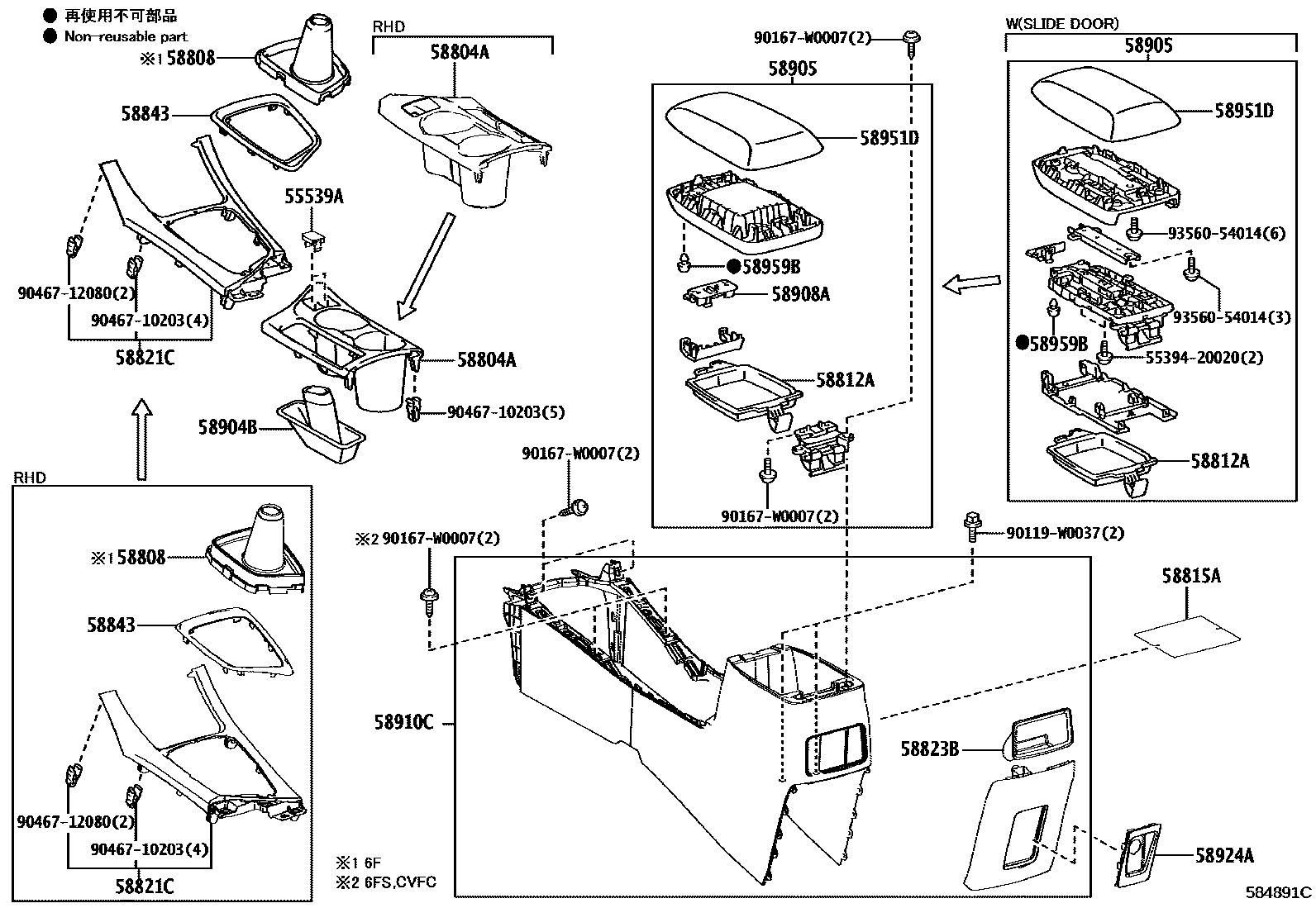

Toyota COROLLA EPC diagram 5806, 中央扶手箱和支架, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55539A | Spare switch hole cover | 84970-02150 |
| 58815A | Armrest box felt pad | 58815-02240 |
| 58822A | Rear armrest box upper panel | 58822-02230 |
| 58843 | shift hole frame | 58843-02460 · 58843-02470 · 58843-02480 · 58843-02490 · 58843-02560 · 58843-02580 · 58843-02660 · 58843-02710 · 58843-02880 |
| 58908A | Armrest box lid lock assembly | 58908-02031 |
| 58959B | Armrest box cover cushion | 90541-03078 |
