Toyota COROLLA 仪表板和手套箱 — Figure 5501

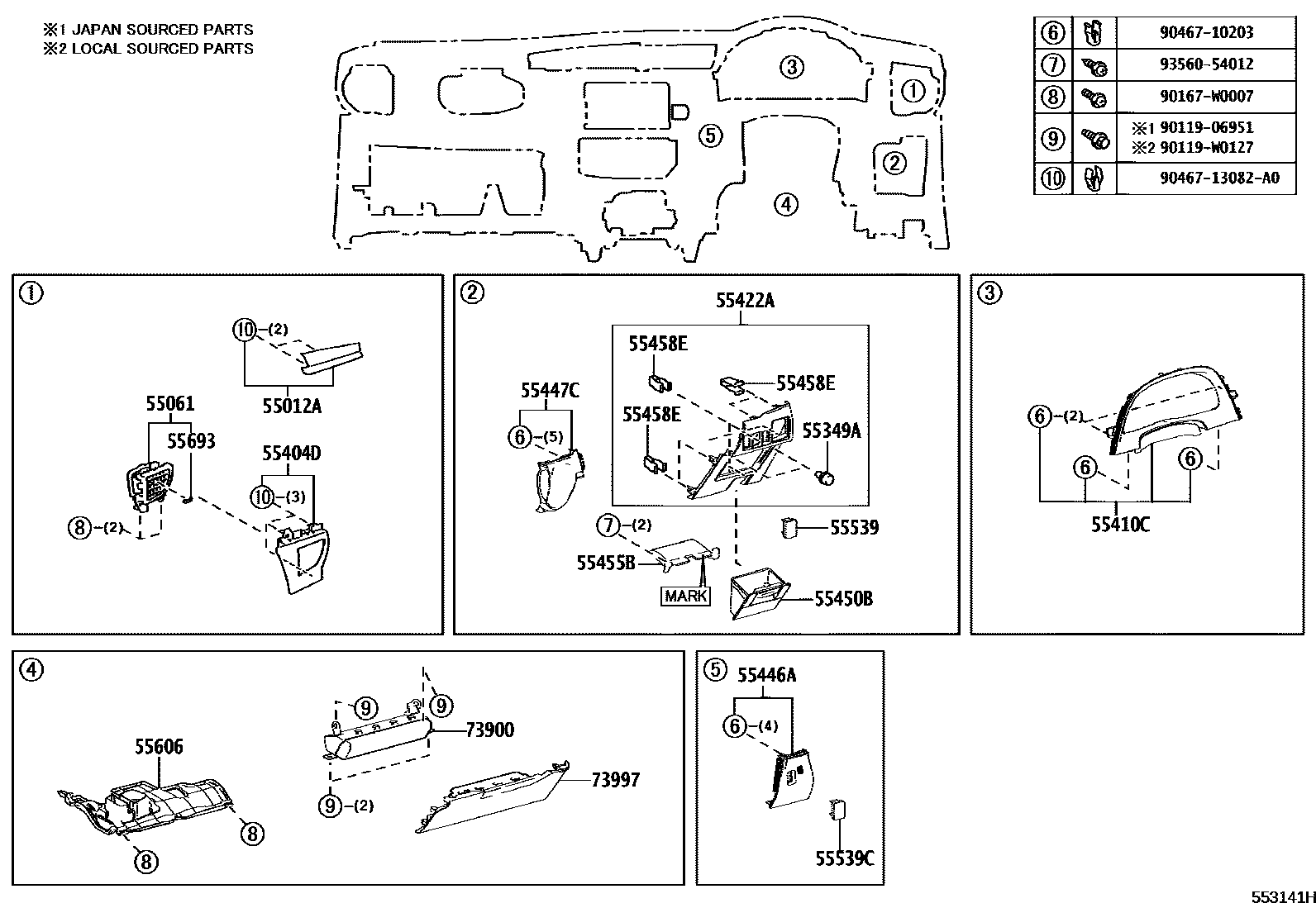

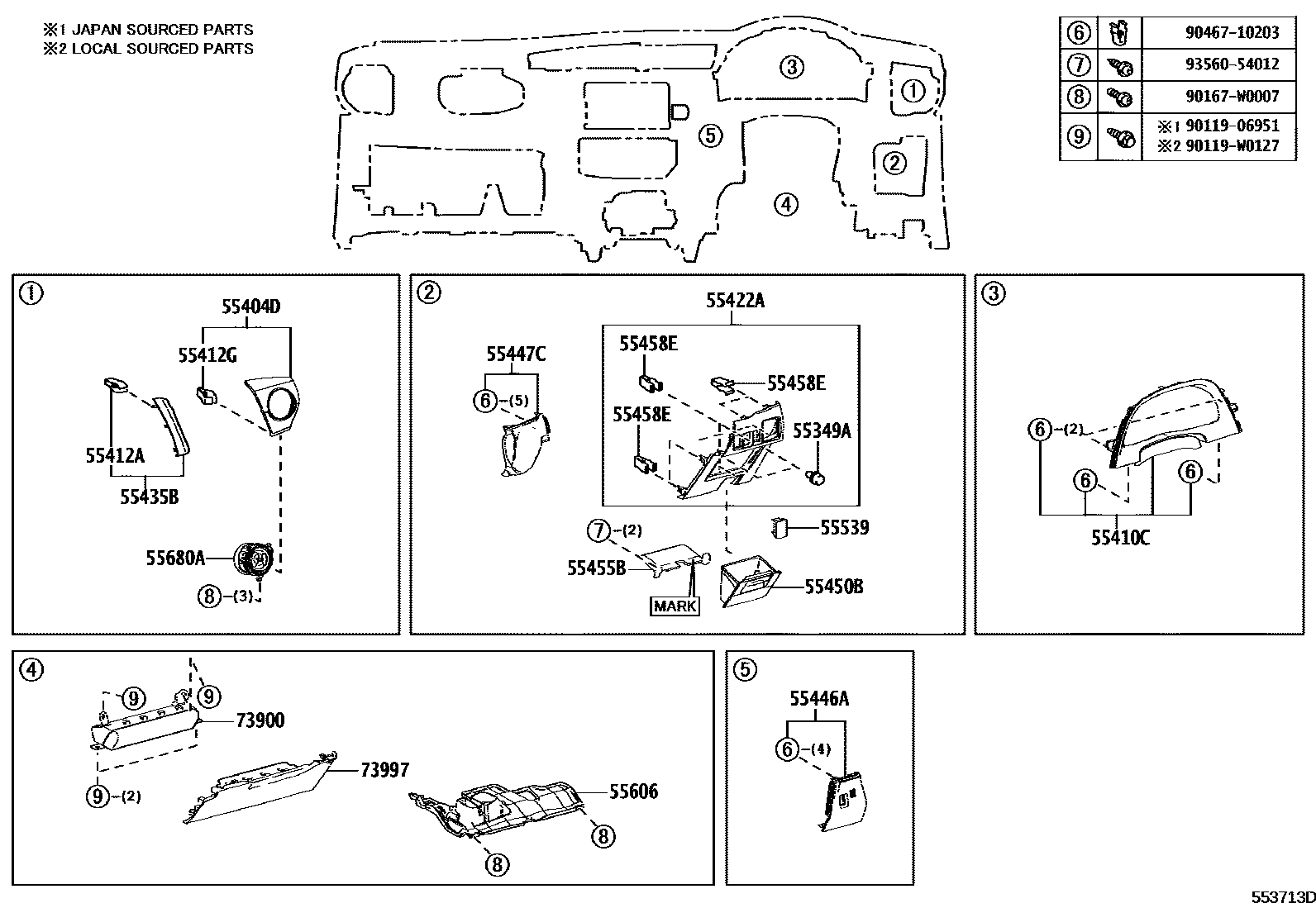

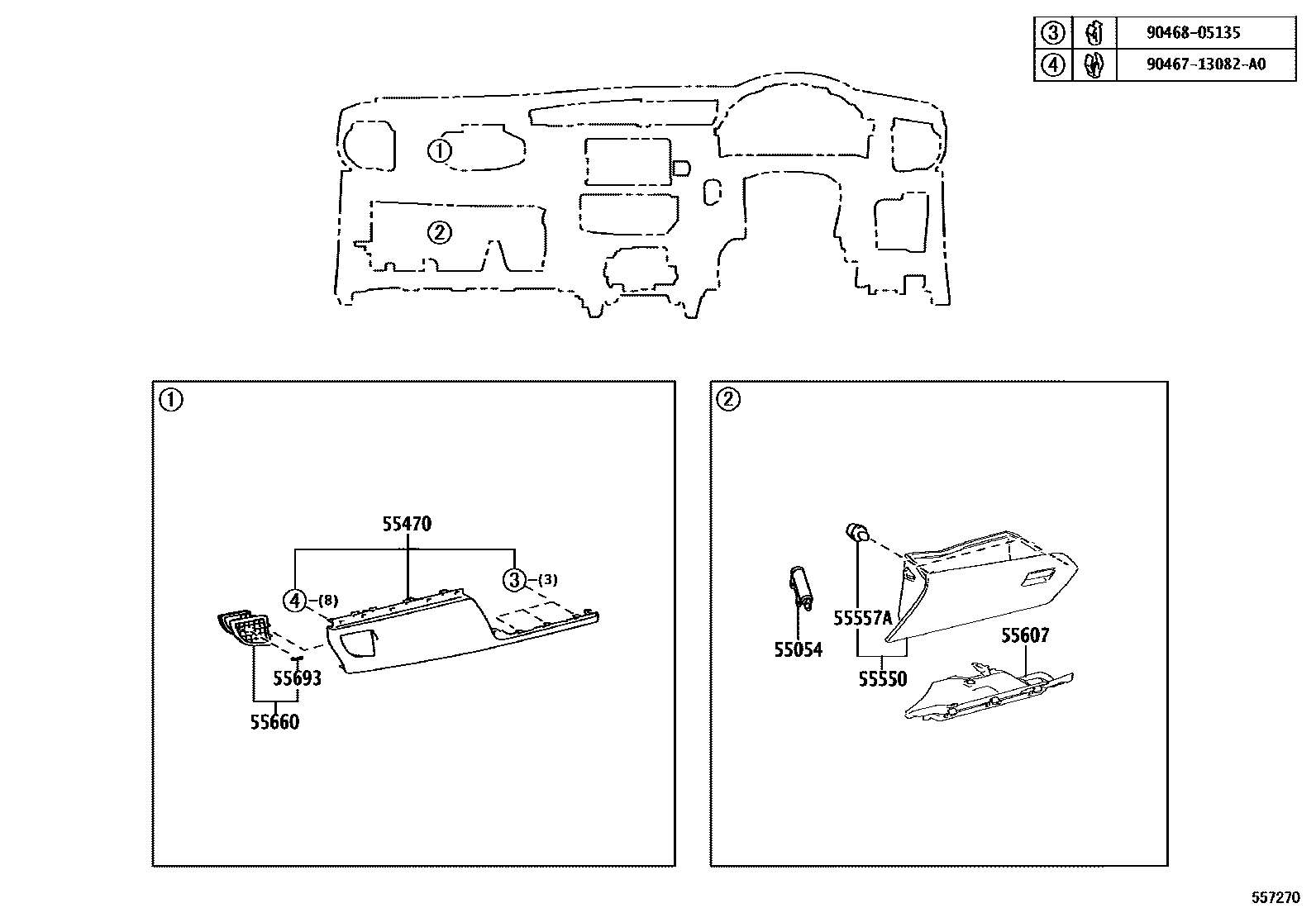

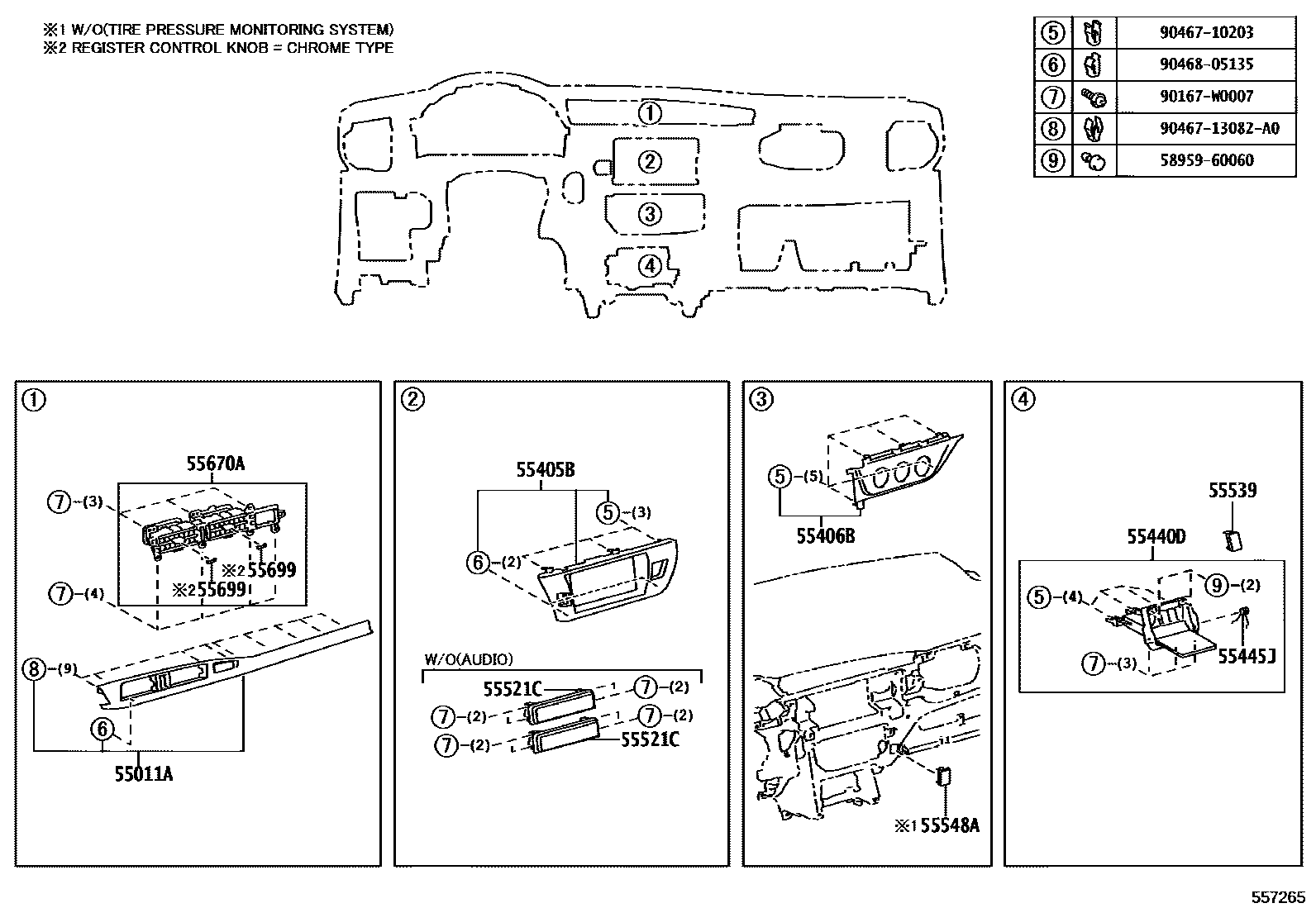

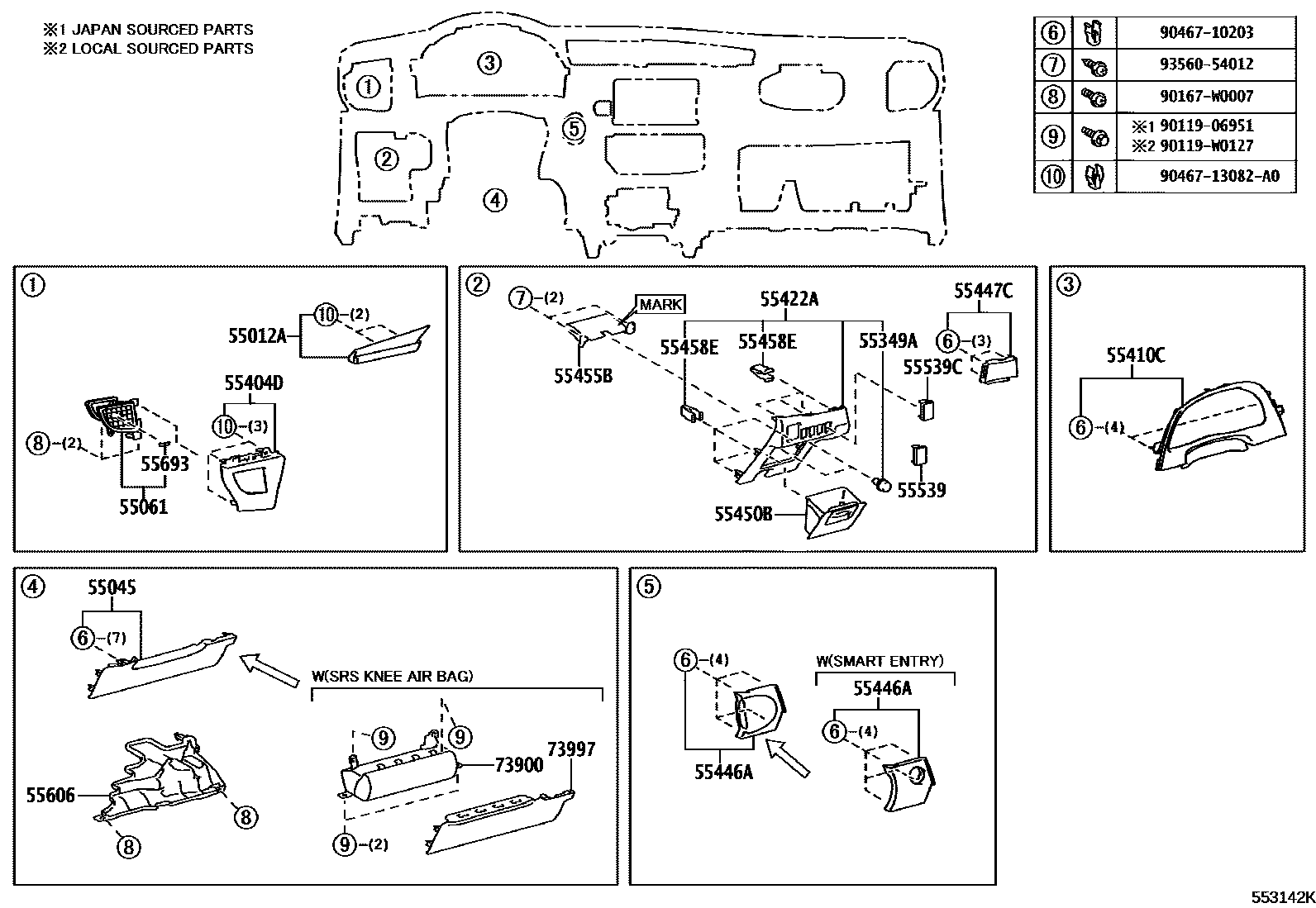

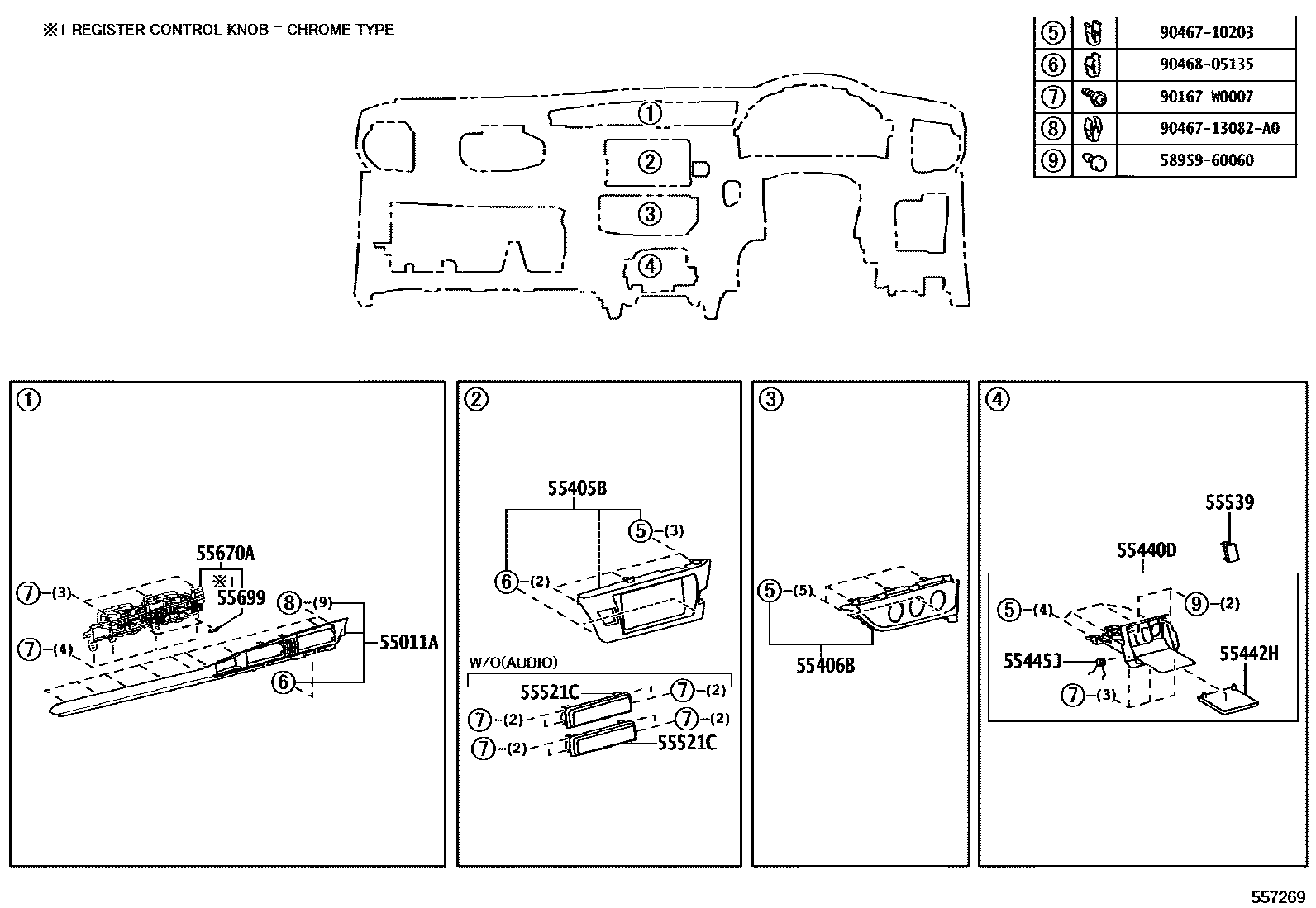

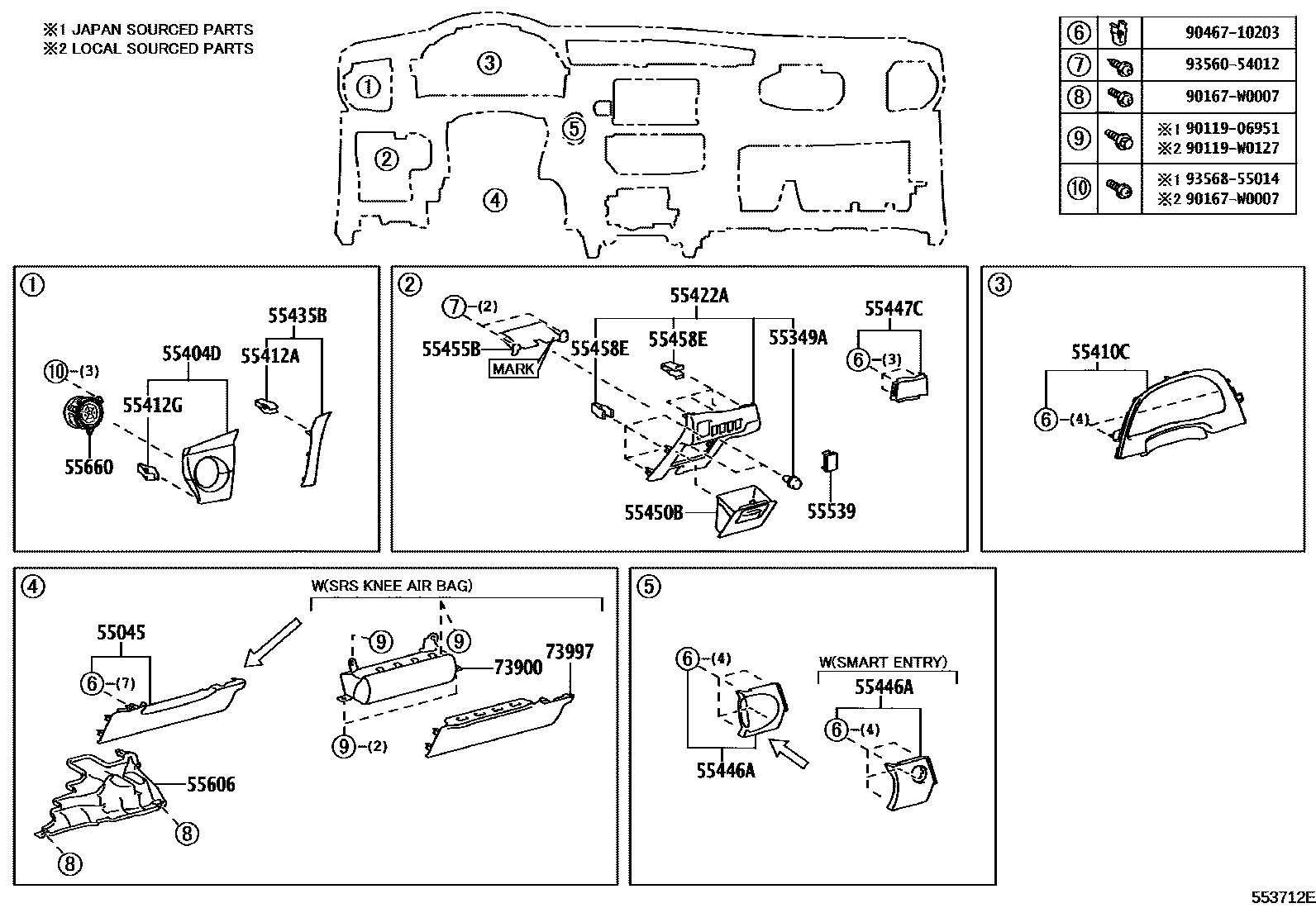

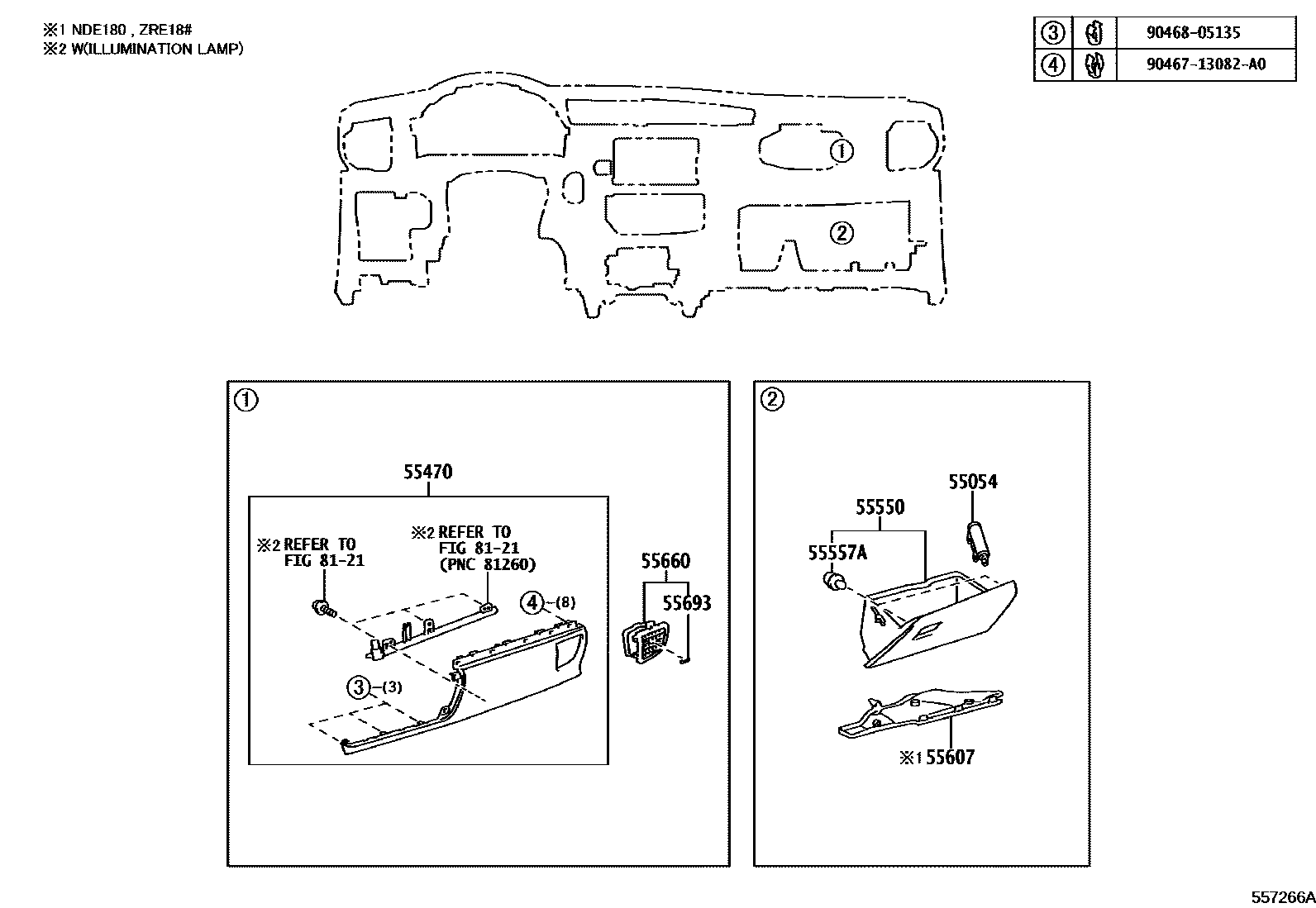

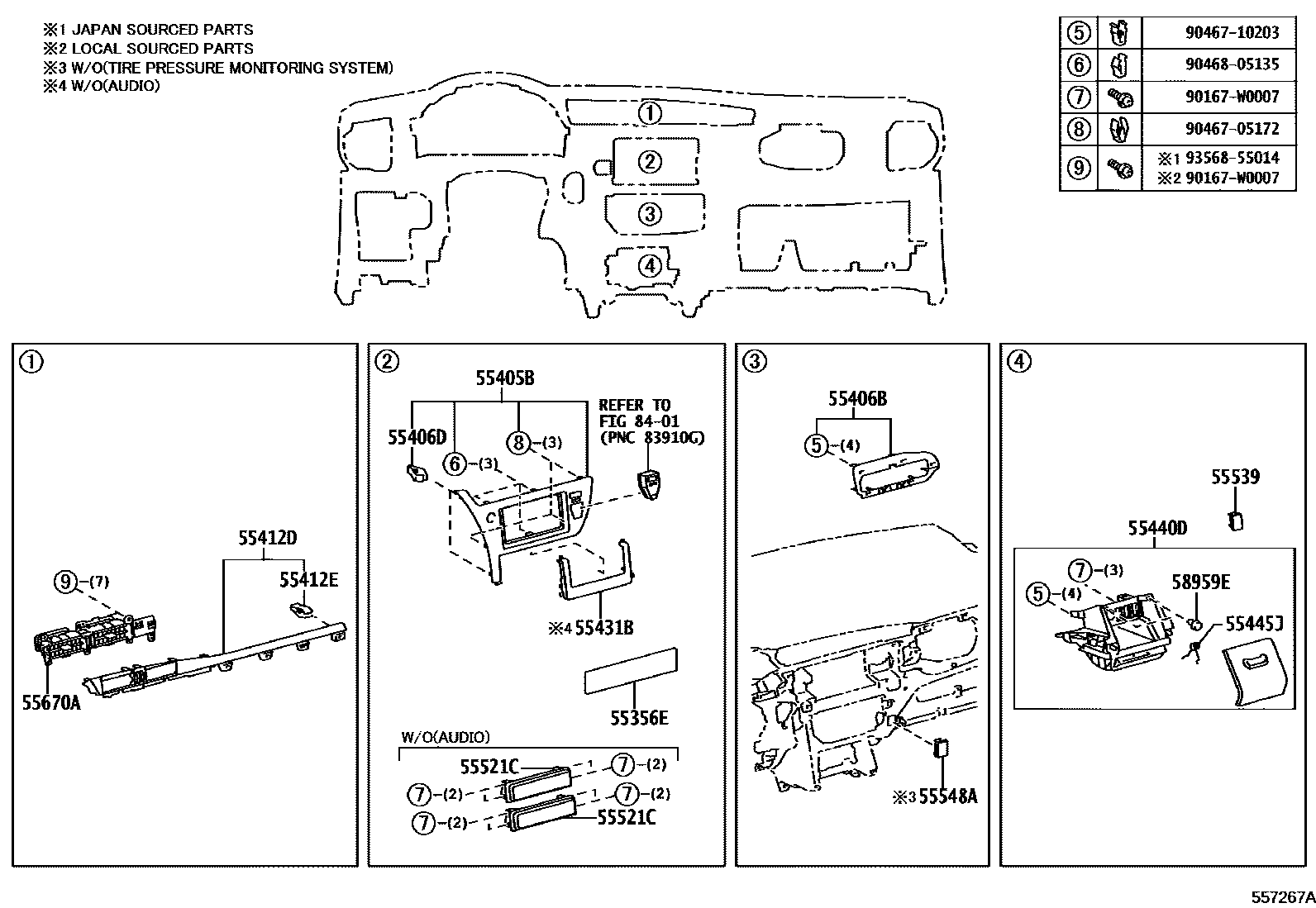

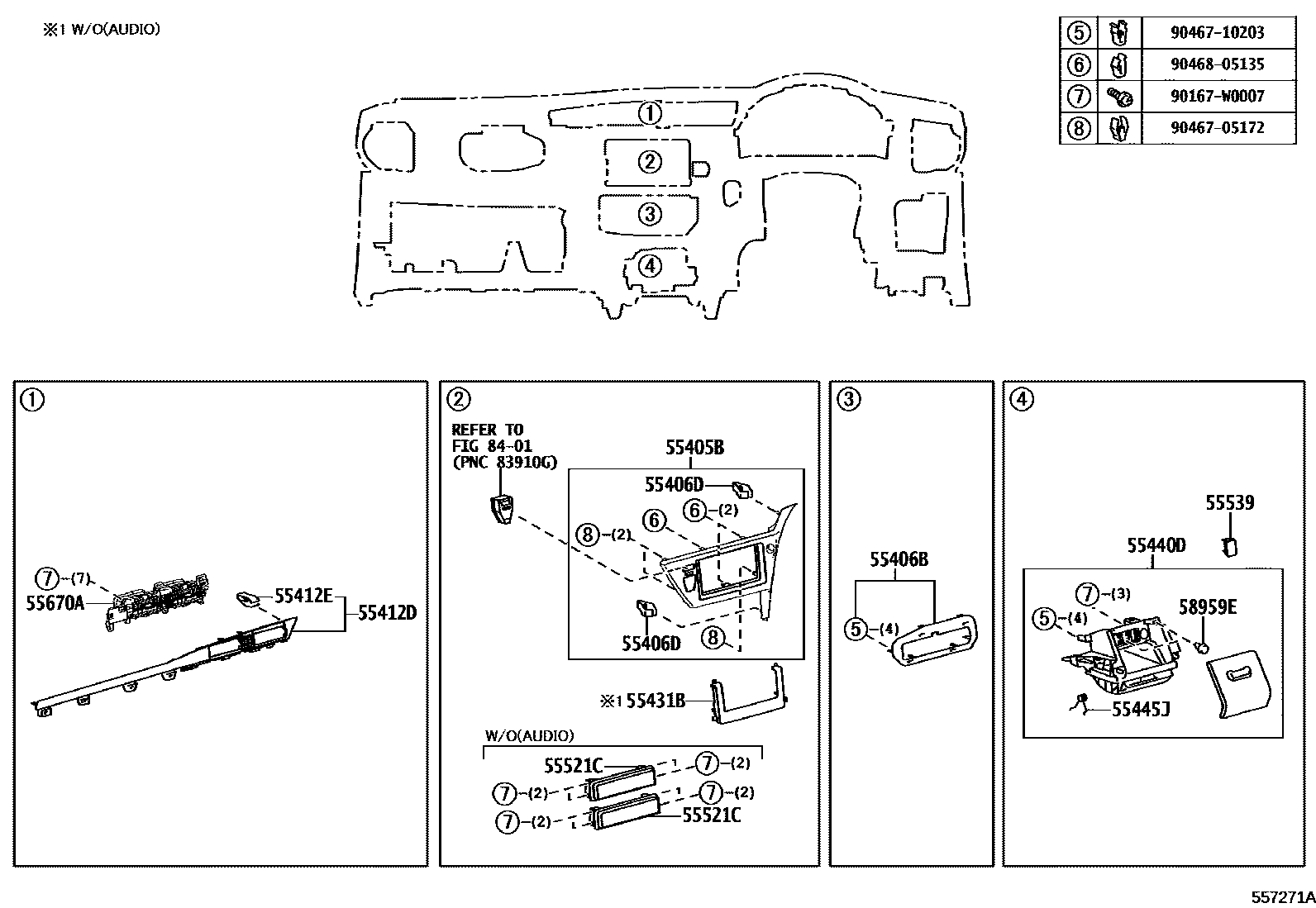

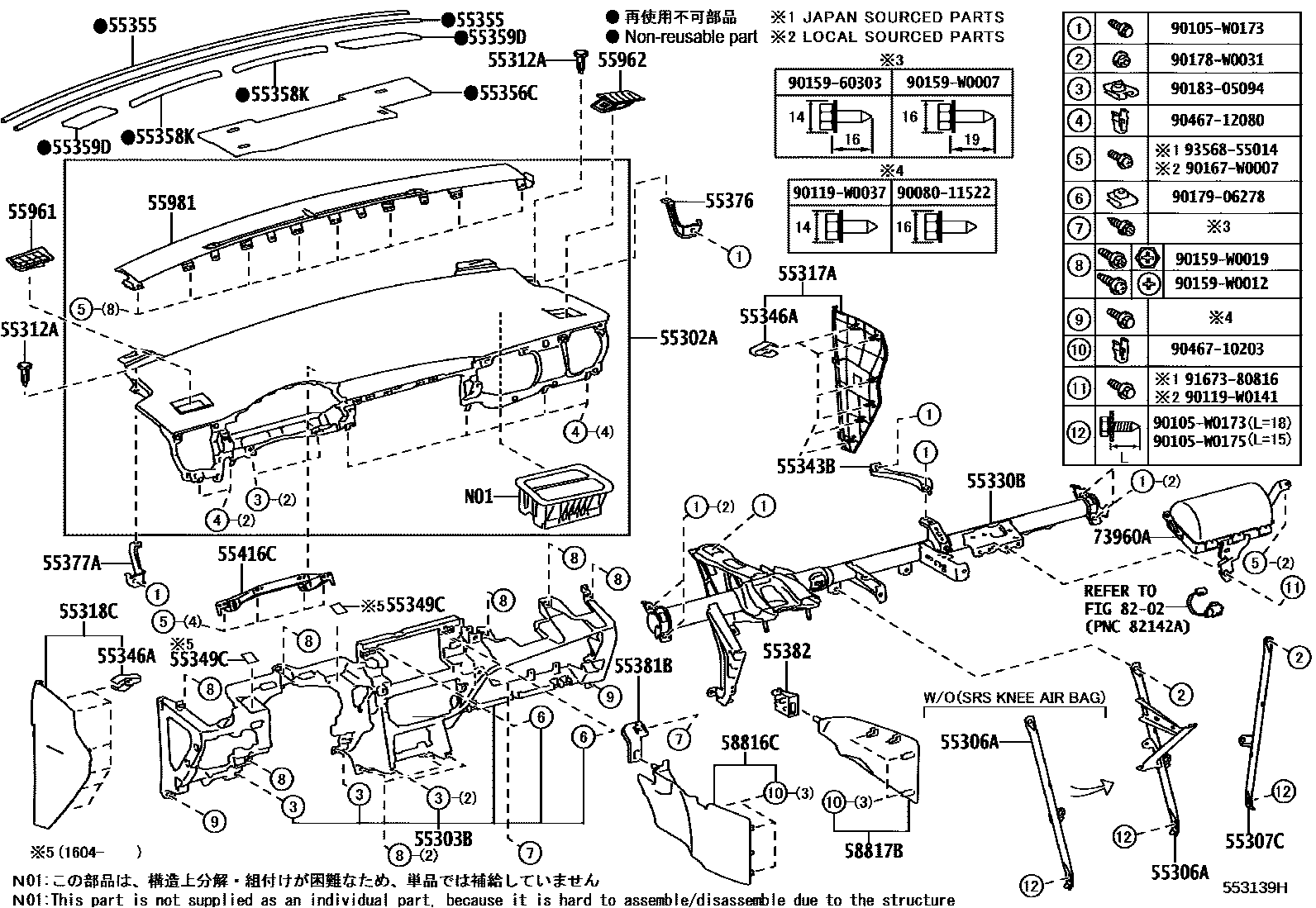

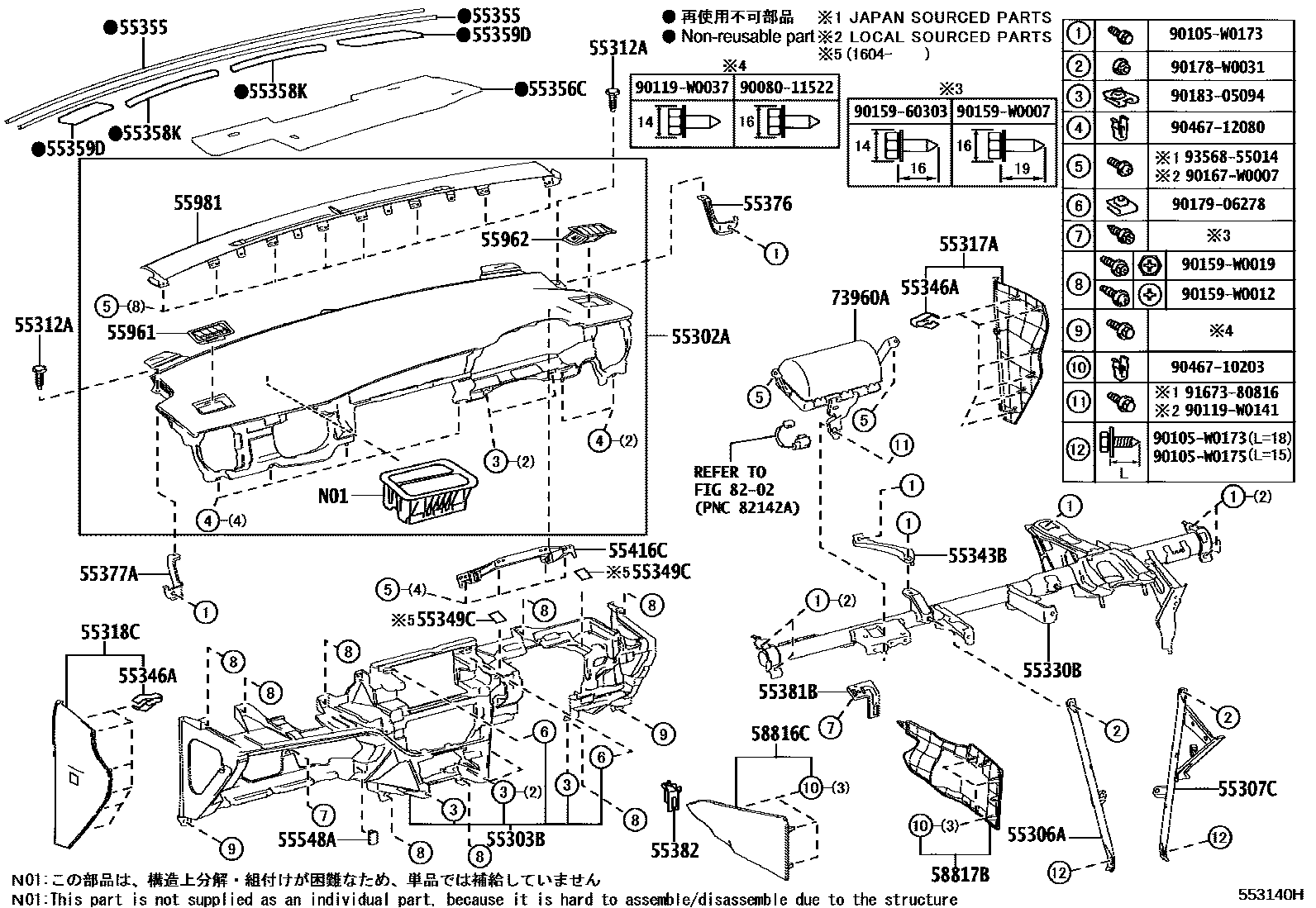

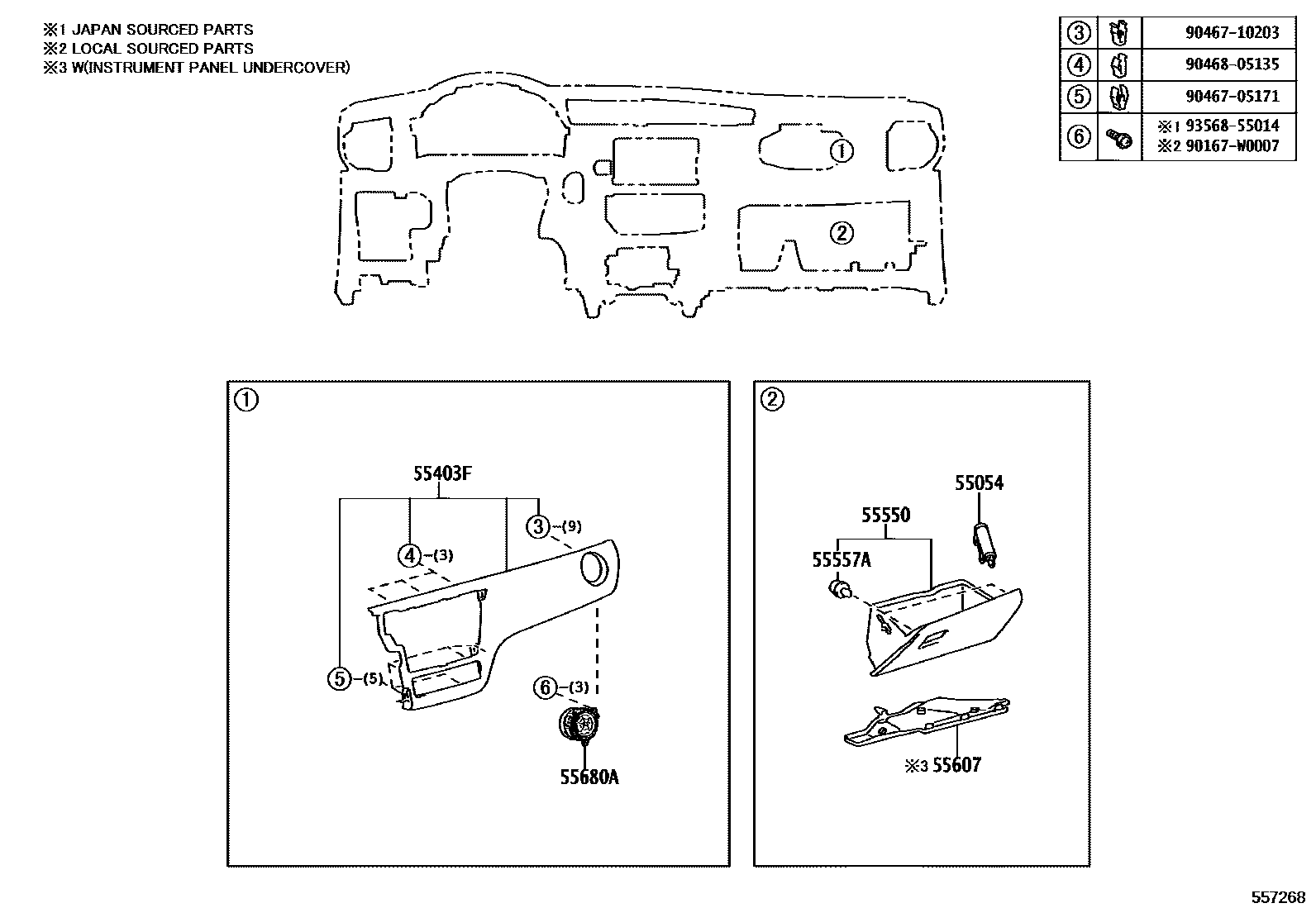

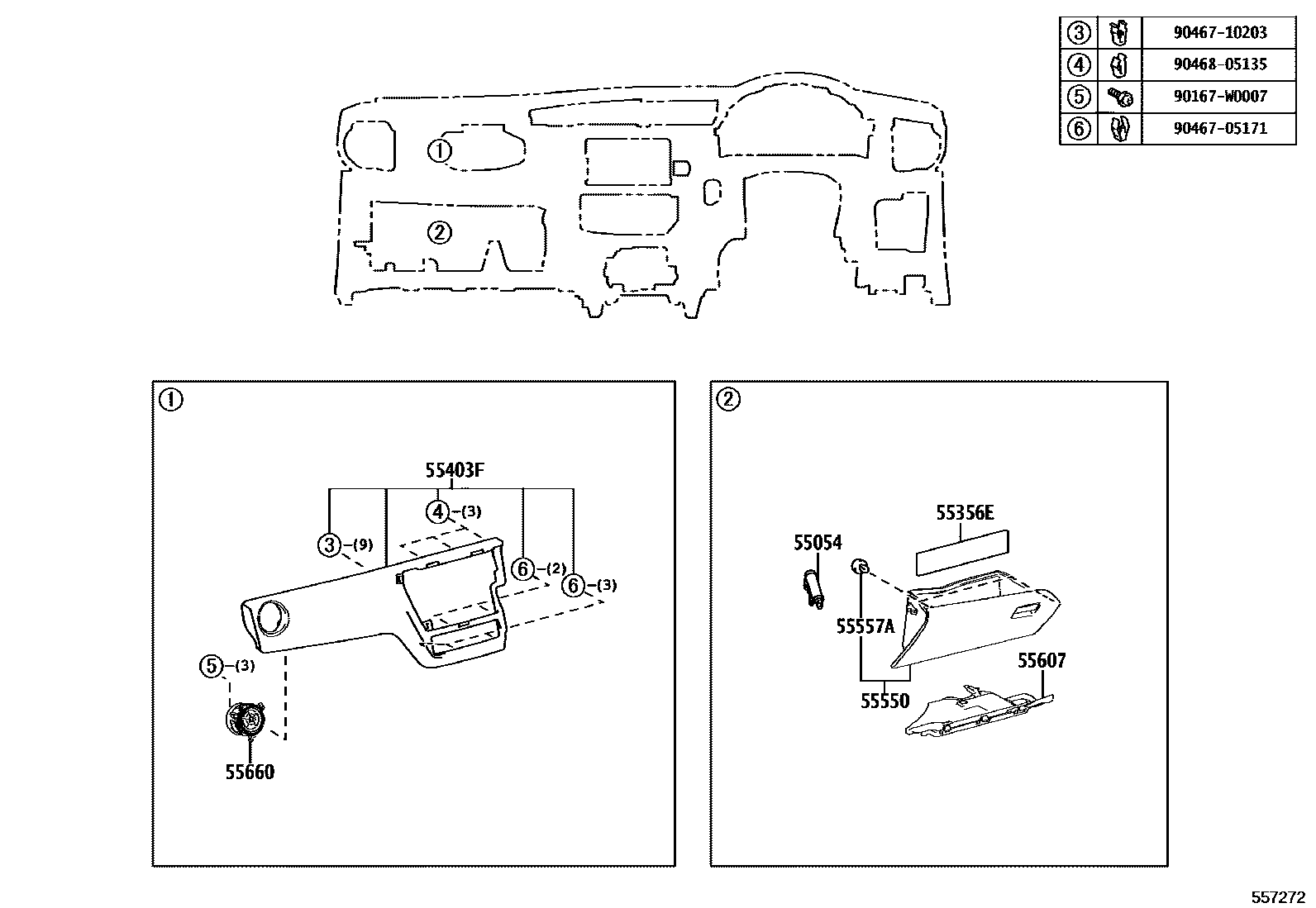

Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 14 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-35010 · 55054-47010 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-02430 · 55306-02440 · 55306-02480 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-02300 · 55307-02310 · 55307-02440 · 55307-02480 |
| 55312A | Dashboard clip | 52161-02030 |
| 55330B | Instrument panel reinforcement assembly | 55330-02320 · 55330-02321 · 55330-02330 · 55330-02331 |
| 55343B | Center bracket (dashboard to cowl) | 55343-02060 |
| 55349A | Dashboard cushion | 58959-60060 |
| 55349C | Dashboard cushion | 55349-02190 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-02090 · 55355-02430 · 55355-02560 · 55355-02570 |
| 55356C | Dashboard No. 2 Cushion Pad | 55356-02090 |
| 55356E | Dashboard No. 2 Cushion Pad | 55356-02450 |
| 55358K | Dashboard No. 4 Cushion Pad | 55358-02150 |
| 55359D | Dashboard No. 5 Cushion Pad | 55359-02160 |
| 55376 | Instrument panel mounting bracket No. 1 | 55376-02040 |
| 55377A | Instrument panel mounting bracket No. 2 | 55377-02040 |
| 55381B | No. 1 decorative panel mounting bracket | 55381-02060 · 55381-02080 |
| 55382 | No. 2 decorative panel mounting bracket | 55382-02040 · 55382-02060 |
| 55405B | Center instrument cluster decorative panel sub-assembly | 55406-02640 · 55406-02650 |
| 55406B | Center instrument cluster lower decorative panel sub-assembly | 55406-02330 · 55406-02340 · 55406-02350 · 55406-02630 |
| 55410C | Instrument cluster decorative panel assembly | 55410-02160 · 55410-02170 |
| 55412D | Center instrument cluster decorative panel | 55412-02470 · 55412-02490 |
| 55416C | Instrument cluster decorative panel fixings | 55416-02060 |
| 55431B | Decorative panel on dashboard | 55431-02070 |
| 55435B | Instrument cluster No. 1 instrument cover | 55435-02450 · 55435-02460 |
| 55445J | Dashboard storage box spring | 55445-02200 · 55445-02290 · 55445-02330 · 55445-02340 |
| 55455B | coin box | 55455-02160 · 55455-02161 |
| 55458E | Clip (for instrument panel lower cover) | 90467-10203 |
| 55521C | stereo system hole cover | 55521-05030 |
| 55557A | Glove box cover limit pad | 55557-60050 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-02160 · 55606-02170 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-02080 · 55607-02090 |
| 55670A | Instrument panel central air register assembly | 55670-02390 · 55670-02400 · 55670-02410 · 55670-02420 · 55670-02580 · 55670-02590 · 55670-02700 |
| 55693 | No. 1 control button protective piece | 55693-02290 |
| 55699 | Dashboard air register control button | 55693-02110 |
| 58959E | Armrest box cover cushion | 58959-60060 |
| 73900 | No. 1 air bag assembly under instrument panel | 73900-02140 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-02130 · 73960-02131 |
