Toyota COROLLA 前翼子板挡泥板和前围板 — Figure 5304

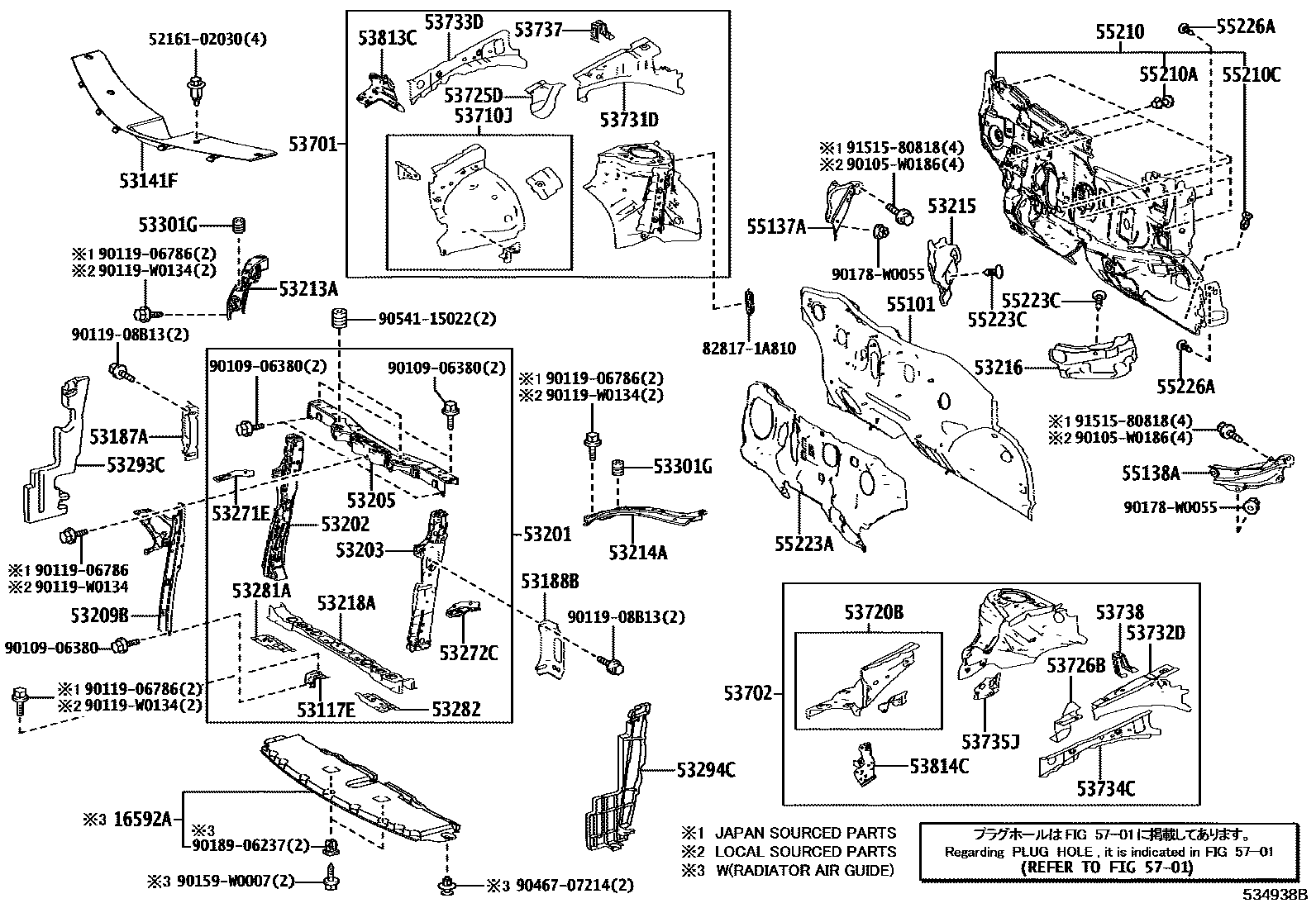

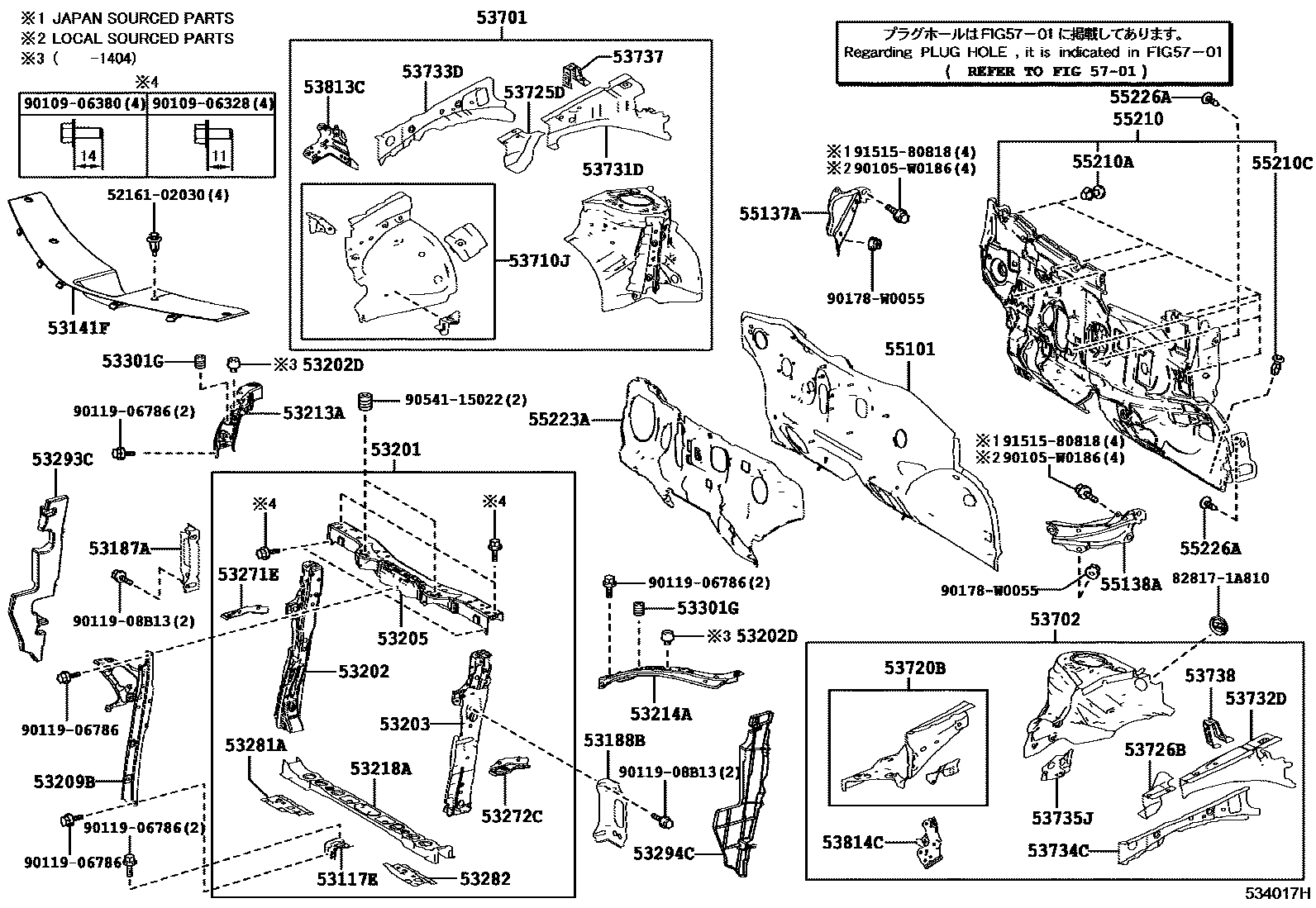

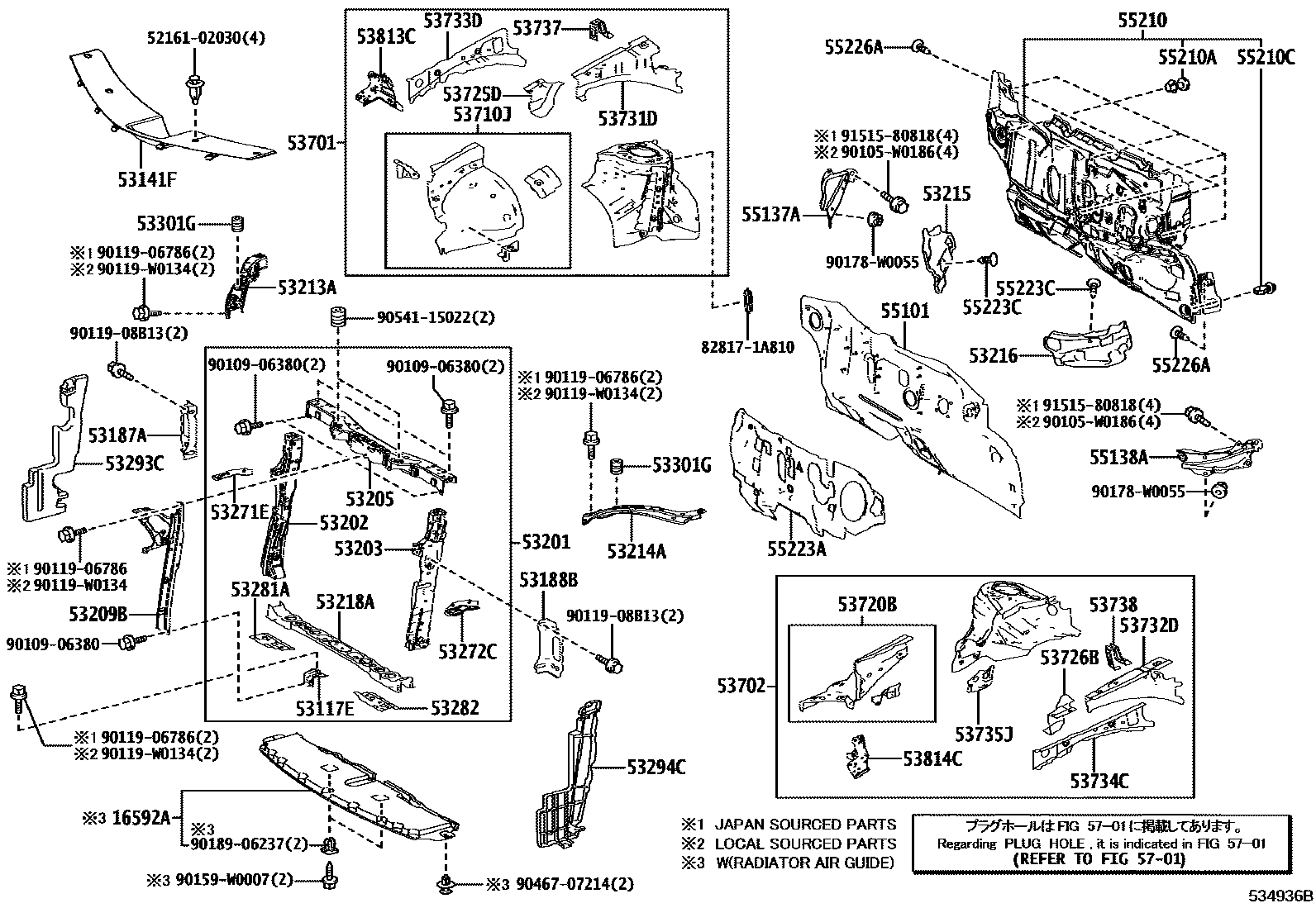

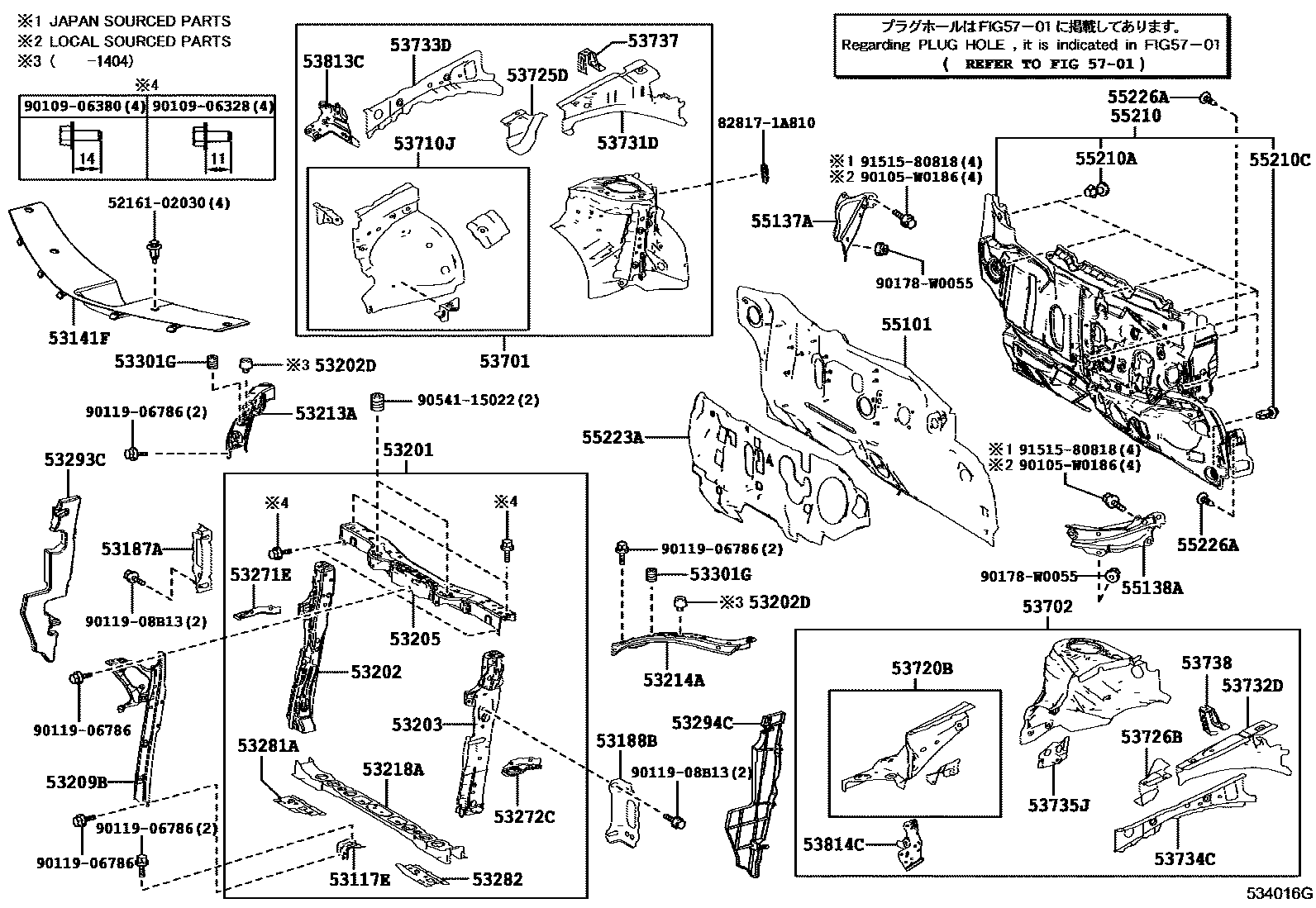

Toyota COROLLA EPC diagram 5304, 前翼子板挡泥板和前围板, with 4 images and 45 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16592A | GUIDE, AIR DU RADIATEUR, NO.3 | 16592-0T120 |
| 53117E | Radiator grille lower bracket | 53117-02020 |
| 53141F | REVETEMENT, RADIATEUR | 53141-02080 |
| 53187A | Radiator right side bracket stay | 53187-02010 |
| 53188B | Radiator left bracket stay | 53188-02010 |
| 53201 | Radiator bracket sub-assembly | 53201-02906 |
| 53202 | Radiator right side bracket sub-assembly | 53202-02140 |
| 53202D | Radiator bracket cushion | 90541-09117 |
| 53203 | Radiator left bracket sub-assembly | 53203-02150 |
| 53205 | Radiator upper bracket sub-assembly | 53205-02230 |
| 53209B | Engine cover lock bracket sub-assembly | 53209-02081 · 53209-02100 |
| 53213A | Radiator upper right bracket | 53107-02030 |
| 53214A | Radiator upper left bracket | 53214-02120 |
| 53215 | Muffler on the right side of the front panel | 55211-02180 |
| 53216 | Silencer on the left side of the front panel | 55212-02010 |
| 53218A | Radiator lower support | 53218-02010 |
| 53271E | Right headlight mounting bracket | 53271-02070 |
| 53272C | Left headlight mounting bracket | 53272-02070 |
| 53281A | Install reinforcement on the right side of the front body | 53281-02010 |
| 53282 | Install reinforcement on the left side of the front body | 53282-02010 |
| 53293C | Radiator right baffle | 53293-02160 · 53293-02240 |
| 53294C | Radiator left baffle | 53294-02160 · 53294-02230 |
| 53301G | engine cover cushion | 53384-50010 |
| 53701 | Right front fender fender sub-assembly | 53701-02300 |
| 53702 | Left front fender fender sub-assembly | 53702-02220 |
| 53710J | Right front fender fender assembly | 53710-02030 |
| 53720B | Left front fender fender assembly | 53720-02030 |
| 53725D | No. 2 front spring bracket right side reinforcement | 53725-02010 |
| 53726B | No. 2 front spring bracket left reinforcement | 53726-02010 |
| 53731D | Right front fender to cowl side upper beam | 53731-02020 |
| 53732D | Left front fender to cowl side upper beam | 53732-02020 |
| 53733D | Right front fender to cowl side front lower beam | 53733-02010 |
| 53734C | Left front fender to cowl side front lower beam | 53734-02010 |
| 53735J | No. 5 front fender fender liner | 53735-02010 |
| 53737 | Right front fender to front wall side sill | 53737-02140 |
| 53738 | Left front fender to front wall side sill | 53738-02110 |
| 53813C | Right front fender extension | 53813-02120 |
| 53814C | Left front fender extension | 53814-02120 |
| 55101 | Front apron sub-assembly | 55101-05560 · 55101-05570 · 55101-05580 · 55101-05590 |
| 55137A | Right side bracket (front wall to frame) | 55137-02090 · 55137-02140 · 55137-02141 |
| 55138A | Left side bracket (front wall to frame) | 55138-02080 · 55138-02130 · 55138-02131 |
| 55210 | Front wall insulation pad assembly | 55210-02450 · 55210-02470 · 55210-02610 · 55210-02630 |
| 55210A | clip | 90467-11122 |
| 55210C | clip | 90467-11127 |
| 55223A | Front wall outer heat insulation pad | 55223-05090 · 55223-05100 |
