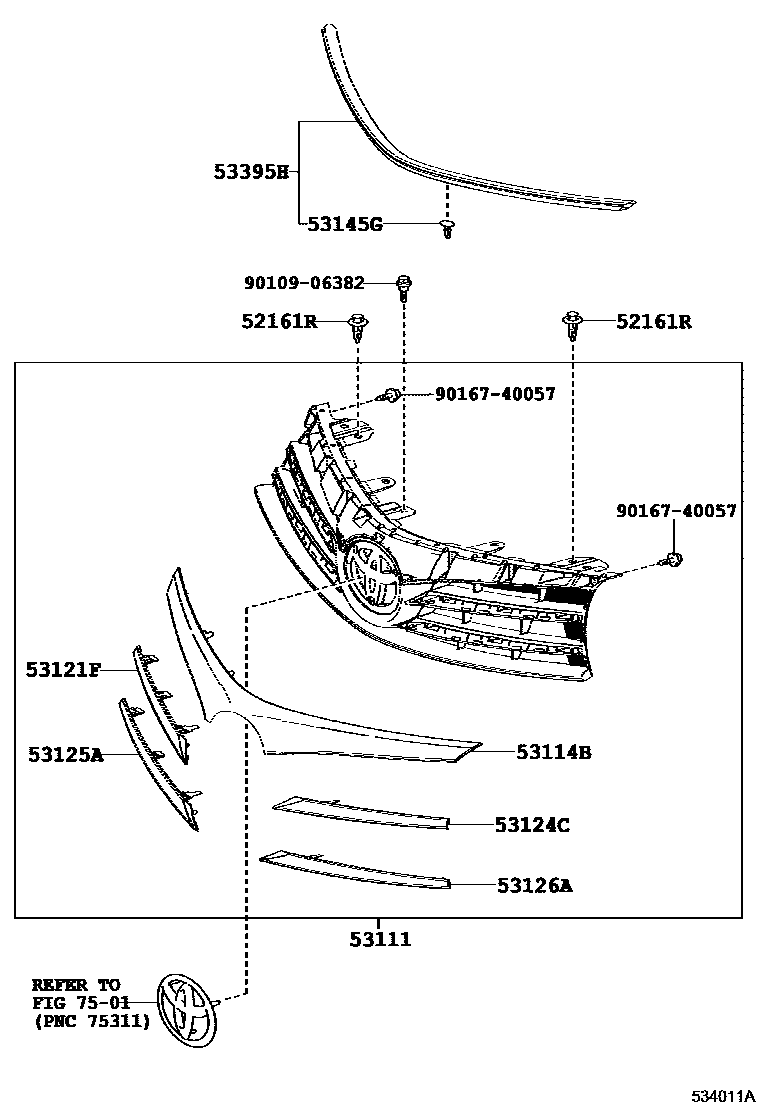

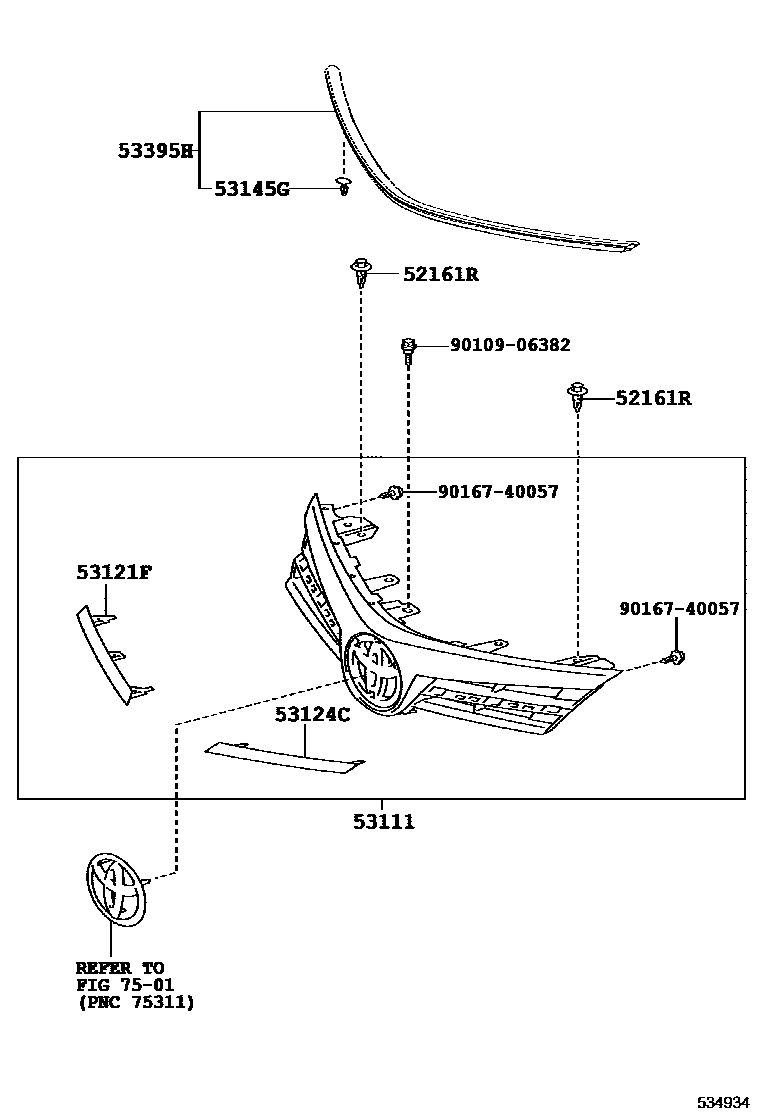

Toyota COROLLA radiator grille — Figure 5301
Toyota COROLLA EPC diagram 5301, radiator grille, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161R | front bumper insert | 52161-02030 |
| 53111 | radiator grille | 53100-02590 · 53100-02610 · 53100-02690 · 53100-02700 |
| 53114B | Upper radiator grille | 53114-02270 · 53114-02290 |
| 53121F | Radiator grille upper right protective strip | 53121-02180 · 53121-02190 · 53121-02330 |
| 53124C | Radiator grille upper left protective strip | 53124-02170 · 53124-02180 · 53124-02320 |
| 53125A | Radiator grille right center protective strip | 53125-02040 · 53125-02050 |
| 53126A | Radiator grille left middle protective strip | 53126-02060 · 53126-02070 |
| 53145G | Radiator grille clip | 53145-60030 |
| 53395H | Engine cover to radiator grille seal | 53395-02100 |
