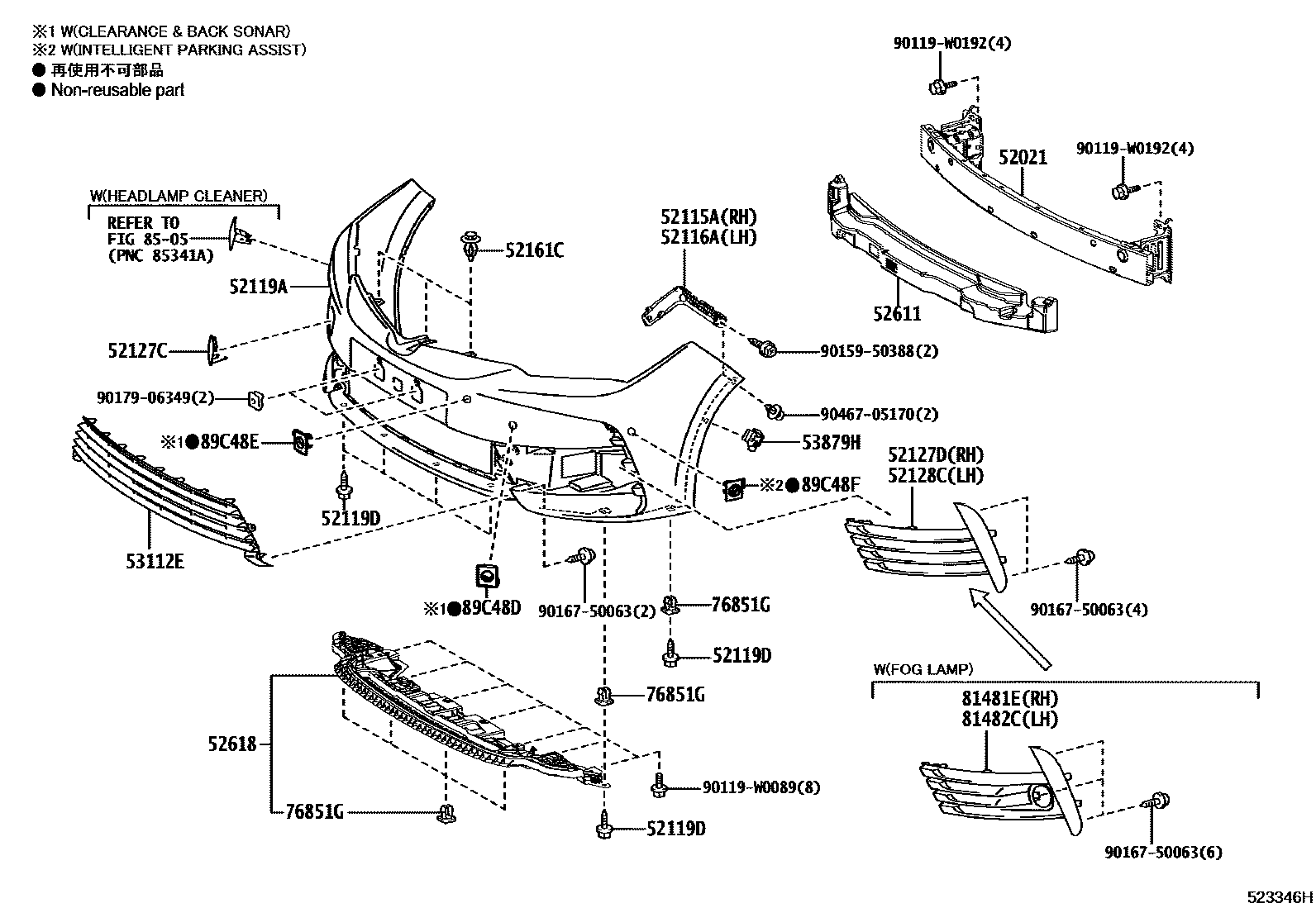

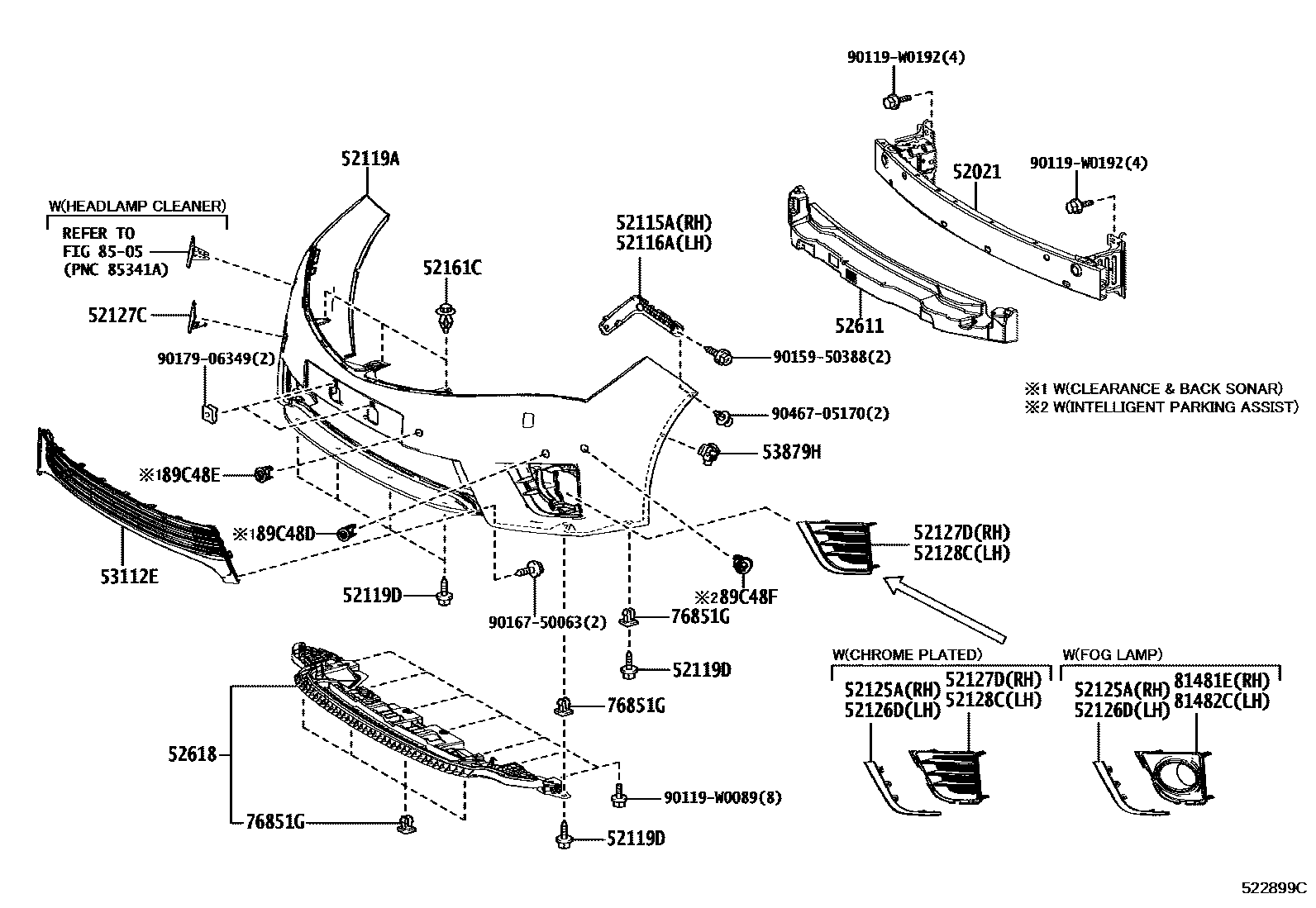

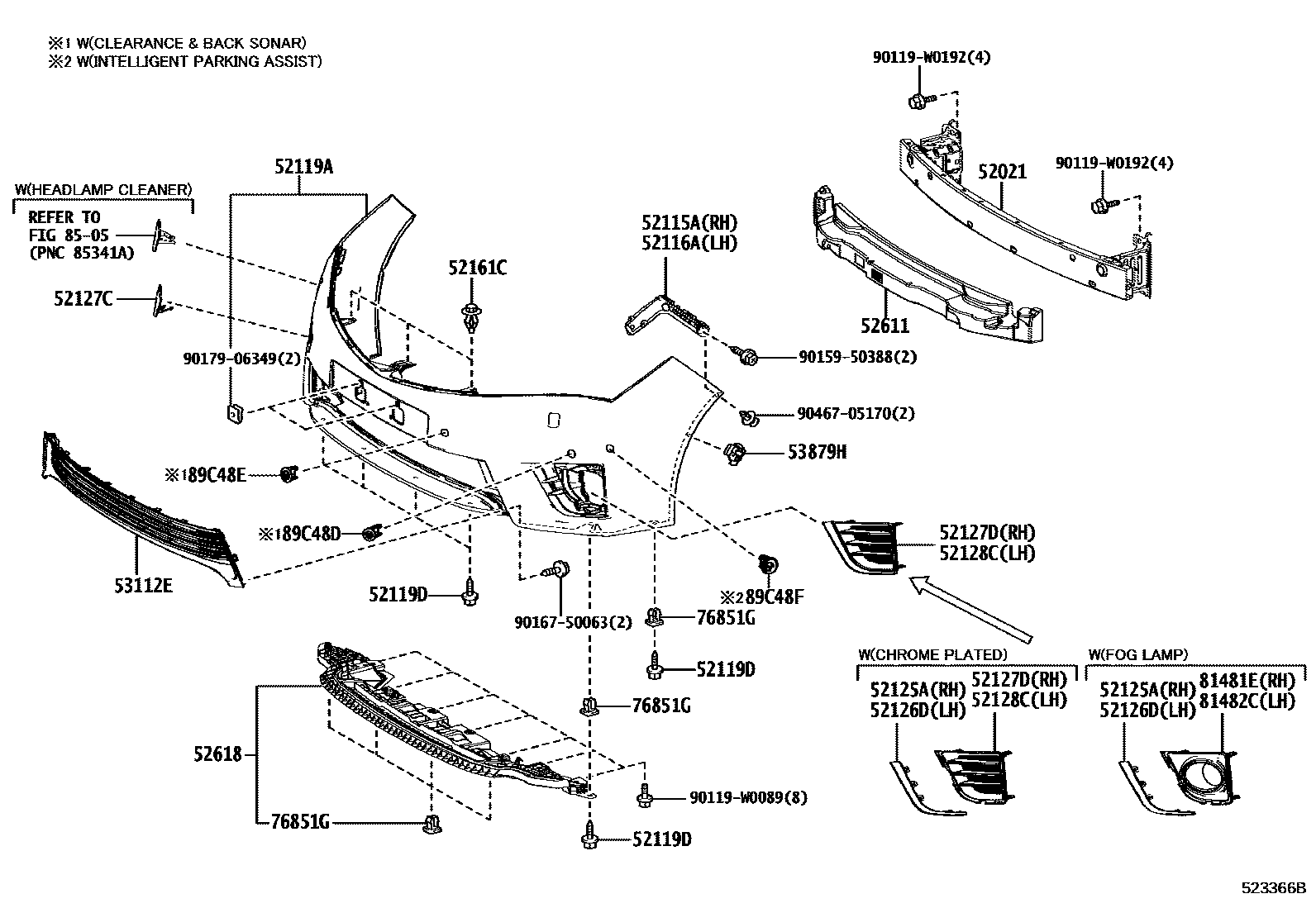

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 3 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52021 | Front bumper reinforcement sub-assembly | 52021-02230 · 52021-02310 |
| 52115A | Front bumper right side bracket | 52115-02250 · 52115-02360 |
| 52116A | Front bumper left bracket | 52116-02250 · 52116-02350 |
| 52119A | front bumper cover | 52119-0Z927 · 52119-0Z928 · 52119-0Z929 · 52119-0Z930 · 52119-0Z966 · 52119-0Z967 · 52119-0Z970 · 52119-0Z971 · 52119-0Z972 · 52119-0Z973 · 52119-0Z974 · 52119-0Z975 · 52119-0Z989 · 52119-0Z991 · 52119-0Z993 · 52119-0Z995 · 52119-0Z997 · 52119-0Z999 |
| 52119D | VIS, NO.1 | 90159-60488 |
| 52125A | Right fog light mounting bracket | 52125-02150 |
| 52126D | Left fog light mounting bracket | 52126-02140 |
| 52127C | Front bumper hole cover | 52127-02921 · 52127-02930 |
| 52127D | Front bumper right hole cover | 81481-02370 · 81481-02420 · 81481-02610 · 81481-02620 |
| 52128C | Front bumper left hole cover | 81482-02360 · 81482-02410 · 81482-02600 · 81482-02610 |
| 52161C | front bumper insert | 52161-02030 |
| 52611 | front bumper energy absorber | 52611-02290 · 52611-02390 |
| 52618 | Front bumper lower shock absorber | 52618-02070 · 52618-02071 |
| 53112E | No. 1 radiator lower grille | 53112-02470 · 53112-02690 · 53112-02700 |
| 53879H | Front fender lining fixing parts | 53879-50020 |
| 76851G | RONDELLE, VIS, NO.1 | 90189-06237 |
| 81481E | Right fog light cover | 81481-02400 · 81481-02630 |
| 81482C | Left fog light cover | 81482-02390 · 81482-02620 |
| 89C48D | ARRETOIR, CAPTEUR A ULTRASONS, D'ANGLE AVANT | 89348-02260 |
| 89C48E | ARRETOIR, CAPTEUR A ULTRASONS, CENTRAL AVANT | 89348-02260 |
