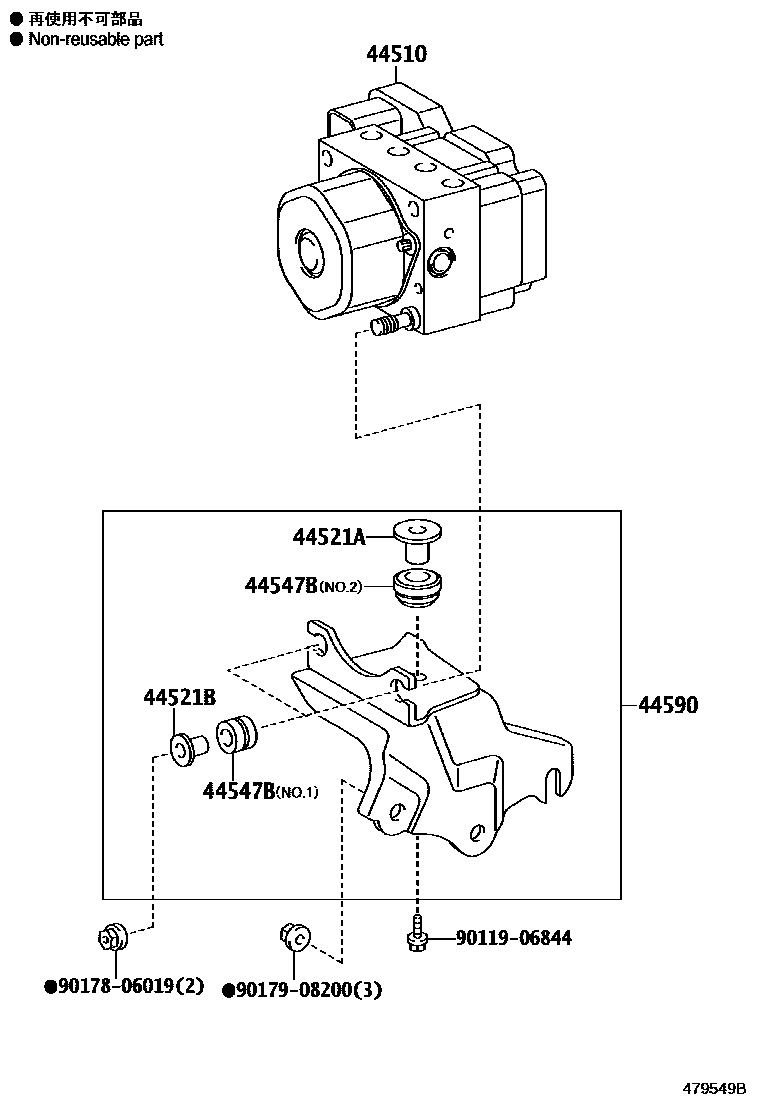

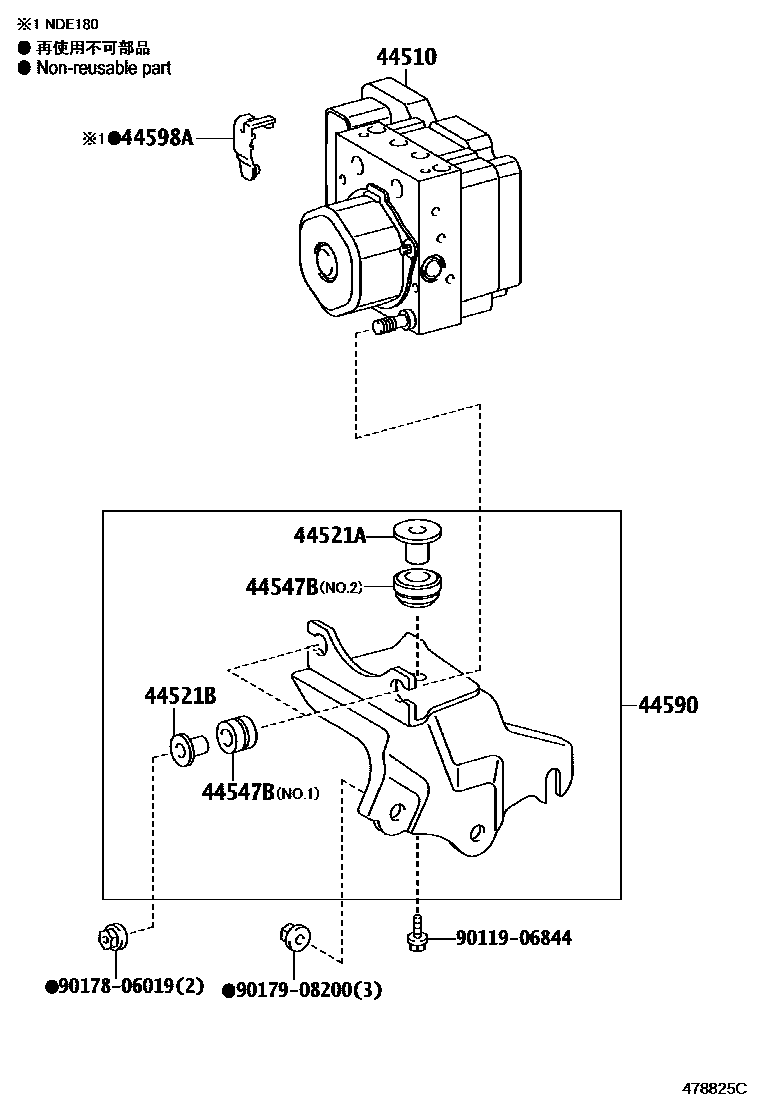

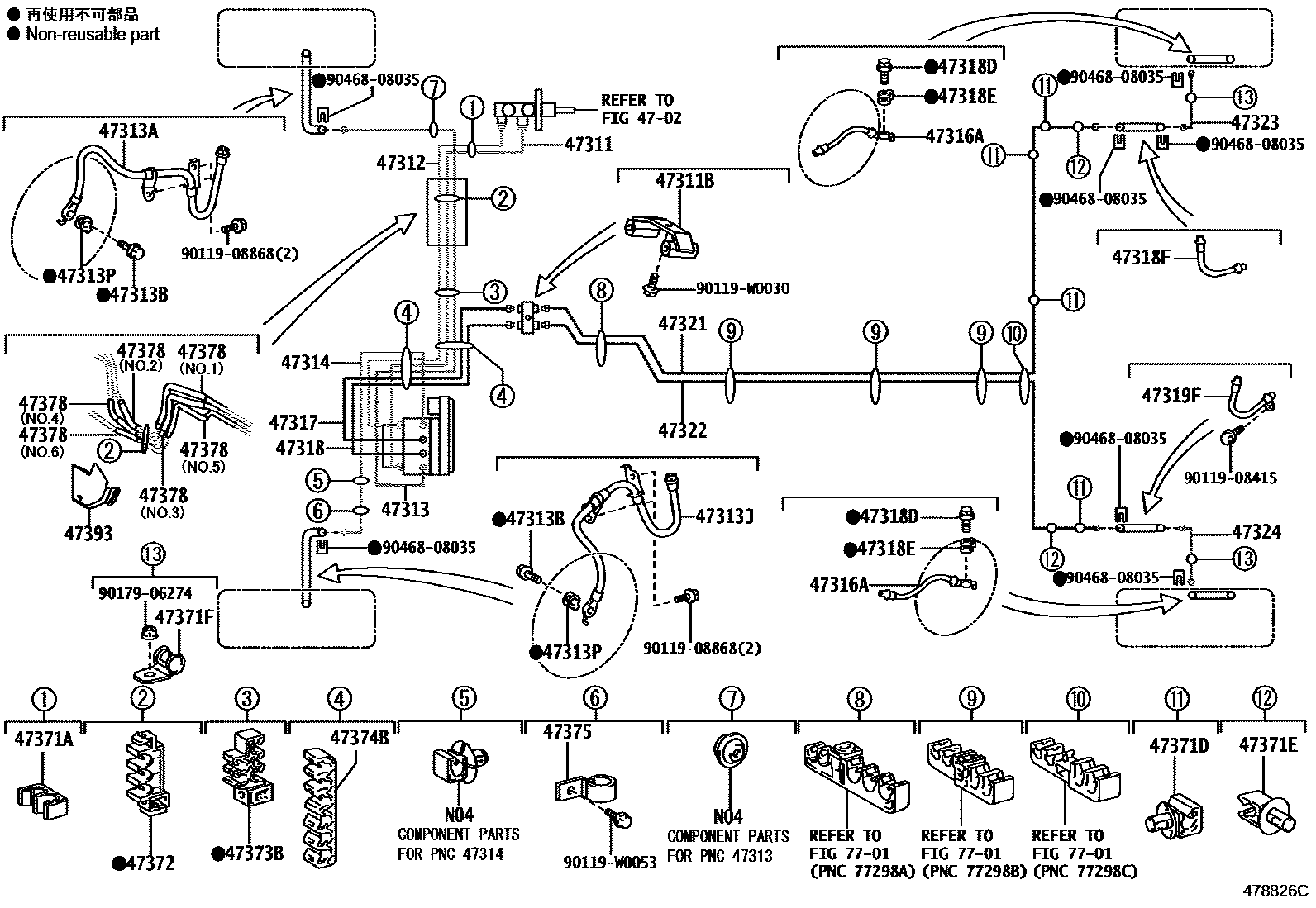

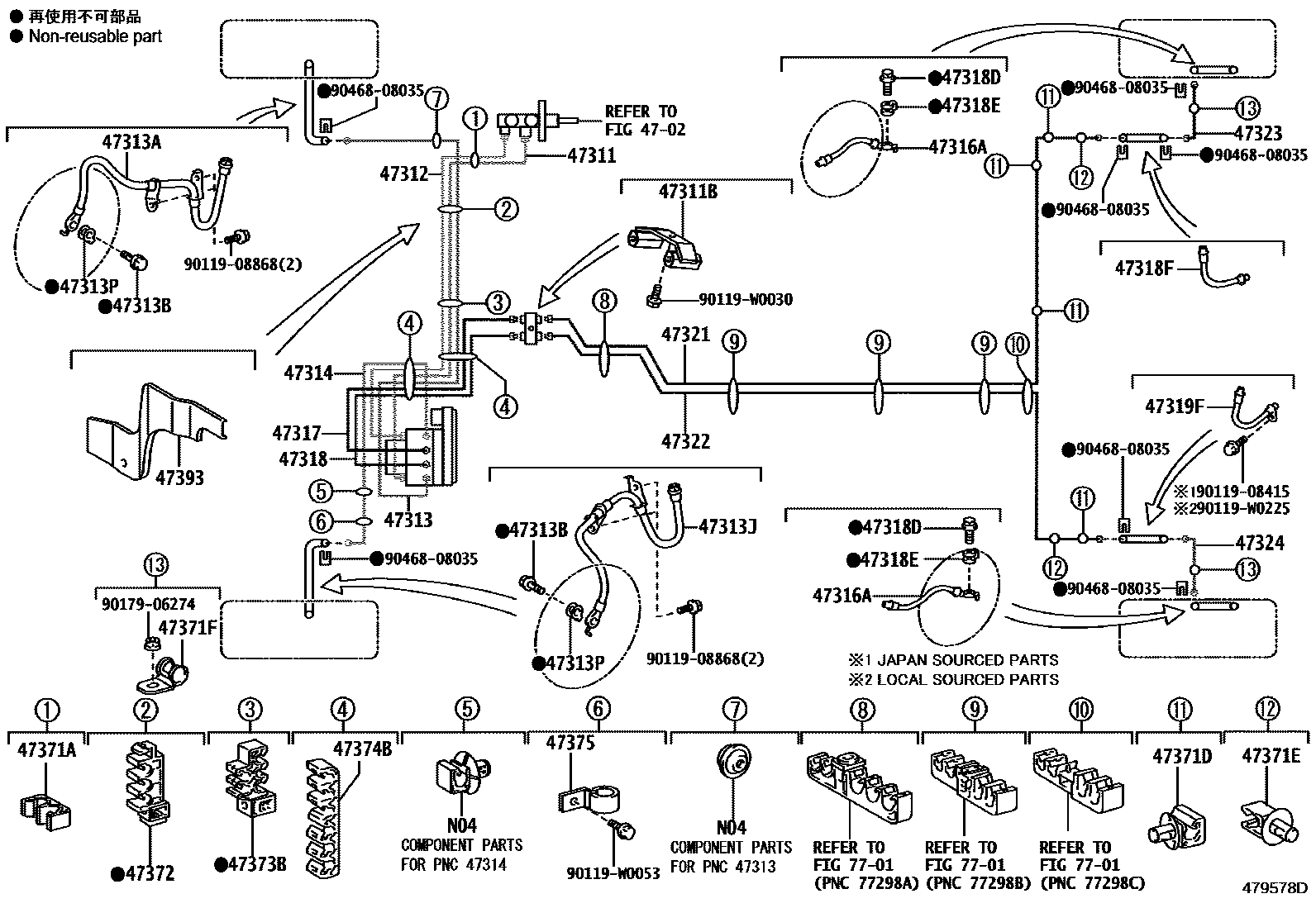

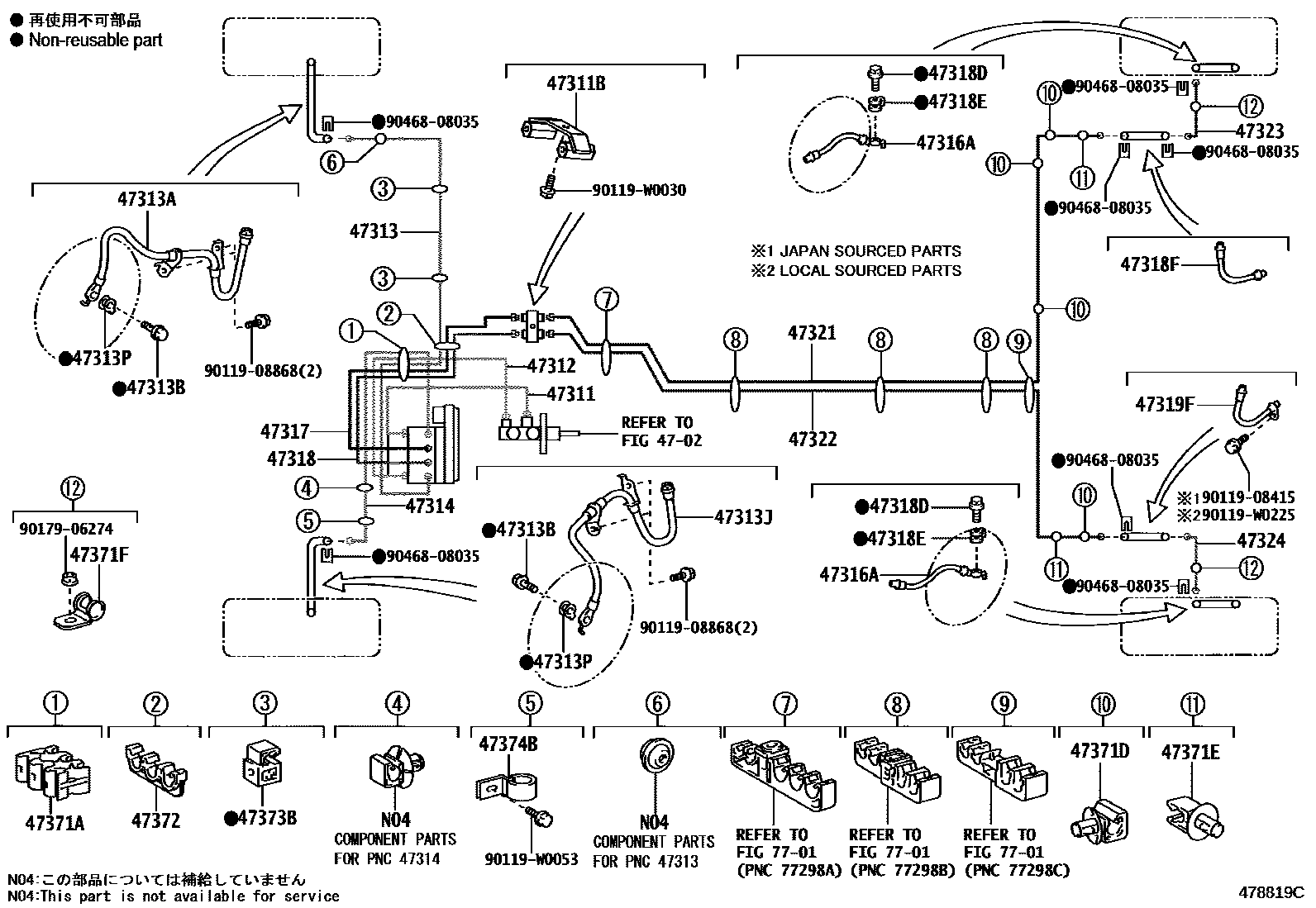

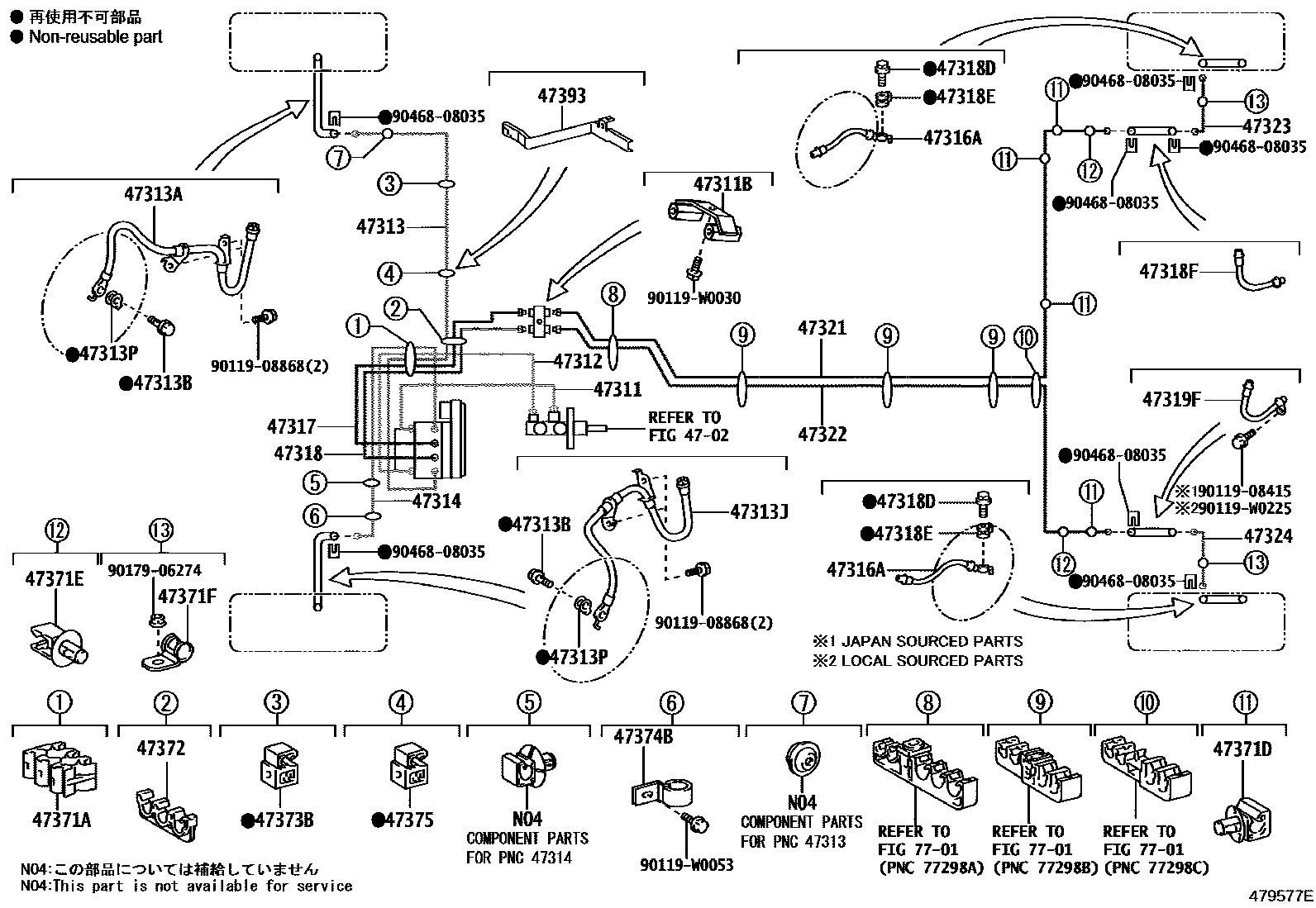

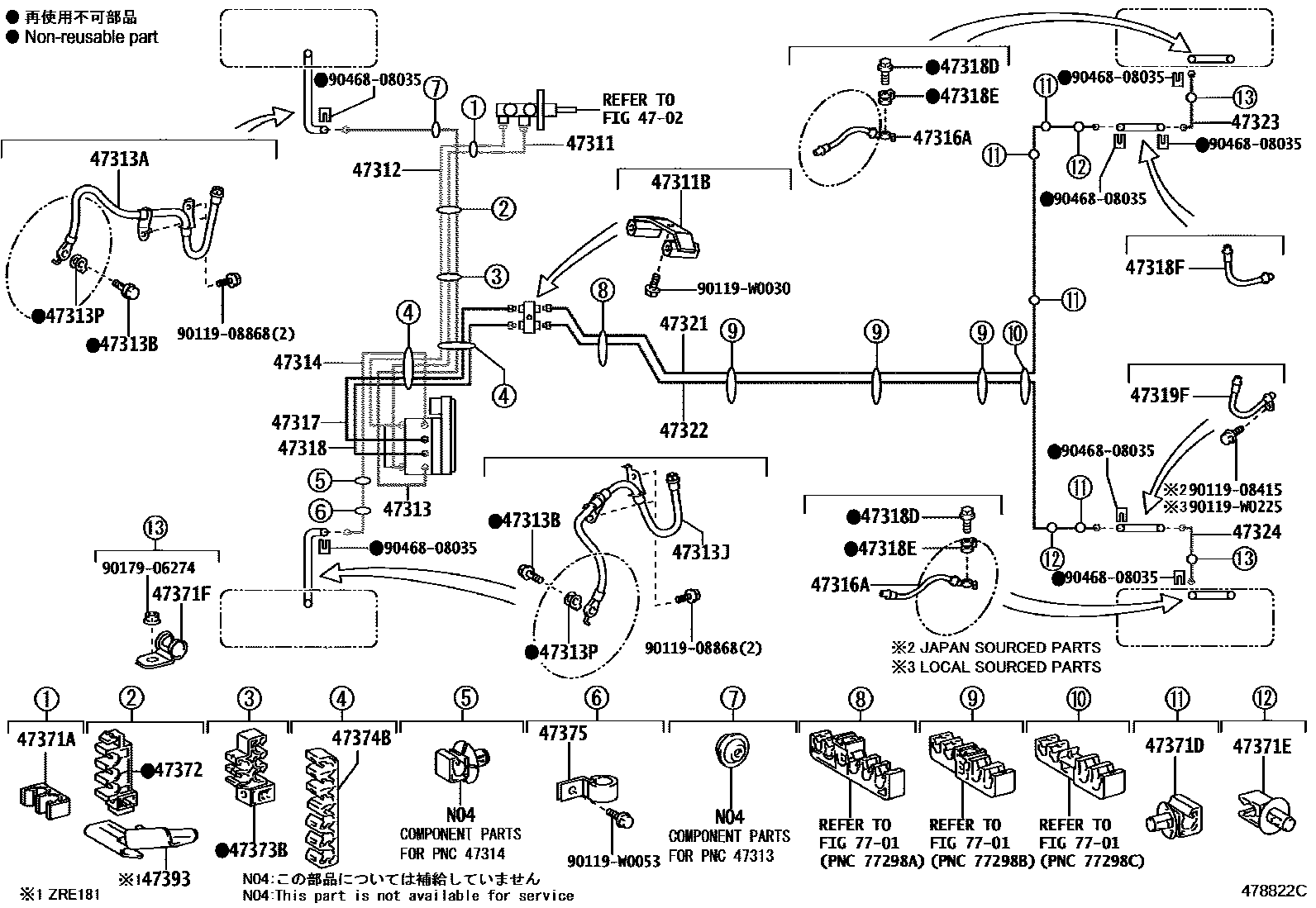

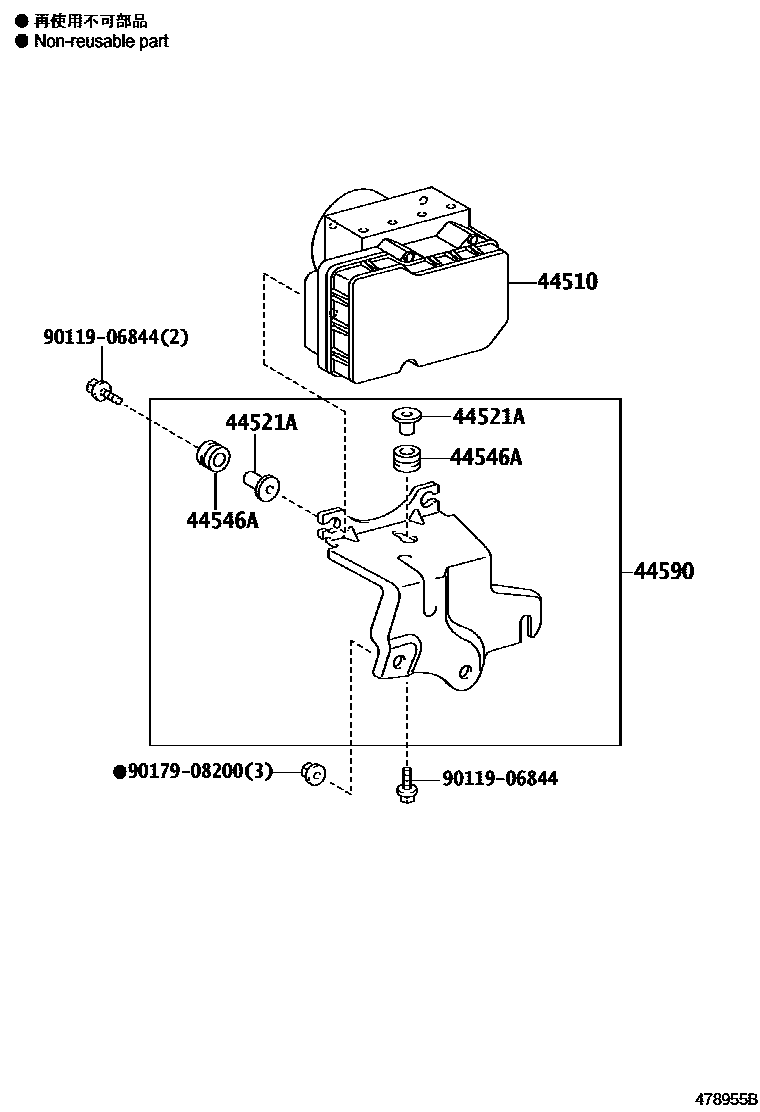

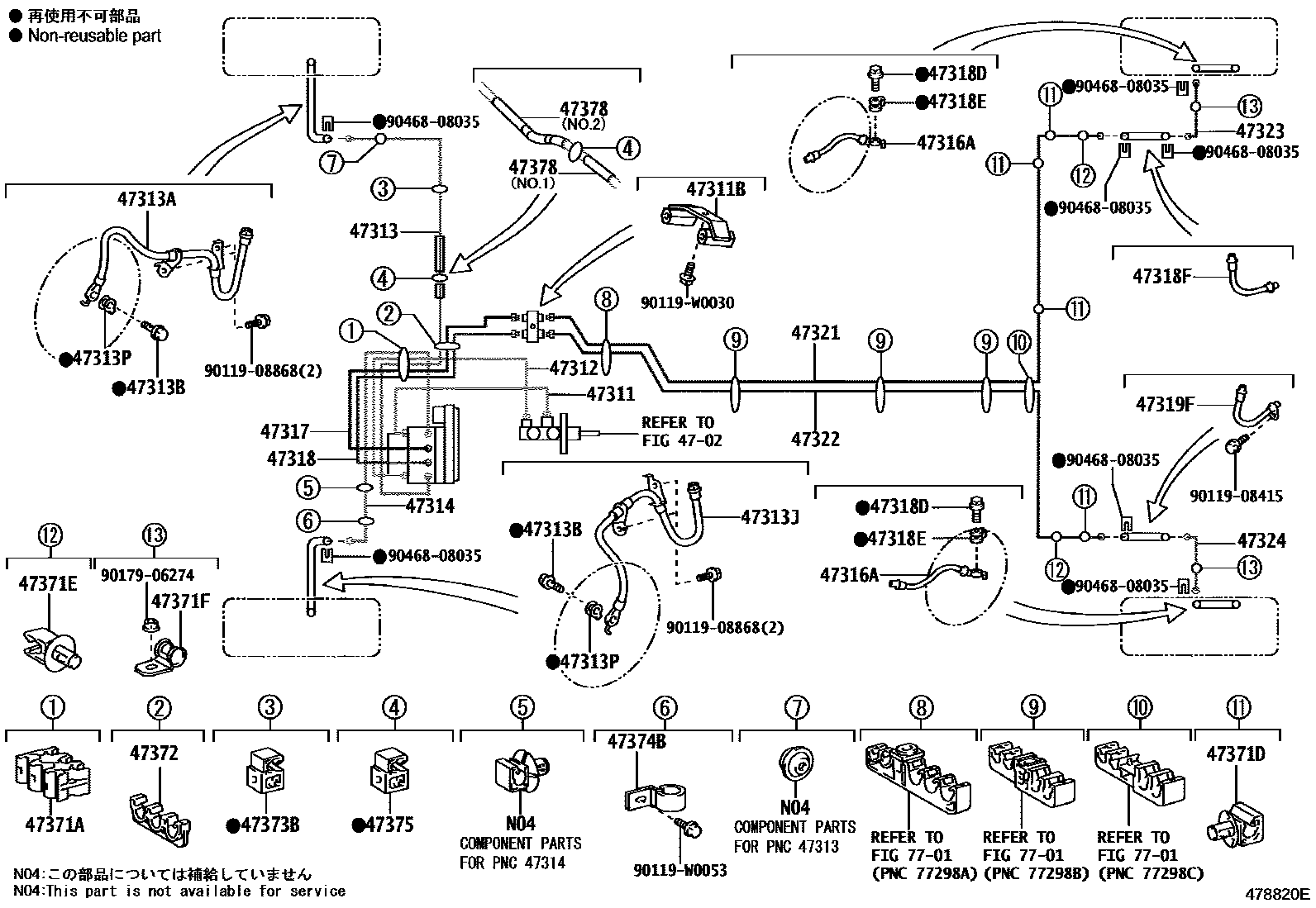

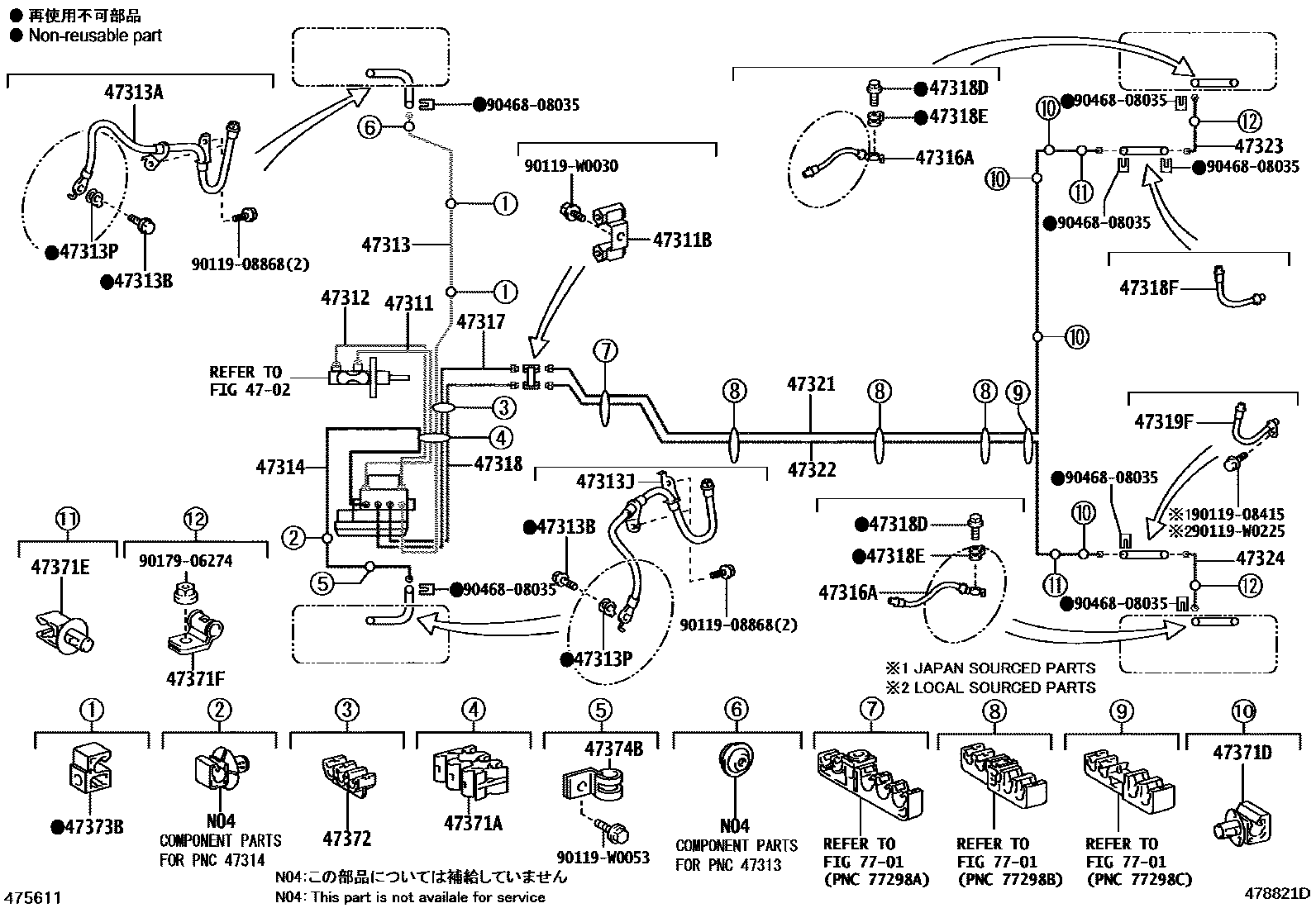

Toyota COROLLA 制动配管和卡箍 — Figure 4708
Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 10 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-02720 · 44050-02740 · 44050-02A10 · 44050-02B10 · 44050-02B20 · 44050-12B90 |
| 44521A | COLLIER, BOITIER ACTIONNEUR FREIN, NO.1 | 44521-05010 · 44521-12050 · 44521-12060 |
| 44521B | COLLIER, BOITIER ACTIONNEUR FREIN, NO.2 | 44521-05020 · 44521-12070 |
| 44546A | Brake actuator bolt cushion | 44546-12110 |
| 44547B | brake actuator bracket cushion | 44547-02030 · 44547-12010 |
| 44590 | Brake actuator bracket assembly | 44590-02300 · 44590-02310 · 44590-12100 |
| 44598A | brake actuator cover | 44598-12010 |
| 47311 | No. 1 front brake pipe | 47311-02830 · 47311-02831 · 47311-02840 · 47311-02841 · 47311-02860 · 47311-02861 · 47311-02B30 · 47311-02B31 · 47311-02B60 · 47311-02B61 · 47311-02B70 · 47311-02B71 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10285 |
| 47312 | No. 2 front brake pipe | 47312-02690 · 47312-02691 · 47312-02700 · 47312-02720 · 47312-02A00 · 47312-02A01 · 47312-02A30 · 47312-02A31 · 47312-02A40 · 47312-02A41 · 47312-02B20 · 47312-02B30 |
| 47313 | No. 3 front brake pipe | 47313-02680 · 47313-02681 · 47313-02A20 · 47313-02A21 · 47313-02A30 · 47313-02A50 · 47313-02C80 · 47313-02C90 |
| 47313A | No. 1 front flexible hose | 90947-W2042 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313J | No. 2 front flexible hose | 90947-W2043 |
| 47313P | Gasket (for front flex hose) | 47389-50020 |
| 47314 | No. 4 front brake pipe | 47314-02830 · 47314-02831 · 47314-02840 · 47314-02860 · 47314-02B30 · 47314-02B31 · 47314-02C30 · 47314-02C40 |
| 47316A | Flexible hose (for rear brake pipe) | 90947-W2044 |
| 47317 | No. 7 front brake pipe | 47317-02770 · 47317-02771 · 47317-02780 · 47317-02800 · 47317-02A70 · 47317-02A71 · 47317-02B70 · 47317-02B80 |
| 47318 | No. 8 front brake pipe | 47318-02790 · 47318-02791 · 47318-02800 · 47318-02820 · 47318-02A90 · 47318-02A91 · 47318-02B90 · 47318-02C00 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50020 |
| 47318F | Right rear flexible hose | 90947-W2045 |
| 47319F | Left rear flexible hose | 90947-W2046 |
| 47321 | No. 1 rear brake pipe | 47321-02410 · 47321-02411 |
| 47322 | No. 2 rear brake pipe | 47322-02410 · 47322-02411 |
| 47323 | No. 3 rear brake pipe | 47323-0F020 · 47323-0F030 |
| 47324 | No. 4 rear brake pipe | 47324-0F020 · 47324-0F030 |
| 47371A | No. 1 brake pipe clamp | 90464-00899 · 90464-00933 · 90949-01969 · 90949-01D99 · 90949-01E21 · 90949-01E23 · 90949-01E44 |
| 47371D | No. 8 brake pipe clamp | 90949-01D17 |
| 47371E | No. 9 brake pipe clamp | 90949-01D29 |
| 47371F | No. 10 brake pipe clamp | 90461-10843 |
| 47372 | No. 2 brake pipe clamp | 90464-00868 · 90949-01D72 · 90949-01D92 · 90949-01E24 |
| 47373B | No. 3 brake pipe clamp | 90949-01C82 · 90949-01D43 · 90949-01E18 · 90949-01E20 |
| 47374B | No. 4 brake pipe clamp | 90461-10843 · 90464-00892 · 90949-01E22 |
| 47375 | No. 5 brake pipe clamp | 90461-10843 · 90949-01D78 · 90949-01E19 |
| 47378 | Brake pipe guard | 47378-02060 · 47378-02070 · 47378-02080 · 47378-02090 · 47378-02100 · 47378-02110 · 47378-02120 · 47378-02130 |
| 47393 | brake pipe heat shield | 47393-12010 · 47393-12020 · 47393-12040 · 47393-20030 |
