Toyota COROLLA 制动助力器和真空管 — Figure 4703

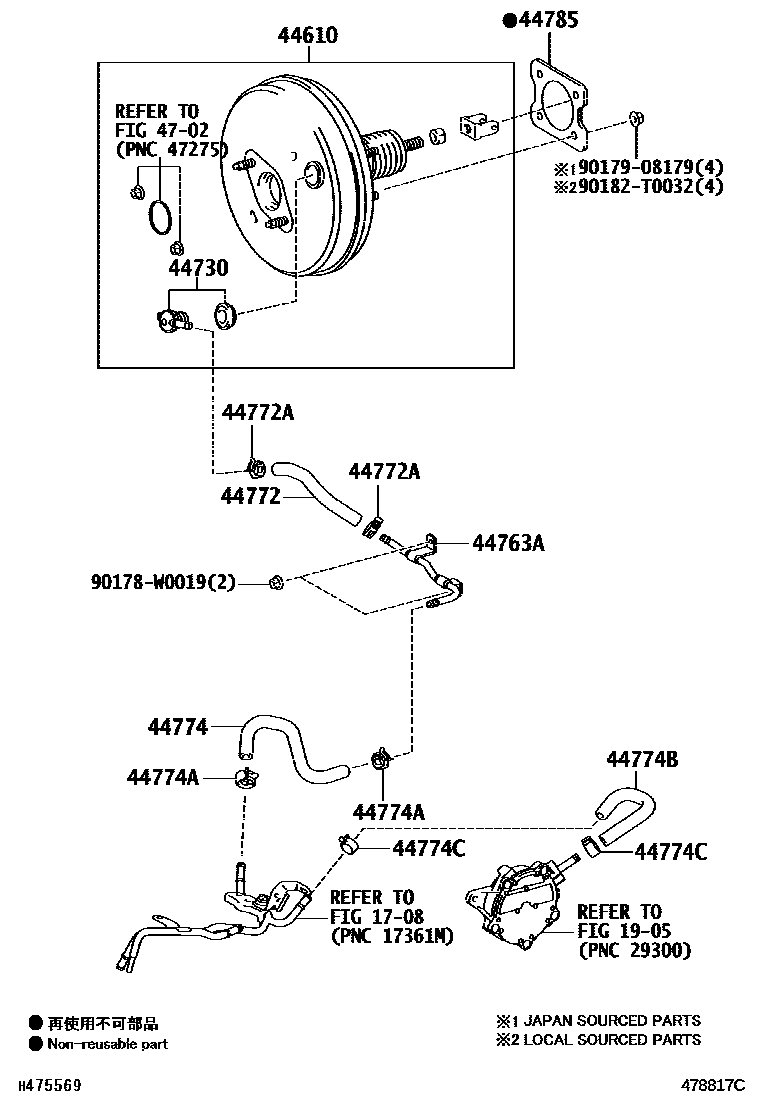

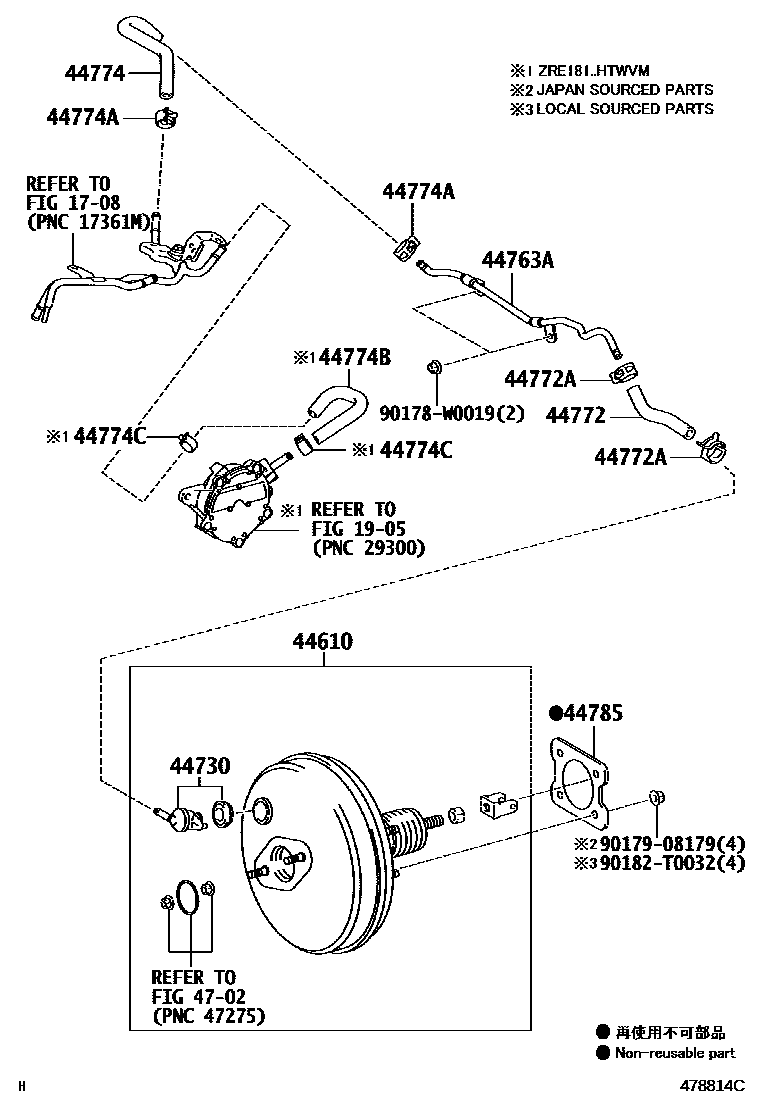

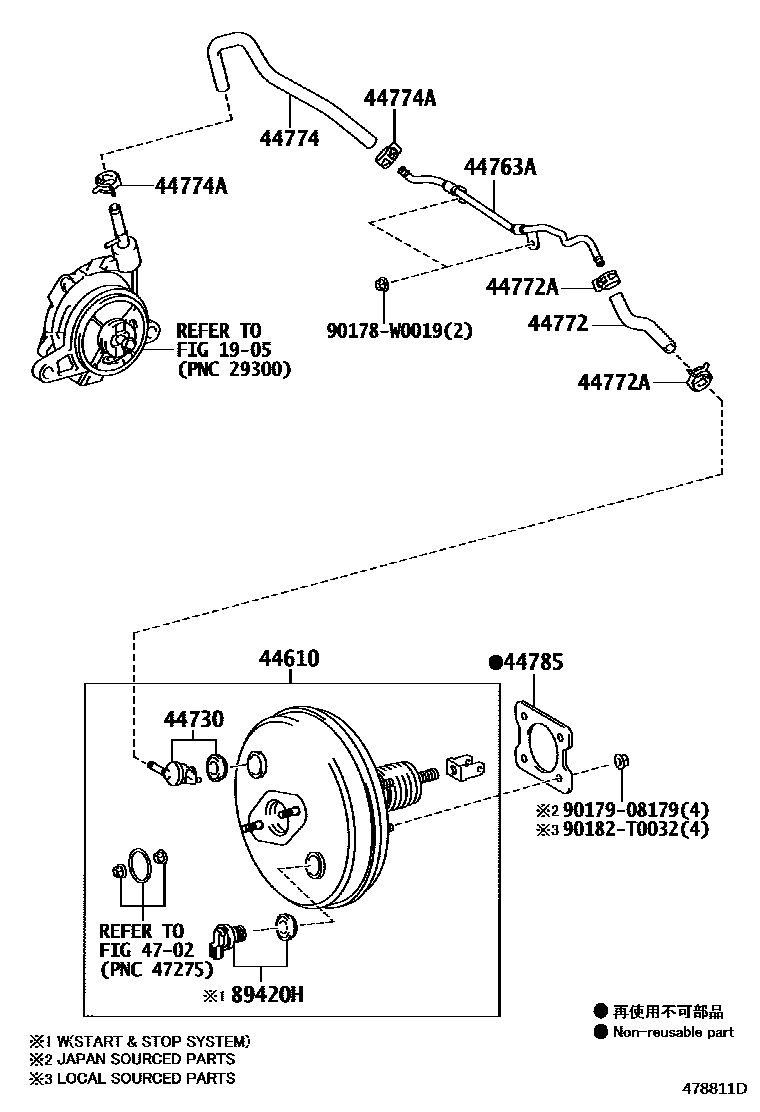

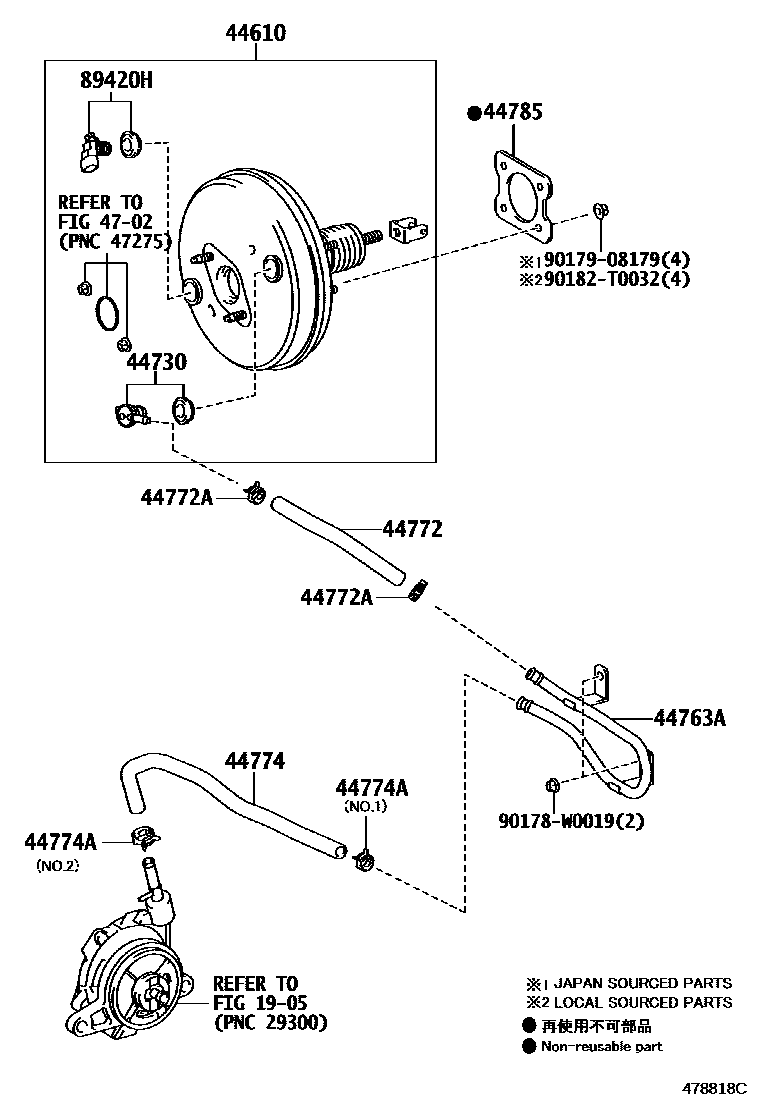

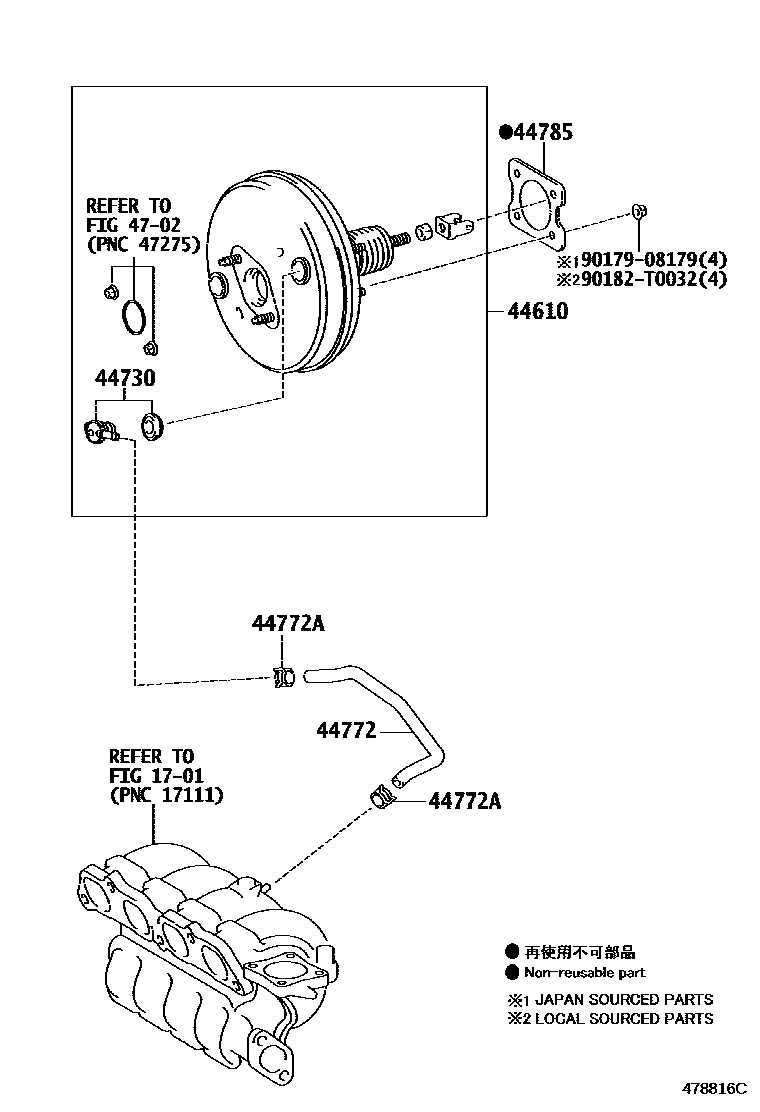

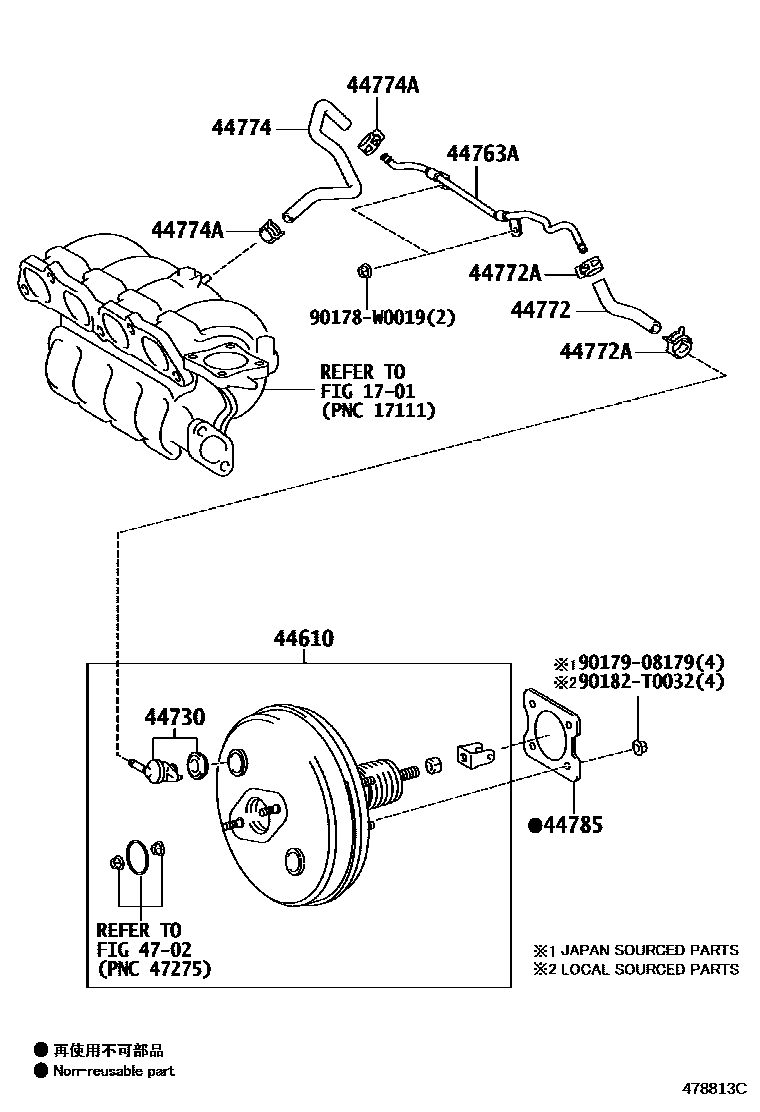

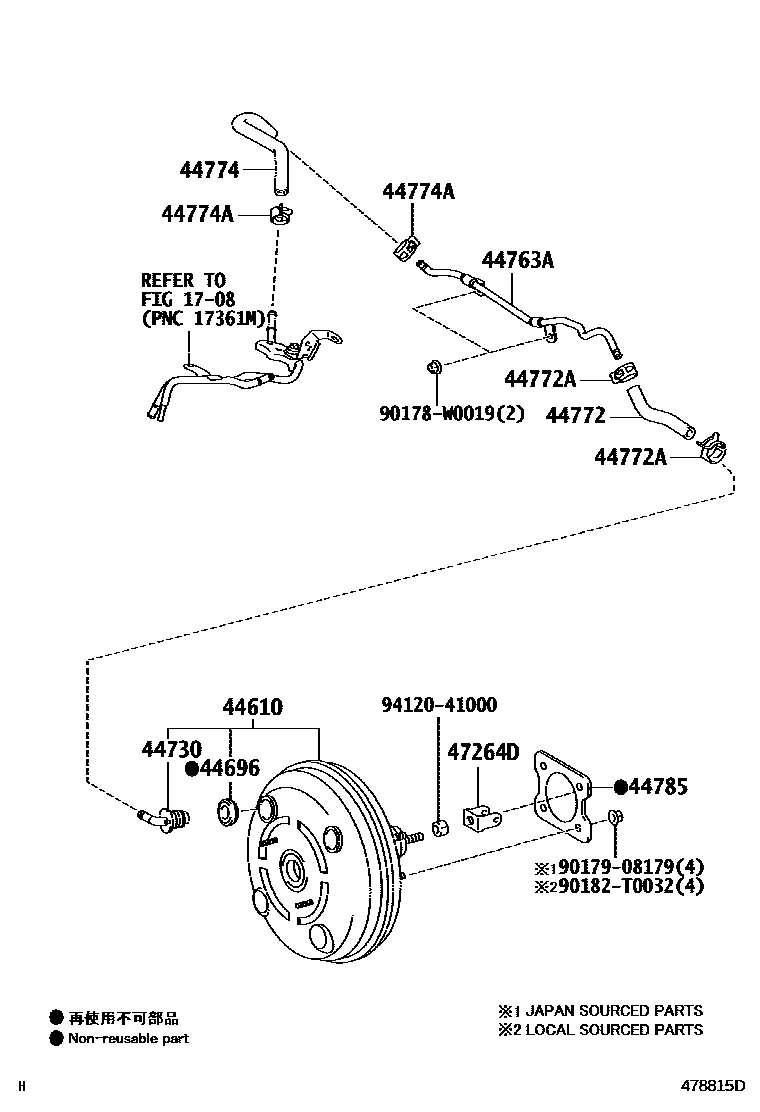

Toyota COROLLA EPC diagram 4703, 制动助力器和真空管, with 7 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-09A30 · 44610-09A40 · 44610-09A50 · 44610-09A70 · 44610-09A80 · 44610-09D10 · 44610-09D20 · 44610-09D30 · 44610-09D40 · 44610-09D50 · 44610-09D60 · 44610-12L30 |
| 44696 | One-way valve seal | 90480-24439 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-09020 · 44730-20170 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-12400 · 44763-12440 · 44763-12450 |
| 44772 | Hoses (check valve to connector tube) | 44772-02340 · 44772-02350 · 44772-02360 · 44772-12580 · 44772-12620 · 44772-12701 · 44772-12710 · 44772-12760 |
| 44772A | Clip (for check valve to connector tube) | 90466-W0008 · 90467-16014 |
| 44774 | Hoses (joints to connector tubes) | 44774-02420 · 44774-02430 · 44774-02440 · 44774-12560 · 44774-12740 · 44774-12751 · 44774-12770 · 44774-64040 |
| 44774A | Clip (for fitting to connector tube hose) | 90466-W0008 · 90467-16014 · 96133-41500 |
| 44774B | Hoses (joints to connector tubes) | 44774-28320 |
| 44774C | Clip (for fitting to connector tube hose) | 96133-41500 |
| 44785 | brake booster pad | 44785-05020 · 44785-12040 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-63020 |
| 89420H | Vacuum sensor assembly | 89421-09010 |
