Toyota COROLLA 制动总泵 — Figure 4702

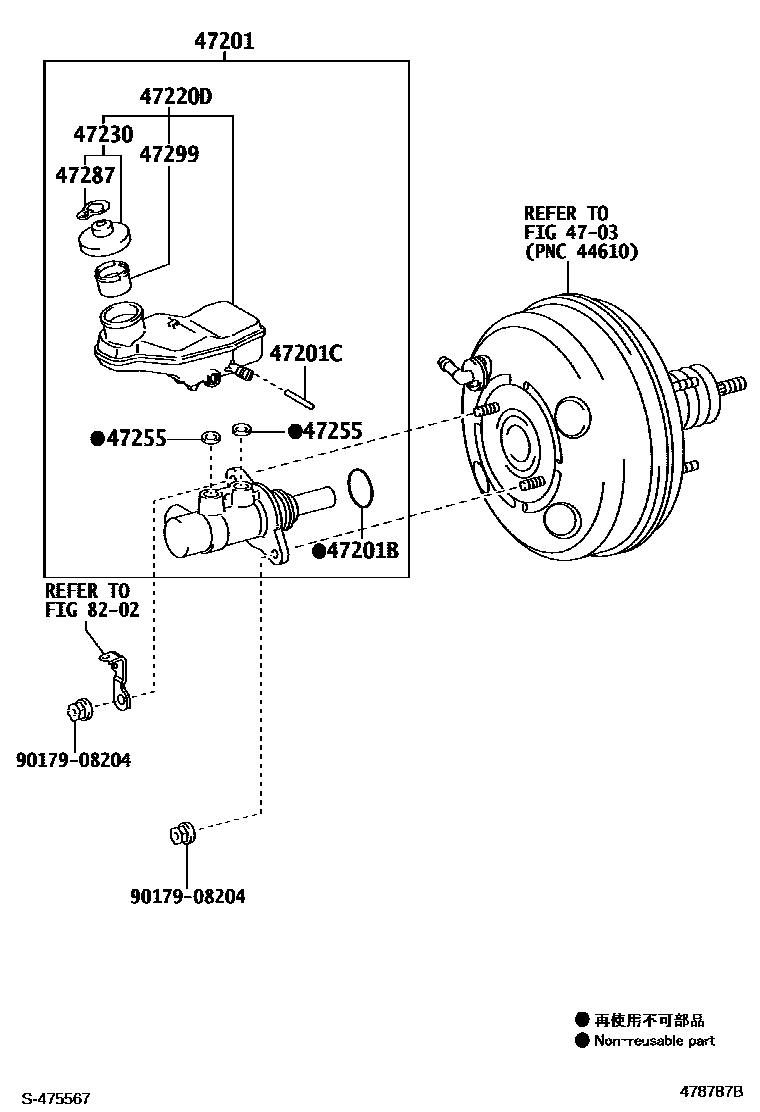

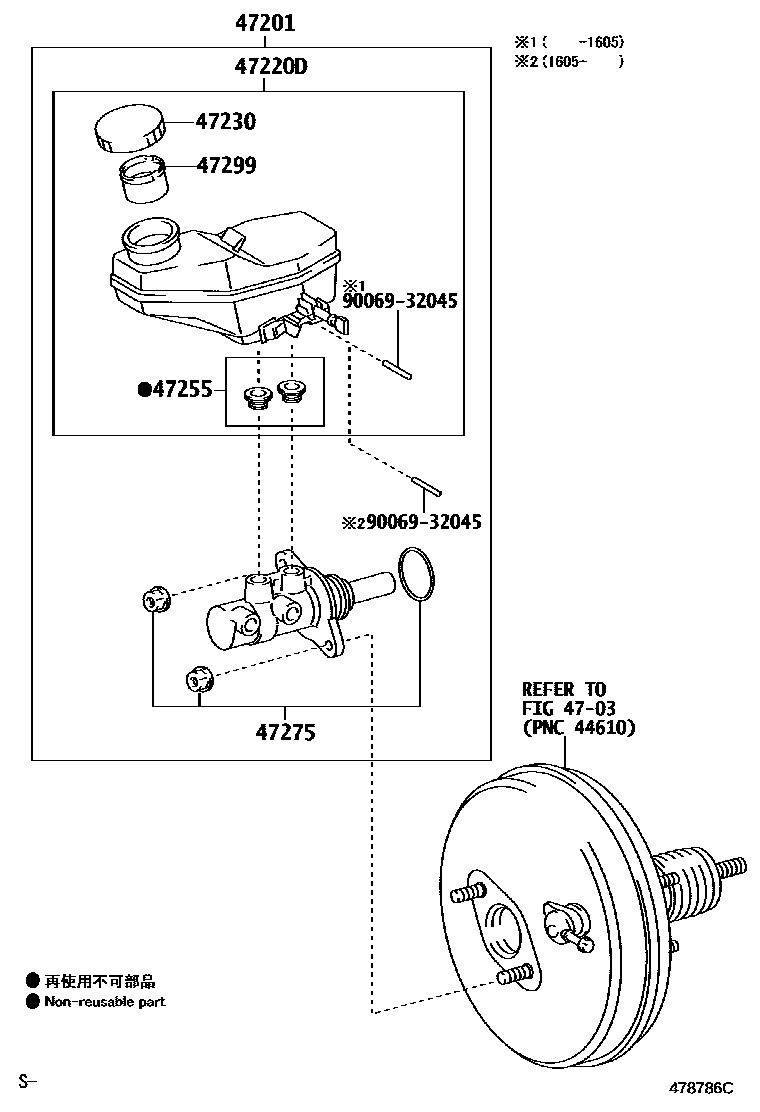

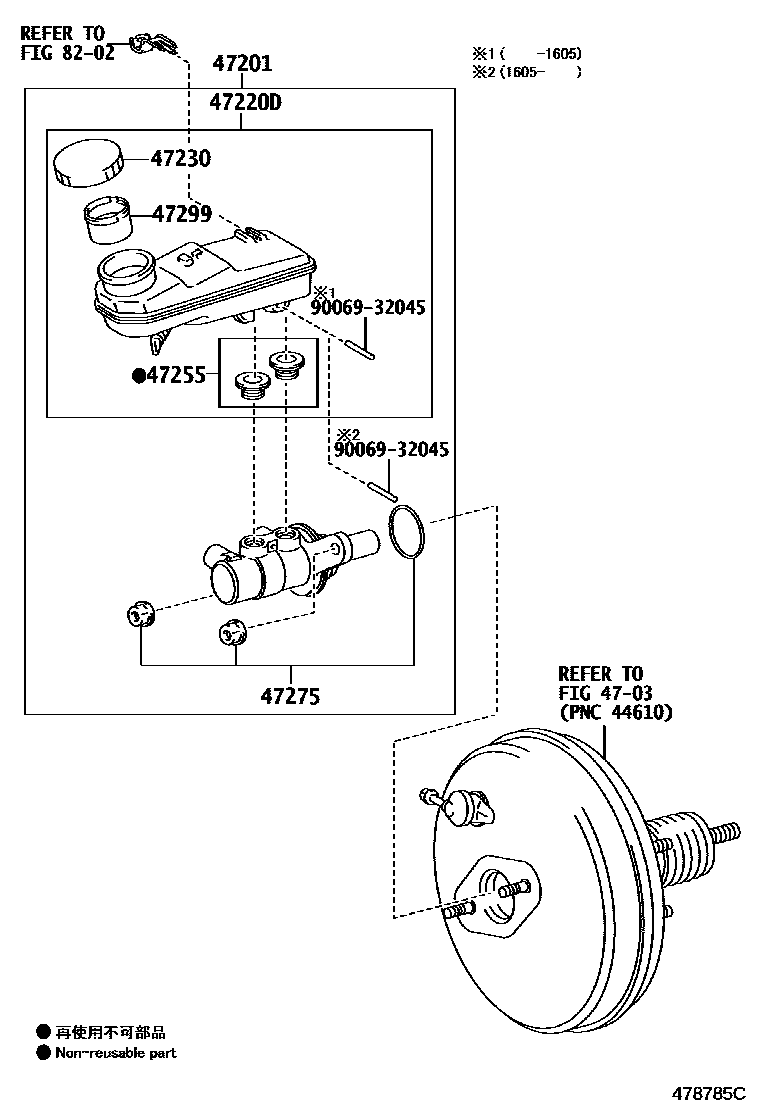

Toyota COROLLA EPC diagram 4702, 制动总泵, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47201 | Brake master cylinder sub-assembly | 47201-09710 · 47201-09720 · 47201-09730 · 47201-12A22 |
| 47201B | O-ring (for brake master cylinder) | 90015-AH002 |
| 47201C | Brake master cylinder ring pin | 90029-15803 |
| 47220D | Brake master cylinder fluid reservoir assembly | 47220-09090 · 47220-09100 · 47220-09180 · 47220-09190 · 47220-12200 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-0D010 · 47230-20140 |
| 47255 | Master pump reservoir seal | 47255-09040 · 90029-48001 |
| 47275 | brake master cylinder gasket | 47275-09010 |
| 47287 | brake fluid information label | 47287-20010 |
| 47299 | Brake master cylinder reservoir filter | 47299-02160 · 47299-20060 |
