Toyota COROLLA Brake Pedal & Bracket — Figure 4701

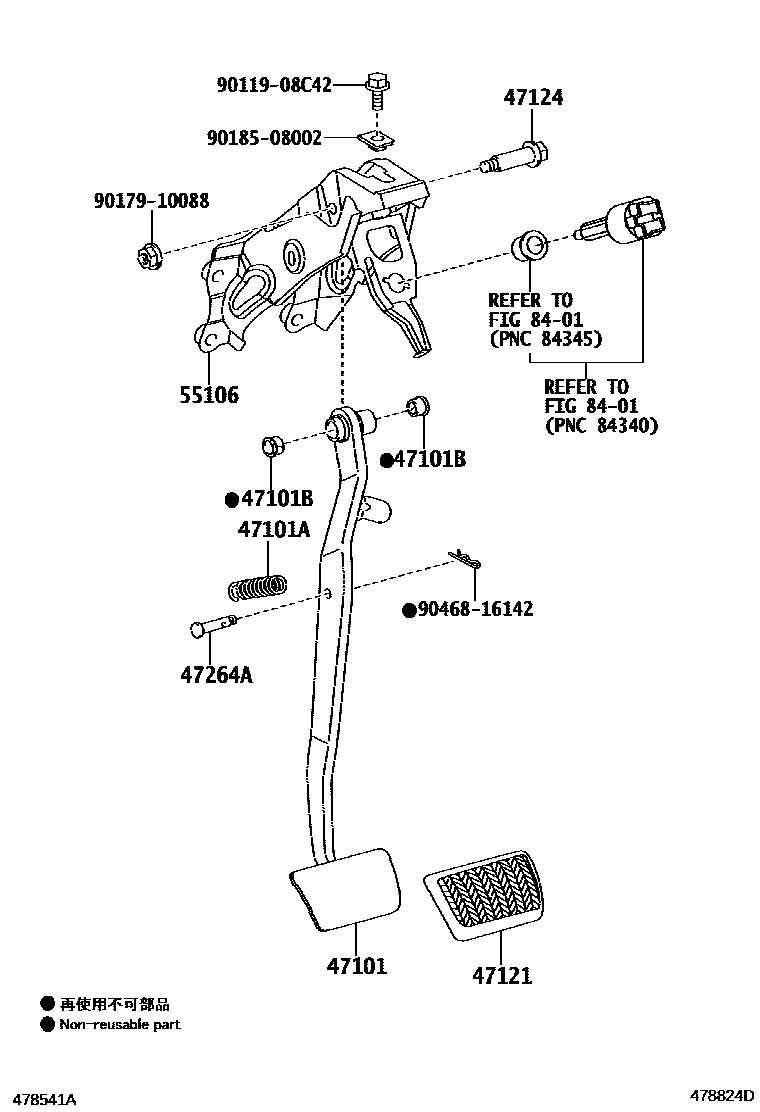

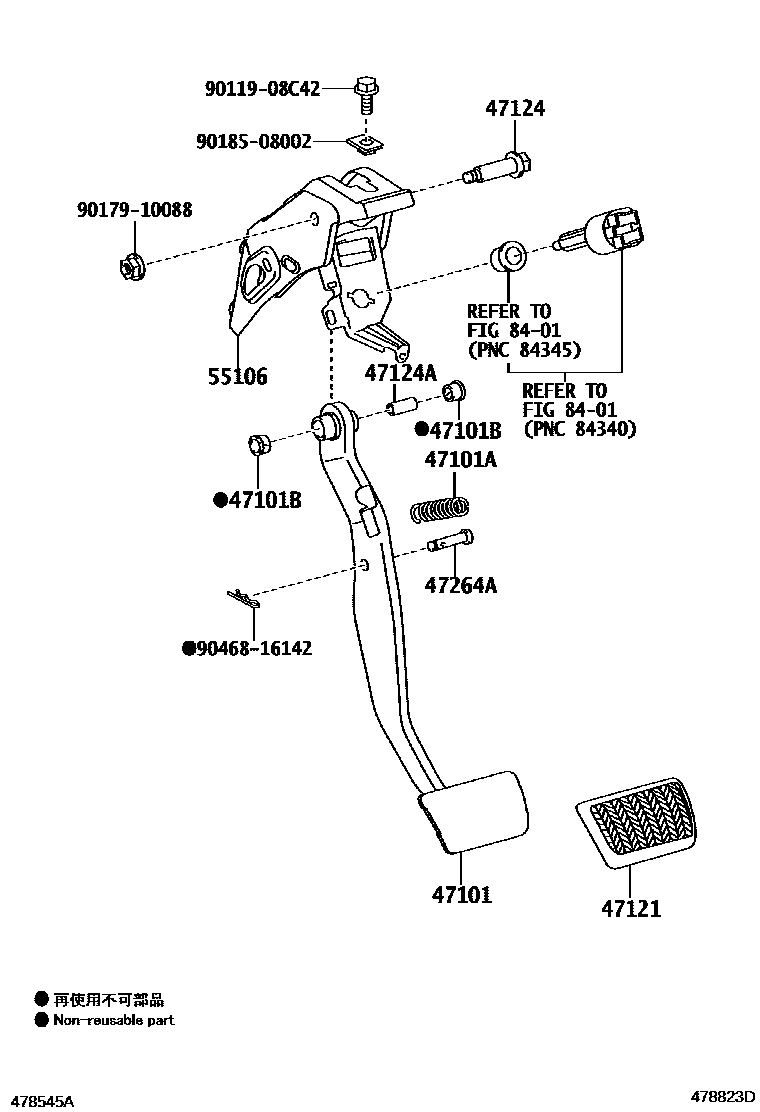

Toyota COROLLA EPC diagram 4701, Brake Pedal & Bracket, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47101 | Brake pedal sub-assembly | 47101-02450 · 47101-02460 · 47101-12710 · 47101-12720 |
| 47101A | Spring (for brake pedal return) | 90507-15007 |
| 47101B | Bushing (for brake pedal) | 90386-13015 |
| 47121 | brake pedal pad | 31321-42010 · 47121-42010 |
| 47124 | brake pedal shaft | 90101-10039 · 90109-10174 |
| 47124A | Collar (for brake pedal shaft) | 90387-10003 |
| 47264A | Pin (for push rod) | 47148-33011 |
| 55106 | Brake pedal bracket sub-assembly | 55106-02160 · 55106-12680 |
