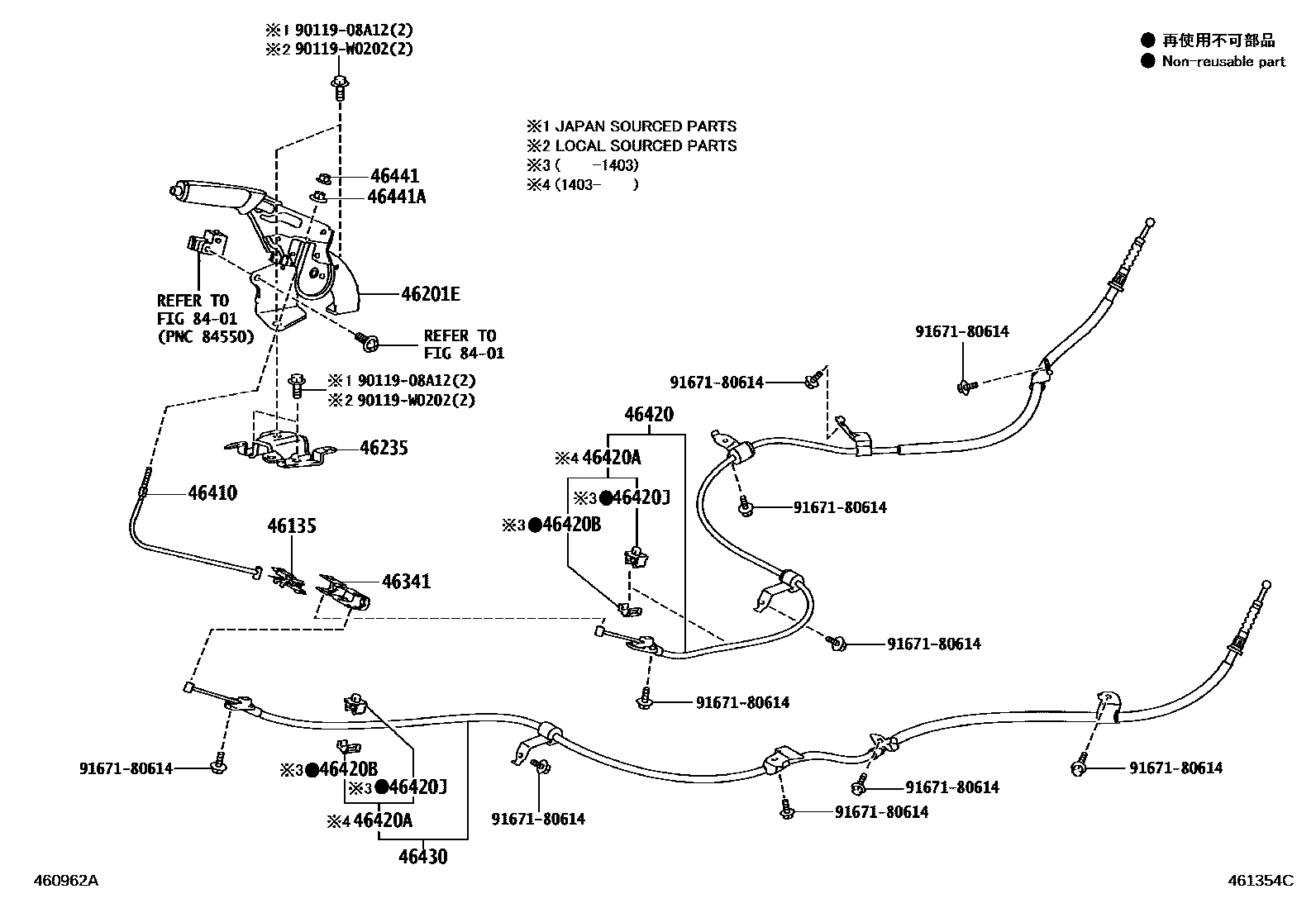

Toyota COROLLA Parking Brake & Cable — Figure 4601
Toyota COROLLA EPC diagram 4601, Parking Brake & Cable, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46135 | Parking brake cable end stop | 46135-02040 |
| 46235 | Parking brake lever bracket | 46235-02030 |
| 46341 | Parking brake balancer | 46341-02110 |
| 46410 | Parking brake cable assembly No. 1 | 46410-02140 |
| 46420 | Parking brake No. 2 cable assembly | 46420-02300 |
| 46420A | Clamp No. 1 (for parking brake cable) | 46402-12030 |
| 46420B | Clamp No. 2 (for parking brake cable) | 46411-12040 |
| 46420J | Clamp No. 3 (for parking brake cable) | 46411-12030 |
| 46430 | Parking brake No. 3 cable assembly | 46430-02300 |
| 46441 | No. 1 cable adjustment nut | 90179-06299 |
| 46441A | No. 2 cable adjustment nut | 46441-12010 |
