Toyota COROLLA Front Axle Hub — Figure 4303

Toyota COROLLA EPC diagram 4303, Front Axle Hub, with 1 images and 7 PNC and OE references.

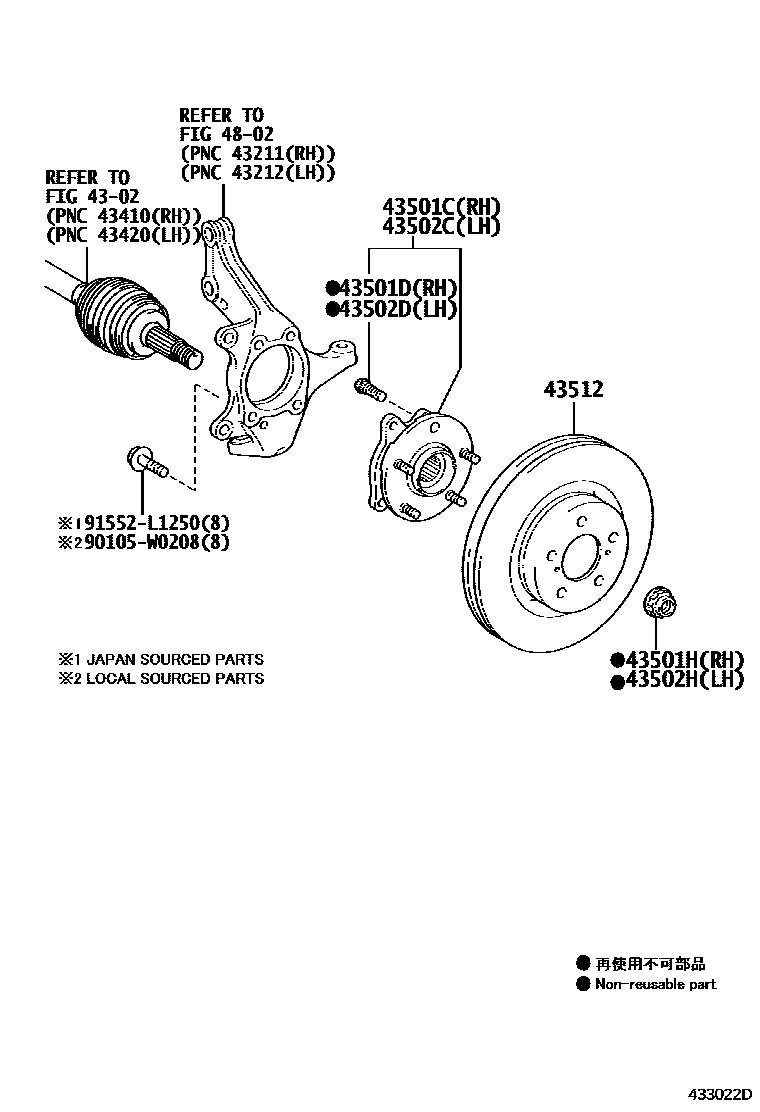

Toyota COROLLA Front Axle Hub EPC diagram — 433022D
Front Axle Hub — 433022D (201306 – 999999)

PNC and OE references

PNCPart nameOE numbers
43501CRight front axle hub sub-assembly43550-02010
43501DHub bolt (for right front axle)90942-02049
43501HNut (for front axle right half shaft)90177-22001
43502CLeft front axle wheel hub sub-assembly43550-02010
43502DHub bolt (for left front axle)90942-02049
43502HNut (for front axle left half shaft)90177-22001
43512front brake disc43512-02330 · 43512-12670
