Toyota COROLLA 前桥壳和差速器 — Figure 4301

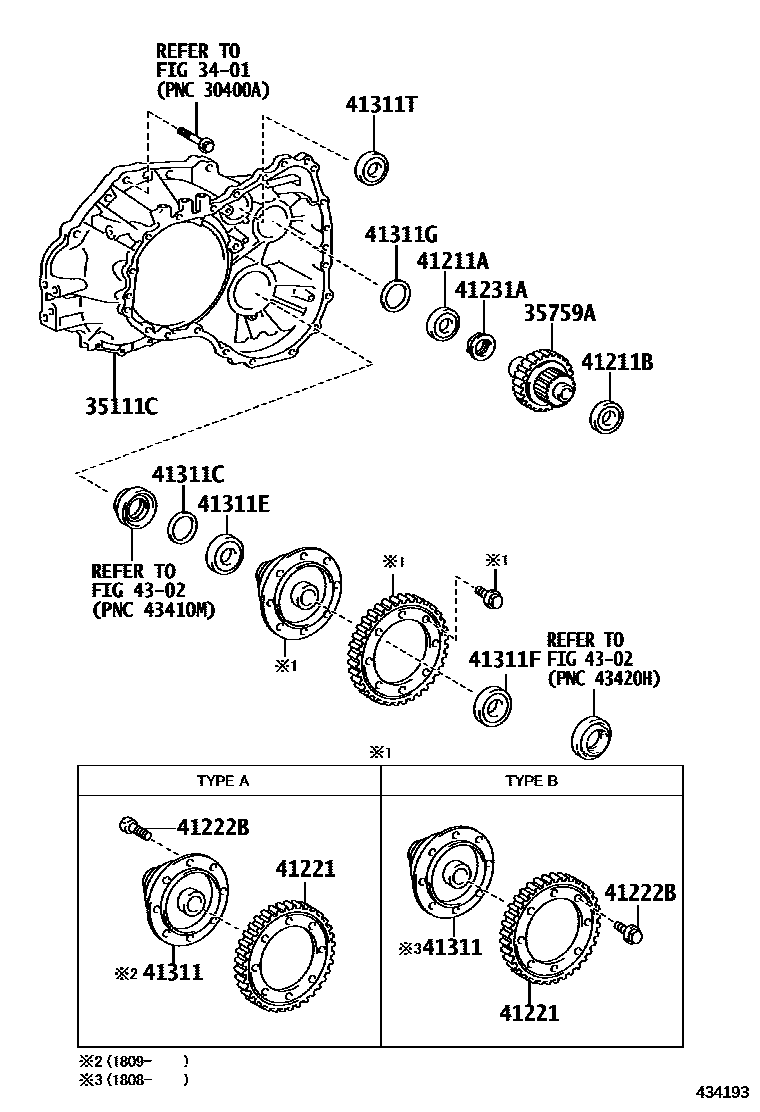

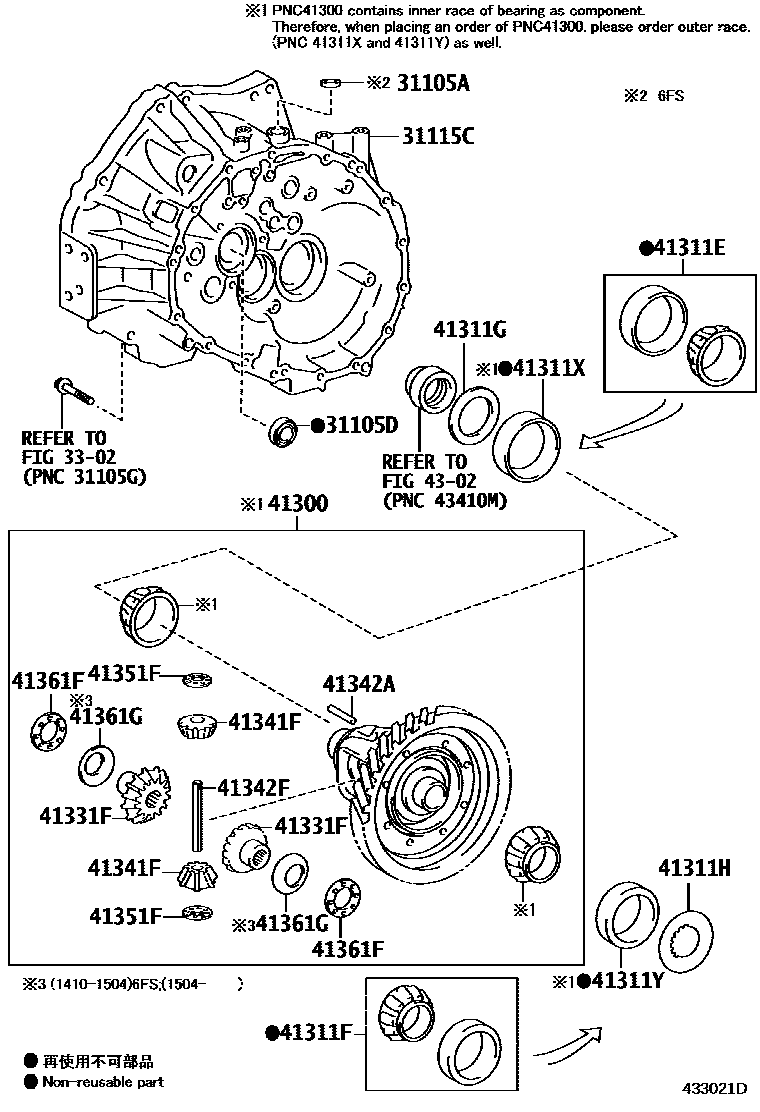

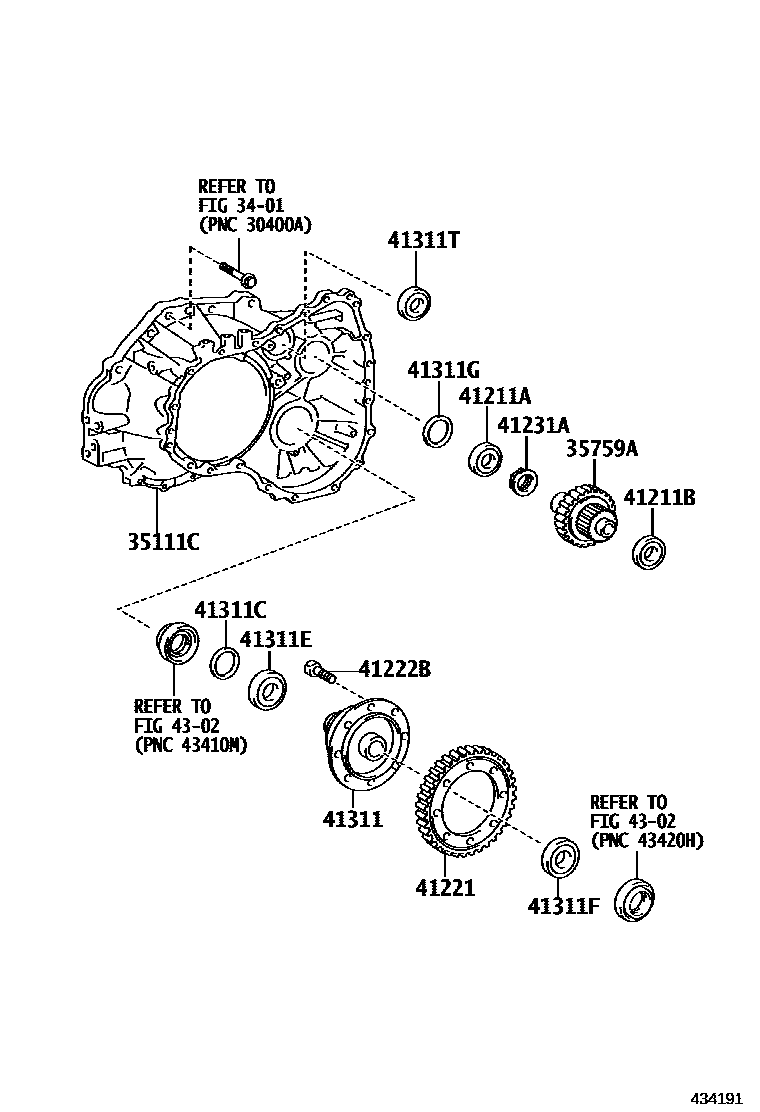

Toyota COROLLA EPC diagram 4301, 前桥壳和差速器, with 3 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105A | Sealing plug (for front transaxle housing) | 90331-25005 |
| 31105D | No. 1 oil seal (for front transmission axle housing) | 90311-25030 |
| 31115C | Front transmission axle housing (MTM) | 31115-05030 · 31115-05031 · 31115-0D110 · 31115-0D111 · 31115-0D120 · 31115-0D121 · 31115-12171 · 31115-52140 · 31115-52141 |
| 35111C | Transmission axle housing | 35105-12091 |
| 35759A | PIGNON, MENANT DEMULTIPLICATEUR | 35705-12030 |
| 41211A | Front roller tapered bearing (for front driving pinion) | 90366-25021 |
| 41211B | Rear tapered bearing (for front driving pinion) | 90366-29010 |
| 41221 | Front differential ring gear | 41221-12441 · 41221-12620 |
| 41222B | Bolt (for front differential ring gear assembly) | 90105-12379 |
| 41231A | Drive pinion lock nut | 90179-32006 |
| 41300 | Front differential case assembly with ring gear | 41300-02020 · 41300-02030 · 41300-02060 · 41300-02070 · 41300-02080 · 41300-12010 · 41300-12040 |
| 41311 | front differential case | 41301-12223 · 41301-12224 · 41301-12381 |
| 41311C | Rear gasket (for front differential case) | 90564-48001 · 90564-48002 · 90564-48003 · 90564-48004 · 90564-48005 · 90564-48006 · 90564-48007 · 90564-48008 · 90564-48009 · 90564-48010 · 90564-48011 · 90564-48012 · 90564-48013 · 90564-48014 · 90564-48015 · 90564-48016 · 90564-48017 · 90564-48018 · 90564-48019 · 90564-48020 |
| 41311E | Front roller tapered bearing (for front differential housing) | 90080-36143 · 90366-40117 · 90366-40129 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-42009 · 90366-44007 · 90366-W0013 |
| 41311G | Front flat washer (for front differential case) | 90560-41003 · 90564-47001 · 90564-47002 · 90564-47003 · 90564-47004 · 90564-47005 · 90564-47006 · 90564-47007 · 90564-47008 · 90564-47009 · 90564-47010 · 90564-47011 · 90564-47012 · 90564-47013 · 90564-47014 · 90564-47015 · 90564-47016 · 90564-47017 · 90564-47018 · 90564-47019 |
| 41311H | Rear flat washer (for front differential case) | 90564-44039 · 90564-44040 · 90564-44041 · 90564-44042 · 90564-44043 · 90564-44044 · 90564-44045 · 90564-44046 · 90564-44047 · 90564-44048 · 90564-44049 · 90564-44050 · 90564-44051 · 90564-44052 · 90564-44053 · 90564-44054 · 90564-44055 · 90564-44056 · 90564-44057 · 90564-44058 · 90564-44059 · 90564-44060 · 90564-44061 · 90564-44062 · 90564-44063 · 90564-44064 · 90564-44065 · 90564-44066 · 90564-44067 · 90564-44068 · 90564-44069 |
| 41311T | ROULEMENT, ROULEAU CYLIN (POUR ARBRE SECON A GALET) | 90365-24001 |
| 41311X | Roller cone bearing outer race (for front differential) | 90080-36144 · 90366-40130 |
| 41311Y | Roller cone bearing outer race (for rear differential) | 90366-42010 · 90366-W0014 |
| 41331F | Front differential side gear | 41331-05030 · 41331-0D050 · 41331-0D070 · 41331-12190 · 41331-20130 |
| 41341F | Front differential planetary gear | 41341-05030 · 41341-0D050 · 41341-0D070 · 41341-12130 · 41341-20050 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-06058 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-32020 · 41342-52060 |
| 41351F | Front differential planetary gear thrust washer | 41351-12020 · 41351-32010 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-22020 · 41361-22030 · 41361-22040 · 41361-22120 · 41361-22130 · 41361-22140 · 41361-22150 · 41361-22160 · 41361-22170 · 41361-22180 · 41361-48010 |
| 41361G | Conical spring washer (for center differential side gears) | 90208-35001 |
